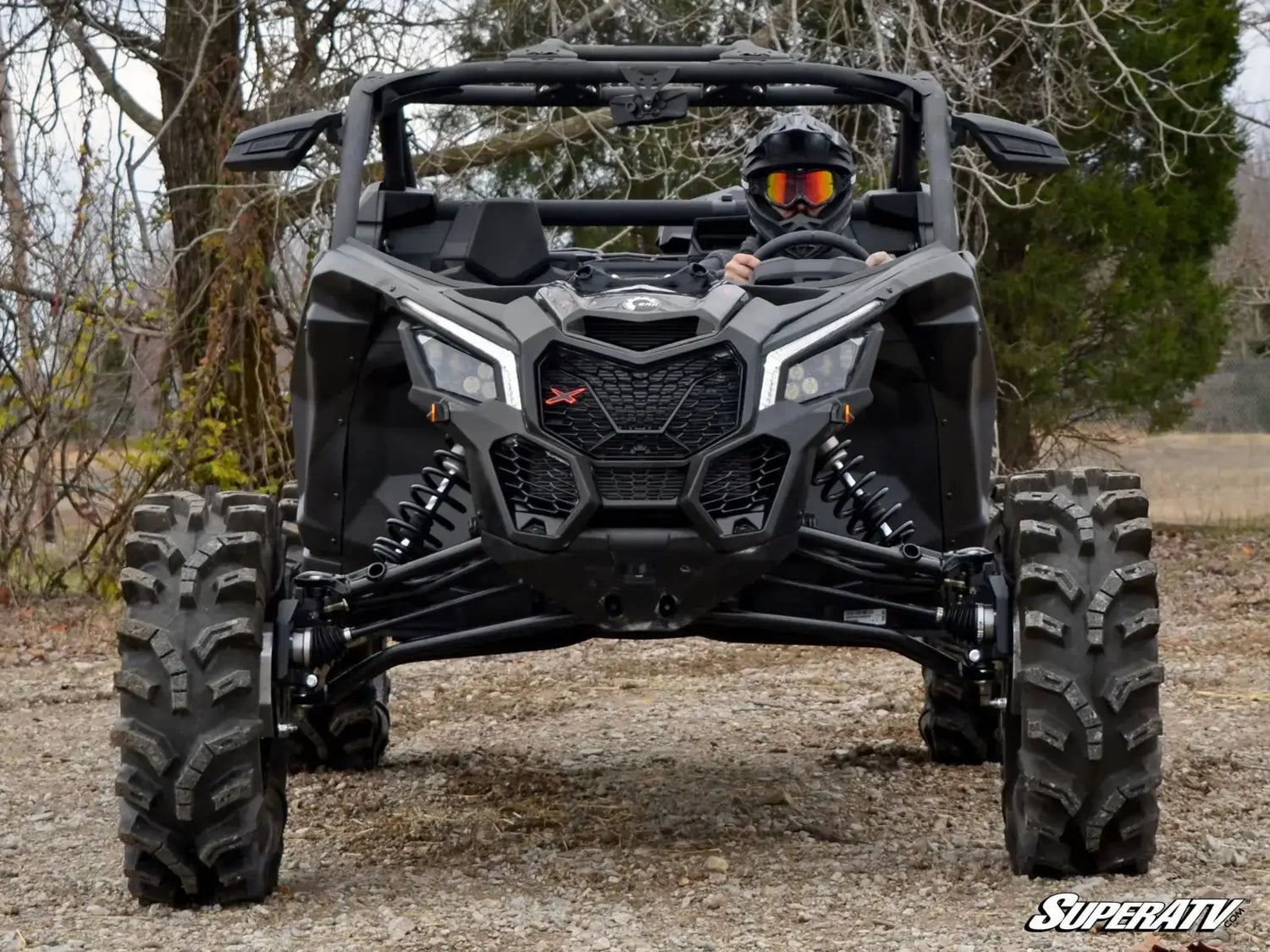

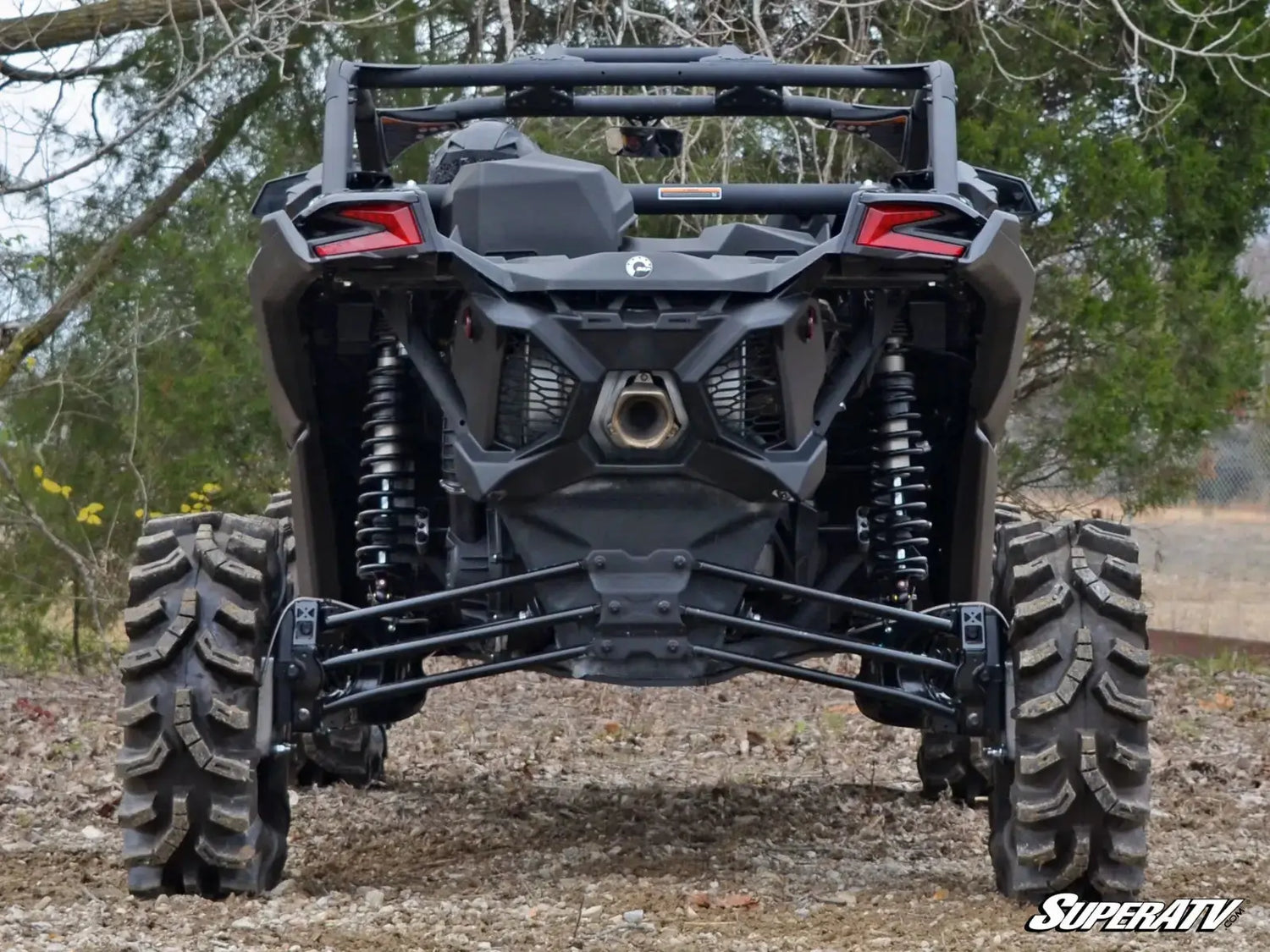

CAN-AM MAVERICK X3 4" PORTAL GEAR LIFT
CAN-AM MAVERICK X3 4" PORTAL GEAR LIFT
Couldn't load pickup availability
The Can-Am Maverick X3 is good at just about everything. People build them for mud, for racing, for dunes, and for trail riding—the possibilities are endless. Now you can build your Can-Am X3 your way with a 4” GDP Portal Gear Lift from SuperATV. GDP didn’t make the first side-by-side portal kit on the market—just the first kit that anybody gave a damn about. Choose a 15% or 30% gear reduction, or add dual idler gears for over-the-top strength. GDP gives you options so you can break the norm and do whatever you want.

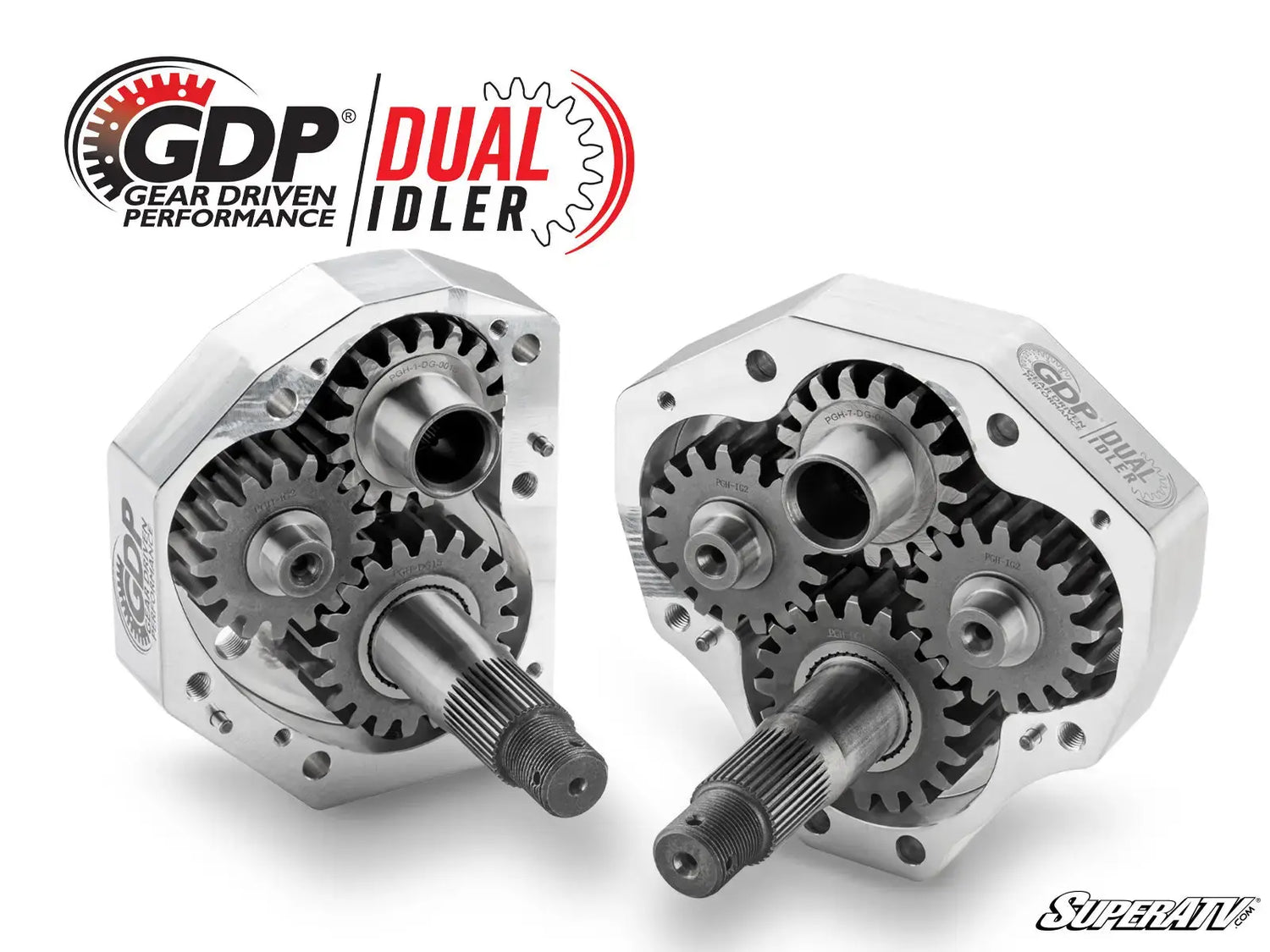

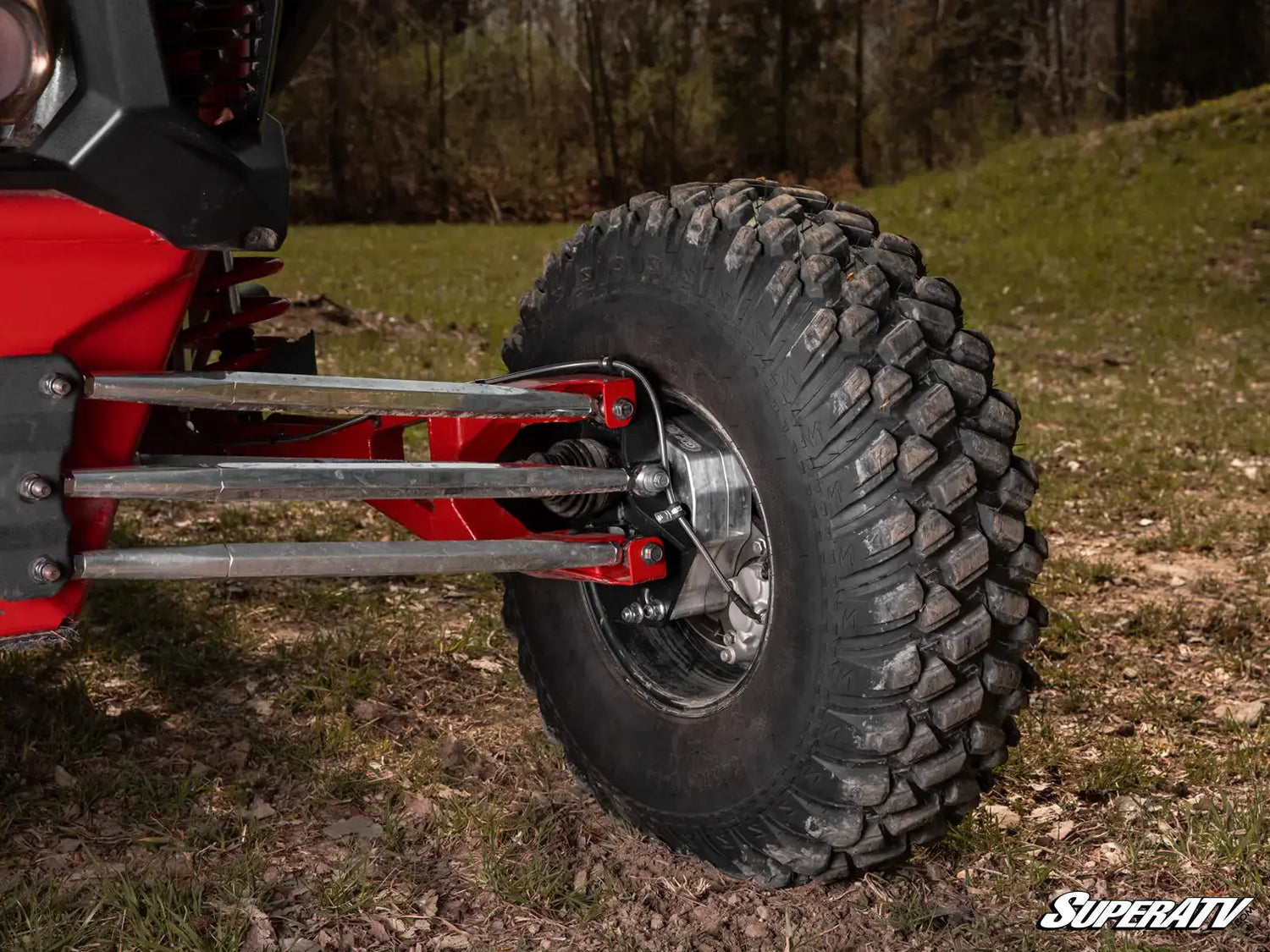

What Is a Dual Idler®?

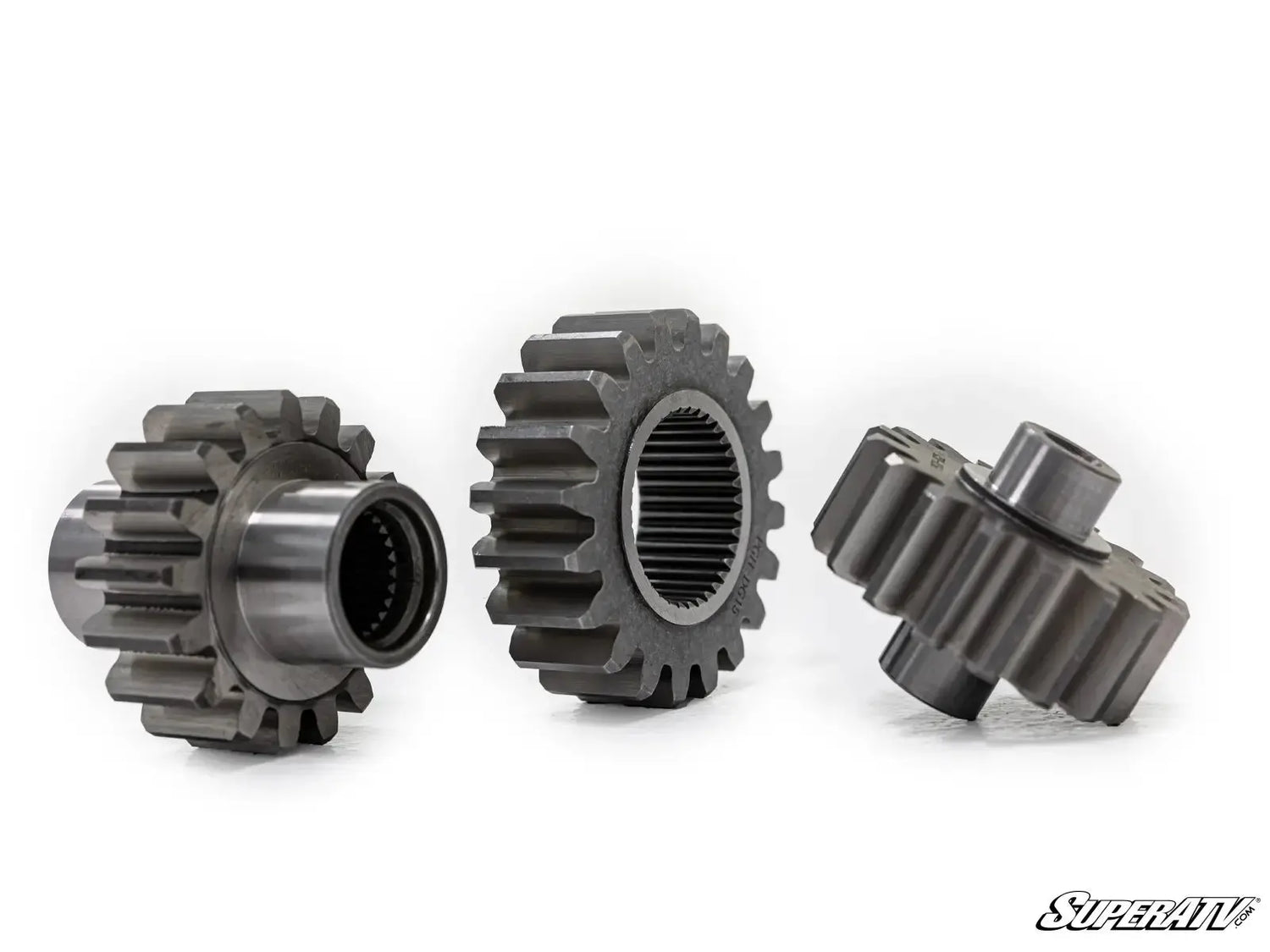

Perfection takes time. After years of research and development, we’ve made our dual idler gear portals unlike any other. By placing a second idler gear in the portal box, the load gets spread over twice as much surface area for more reliable torque transfer and the strongest gear set you can get. Two idler gears don’t do a thing if they’re not mated perfectly, though. Precision CNC grinding ensures ours do. Our gears are made from the industry’s toughest 9310 steel alloy. Didn’t think dual idlers mattered? With GDP’s quality and experience, they finally do.
Perfect for All Riding Styles
We don’t like to put riders in a box. That’s why GDP Portal Gear Lifts are designed for every rider and every terrain type. Whether you dominate the dunes, trails, or mud pits, GDP will make your experience better. A 15% gear reduction will give you faster rides that pack enough torque to get wild, and the 30% option is perfect for gearing down and going big with monster tires. And if you’re the kind of rider who regularly pushes your machine to its breaking point, you’ll want to grab some dual idlers. Our Maverick X3 portals have all the strength you need to push it to the limits.
The Strongest Portals in Existence

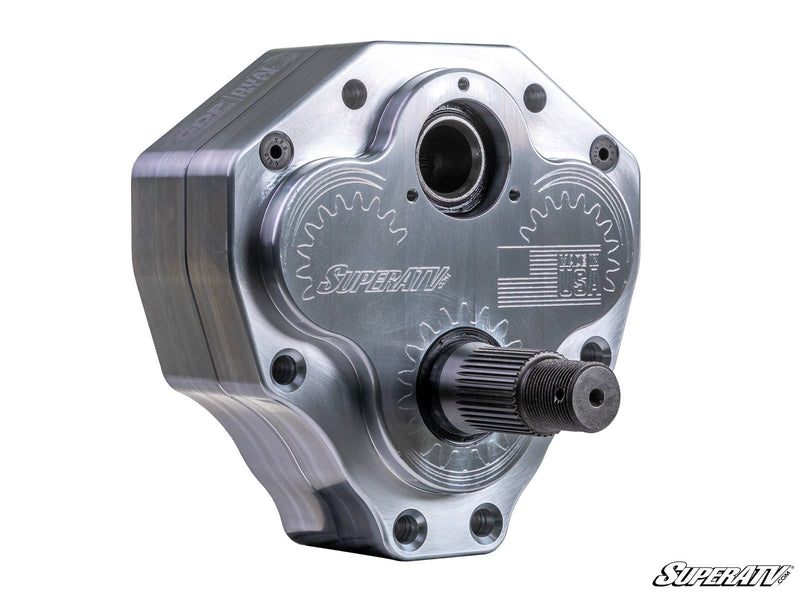

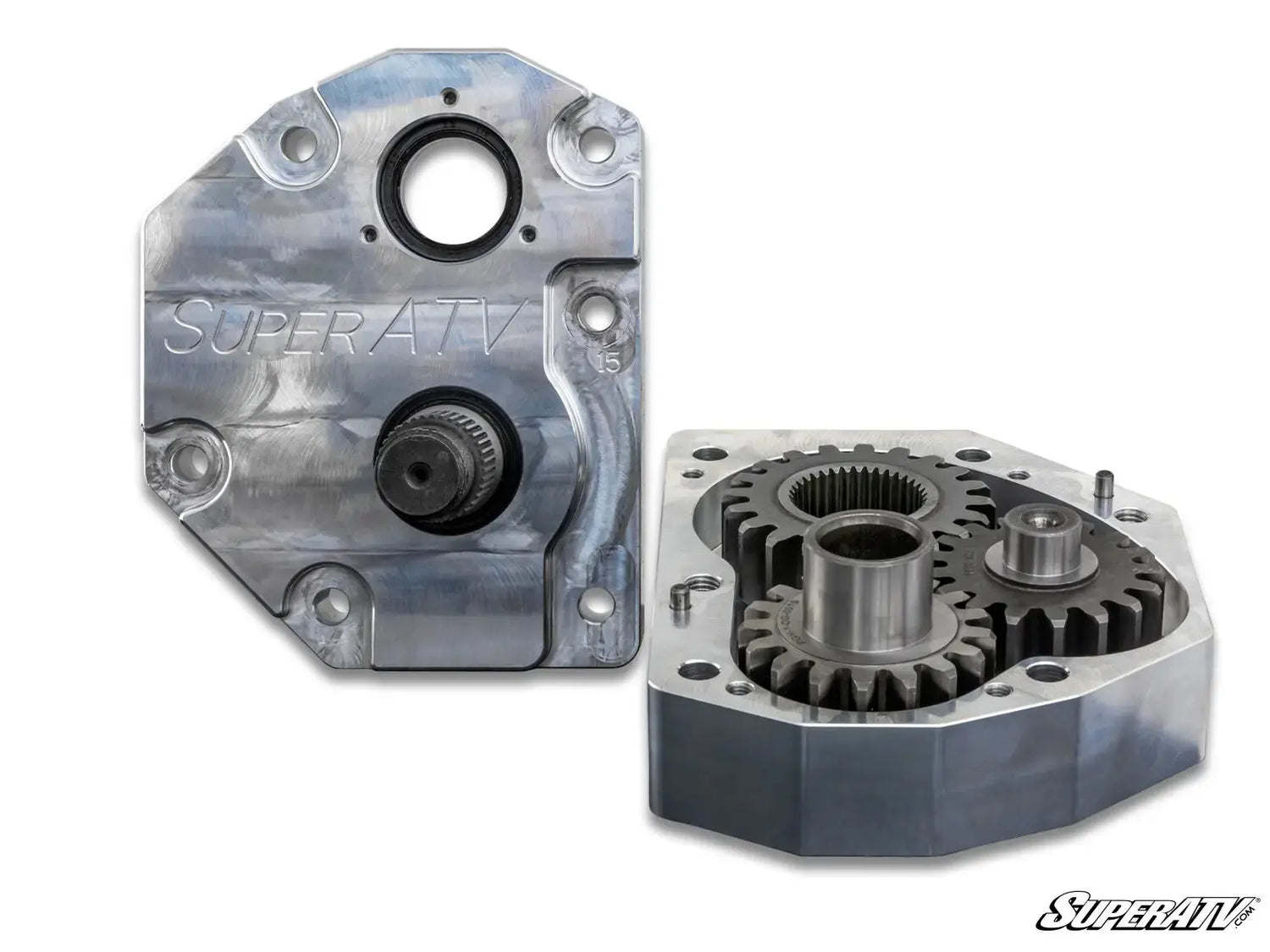

GDP Portals are the strongest on the planet, so if you’re wondering whether they can handle the trail abuse you’re used to, rest assured they can. They’re available in cast and billet aluminum housings that are thicker and stronger than anything else on the market. Add our 5/16” backing plates made from an advanced steel alloy and you’re left with absolutely unbeatable Can-Am portals.
- Our housings are reinforced for gear retention and optimized for oil flow
- Advanced steel alloy backing plates are stronger than chromoly
- Enhance with Portal Blood—gear oil formulated for GDP Portals
- There are no gimmicks and no vents because vents do more harm than good—we know because we tested them

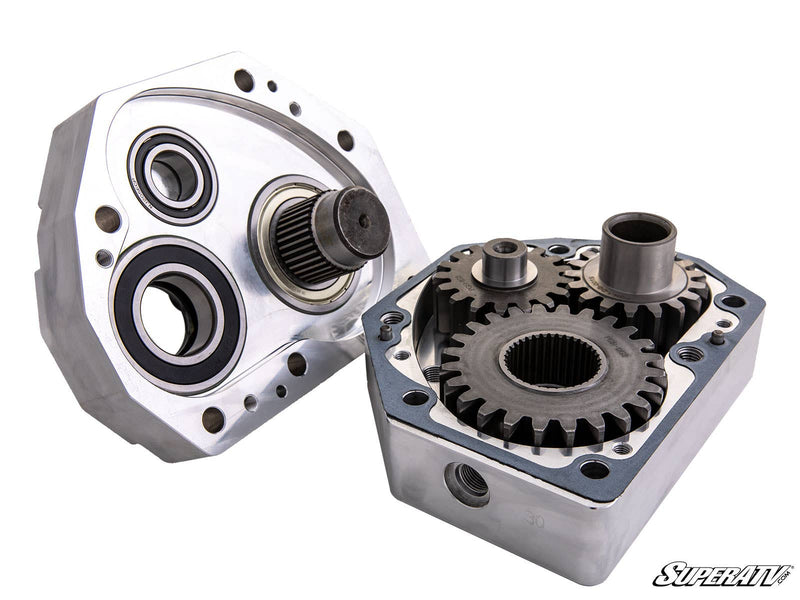

Advanced Gaskets, Seals, and Bearings
Our portals use:
- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- A sealed input gear and double-lipped output seal
- 100% sealing coverage throughout so you can forget about oil leaks
- Double-angular contact output bearings to prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
Get a Frame Stiffener for Added Reinforcement
Portal gear lifts are made for hardcore, no-holds-barred adventures. But that type of riding, combined with bigger tires and a lift, puts a ton of strain on your Can-Am X3’s frame. Protect your chassis by adding a SuperATV Frame Stiffener so you can ride without worry.
Top-Rated Customer Service
Still need a little help getting exactly what you need? With GDP, you get a dedicated portal tech support team. Give us a call so we can get the perfect set of portals in your hands today.
| 4” Portal Gear Lift Includes: | ||
|---|---|---|
| (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings | ||
| (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs | ||
| (4) Specialized steel alloy backing plates | ||
| (4) Steel caliper mounting plates | ||
| (2) Steel steering arms | ||
| Extended brake lines | ||
| All required hardware, including recessed castle nut socket and heim installation tool | ||
| Frame stiffener (optional) | ||
| Can-Am Maverick X3 Portal Gear Reduction Recommendations | ||
|---|---|---|
| Tire Size | Required Suspension Setup with 4" Portals | Recommended 4" Portal Gear Reduction |
| Up to 32" | Stock | 15% |
| Up to 32" | 3" Lift Kit | 15% |
| Gear reductions listed are general guidelines to maintain factory top speed. Installing a larger than recommended gear reduction will result in extra torque and lower top speed. Give us a call for more information. | ||
Patent # 11,299,042
Patent # 11,318,787
WARNING: This product can impact machine operation. Customer and/or user is responsible for ensuring that this product is compatible with their machine as currently configured, properly installed, and understands any impact this product has or might have on the machine's operation.
⚠ California Proposition 65 Warning ⚠
WARNING: This product may contain a chemical known to the State of California to cause cancer or birth defects or other reproductive harm.
|
Limited Lifetime Warranty When filling gear box use only 80W-90 gear oil. Using grease will cause failure of gears and bearings. Using grease will void your warranty. SuperATV takes pride keeping your GDP Portal Gear Lift in working order. That’s why we give you, the original purchaser, a lifetime of portal protection contingent on the following conditions. SuperATV warrants this product and its parts (excluding bearings, rotors, seals, & gaskets). Warranty is limited to material and / or workmanship defect at the time of shipment from the factory, and in no event shall seller have any liability for consequential damages of any kind resulting from a breach of this warranty. This warranty will be void on all products that show evidence of misapplication, improper installation, abuse, lack of proper maintenance, negligence, or alteration from original design. This warranty is in lieu of any other warranties, either expressed or implied, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTIBILTY OR FITNESS FOR ANY PARTICULAR PURPOSE. Procedures for obtaining warranty service: Should you have any problems with your Gear Driven Performance product, please call SuperATV Customer Service at 855-743-3427. Please have a copy of your original purchase receipt available, with dealer name (if applicable), date of purchase, and invoice number when calling for technical help. Most often, installation, or break in procedural issues (See break in procedure information, located in the instructions) can be handled quickly by speaking with one of our customer service representatives. If it is determined that repairs are required to your Gear Driven Performance portal, you MUST acquire an RGA number from our customer service team. RGA's and repair services are ONLY rendered by SuperATV. Any shipping costs incurred after 30 days (starting from the original purchase date) on any Portal returned for repair is the customer's responsibility. ALL Portals must be returned in the original box, with the original packaging, or a similarly well protected box. ALL portals must have the RGA number clearly written on the outside of the package. NO COD packages will be accepted, and no package will be accepted without an RGA number written on the outside of the box. Shipping information, including address and method, will be given to you by our customer service team and/or listed on our website when you create your RGA. Upon arrival of your warranty parts we will have them inspected by our technicians to determine if the damage was a manufacturing defect or rider/installation error. The inspection usually takes place 1-2 days after the package arrives. SuperATV will then call you with the results of the inspection. Depending on the outcome of the inspection, you may be required to pay a replacement fee for the broken parts (prices may vary depending on parts that need to be replaced). We do our best to get your issues corrected as soon as possible so you can get back out on the trails. We also match shipping labels for our customers. If you ship the warranty parts to us with an overnight label, we will return the favor and send you the replacements parts on an overnight shipment at no charge. If you have product that is outside of warranty coverage or it is determined that product shows evidence of misapplication, improper installation, abuse, lack of proper maintenance, negligence, or alteration from original design. Customer will be notified and we will repair for a $250 fee. Replacement bearings, seals and gaskets can be found at https://platinumhpsolutions.com . Thank you for your business! |
