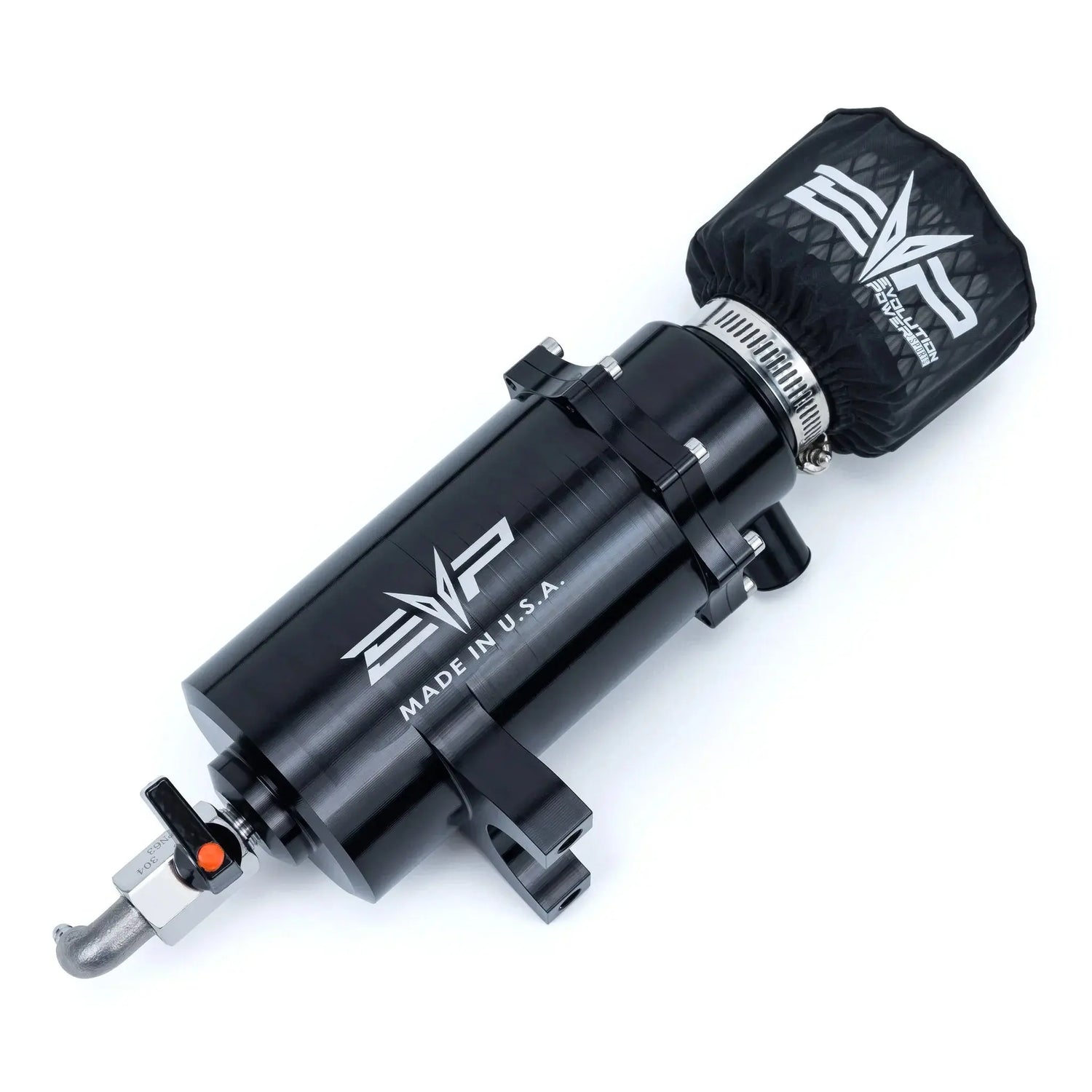

Catch Can Kit for Can-Am Maverick R

The EVP Billet Catch Can Kit for the Can-Am Maverick R is a high-performance filtration system designed to solve a common issue in turbocharged engines: oil and crankcase vapors contaminating the intake tract. In a factory setup, these vapors are often recirculated into the turbocharger, which can coat the intercooler, lower the effective octane of your fuel, and cause power loss.

By utilizing a CNC-machined separation canister, this kit "catches" oil and moisture, ensuring only clean air enters your engine’s combustion chamber.

Strategic Mounting & Driver Comfort

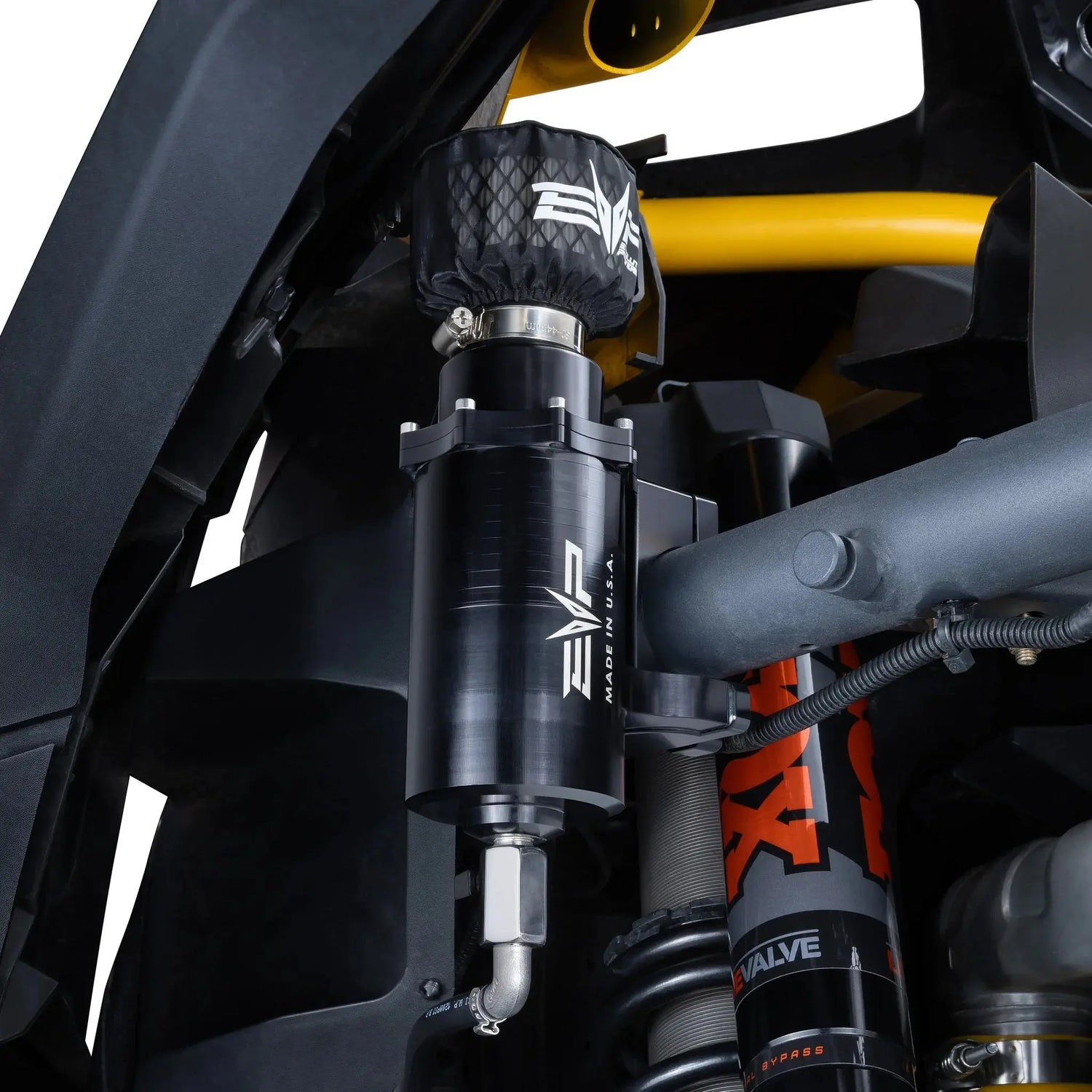

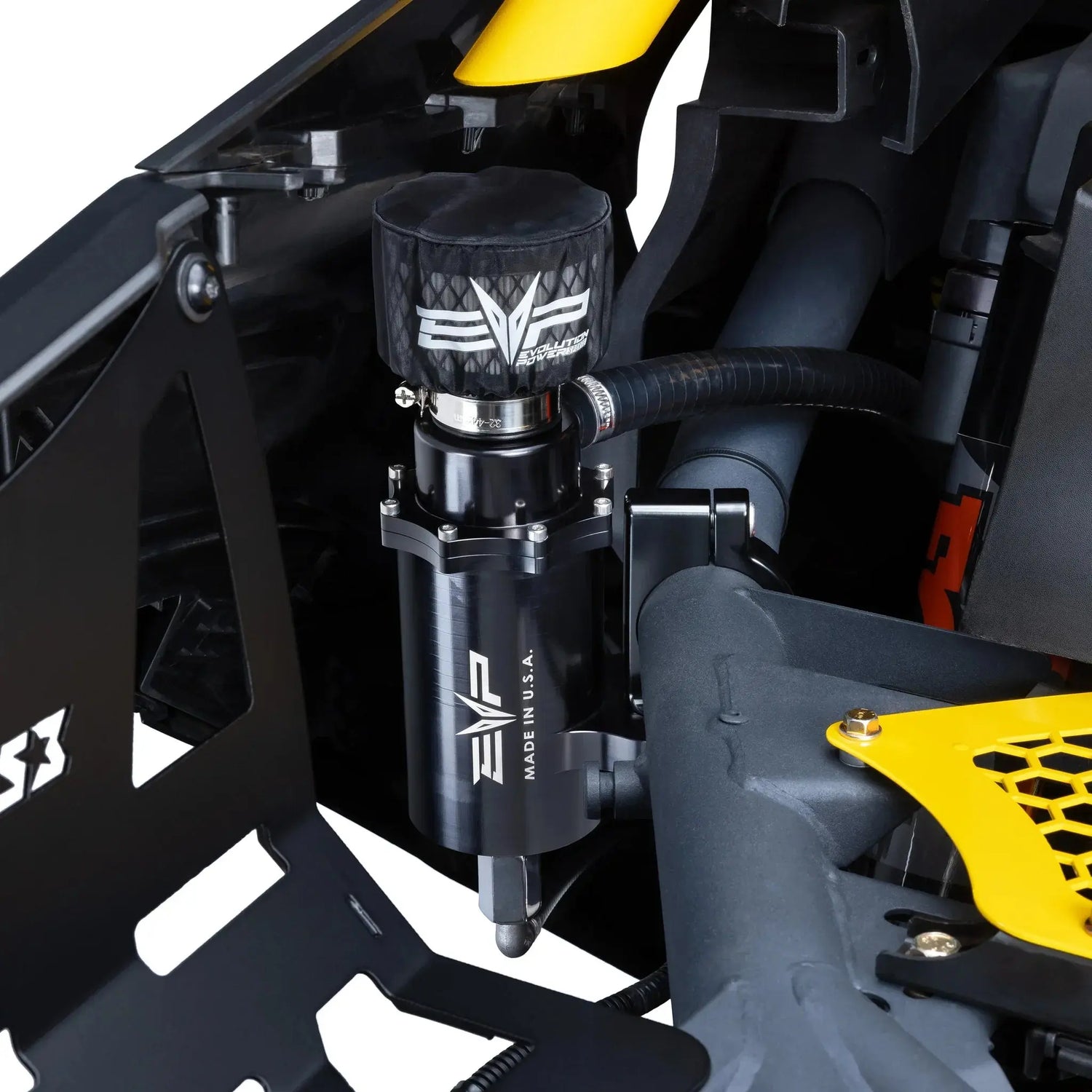

Unlike most aftermarket kits that mount to the firewall—where oil vapors can easily infiltrate the cab and affect the driver—EVP has engineered a frame-rail mount located toward the rear of the machine. This keeps the venting gases away from the passenger compartment for a cleaner, more enjoyable ride.

Advanced Vapor Separation

This is not a simple "empty can." It features a multi-stage separation process to ensure maximum efficiency:

• Perforated Stainless Baffle: An integrated internal baffle prevents oil from siphoning back out once it has been collected.

• Stainless Steel Screen Packing: Provides additional surface area for oil vapors to condense into liquid form, separating them from the air.

• Oversized Custom Hose: Includes a custom-molded hose that increases in diameter from the valve cover to the canister, reducing backpressure on the crankcase.

Premium Build & Ease of Use

• Solid Billet Construction: The entire body and frame mount are machined from a solid block of 6061-T6 aluminum. Because there are no welds, there is zero risk of the canister cracking or breaking under extreme off-road vibration.

• Petcock-Style Drain: Features a hassle-free release valve at the bottom, allowing you to drain collected oil periodically with zero mess.

• 45-Degree Adjustability: While it ships ready for the frame rail, the billet cap can be rotated in 45-degree increments, allowing for virtually any custom mounting location if you have specialized accessories.

• Anodized Finish: Finished in a sleek black anodize with stainless steel hardware for long-term corrosion resistance.

Performance Benefits

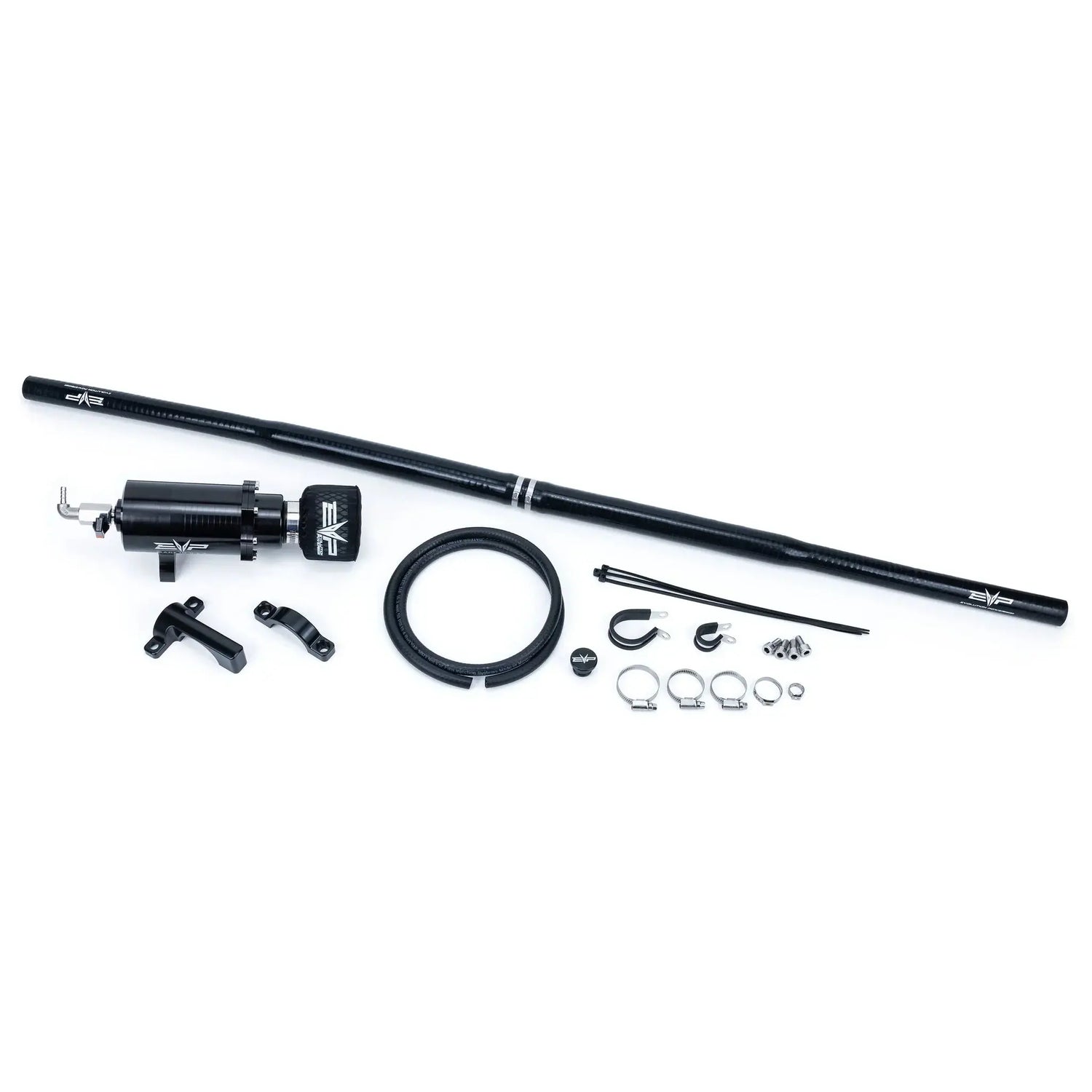

Kit Includes:

• CNC Billet Canister & Frame Mount

• High-Flow Custom Intake Hose

• Filter Element & Hydrophobic Pre-Filter

• All Stainless Steel Mounting Hardware

Pro Tip: If you are running high-boost X85 or P47 Turbo tunes, a catch can is considered a mandatory "supporting mod." Increased boost naturally leads to higher crankcase pressure (blow-by), making an efficient separation system critical for protecting your engine and maintaining peak performance.
