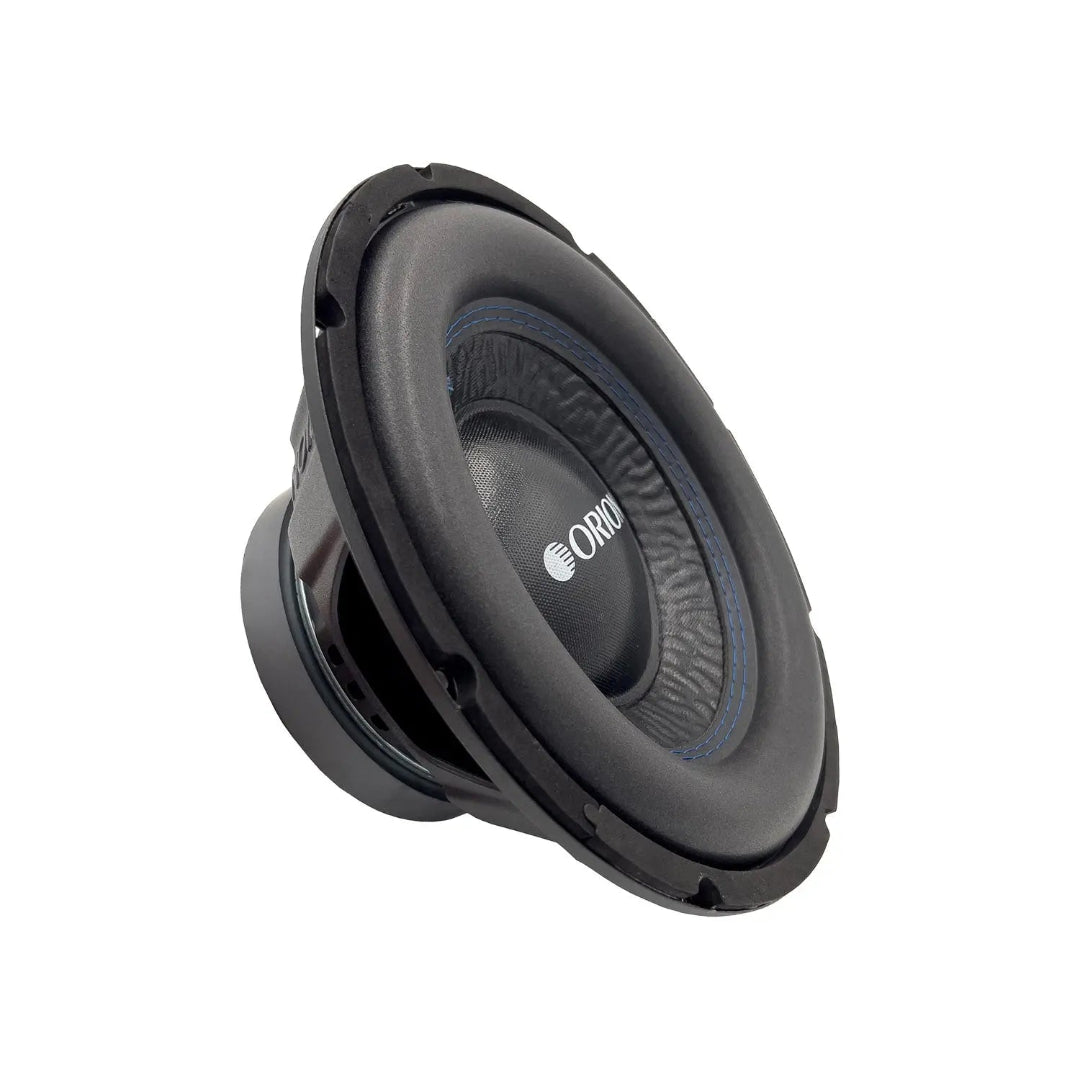

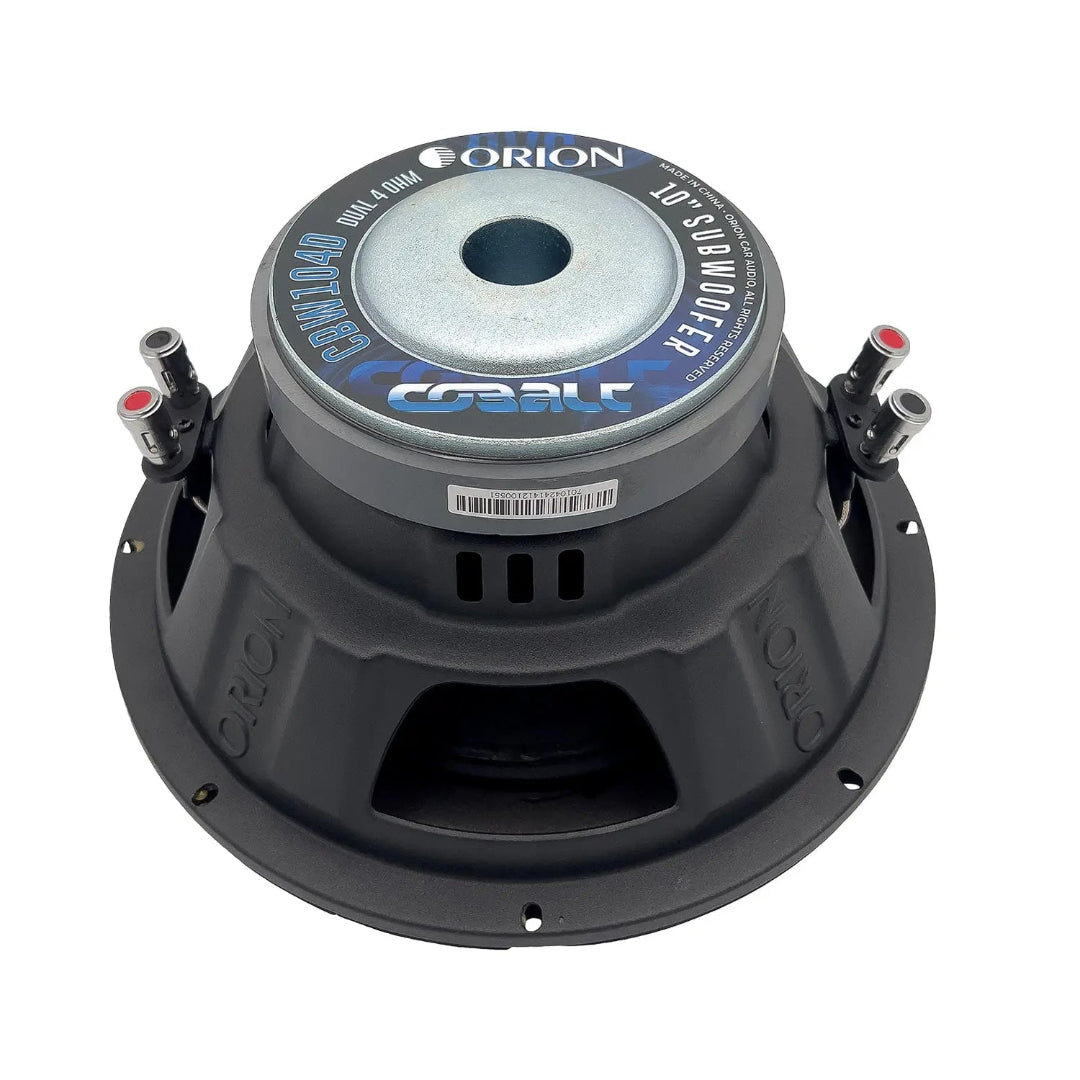

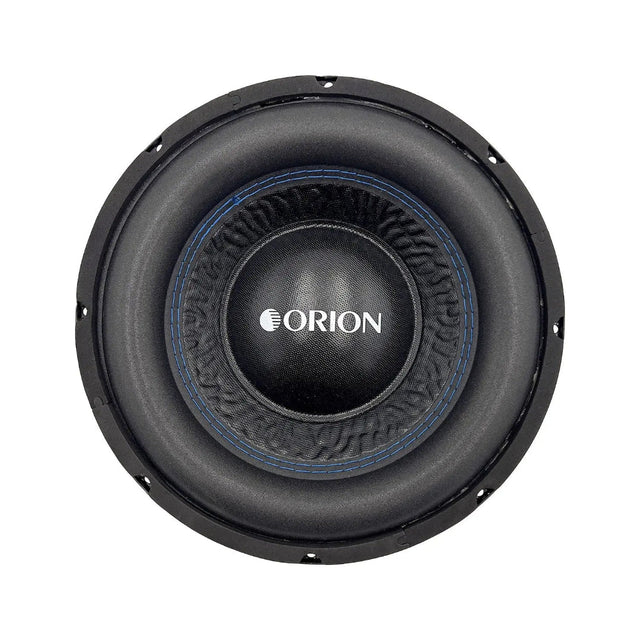

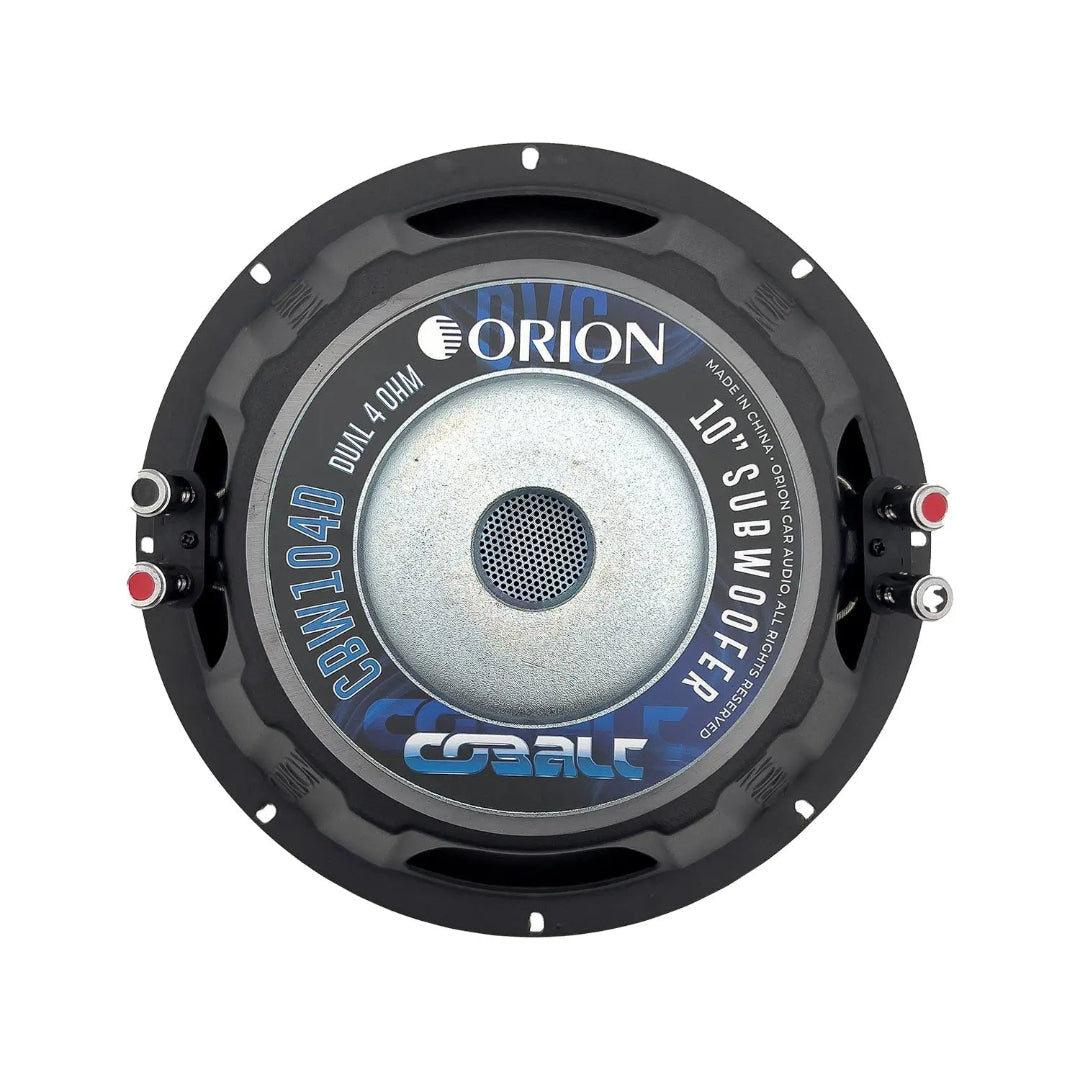

Orion CBW104D 10” Dual Voice Coil 4 Ohm Subwoofer | 1200W Max Cobalt Series Bass
Orion CBW104D 10” Dual Voice Coil 4 Ohm Subwoofer | 1200W Max Cobalt Series Bass is backordered and will ship as soon as it is back in stock.
Shipping & delivery
Usually ships in 2–3 business days unless a different lead time is shown on this page. Shipping cost is calculated at checkout (UPS or USPS to the contiguous U.S.).
Shipping policy · Returns · Fitment questions? (561) 207-7988
Delivery and Shipping
Delivery and Shipping
Standard order processing is 2–3 business days unless this product or your order confirmation states a different lead time. Custom-built, made-to-order, backorder, and pre-order items follow their stated lead times.
Enclosures and subwoofer boxes ship for $50 per unit. Other shipping charges are calculated at checkout. Orders outside the contiguous 48 United States may require additional shipping; we will contact you for approval before shipment.
Subwoofer boxes ship UPS Ground where available. Read our Shipping Policy and Return and Refund Policy for delivery, product-specific return windows, and warranty details.
Orion CBW104D 10” Dual Voice Coil 4 Ohm Subwoofer | 1200W Max Cobalt Series Bass is backordered and will ship as soon as it is back in stock.
Description
Description
Compact 10 Inch Dual Voice Coil Subwoofer with Flexible Wiring Options
Upgrade your car audio system with the Orion CBW104D 10 inch dual 4 ohm car subwoofer from the Cobalt Series. Designed for clean, controlled, and dependable low-frequency performance, this subwoofer delivers strong bass output while offering flexible wiring configurations for a wide range of system builds. With 300W RMS and 1200W peak power, it provides an excellent balance of output, durability, and everyday value.
Built for daily use, the CBW104D features a UV-coated paper and fiber blend cone paired with a high-quality foam surround. This construction produces responsive bass while maintaining long-term durability, helping the subwoofer withstand heat, vibration, and extended listening sessions.
At its core, the subwoofer uses a 2-inch copper-clad aluminum dual voice coil wound on a rugged Kapton former. This design improves heat dissipation and reliability, ensuring consistent performance even when driven near its rated limits. The dual 4-ohm configuration allows for multiple wiring options, making it easier to match amplifier loads and system goals.
A 40 oz ferrite magnet provides strong motor control and efficiency, contributing to tight, accurate bass response across its operating range from 20 Hz to 300 Hz.
With a 4.57-inch mounting depth, the CBW104D installs easily in both sealed and ported enclosures. As a result, it’s well suited for compact enclosures, factory system upgrades, and budget-conscious custom builds where flexibility and space efficiency matter.
Whether you’re upgrading a daily driver or building a compact system with precise impedance control, the CBW104D delivers dependable low-end performance backed by Orion Car Audio’s proven engineering.
Key Features
- 10 inch dual 4 ohm car subwoofer
- 300W RMS / 1200W peak power handling
- Dual voice coil design for flexible wiring options
- UV-coated paper and fiber blend cone
- Durable foam surround for consistent performance
- 2” copper-clad aluminum voice coils
- Kapton former for improved heat management
- 40 oz ferrite magnet motor structure
- 4.57” mounting depth
- Optimized for sealed and ported enclosures
