Controller, Cell Phone, Switch-Pro 9100, 8 Channel
Controller, Cell Phone, Switch-Pro 9100, 8 Channel is backordered and will ship as soon as it is back in stock.
Buy with confidence
Verify fitment, selected options, availability and included components before checkout. Secure payment options and order confirmation are provided at checkout.
Description
Description
Used as the controller for actuating our hydraulic Any Level Lift systems.

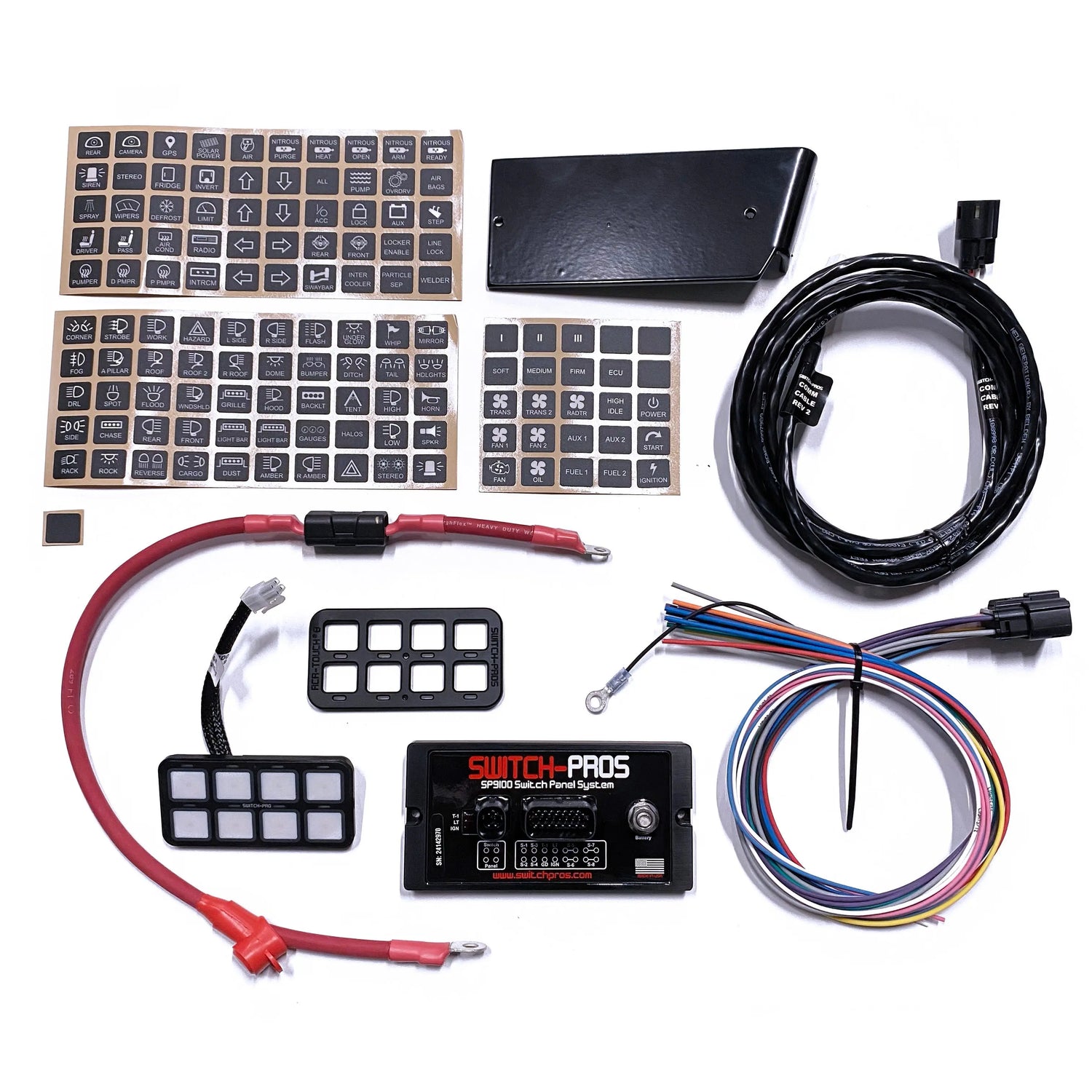

Contents
- Switch Panel and Power Module
- RCR-Touch®8 cover
- 11’ of Communication Cable
- Power Cable with 125A inline fuse
- 125 User Selectable Legends included
- Installation brackets and hardware
- 16-pin color coded output harness
- Detailed installation Guide
Features
- RGB Backlighting
- Built-in Bluetooth module for use with App
- Program and operate your panel from phone
- Battery Voltage Readout on App screen
- Orange LED switch indicators
- LED Input Status Indicators for easy troubleshooting
Specifications
-
125amp capacity with 8 outputs
- 8 Outputs: 4 rated @ 35A, 4 rated @ 20A
- Adjustable Output Overcurrent Values
- Switch Panel enclosure measures 4” L x 2” W x .375” H
- Power Module Measures 6”L x 3”W x .5”H
- Power Module Under Hood rating 125°C to -40°C
- Switch Panel and Power Module Waterproof rating of IP67
Programming & Other Features
- Preset Dimming function WITH MEMORY
- Master Mode, with ability to control up to 7 other switches
- On/Off or Momentary
- Ignition or Battery Input
- Flash or Strobe, with User-Selectable Strobe patterns
- Automatic Power-Up upon vehicle start up
- Time Delay off
- No bulky relay box
- Two External Trigger inputs can each activate four outputs
- Low Voltage Disconnect
- Sleep Mode for minimal power consumption
- Daisy Chain up to 3 Switch Panels to One Power Module
Proudly made in the USA
