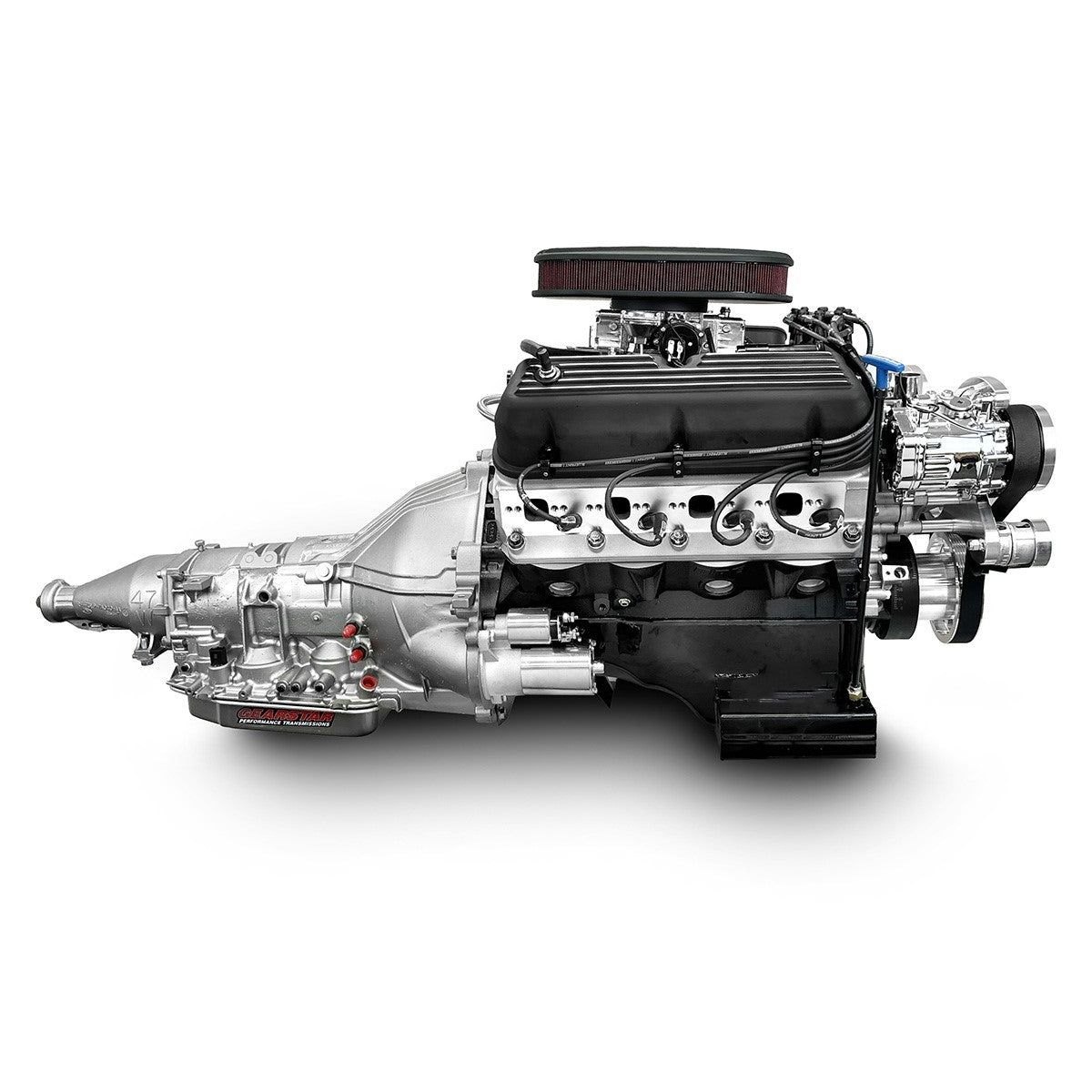

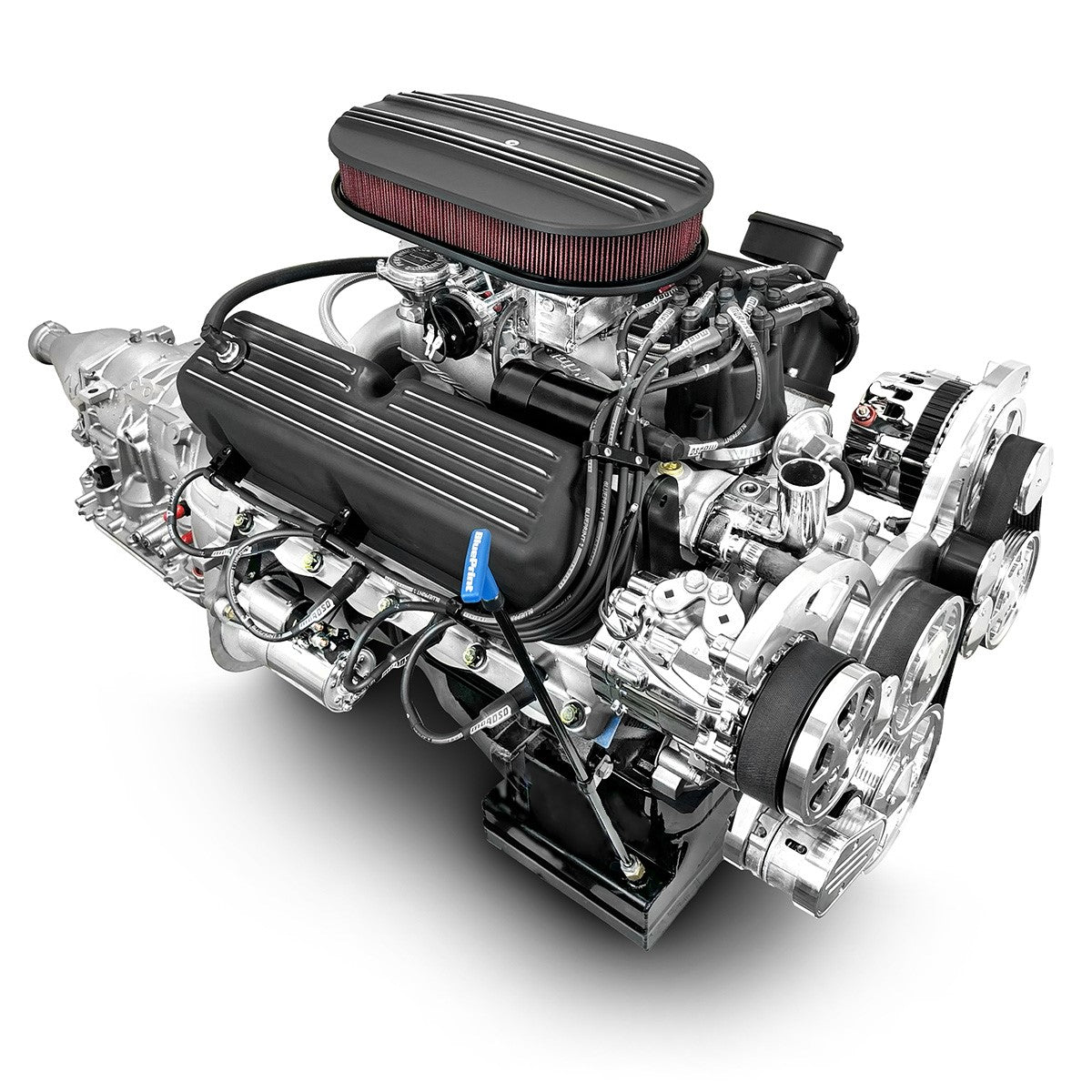

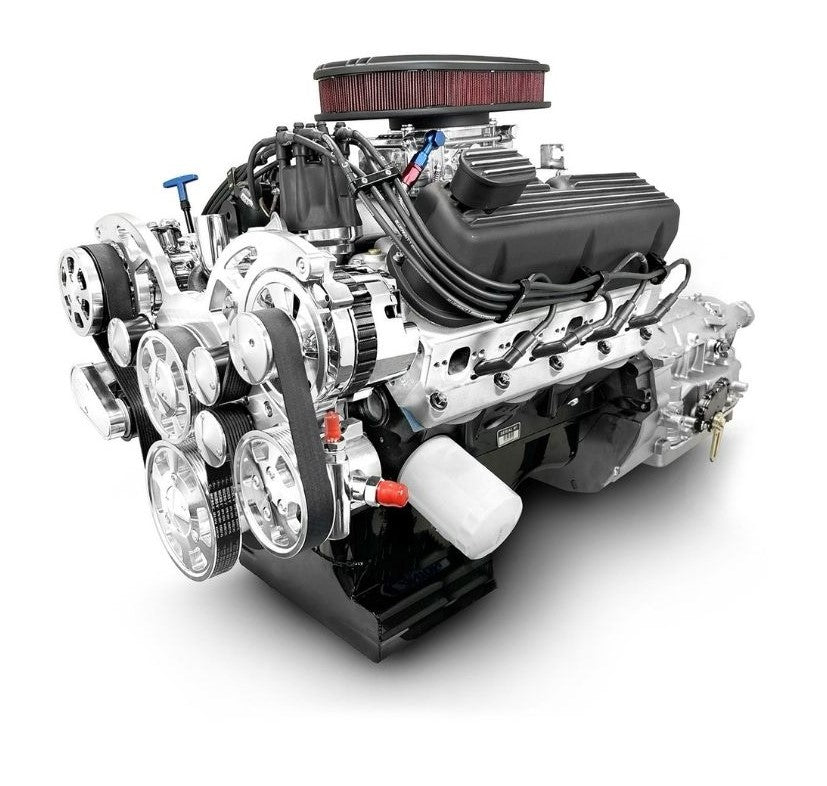

Ford Small Block Compatible 302 c.i. Engine and 4R70W Automatic Transmission - 370 Horsepower - Standard Edition Builder Series - Polished Pulley Kit - Carbureted

Description:

• Horsepower & Torque: 370 Horsepower / 350 ft. lbs. Torque
• Compression Ratio: 9.5:1
• BluePrint Engines Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Hypereutectic Pistons
• BluePrint Engines Cast Crank


Block:

• BluePrint Engines High-Strength cast Iron Block
• Increased Deck Thickness & Strength Webbing
• Improved Water Jacket Design
• 1-Piece Rear Main Seal
• Priority Main Oiling
• 4.000" Bore
• 4-Bolt Main

Rotating Assembly:

• Ford, Machined and Balanced by BluePrint Engines
• 3.000" Stroke
• OEM Type 5.090” Connecting Rods
• Hypereutectic Pistons
• 50oz External Balance Front and Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - HP9009
• 60cc Chamber
• 2.02" Intake / 1.60" Exhaust Valves
• 190cc Intake / 60cc Exhaust Runners

Cam Specs:

• Hydraulic Roller Cam
• .543 Intake / .554 Exhaust Lift
• 218 Intake / 226 Exhaust Duration
• @.050-112 Degree Lobe Separation

Ignition Timing:

• 34 Degrees Total at 3500 RPM

Also Includes:

• Holley 600 CFM Street Warrior Carburetor - BPP080457SA

• Thermostat and Thermostat Housing
• Dual Plane Intake Manifold - BPP302INT
• MSD Pro Billet Distributor - BPP3023BK
• Harmonic Balancer - BPP50
• Ignition Coil - BPP82021BK
• Spark Plugs and Wires
• Fuel Pump - BPP6588
• Painted Oil Pan
• Valve Covers

• Air Cleaner
• Dipstick

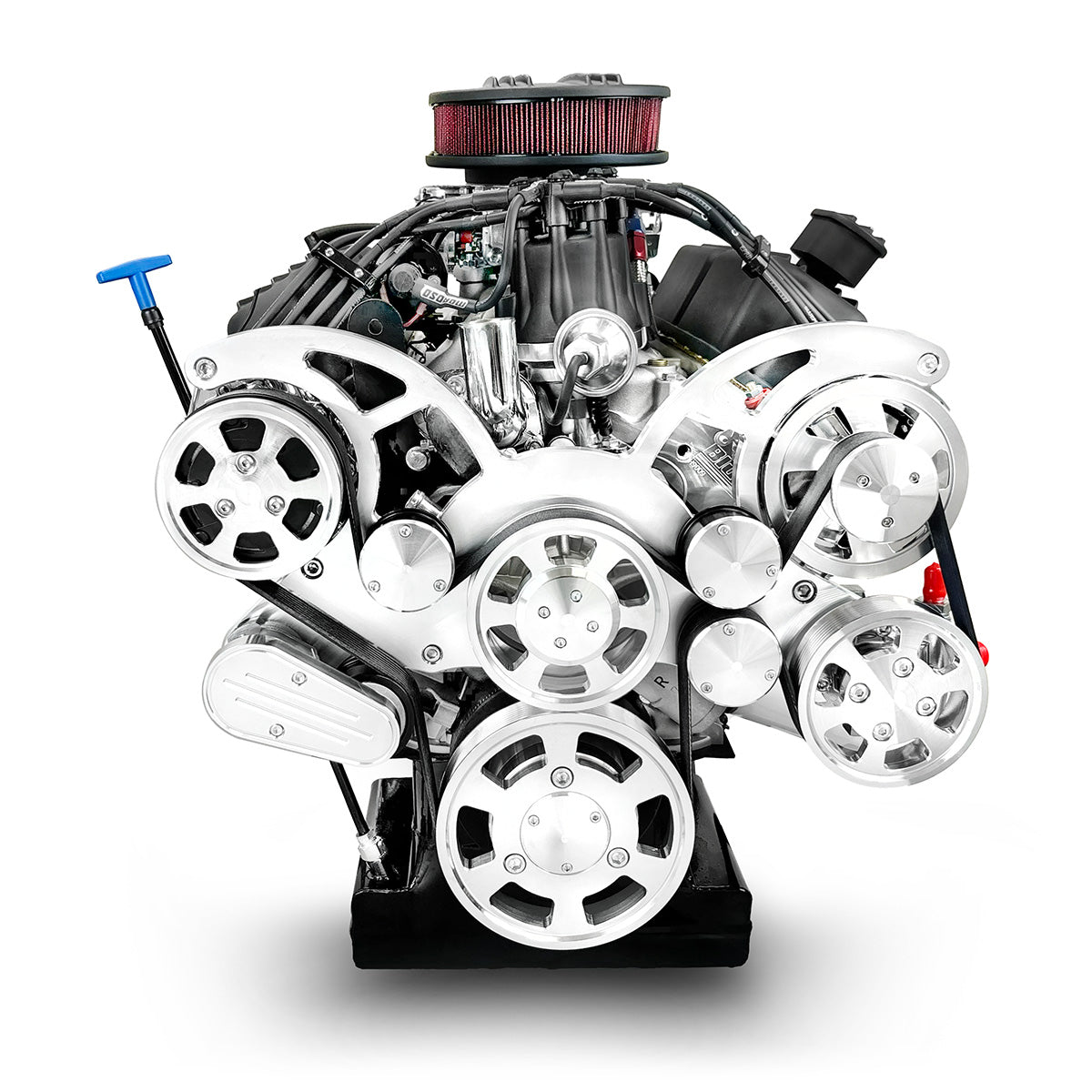

• Polished Front Accessory Drive - BPP302FDACPS4
  • Driver Side Standard Rotation Water Pump
  • Type II Power Steering Pump
  • Remote Power Steering Pump Reservoir
  • 140amp 1-wire Alternator
  • 7B10 Peanut Air Conditioning Compressor

Assembled with Complete 4R70W Automatic Transmission Package:

• Includes Electronic Transmission Controller
• Transmission Built to 650 Horsepower
• 2200-2600 Stall Torque Converter
• Flex Plate
• Starter
• 4 Speed, Overdrive Transmission w/ Lockup
• GEAR RATIOS
  • First: 2.84 :1.
  • Second: 1.55 :1.
  • Third: 1.00 :1.
  • Overdrive: 0.70 :1.
  • Reverse: 2.32 :1.

Notes:

• Note that 4R70W transmission may require modifications/replacement of driveshaft, transmission mount, exhaust routing, etc.
• Not for use in pollution-controlled vehicles.
• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment.  Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.

• Does not include TPS, as varies with carb or EFI type.
• PACKAGE SHIPS ASSEMBLED AS PICTURED.
• IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE,
• STOP AND CALL US AT 1-800-483-4263 FOR PROPER FITMENT OR VISIT FACTORYFIVEENGINES.COM

*A bronze distributor gear is NOT recommended on this engine
