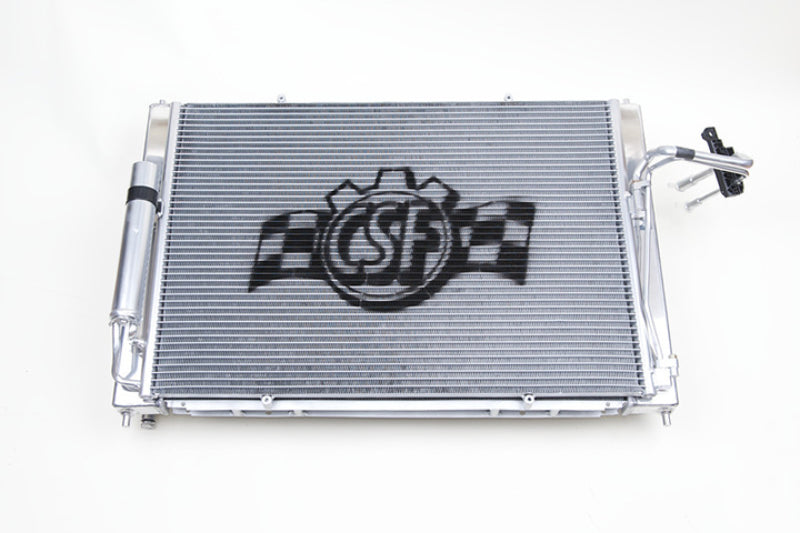

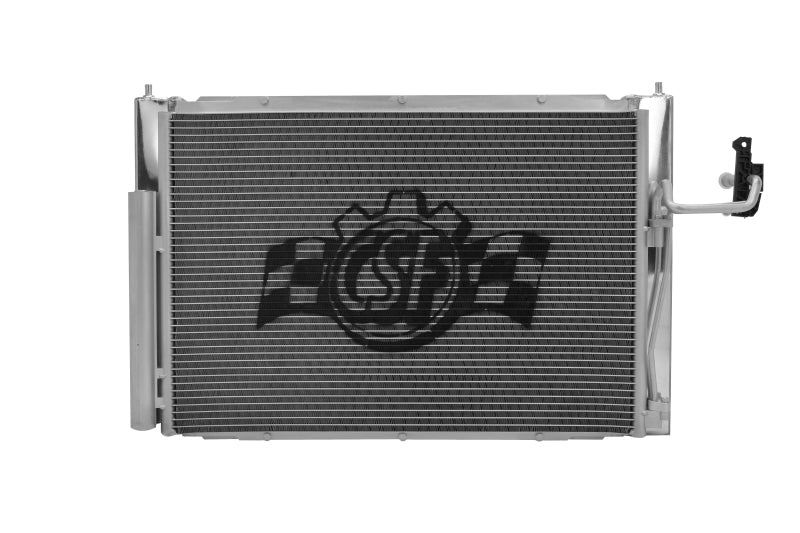

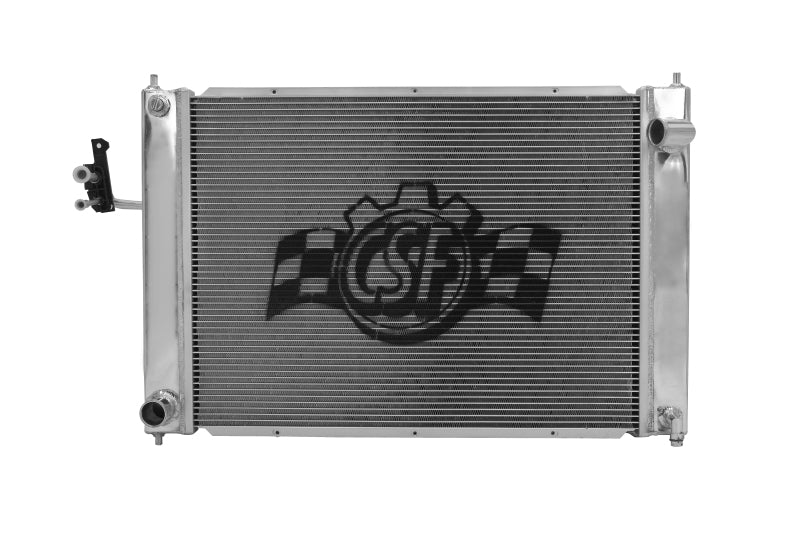

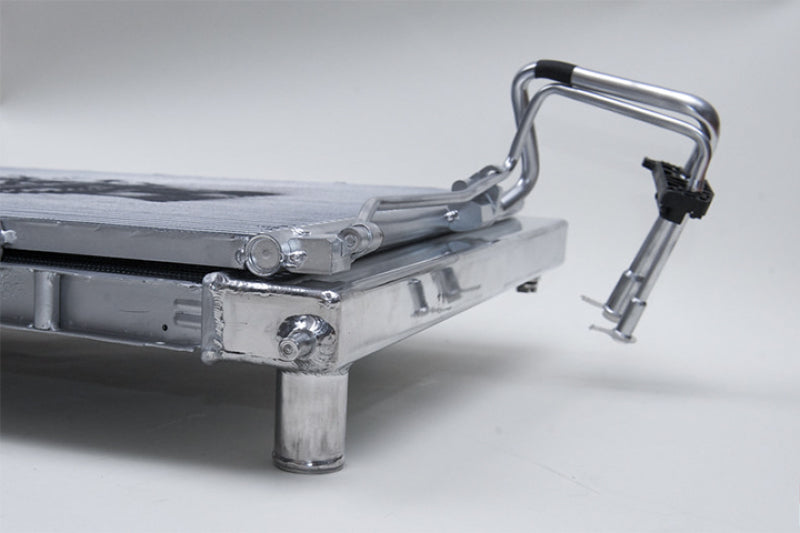

CSF 08-17 Nissan 370Z M/T Radiator

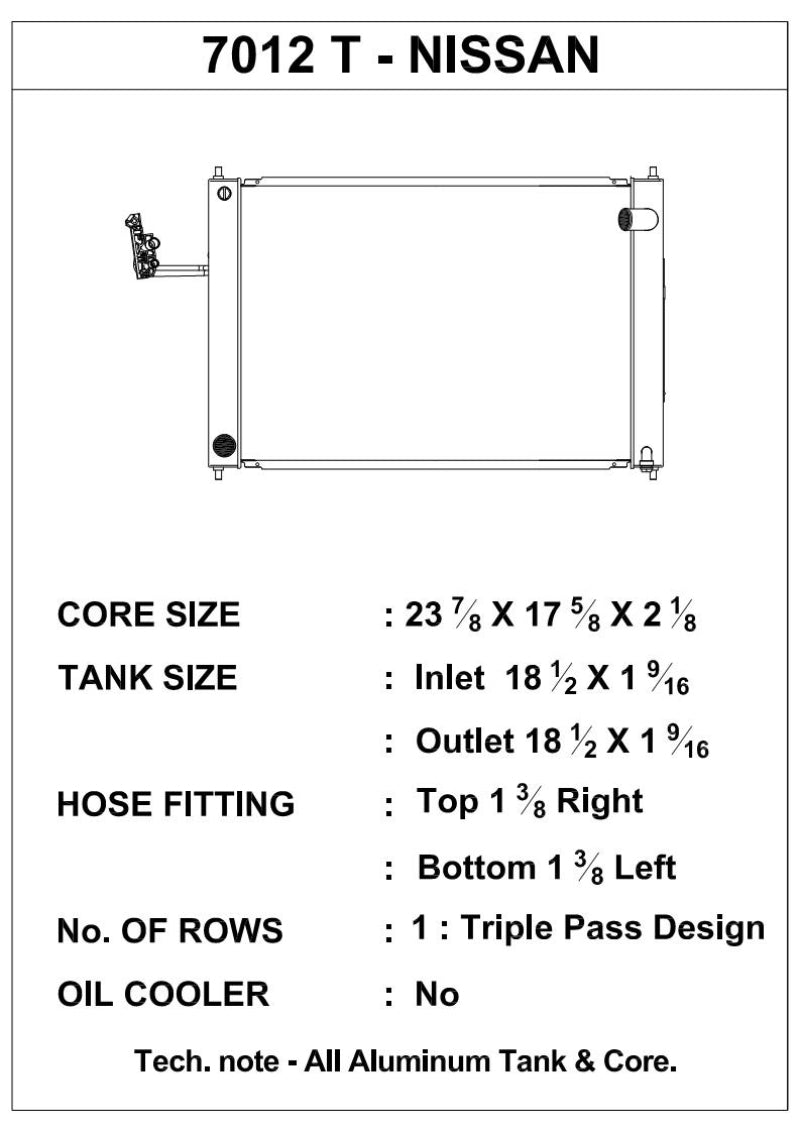

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your 370Z/G37 running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. The Triple-Pass Flow Structure allows the coolant to flow across the core of the radiator three times before exiting for lowest outlet temperatures possible. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.The CSF 370Z/G37 radiator is a true "Drop-in fit" design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket.

This Part Fits:

Year	Make	Model	Submodel
2007-2008	INFINITI	G35	Base
2007-2008	INFINITI	G35	Journey
2007-2008	INFINITI	G35	Sport
2007-2008	INFINITI	G35	X
2008-2013	INFINITI	G37	Base
2011-2013	INFINITI	G37	IPL
2008-2013	INFINITI	G37	Journey
2008-2013	INFINITI	G37	Sport
2009-2013	INFINITI	G37	X
2014-2015	INFINITI	Q60	Base
2014-2015	INFINITI	Q60	IPL
2014-2015	INFINITI	Q60	Journey
2014-2015	INFINITI	Q60	S
2015	INFINITI	Q60	S Limited
2010	Nissan	370Z	40th Anniversary Edition
2009-2020	Nissan	370Z	Base
2018-2019	Nissan	370Z	Heritage Edition
2009-2017,2019-2020	Nissan	370Z	Nismo
2015-2018	Nissan	370Z	Nismo Tech
2015-2020	Nissan	370Z	Sport
2015-2018	Nissan	370Z	Sport Tech
2019-2020	Nissan	370Z	Sport Touring
2009-2019	Nissan	370Z	Touring
2015-2018	Nissan	370Z	Touring Sport
