D3220Ph | 2" EXIT MIDRANGE COMPRESSION DRIVER
D3220Ph | 2" EXIT MIDRANGE COMPRESSION DRIVER is backordered and will ship as soon as it is back in stock.
Description
Description
Innovative technology for 3 inch compression drivers, the new high-strength compact motor, allows you to keep a large voice coil without sacrificing performance. With a smaller design and as powerful as ever, this midrange 2″ exit driver is taking the car audio industry to the next level!
The new D3220Ph design still retains the same diaphragm design as the previous model. This offers the famous PRV Audio low midrange response, with accuracy (from 650 to 7,500 Hz) with an emphasis on the vocal mid frequency range.

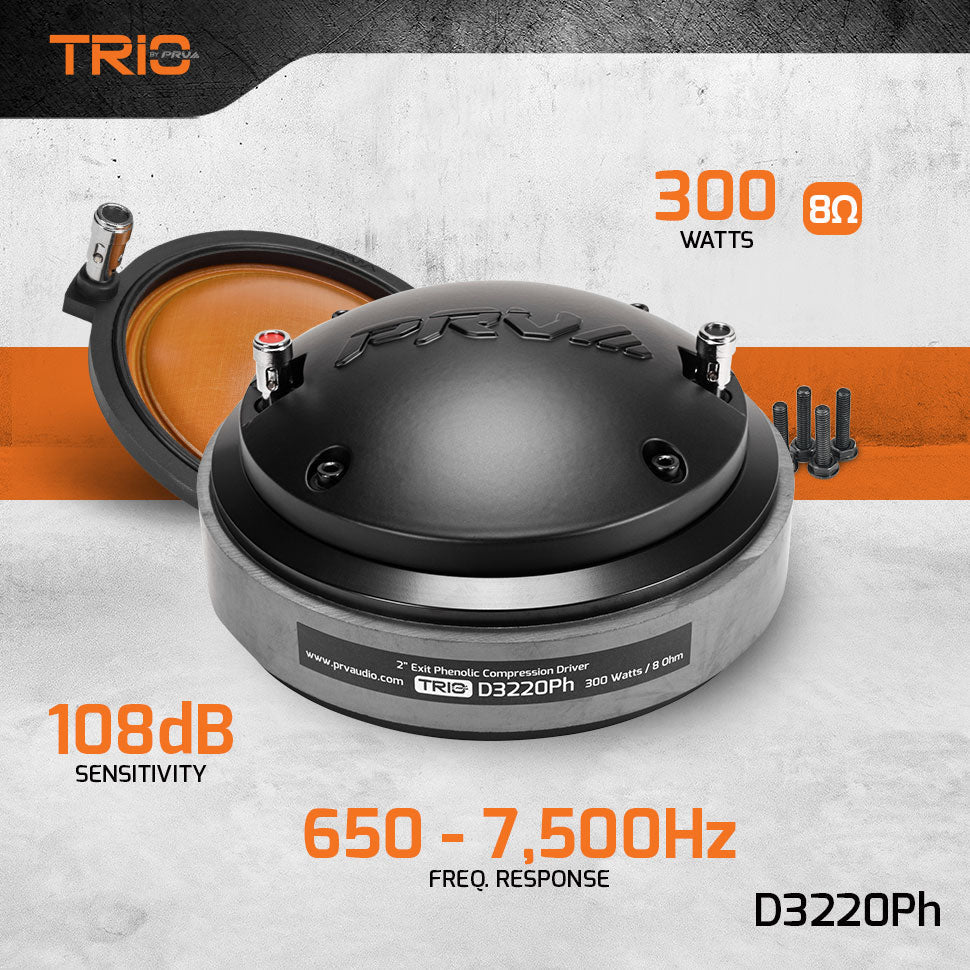

- With a nearly indestructible phenolic diaphragm and a 3 inch voice coil, this Brazilian technology delivers natural vocal midrange response at an efficient of 108 dB sensitivity

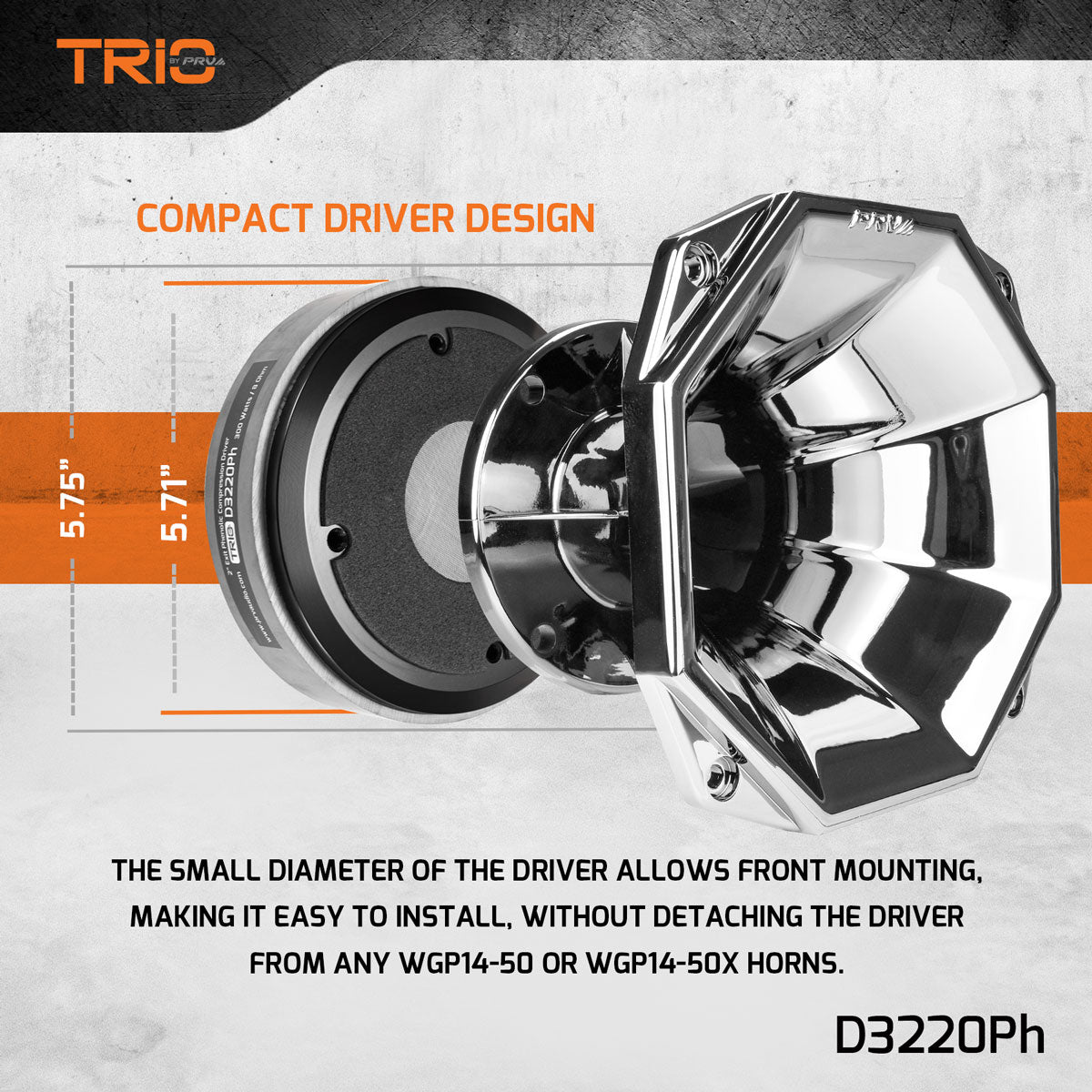

- Works great with any Shallow Horn from WGP14-50X Series – Perfect as compression driver for car audio. Mounting hardware is included.
- 2 Inch Exit horn Driver designed for vocal reinforcement on 3-Way car audio systems with a usable frequency response from 650 to 7,500 Hz
- PRO Audio midrange driver, able to handle 300 Watts Continuous Program Power (RMS) with music for extreme output capability.
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 2” (50 mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling* | 150 Watts |
| Continuous Program Power (RMS)** | 300 Watts |
| Peak Power*** | 600 Watts |
| Sensitivity 2.83V at 1m | 108 dB |
| Recommended Hi Pass Crossover For Full Power Handling |
800 Hz 12db/oct Crossover |
| Frequency Response at -10dB | 650 – 7,500 Hz |
| Voice Coil Diameter | 3” (76 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Phenolic |
| Flux Density | 1.77 T |
| Magnet Material | Ferrite |
EXTRA INFO
| Overall Diameter | 5.71″ (145 mm) |
| Overall Depth | 3.0″ (76 mm) |
| Mounting Bolt Circle | M6 x 4″ (102 mm) |
| Net Weight | 8.9 lbs (4.0 kg) |
| Shipping Weight | 9.35 lbs (4.25 kg) |
| Carton Dimensions W x L x H | 6.89″ x 6.3″ x 4.0″ (175 x 160 x 102 mm) |
