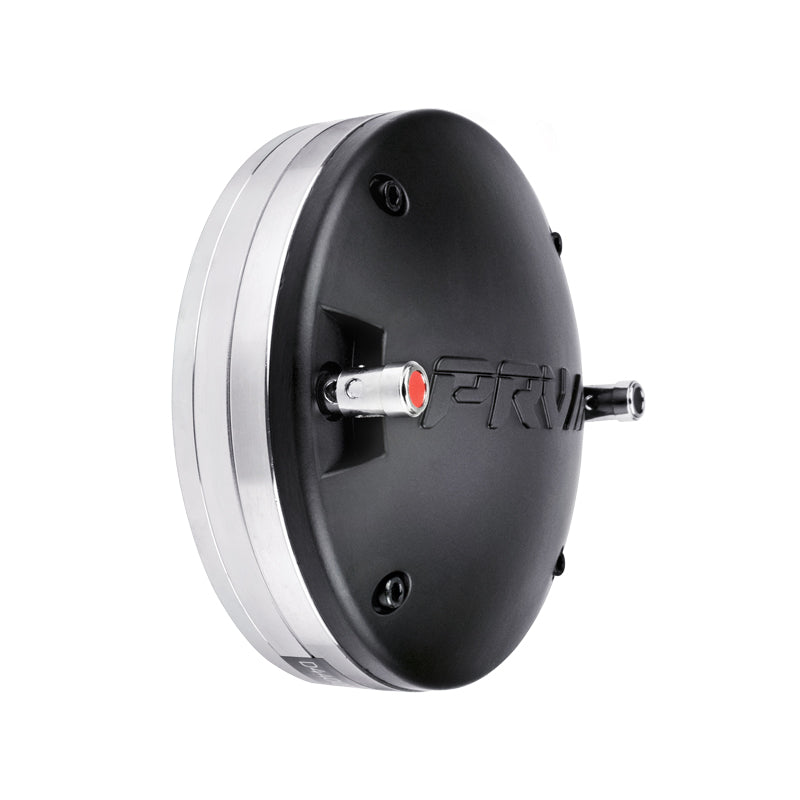

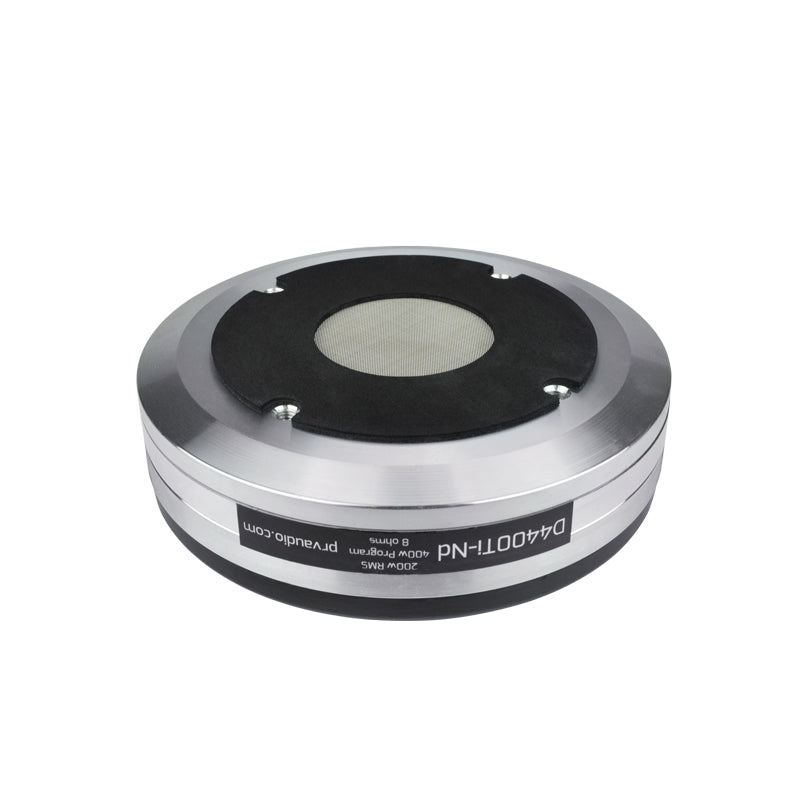

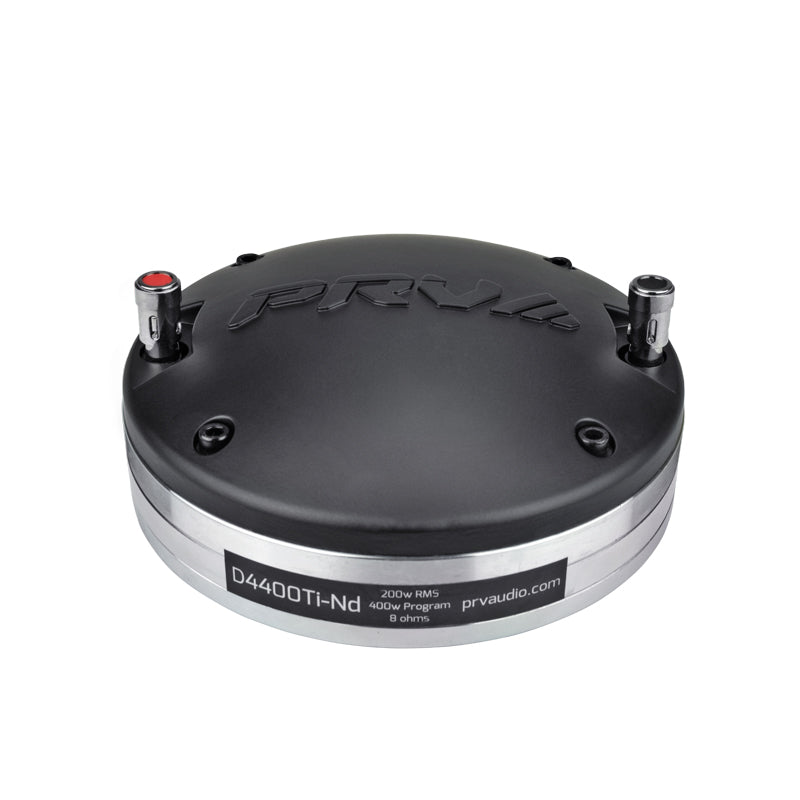

D4400Ti-Nd | 2" Exit High Frequency Compression Driver
D4400Ti-Nd | 2" Exit High Frequency Compression Driver is backordered and will ship as soon as it is back in stock.
Description
Description
The newest addition to our product line, D4400Ti-Nd features a Compact 154 mm diameter ring Neodymium Magnet that reduces overall size and weight as well as a premium Titanium 4.0 in voice coil, making this 2″ exit High Frequency Driver popular among professional users as a “Compact yet very Powerful” Driver that solves the critical component spacing issue!
The D4400Ti-Nd is designed to ensure a quality sound and long lasting play in your large environment applications.
- Throat Diameter: 2″
- Type: Bolt-On
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 200 Watts
- Program Power: 400 Watts
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 2” (50 mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 200 Watts |
| Program Power | 400 Watts |
| Sensitivity 2.83V at 1m | 110 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 1600 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 1,300 – 17,000 Hz |
| Voice Coil Diameter | 4”(101.6 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Titanium |
| Flux Density | 1.90 T |
| Magnet Material | Neodymium |
EXTRA INFO
| Overall Diameter | 6.06” (154 mm) |
| Overall Depth | 2.48” (63 mm) |
| Mounting Bolt Circle | M6 x 4 4” (101.6 mm) |
| Net Weight | 8.82 lbs (4 kg) |
| Shipping Weight | 8.88 lbs (4.28 kg) |
| Carton Dimensions W x L x H | 6.89” x 6.89” x 3.74” (175 x 175 x 95 mm) |
