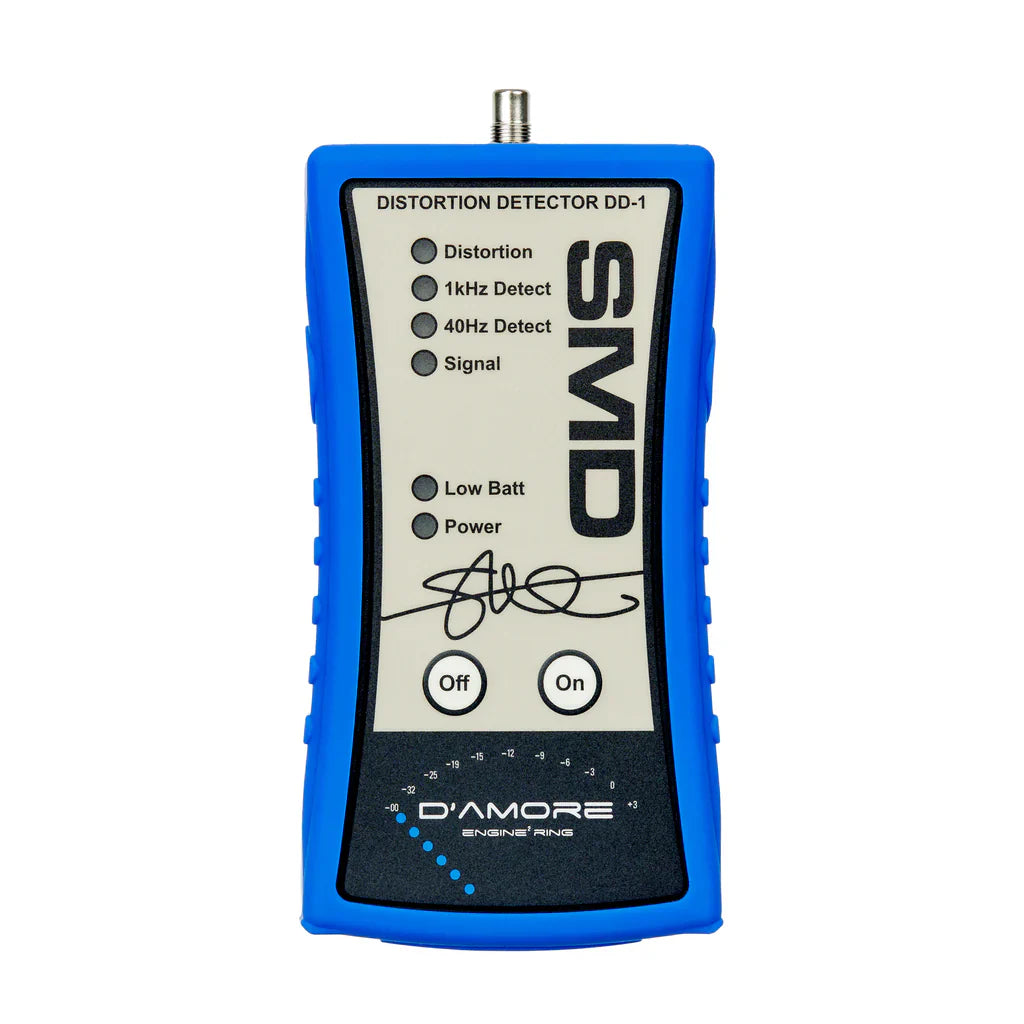

SMD DD-1 Distortion Detector
SMD DD-1 Distortion Detector is backordered and will ship as soon as it is back in stock.
Confirm vehicle fitment
Confirm vehicle fitment
Confirm fitment before ordering. Match the year, make, model, trim, engine, drivetrain and selected options shown on this page. If any detail is unclear, search your exact vehicle or contact us before checkout.
Shipping expectations
Shipping expectations
Availability and processing time can vary by manufacturer. Available shipping choices and charges appear at checkout. Tracking is emailed after shipment. Oversized, special-order and supplier-shipped items can require additional processing time.
Returns and cancellations
Returns and cancellations
Please review eligibility before purchase. Installed, used, electronic, custom, special-order and clearance items may have return restrictions. Contact us promptly if you need to change or cancel an order.
What’s included
What’s included
The product description and selected variant determine what is included. Items shown in lifestyle or installation photos are not included unless they are specifically listed in the description.
SMD DD-1 Distortion Detector
SMD DD-1 Distortion Detector is backordered and will ship as soon as it is back in stock.
Buy with confidence
Verify fitment, selected options, availability and included components before checkout. Secure payment options and order confirmation are provided at checkout.
Description
Description
The purpose of this tool is to enable the installer to set the gain of an audio amplifier to match the source unit’s output level, accurately and quickly. It can also be useful for detecting distortion in the audio signal caused by poorly designed or malfunctioning audio equipment.

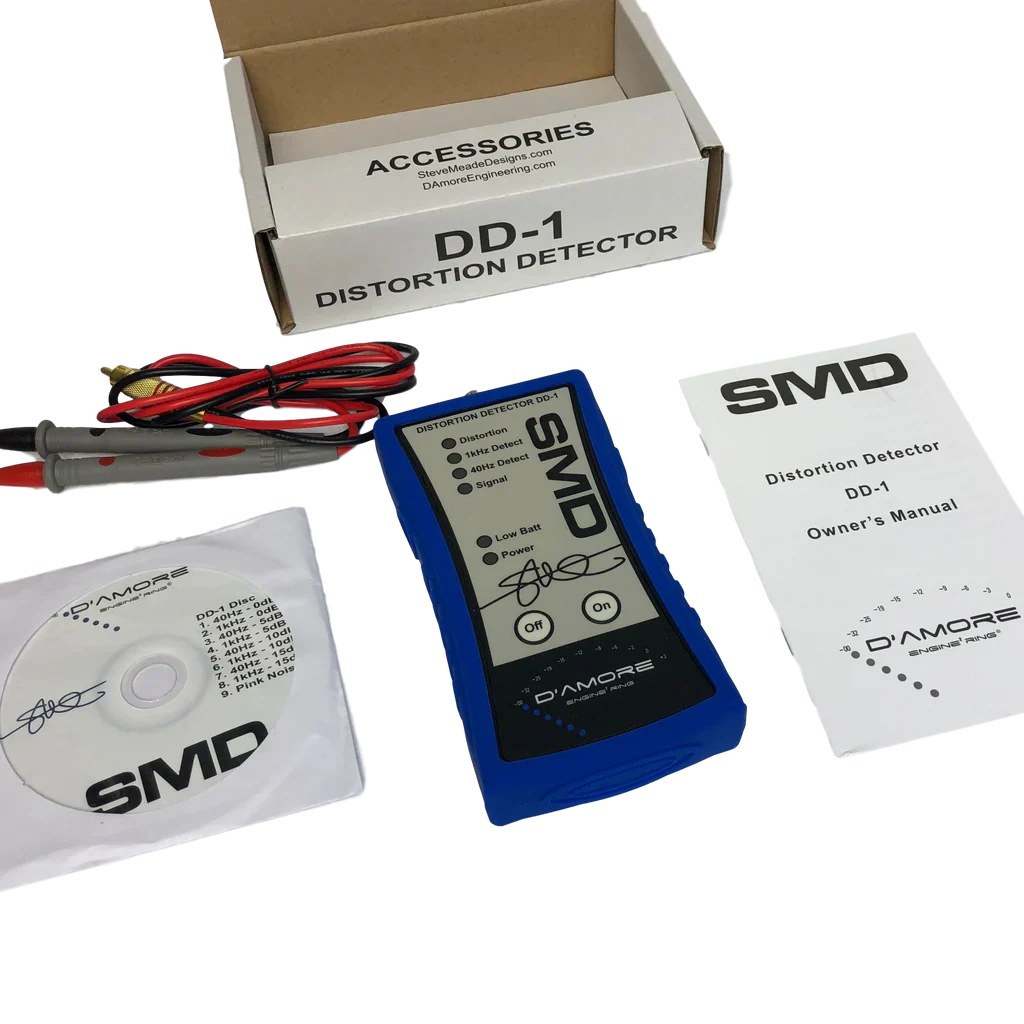

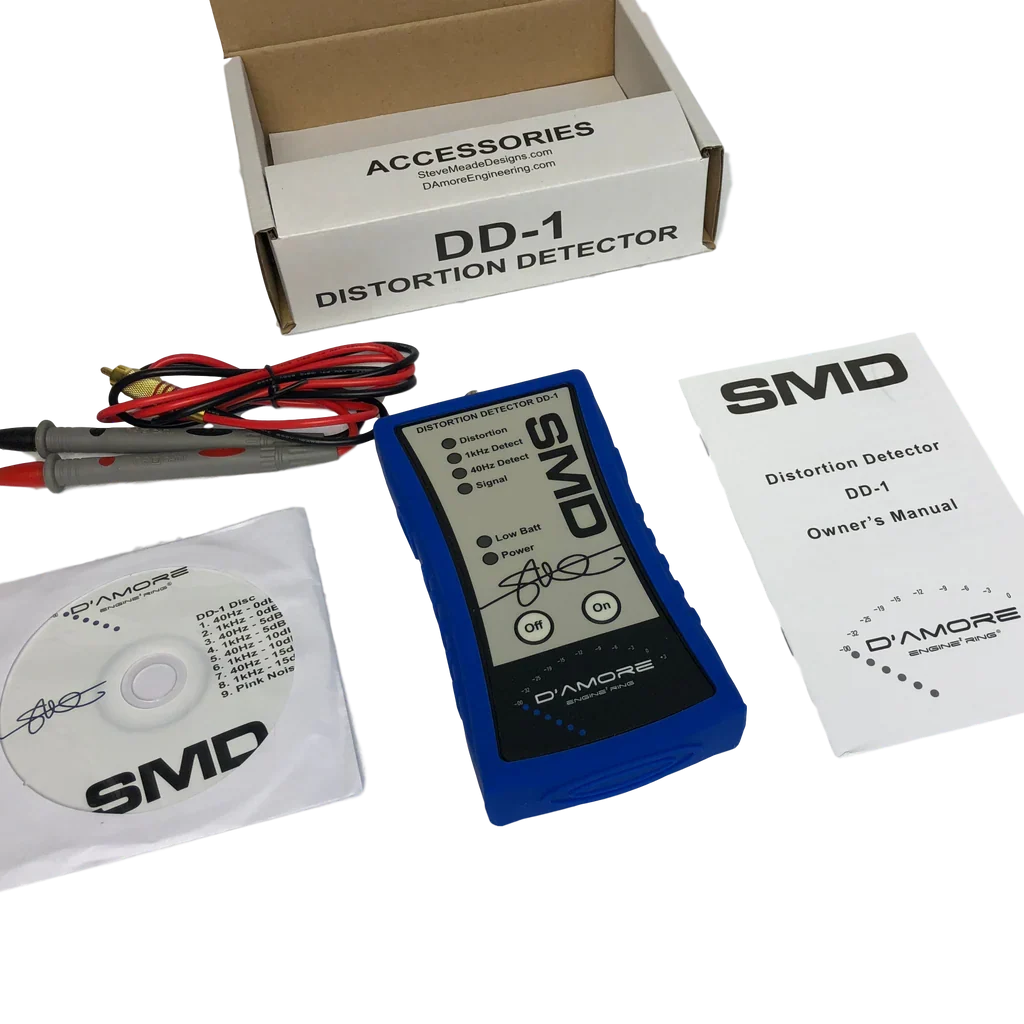

What is included?
- The Distortion Detector (DD-1)
- Protective silicon rubber boot
- Calibrated Test tone CD
- Harness
- This manual
- Pride of ownership
About the Design

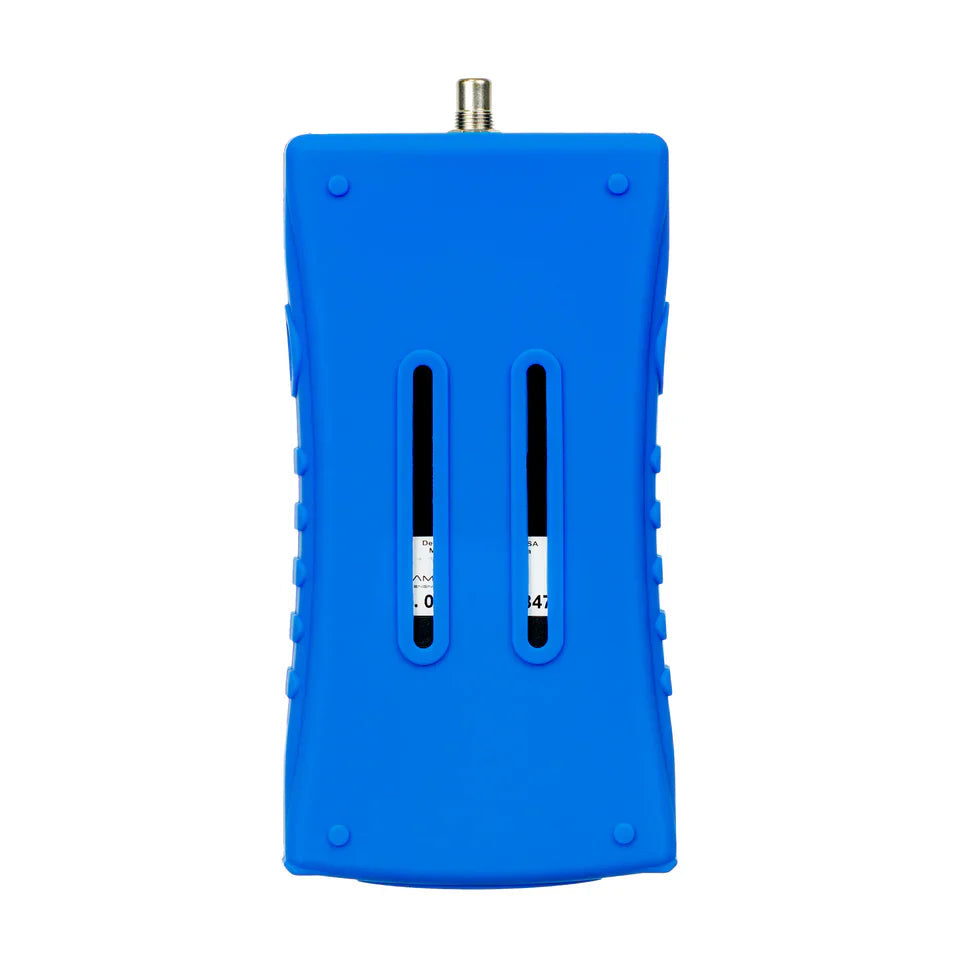

When you pick up the DD-1, know that you are holding a precision piece of equipment. If treated as such it should provide you with many years of reliable service. We have chosen a 9V battery as a power source for a few reasons:
- They are readily available
- Isolating the DD-1 from the vehicle’s electrical system for power, guarantees that it will only measure what it is supposed to measure; distortion in the audio signal, not noise in the charging system
We also chose an RCA input connector for a few reasons:
- It makes it pretty easy to measure the output of a head unit directly, if you choose to do so
- Should the harness become damaged it is easily replaceable or repairable in the field
Specification
- The Distortion Detector’s circuitry is 100% analog
- Distortion Detection trigger level > 1.0% Harmonic Distortion
- Guaranteed operating range of input signal is 1.2Vrms – 125Vrms. (15,000 Watts at 1 ohm) Auto ranging
- Signal Present LED trigger voltage 750mVrms
- Low Battery LED trigger battery voltage < 5.6Vdc
- Auto-shut off timer 8 - 10 minutes after ON button is pressed
