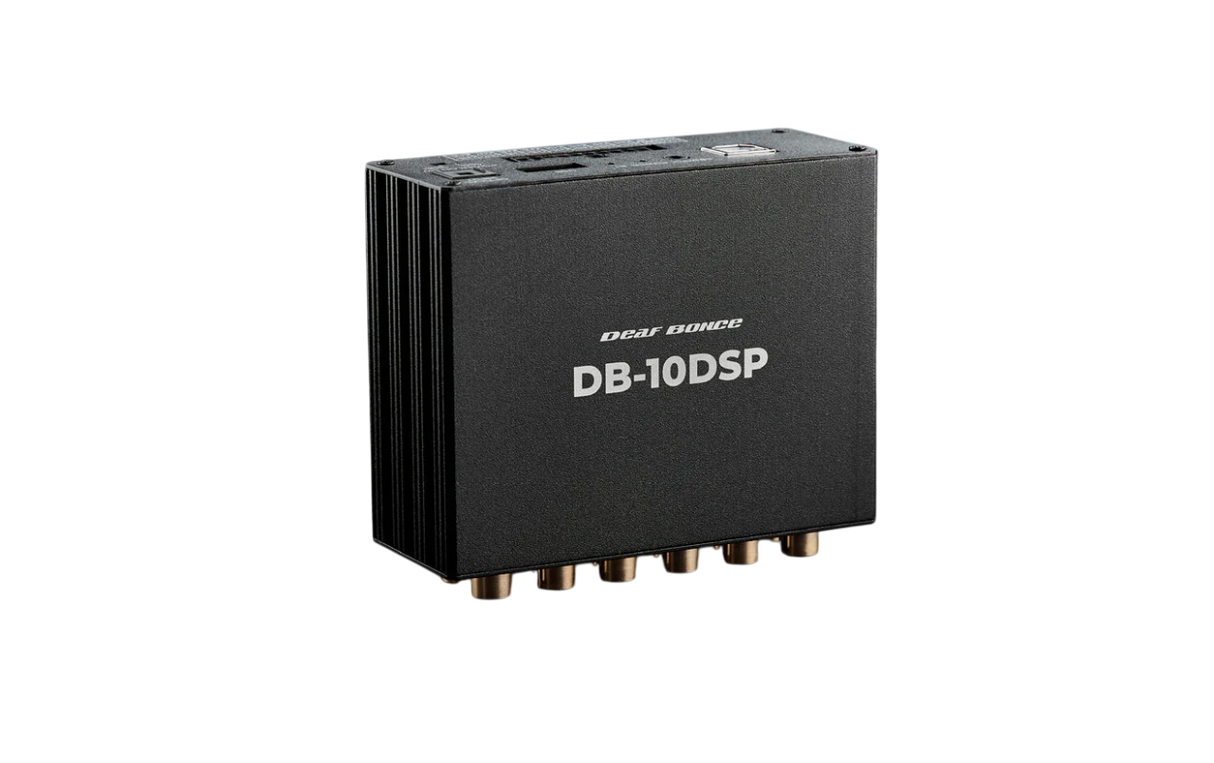

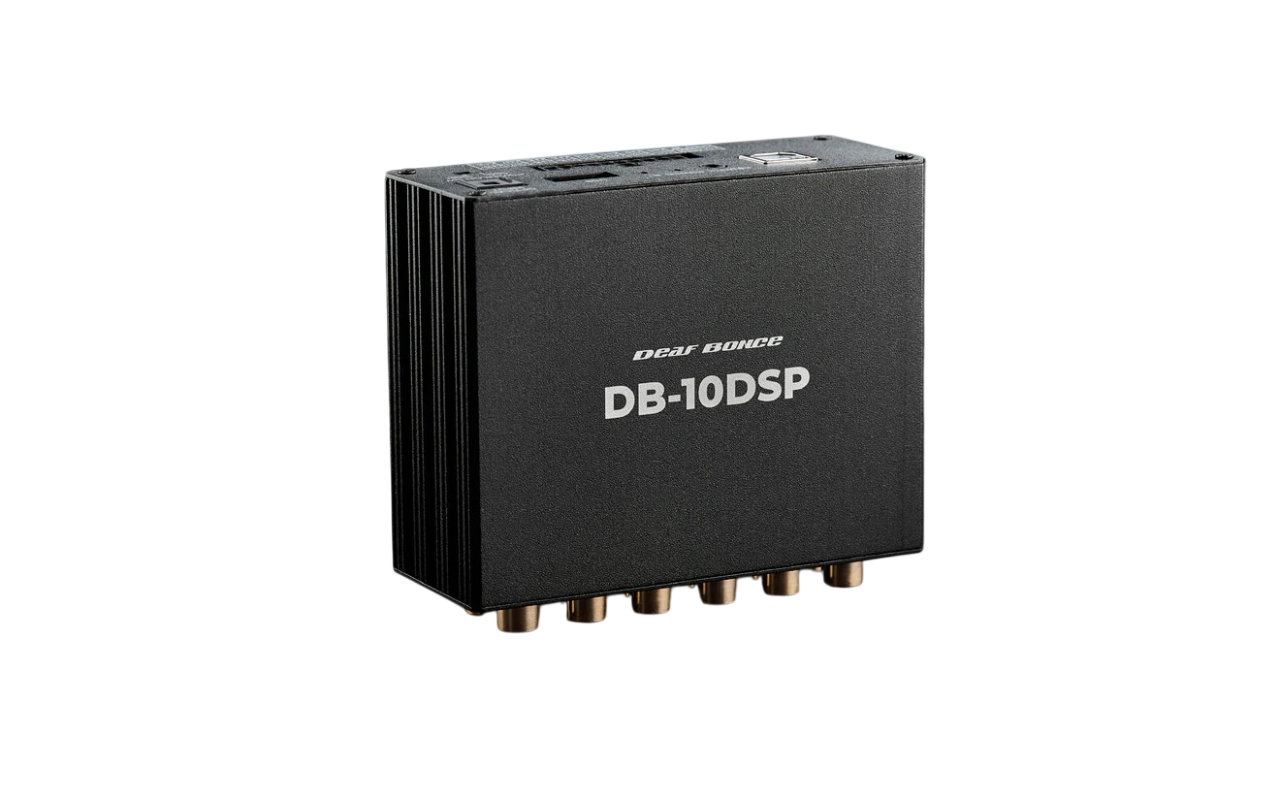

Deaf Bonce DB-10DSP
Deaf Bonce DB-10DSP is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
| Model | DB-10DSP |
|---|---|
| Input Sensitivity (Low Level Inputs) | 0.38 – 0.72 V |
| Input Sensitivity (High Level Inputs) | 6 – 36 V |
| High Pass Filter (Hz) | 20 – 20,000 |
| Low Pass Filter (Hz) | 20 – 20,000 |
| Crossover (dB/Oct) | 6 – 48 |
| Phase Shifter | 0 / 180° |
| Frequency Response (Hz) | 20 – 20,000 |
| Signal to Noise Ratio (Master Inputs) | ≥98 dB |
| Signal to Noise Ratio (Optical Input) | ≥100 dB |
| Time Alignment Delay (ms) | 0 – 678.6 / 0 – 20.01 |
| Time Alignment Distance (cm/inch) | 0 – 269.7 |
| Equalizer | 31-band parametric equalizer |
| Bluetooth | Yes (Settings, Music – SBC, AAC Audio, AptX HD Audio) |
| Automatic Turn On/Off | ACC, high-level input |
| Number of High-Level Inputs | 8 |
| Number of RCA Inputs | 2 |
| Number of RCA Outputs | 10 |
| Optical Input | Yes |
| Input Terminal Connection (AWG) | 22 |
| Working Voltage (V) | 10 – 17 |
| Size (LxWxH, mm) | 97 × 84 × 38 |
| Size (LxWxH, inch) | 3.82 × 3.31 × 1.5 |
