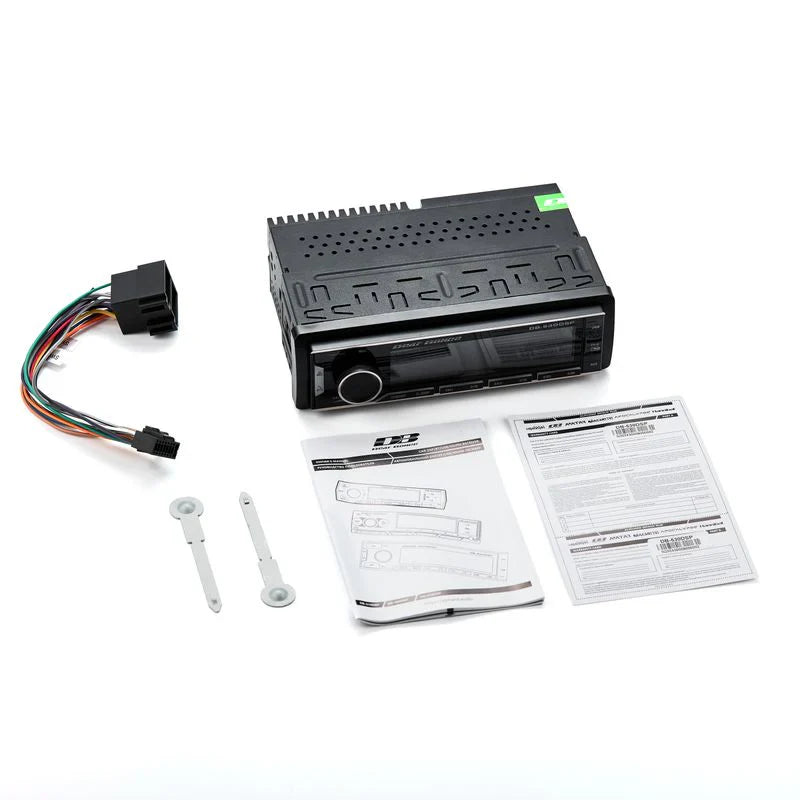

What’s included
What’s included
The product description and selected variant determine what is included. Items shown in lifestyle or installation photos are not included unless they are specifically listed in the description.
Deaf Bonce DB-530DSP
Deaf Bonce DB-530DSP is backordered and will ship as soon as it is back in stock.
Buy with confidence
Verify fitment, selected options, availability and included components before checkout. Secure payment options and order confirmation are provided at checkout.
Description
Description
|
7. SPECIFICATIONS |
|
|
KEY FEATURES |
|
|
Power RMS 4 Ohm |
4x25 W |
|
Radio tuner type |
AM, FM, RDS |
|
Number of RCA outputs |
8 |
|
Number of radio stations |
18 FM, 12 AM |
|
AUX input |
3.5 mm mini-jack |
|
Card reader |
ME. 20 Sonly for models DB 510DSP and |
|
USB ports |
USB Type-A + USB charging port (5V, 1A) |
|
Supported audio playback formats |
MP3, WMA, AAC, FLAC, WAV |
|
Head Unit steering wheel control buttons learning (SWC) |
Yes |
|
Hands-Free support |
Yes |
|
CONNECTION |
|
|
Working voltage |
10-17 V |
|
Input terminal connection |
16 AWG |
|
Output terminal connection |
20 AWG |
|
Automatic turn on/off |
ACC |
|
Front panel backlight type |
ARGB, 7 colors |
|
Quantity of backlight zones |
2 |
|
Information screen type |
VA LCD |
|
Integrated fuse |
15A |
|
AUDIO |
|
|
Built in amplifier class AB |
|
|
Number of RCA outputs |
8 |
|
Number of full range RCA outputs |
6 |
|
Number of subwoofer RCA outputs |
2 |
|
RCA output voltage |
up to 4.5 V |
|
Bluetooth profile |
A2DP |
|
Frequency response for full range channels |
20 Hz- 20 kHz |
|
Frequency response for subwoofer channels |
20 Hz- 800 Hz |
|
Signal to noise ratio |
≥80 dB |
|
Minimum permissible load impedance on the single channel |
4 Ohm |
|
CROSSOVER |
|
|
Filter types for full range channels |
LPF, HPF |
|
Filter types for subwoofer channels |
LPF, HPF |
|
Crossover frequency for full range channels |
30 H2 - 12.5 KHZ |
|
Crossover frequency for subwoofer channels |
20 Hz- 800 Hz |
|
Filter slope for full range channels |
6-24 dB/Oct |
|
Filter slope for subwoofer channels |
6-24 dB/Oct |
|
TIME ALIGNMENT |
|
|
Time alignment, distance |
0 - 642 cm / 0 - 240 inch |
|
Time alignment, delay |
0 - 18 ms |
|
Time alignment, step |
0.1 ms, 3 cm, 1 inch |
|
SIZE |
|
|
Size (LxWxH) |
188x58x138 mm |
|
Size (LxWxH)| |
7.4x2.28x5.43 inch |
