Desolate Motorsports High Clearance Radius Arms - 1980-1996 Ford F150/Bronco

Desolate Motorsports High Clearance Radius Arms

Fits: 1980–1996 Ford Bronco / F-150 | 2WD/4WD TTB Beams

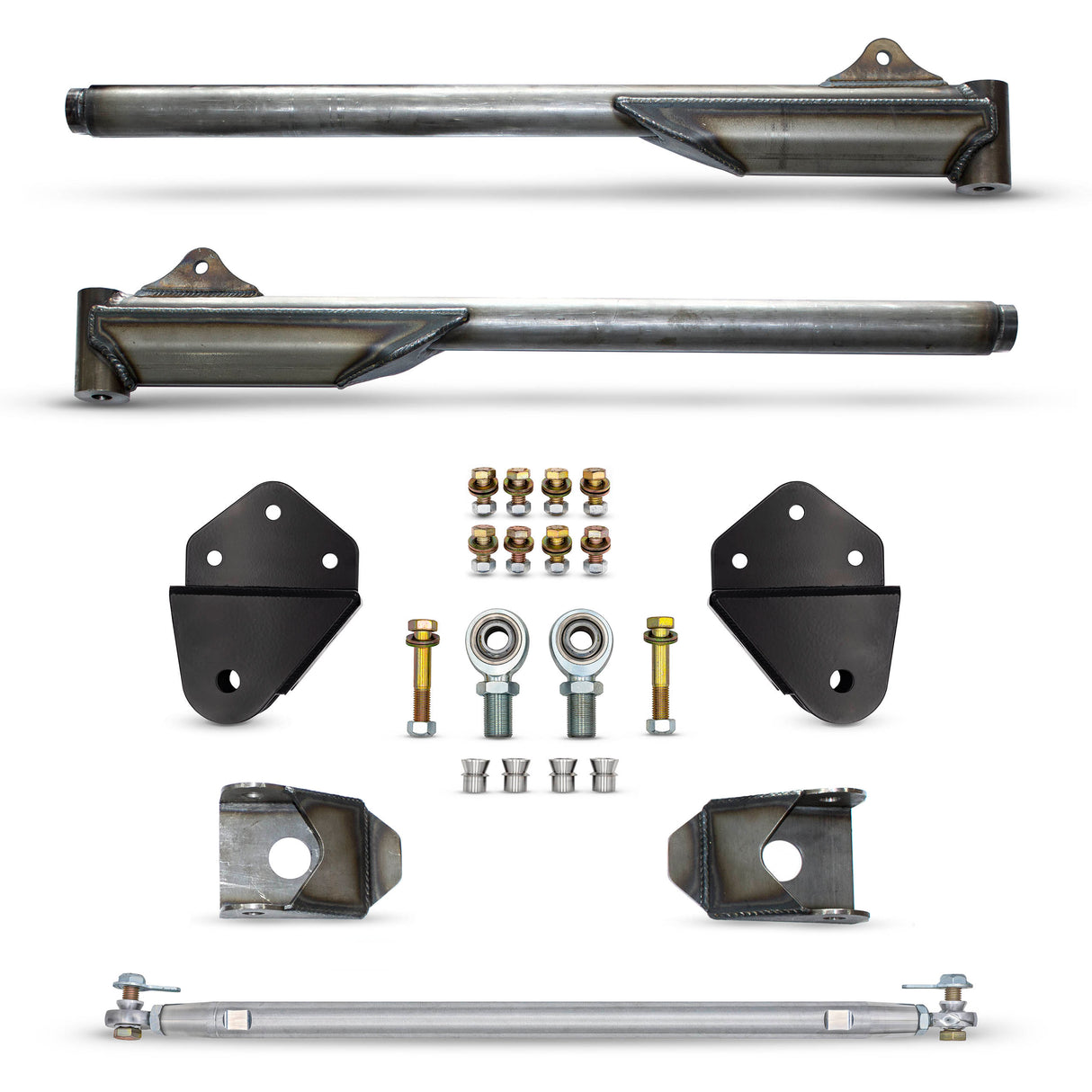

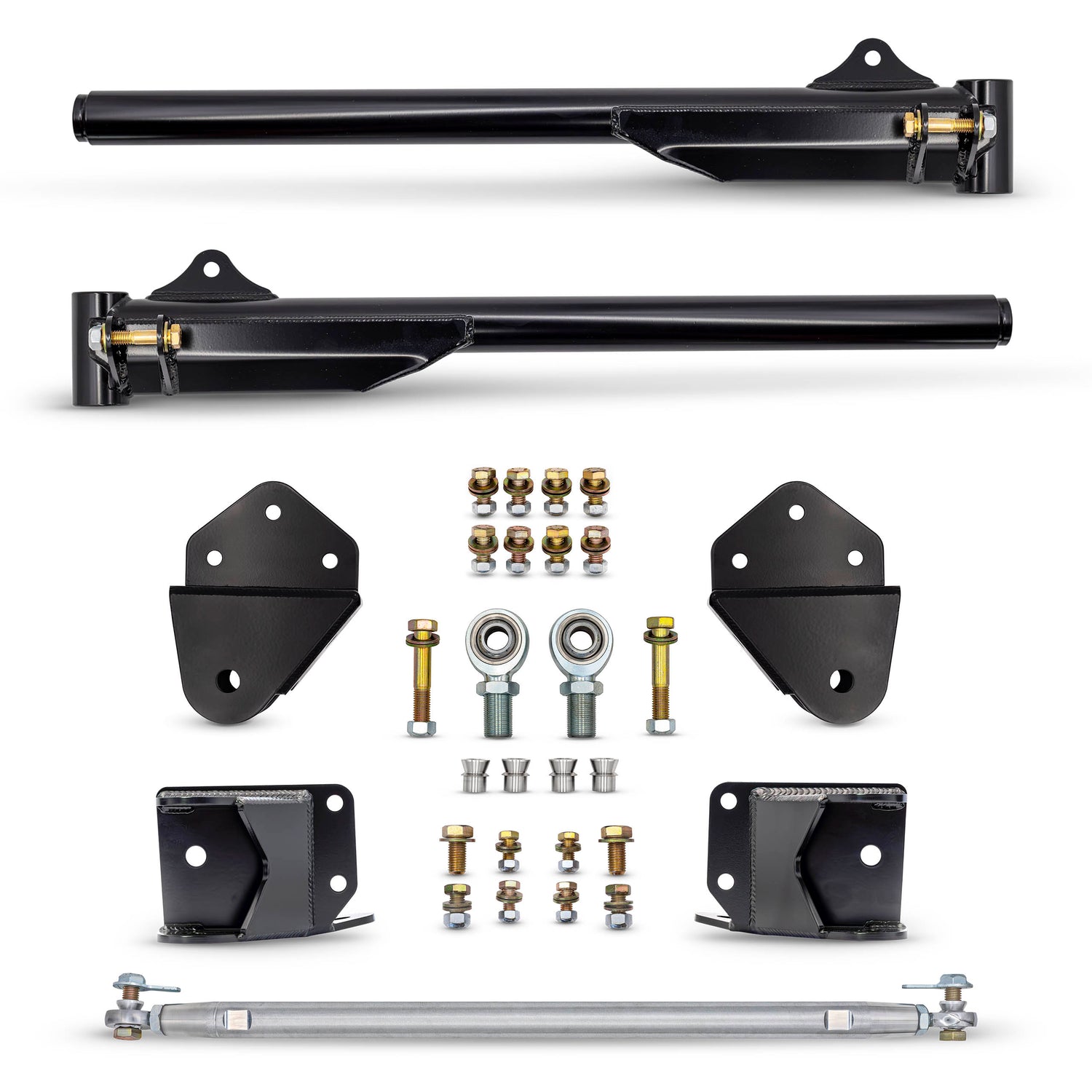

Raw or Powder Coated Options Available

Built for serious off-road performance, the Desolate Motorsports High Clearance Radius Arms are the strongest and most refined option on the market today. Engineered with a combination of massive 2” x .250” wall DOM tubing and a laser-formed 3/16” steel truss, these arms are designed to handle the toughest terrain with zero compromise.

🔩 Key Features:

• Heavy-Duty Plate & Tube Construction

  • 2” x .250” wall DOM main tubes

  • 3/16” steel lower truss for added strength

• Weld-On Beam Mounts

  • Proprietary bracket eliminates weak factory threaded inserts

  • Uses a ¾” bolt with lock nut for superior strength

• Bolt-On Frame Pivot Brackets

  • Laser-cut from .250” steel

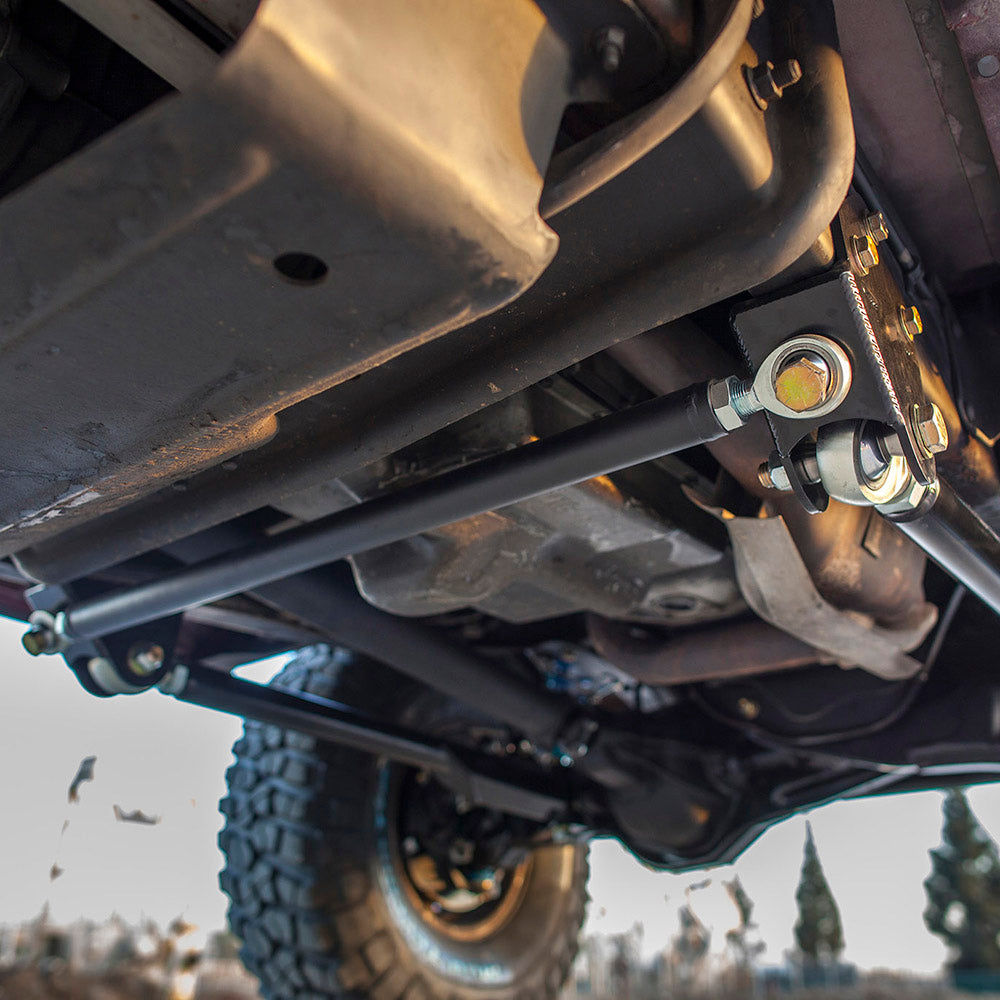

  • Compatible with optional radius arm crossmember for added rigidity

• Massive 1.25” Heim Joints

  • Includes stainless steel misalignment spacers

  • Allows full articulation and precise movement

🛠 Installation Notes:

• Coil spring version ships with bolt-on beam brackets (powder coated)

• Coilover version ships with weld-on beam brackets (raw)

• If ordered as part of a front suspension kit, beam brackets are pre-welded at no additional cost

• Coilover long-travel arms are sold raw

These arms are purpose-built for strength, articulation, and clearance—ideal for any serious trail rig, prerunner build, or desert cruiser looking to upgrade from weak factory arms or inferior aftermarket designs.
