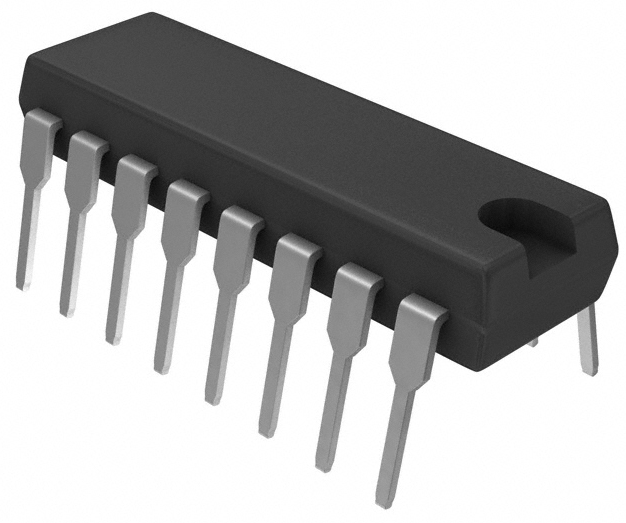

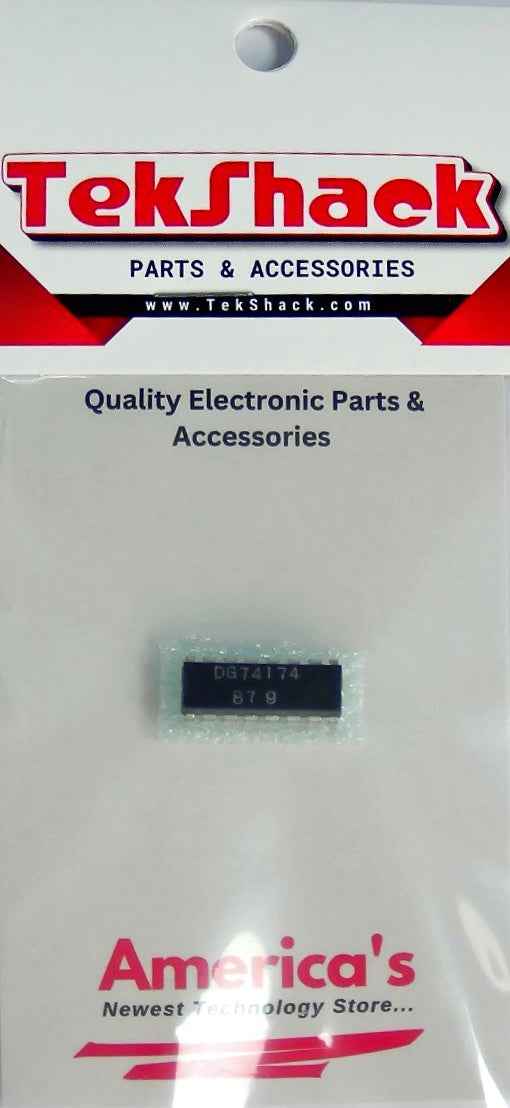

DG74174 IC FF D-TYPE SNGL 6BIT 16DIP
DG74174 IC FF D-TYPE SNGL 6BIT 16DIP is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
DG74174 IC FF D-TYPE SNGL 6BIT 16DIP
DG74174 IC FF D-TYPE SNGL 6BIT 16DIP is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
--THIS PRODUCT CONTAINS 1 PER PACK--
Flip Flop 1 Element D-Type 6 Bit Positive Edge 16-DIP (0.300", 7.62mm)
IC FF D-TYPE SNGL 6BIT 16DIP
Function
Master Reset
Type
D-Type
Output Type
Non-Inverted
Number of Elements
1
Number of Bits per Element
6
Clock Frequency
30 MHz
Max Propagation Delay @ V, Max CL
25ns @ 5V, 15pF
Trigger Type
Positive Edge
Current - Output High, Low
800µA, 16mA
Voltage - Supply
4.75V ~ 5.25V
Current - Quiescent (Iq)
65 mA
Operating Temperature
0°C ~ 70°C (TA)
Mounting Type
Through Hole
Supplier Device Package
16-PDIP
Package / Case
16-DIP (0.300", 7.62mm)
Base Product Number
DM74174
