Diablo DB-15XL 15" 3000W RMS Subwoofer DVC
Diablo DB-15XL 15" 3000W RMS Subwoofer DVC - Dual 1 Ohm is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Diablo DB-15XL 15" 3000W RMS Subwoofer DVC
Diablo DB-15XL 15" 3000W RMS Subwoofer DVC - Dual 1 Ohm is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description

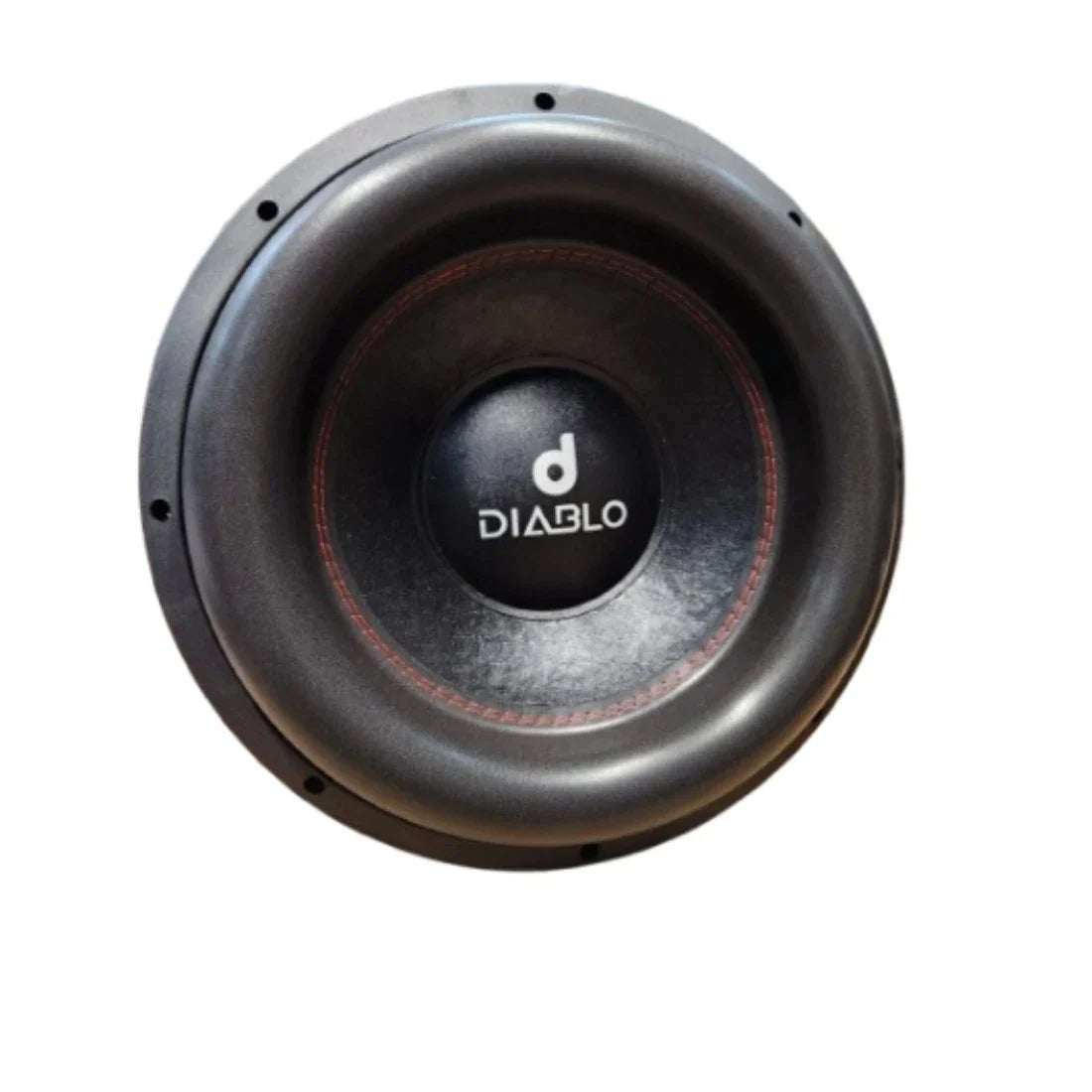

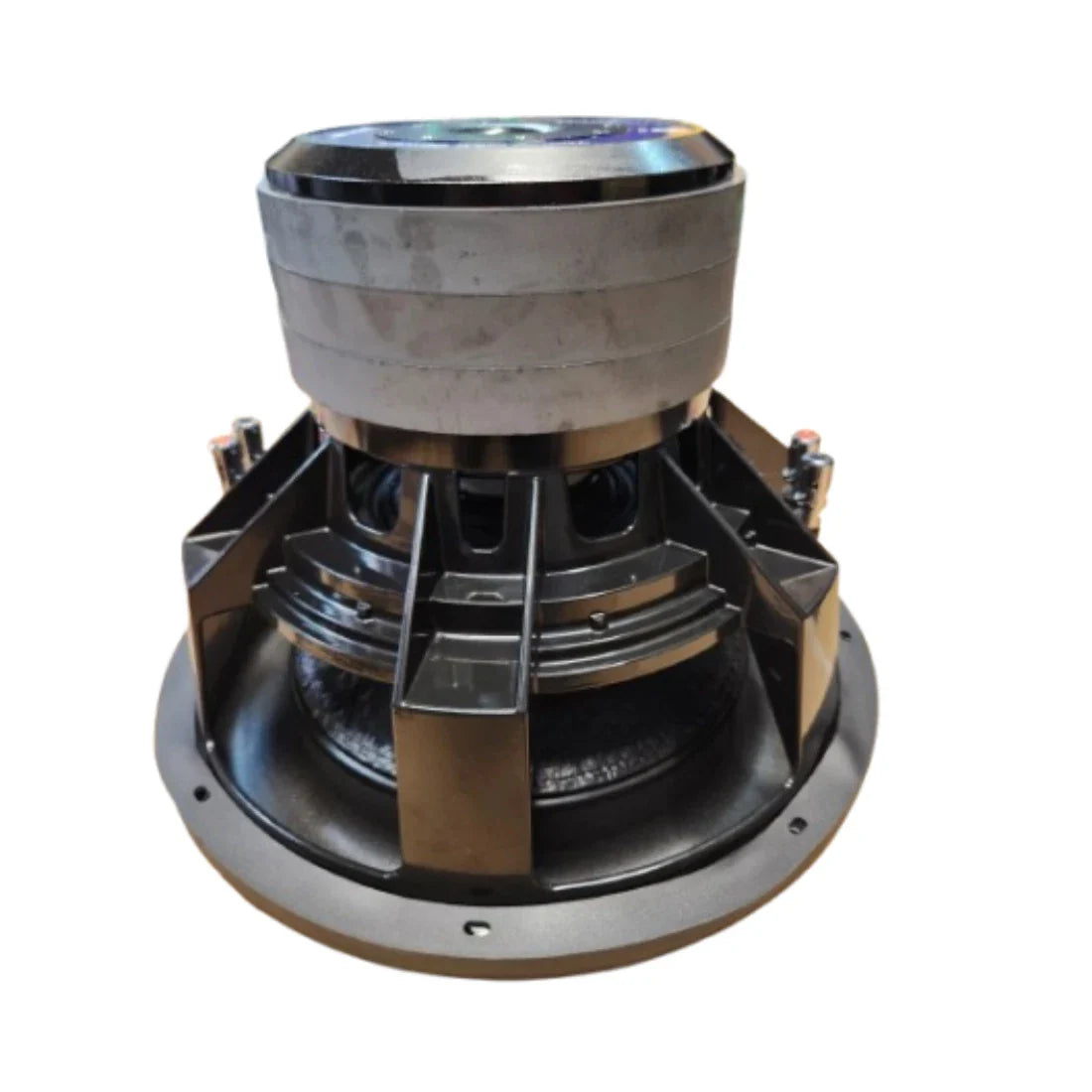

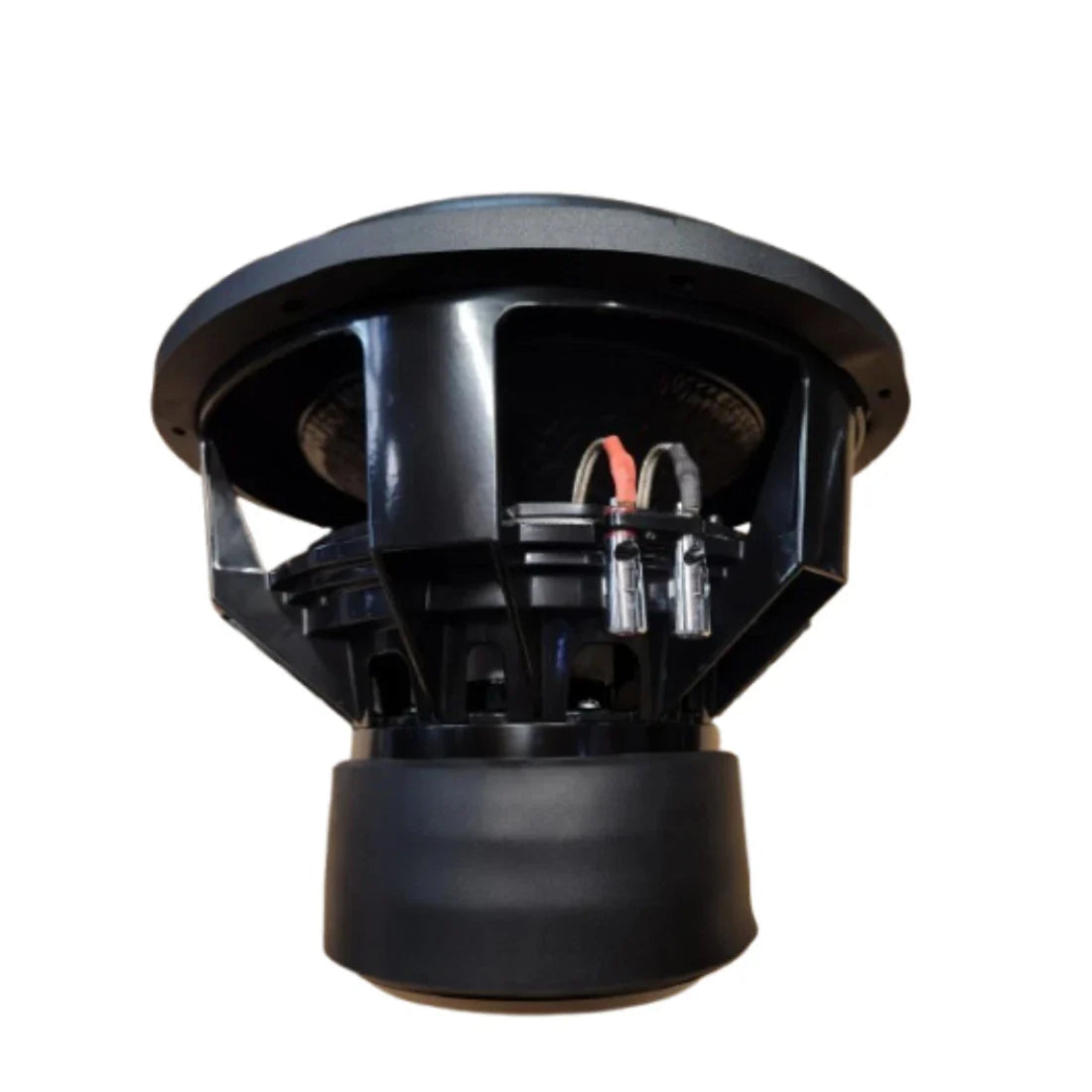

- 15-inch high-performance car subwoofer
- Die-cast aluminum basket
- Non-pressed paper cone
- Foam surround with rubber gasket
- Tinsel woven leads on Nomex spider
- High-efficiency FEA-optimized motor design
- Dual high-temperature long copper voice coils
- Built for high-power bass applications
- Impedance: 1 Ohm/2 Ohm
- RMS Power: 3000 W
- Peak Power: 7000 W
- Voice Coil: 3.3-inch, 4-layer copper voice coil
- Magnet Structure: 3 pcs Y35 magnets (Total 313 oz)
- Sensitivity (SPL): 85.5 dB
- Resonant Frequency (Fs): 29.4 Hz
- Qes: 0.55
- Qms: 6.15
- Qts: 0.5
- Vas: 49.33 liters
- BL: 25 T·L
- Xmax: 21 mm
- DC Resistance (Re): 4 Ω
- Recommended Ported Box Volume: 3.0 – 3.5 ft³
- Mounting Depth: 260 mm
- Cutout Diameter: 356 mm
- Overall Diameter: 395 mm
- Net Weight: 21.6 kg (47.6 lbs)
