Description
Description
Specifications:

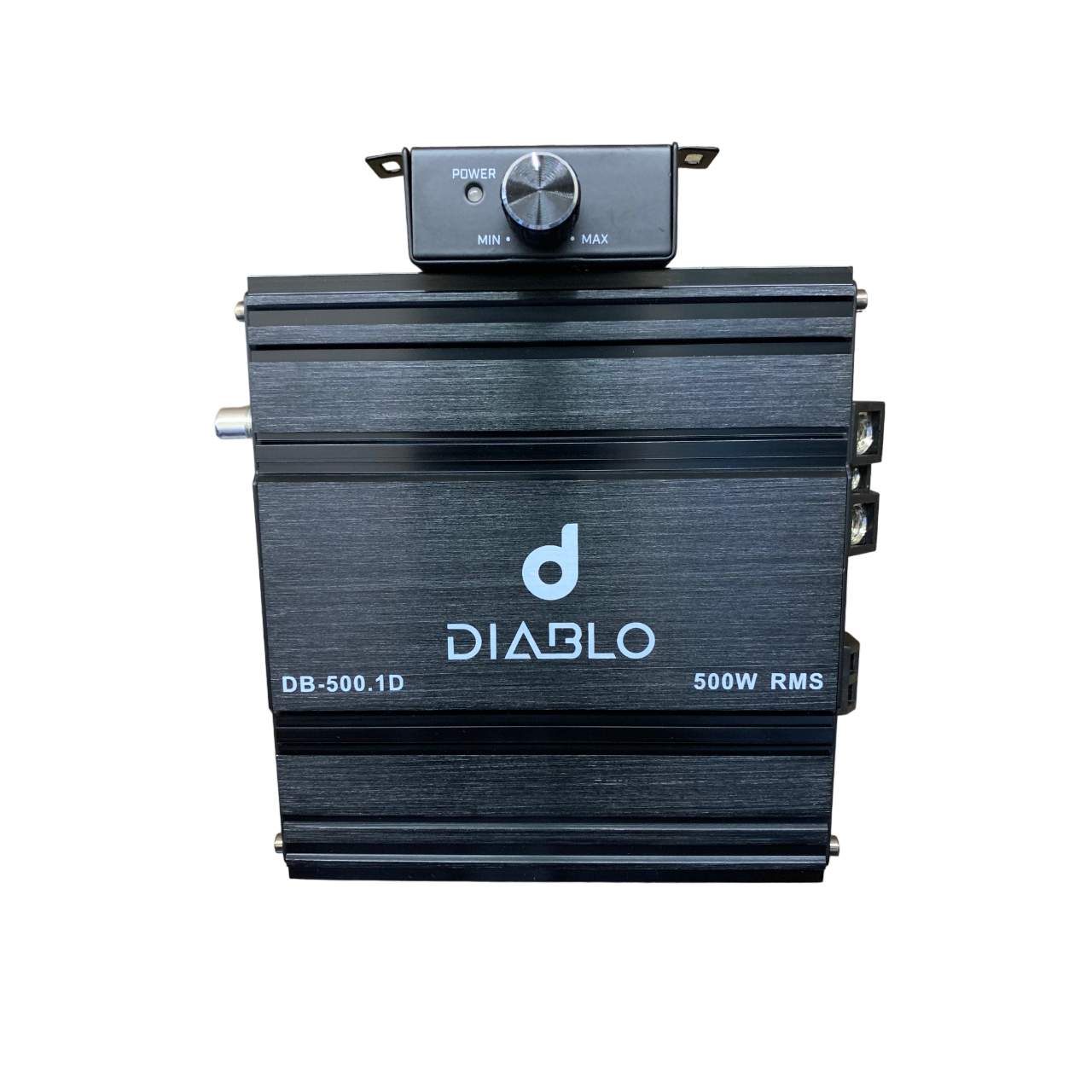

- 1Ch Full-Range Super Mini Class D Amplifier
- RMS POWER@ 14.4V (4 OHM) 225W RMS RMS POWER@ 14.4V (2 OHM) 328W RMS RMS POWER@ 14.4V (1 OHM) 525W RMS
- INPUT SENSITIVITY: 200MV
- Signal-to-Noise Ratio: 97dB Frequency Response:15Hz-10KHz

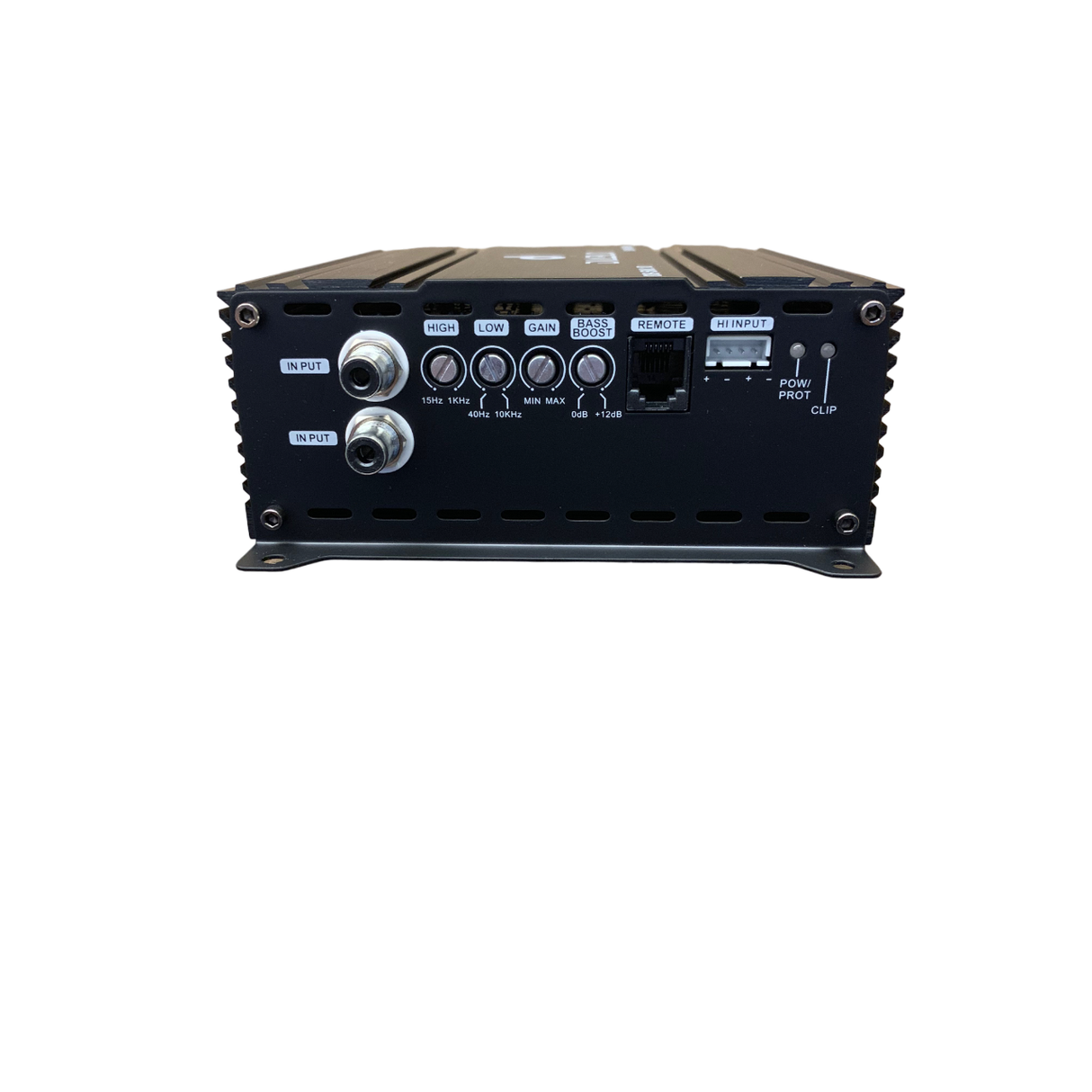

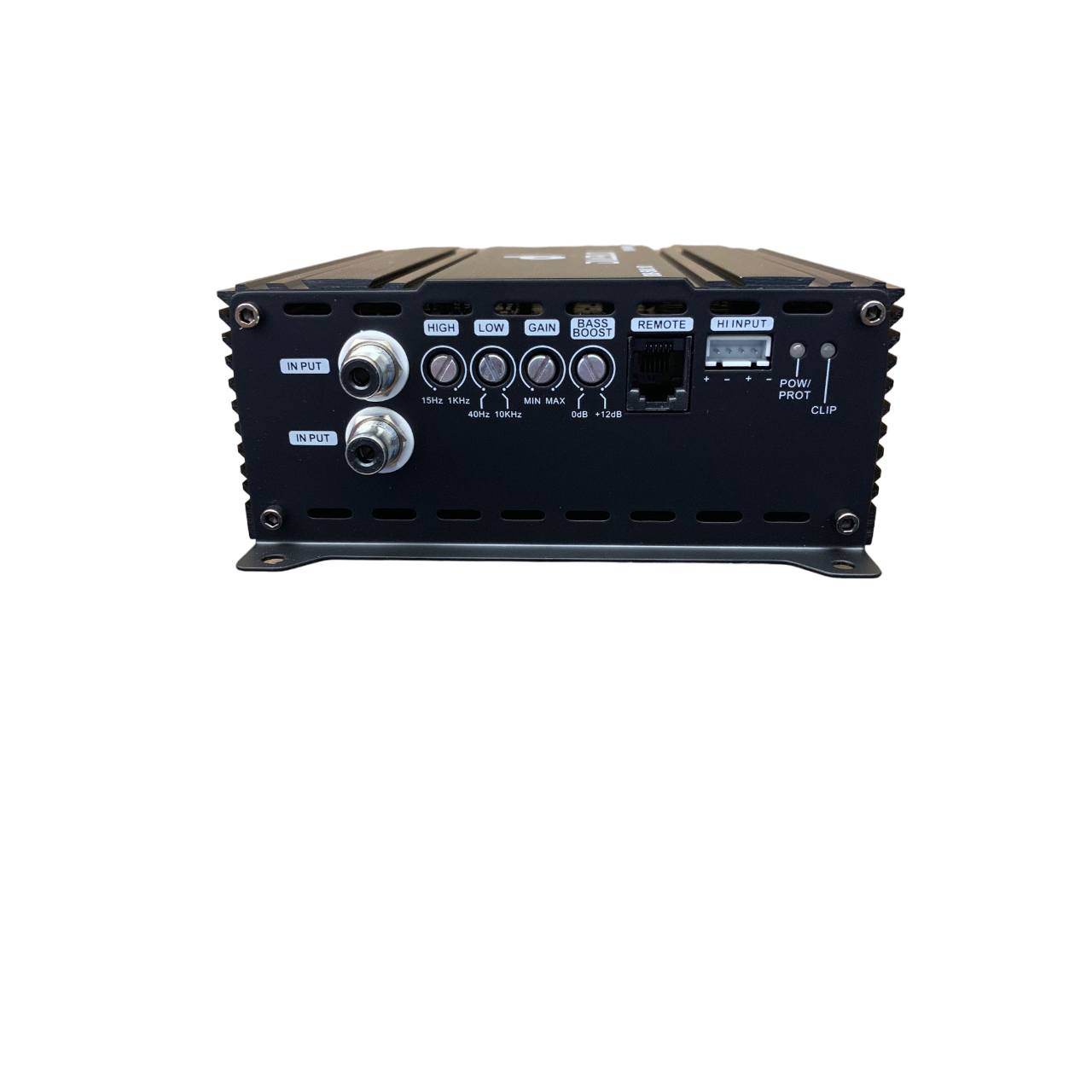

Crossover:
- H.P.F. (High Pass Filter) 15 to 1 KHz Variable
- L.P.F. (Low Pass Filter) 40 to 10 KHz Variable
- Bass Boost: 0-12dB (50Hz)
- Protection System: Output Short/High/Low Supply
- Voltage/Thermal Protection
- Minimum Supply Voltage: 9V
- Maximum Supply Voltage: 16V
