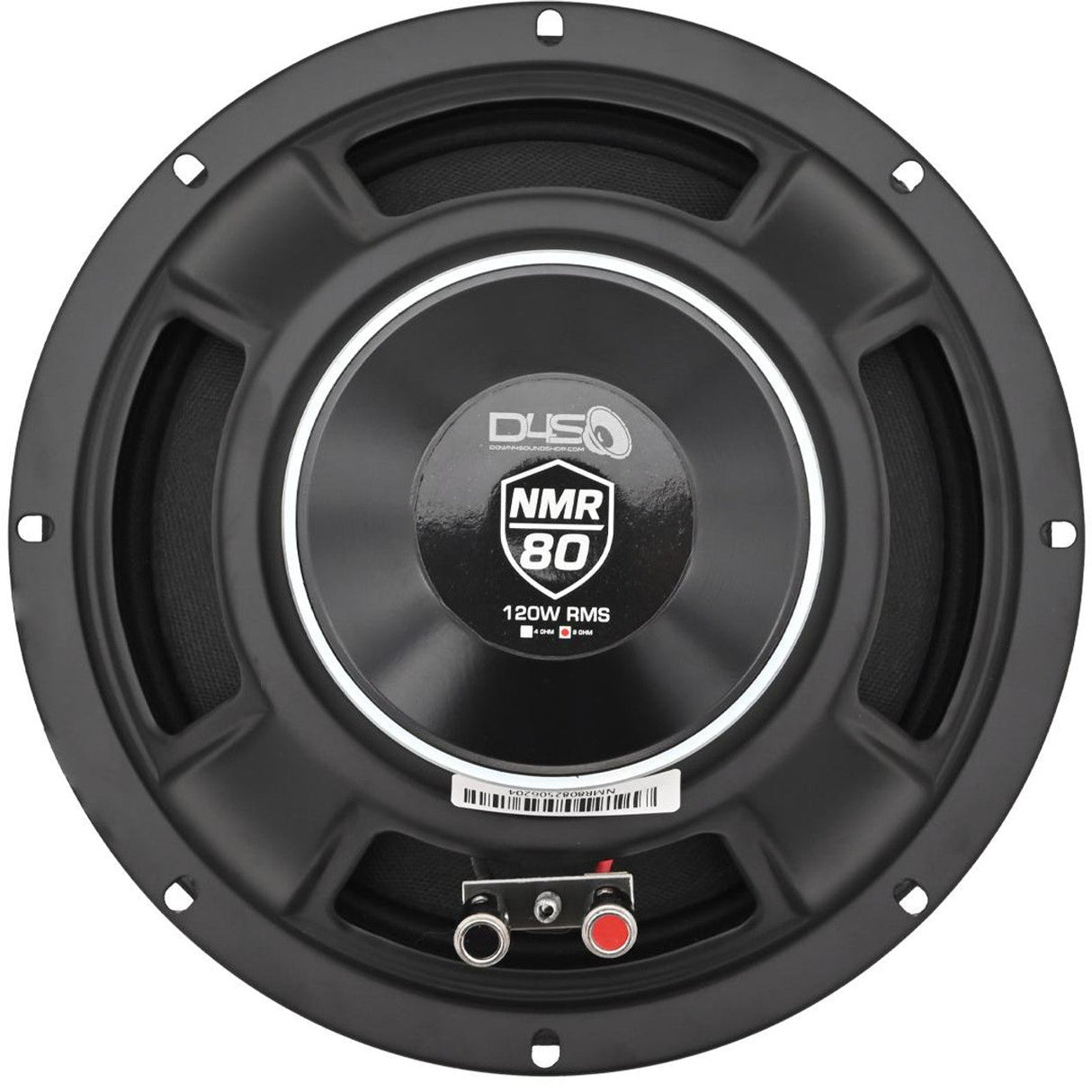

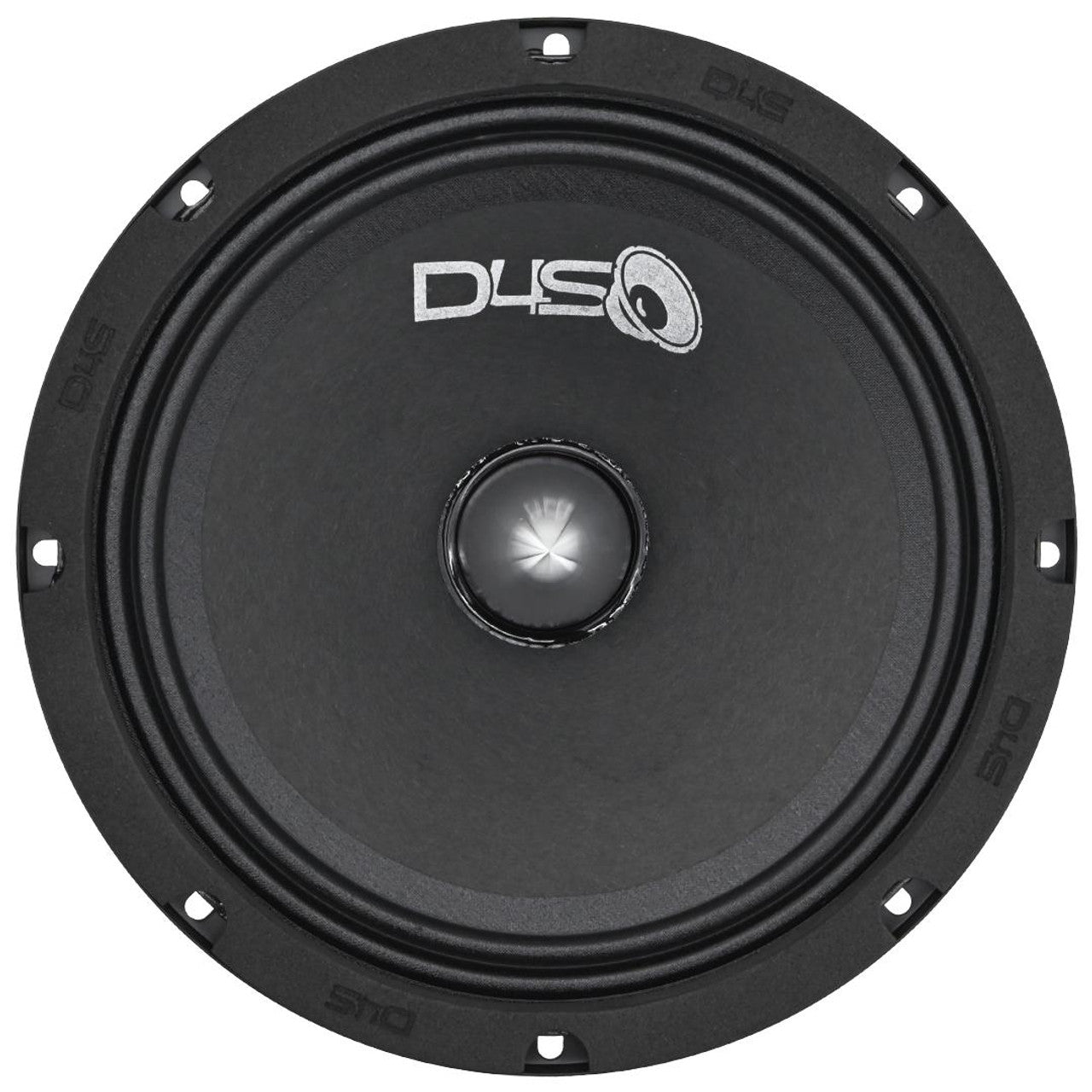

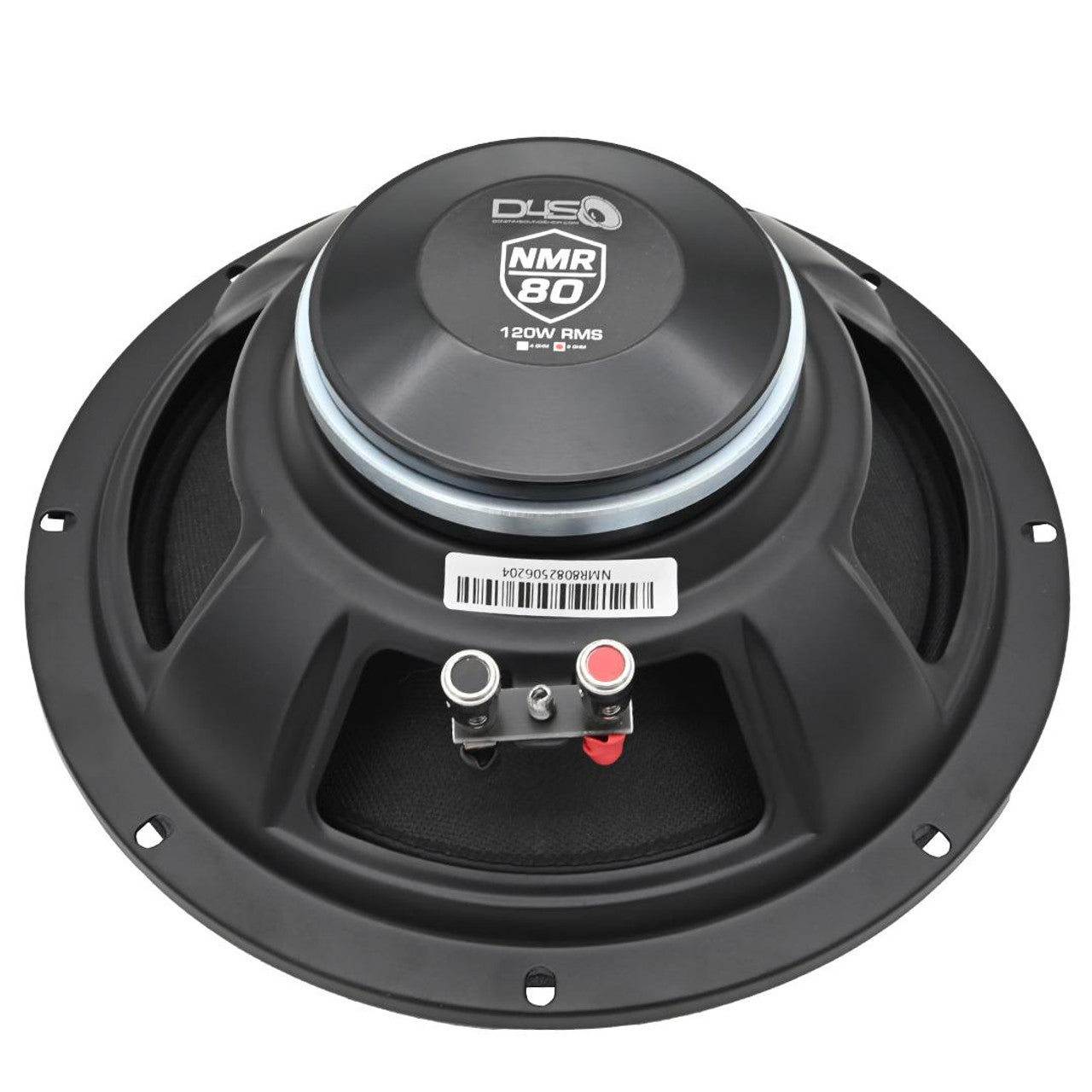

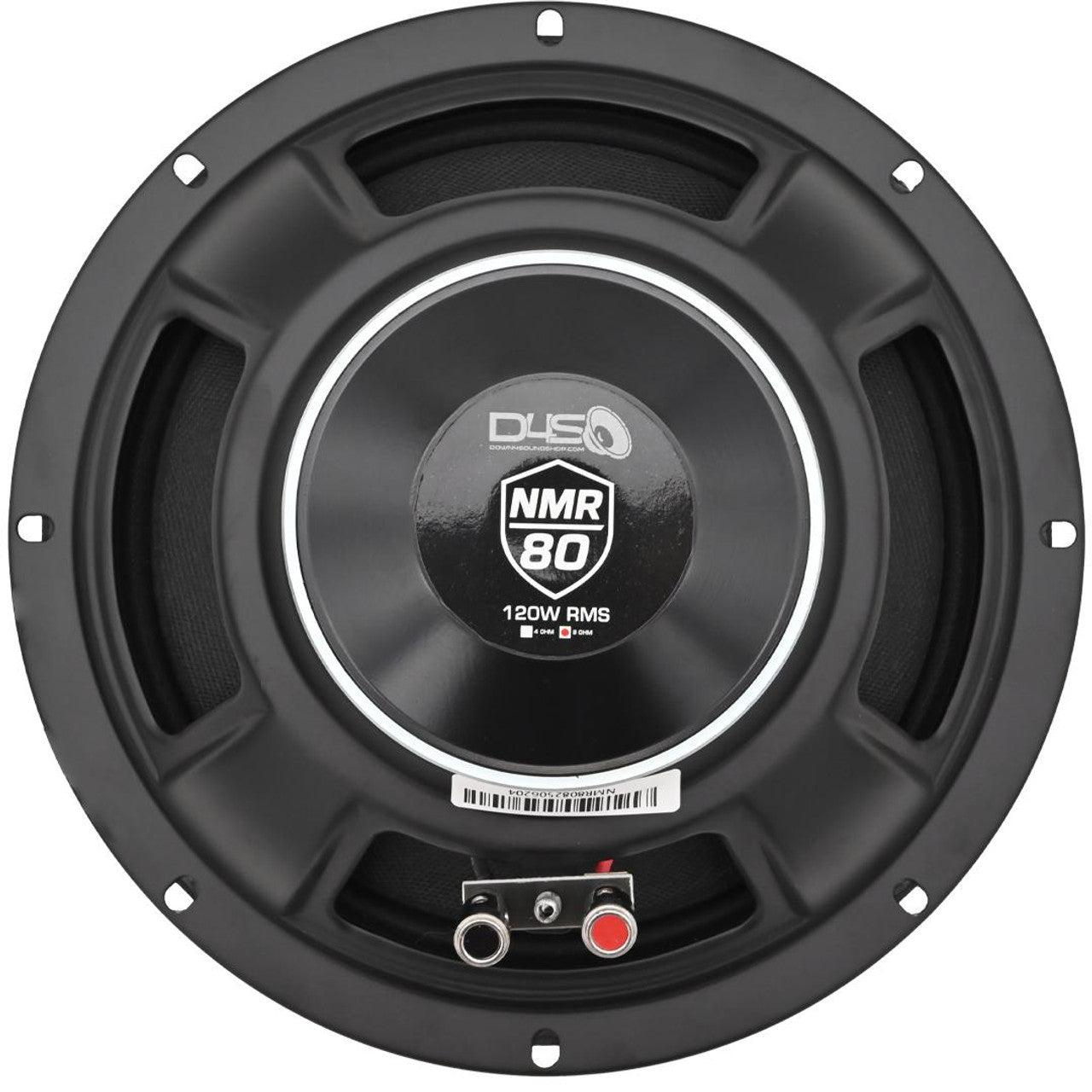

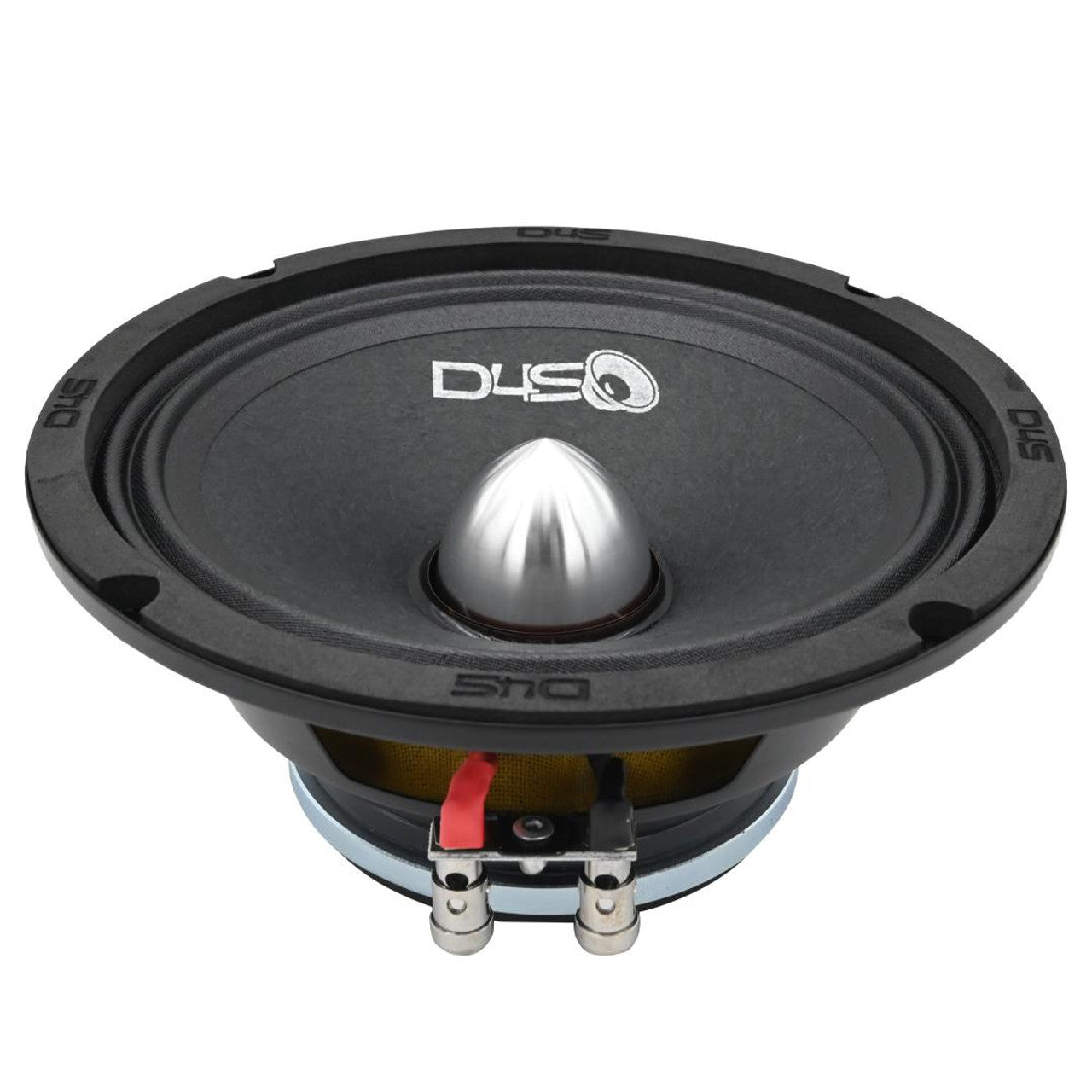

Down4Sound D4S NMR804 8" 120W RMS Neo Midrange Speaker (Single)
Down4Sound D4S NMR804 8" 120W RMS Neo Midrange Speaker (Single) - 4 Ohm is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Down4Sound D4S NMR804 8" 120W RMS Neo Midrange Speaker (Single)
Down4Sound D4S NMR804 8" 120W RMS Neo Midrange Speaker (Single) - 4 Ohm is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
Specifications
- Nominal Diameter: 8 in (210 mm)
- Power Handling (RMS): 120W
- Sensitivity (1W/1m): 100 dB
- Frequency Response: 200 Hz – 15 kHz
- Impedance: 4 Ohm/8 Ohm
Mounting Information
- Overall Diameter: 8 in (210 mm)
- Baffle Cutout Diameter: 6.54 in (166 mm)
- Bolt Circle Diameter: 7.8 in (198 mm)
- Mounting Depth: 3.07 in (78 mm)
- Net Weight: ~2.6 lbs (1.2 kg)
Thiele/Small Parameters
- Resonant Frequency (Fs): 142 Hz
- Qms (Mechanical): 8.8
- Qes (Electrical): 0.72
- Qts (Total): 0.67
- Vas: 9.1 L
- Cms: 131 µM/N
- BL: 9.3 N/A
- Sd: 21.6 cm²
- Xmax: 2.5 mm
