Down4Sound DVX 10" 1700W RMS Subwoofer DVC
Down4Sound DVX 10" 1700W RMS Subwoofer DVC - Dual 2 Ohm is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Down4Sound DVX 10" 1700W RMS Subwoofer DVC
Down4Sound DVX 10" 1700W RMS Subwoofer DVC - Dual 2 Ohm is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
The DOWN4SOUND DVX-10 D4/D2 is engineered for listeners who demand tight, authoritative, and durable low-frequency performance in a more compact footprint. Built with a high-strength motor structure, extended mechanical throw, and a rigid carbon fiber dustcap, the DVX-10 delivers impressive output and control ideal for daily driving, demo systems, and high-power compact builds.
Rated for true high-power handling and equipped with dual 4-ohm/2-ohm voice coils, the DVX-10 D4/D2 offers flexible wiring options while maintaining excellent efficiency, cooling, and long-term reliability under sustained SPL.
Key Features
- High RMS power handling for demanding systems
- Dual 4-ohm voice coil configuration
- 3-inch high-temperature voice coil
- Long linear excursion design
- Carbon fiber dustcap for added rigidity and durability
- Advanced motor ventilation for superior cooling
- Heavy-duty construction built for daily and high-output use
- Compact 10-inch format with serious low-frequency authority
Technical Specifications (T/S Parameters – DVX-10 D4)
- Revc (DC Resistance): 6.05 Ω
- Resonance Frequency (Fs): 38.54 Hz
- Qms: 3.409
- Qes: 0.531
- Qts: 0.459
- Mms (Moving Mass): 360.12 g
- Cms (Compliance): 47.35 µm/N
- BL Product: 31.53 T·m
- Vas: 8.07 L
- Sd: 346.36 cm²
- Sensitivity (SPL): 81.3 dB
- Xmax: 31 mm
Engineering and Construction
- Extended pole piece for improved linearity and mechanical control
- Dual-flared pole venting for reduced turbulence and quiet airflow
- Rear gap ventilation to manage voice coil temperatures under load
- Large-format motor for increased magnetic strength and efficiency
- Long-fiber spider system for consistent suspension behavior
- Carbon fiber dustcap for reduced flex and enhanced durability
Recommended Enclosure
Ported Enclosure (Recommended)
- Net Volume: ~1.25 cubic feet
- Tuning Frequency: ~34–35 Hz
- Displacement: 21 cu ft
This alignment delivers strong low-end extension, fast transient response, and excellent output for daily music while maintaining control and efficiency.

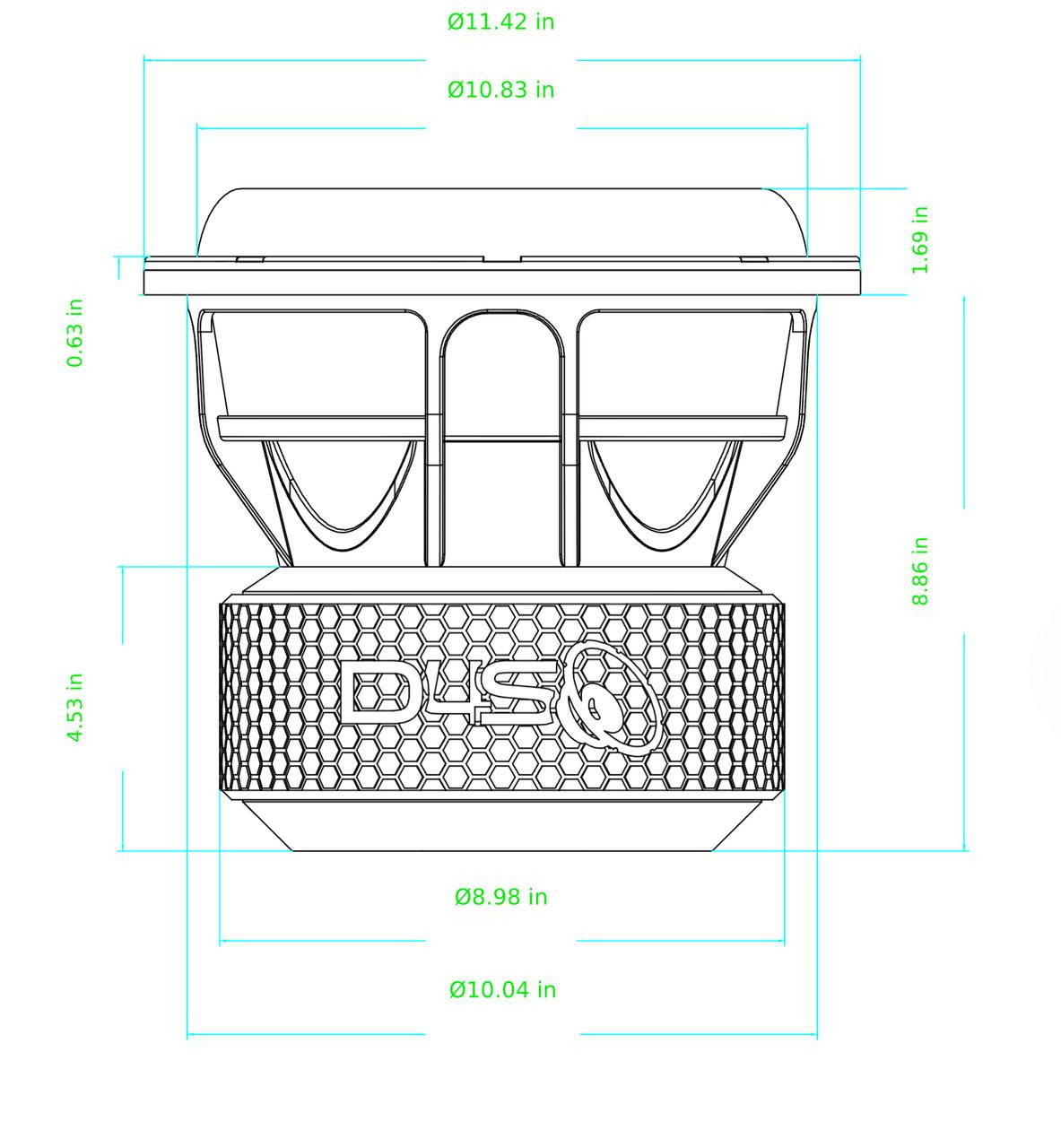

Physical Dimensions
- Cutout Diameter: 10.04 in (240 mm)
- Mounting Depth: 8.86 in (225 mm)
- Overall Diameter: 11.42 in (290 mm)
- Motor Diameter: 8.98 inch (255 mm)
- Weight: ~45 lb
Why Choose the DVX-10 D4/D2
- Compact size with serious low-frequency output
- Designed for clean, controlled bass with high durability
- Dual 4-ohm/2-ohm coils allow flexible wiring configurations
- Carbon fiber dustcap adds strength and premium appearance
- Ideal balance of SPL capability and daily sound quality
