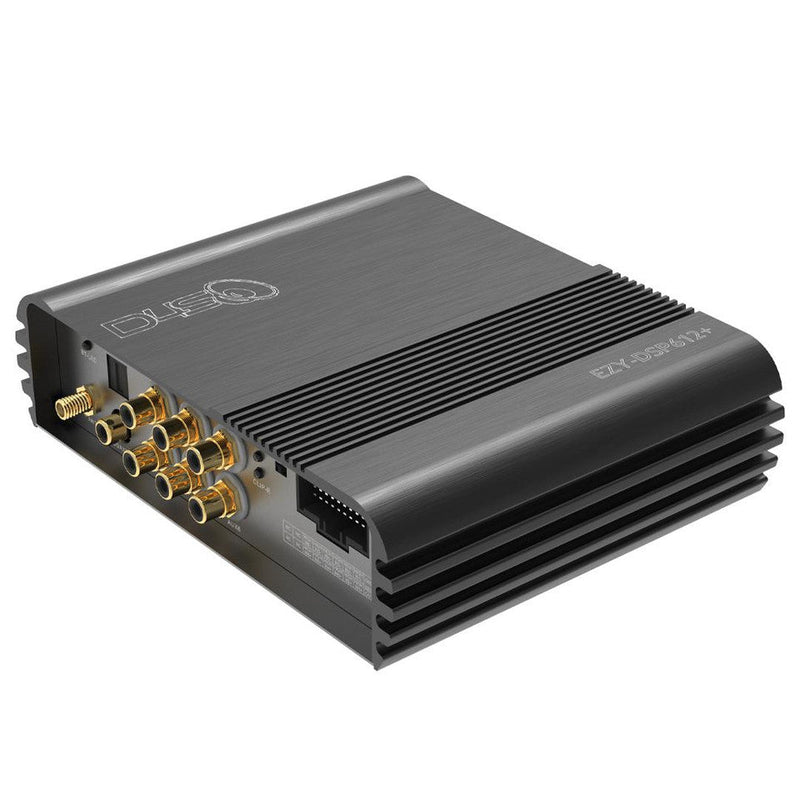

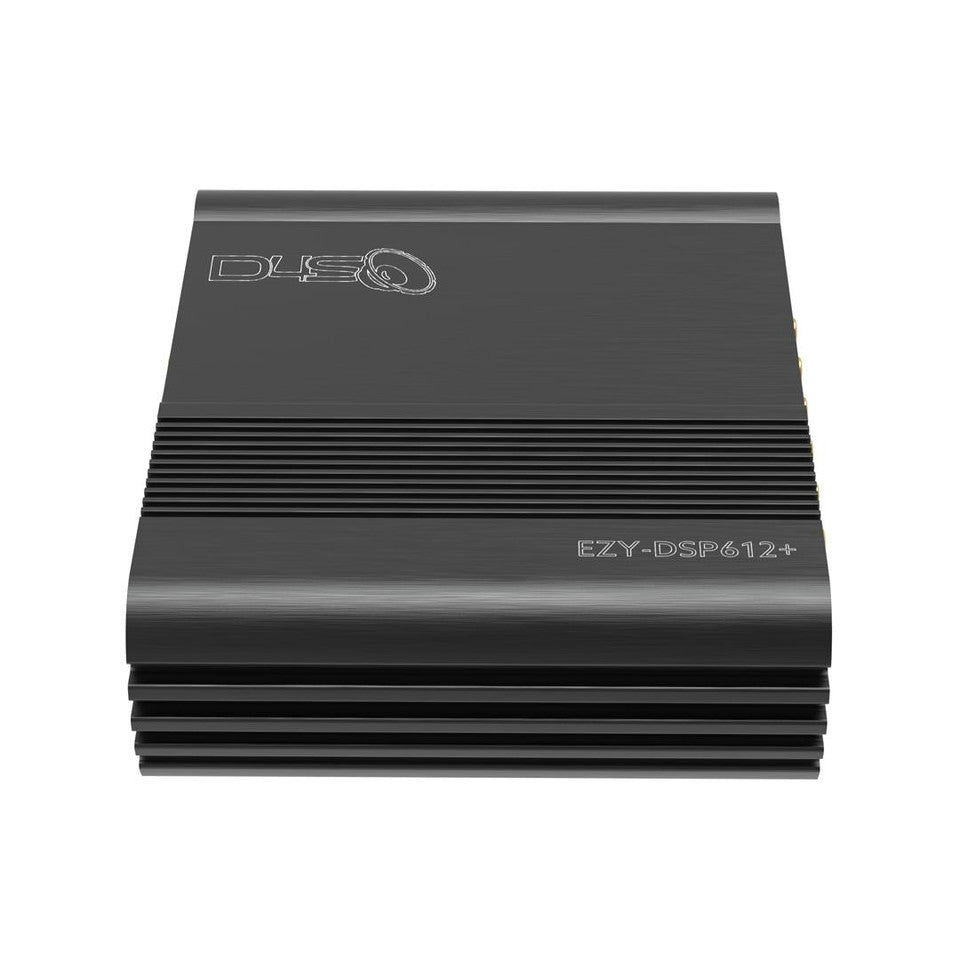

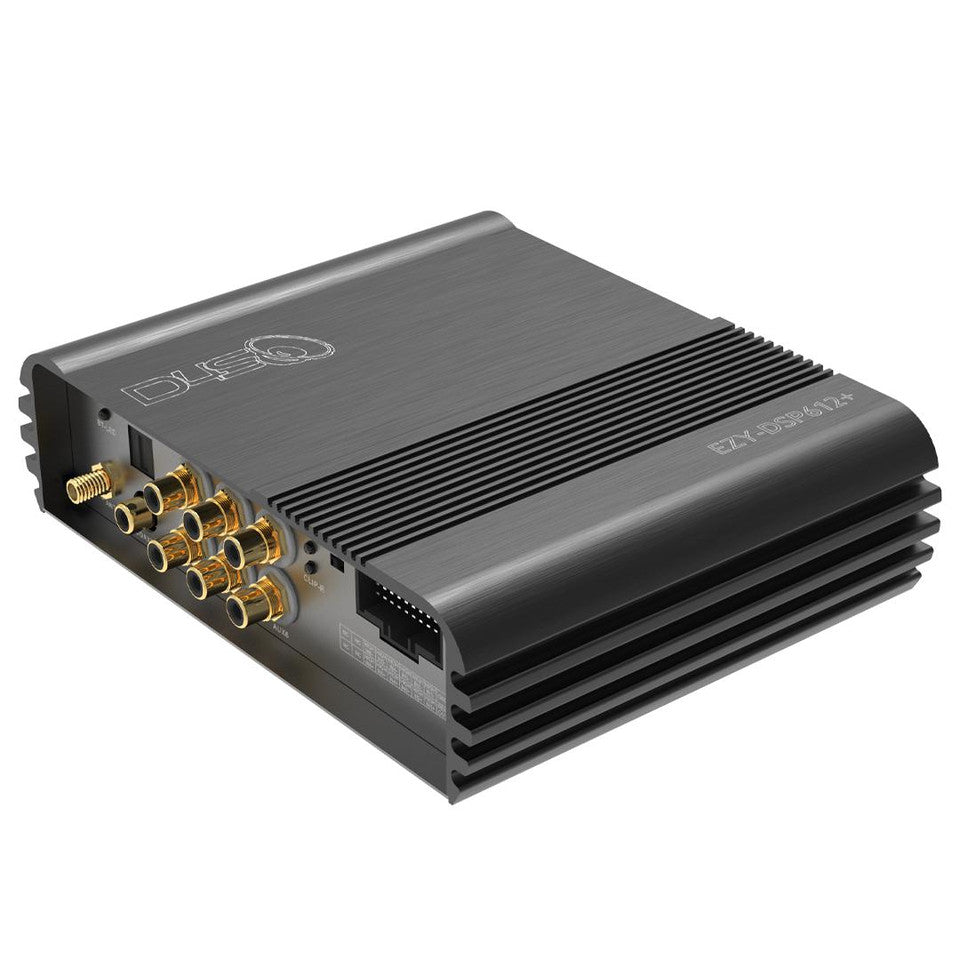

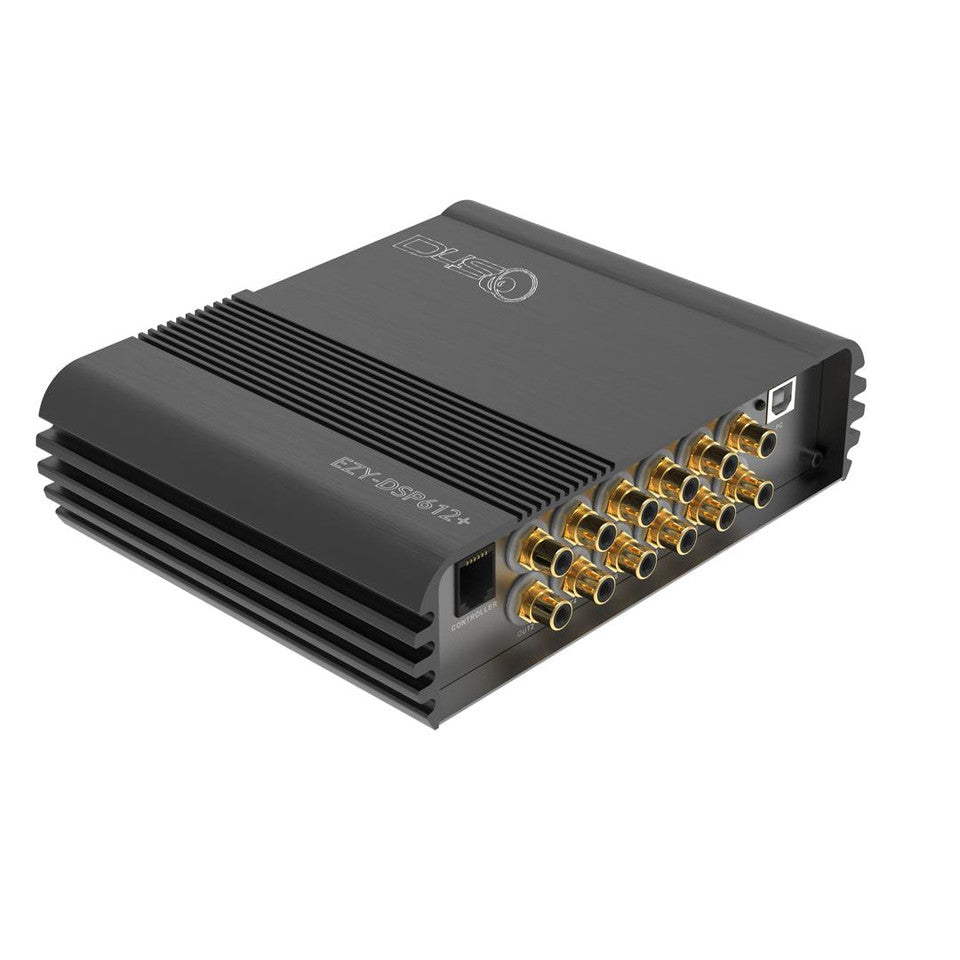

Down4Sound EZY DSP612+ All-in-One Hi/Low Level Car DSP 6-in-12 Out
Down4Sound EZY DSP612+ All-in-One Hi/Low Level Car DSP 6-in-12 Out is backordered and will ship as soon as it is back in stock.
Buy with confidence
Verify fitment, selected options, availability and included components before checkout. Secure payment options and order confirmation are provided at checkout.
Description
Description
Take Your Audio System to the Next Level
The EZY DSP612+ delivers advanced tuning, high-definition streaming, and seamless integration into any car audio system. Whether you’re upgrading a factory setup or building a custom system, this DSP provides the ultimate combination of control, flexibility, and precision.
Unmatched Flexibility, Standard in Every Unit
High-Level Inputs:
- Designed for factory systems where replacing the radio isn’t an option.
- Effortlessly converts high-level signals into clean digital audio, upgrading your factory system with ease.
- Retain all OEM features while unlocking premium sound quality.
Low-Level RCA Inputs:
- Ideal for custom setups with aftermarket radios.
- Delivers a direct, clean signal path to your amplifiers for maximum clarity and performance.
Bluetooth Streaming with APTX-HD:
- Stream your music in TRUE high-definition directly from your phone or other Bluetooth devices.
- Built-in APTX-HD Bluetooth technology provides studio-quality wireless audio for a seamless listening experience.
- Forget traditional head units—your smartphone becomes the ultimate control hub for your audio system.
Key Features
Every feature is included as standard to provide maximum flexibility and value:
Inputs:
- 6 RCA inputs (high-level or low-level) for seamless integration with any system.
Outputs:
- 12 RCA outputs with 4.2Vrms output voltage for precise audio distribution to amplifiers.
Bluetooth Streaming:
- Built-in Bluetooth 5.0 with APTX-HD for TRUE HD wireless streaming.
Connectivity Options:
- Optical and coaxial inputs for flexible connection to modern audio sources.
Advanced Audio Processing:
- 31-band EQ for precise frequency, Q-value, and gain control.
- High/low-pass filters with adjustable slopes for professional tuning.
- Phase adjustment (0° to 360°).
- Delay control up to 20ms (273 inches) for accurate speaker timing.
Custom Presets:
- Save and instantly recall up to 6 audio profiles for different setups.
Noise Control:
- Features a noise gate, limiter, and minimum source attenuation for crystal-clear audio.
Specifications
| Specification | Value |
|---|---|
| Dynamic Range | ≥100dB |
| Signal-to-Noise Ratio | ≥102dB |
| Total Harmonic Distortion | ≤0.05% |
| Frequency Response | 20Hz ~ 20kHz |
| Sampling Rate | 48kHz/24Bit |
| RCA Input Voltage (RMS) | 2.8Vrms |
| RCA Output Voltage (RMS) | 4.2Vrms |
| RCA Input Impedance | 10kΩ |
| RCA Output Impedance | 51Ω |
| Max Input/Output Signal | 12Vpp |
| Working Voltage | DC 9V ~ 16V |
| Operating Temperature | -30°C to 70°C (-22°F to 158°F) |
| Dimensions | 6 in x 5 in x 3 in |
| Weight | 2 lbs |
Why Choose the EZY DSP612+?
- Ultimate Flexibility: High-level and low-level inputs make it compatible with both factory and aftermarket systems.
- True HD Bluetooth Audio: Stream directly from your phone with APTX-HD Bluetooth 5.0 for studio-level sound quality.
- Crystal-Clear Audio: Dynamic range of ≥100dB and distortion ≤0.05% ensures every detail of your music is heard.
- Comprehensive Tuning Options: Advanced features like a 31-band EQ, phase adjustment, and delay control let you fine-tune your system to perfection.
