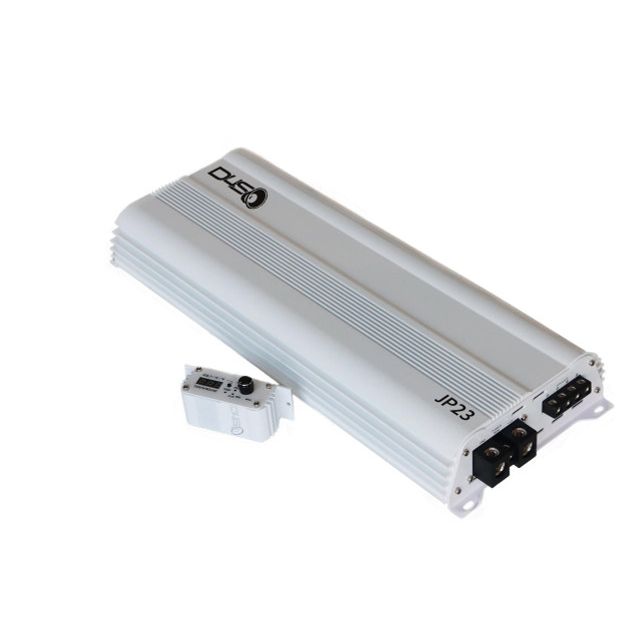

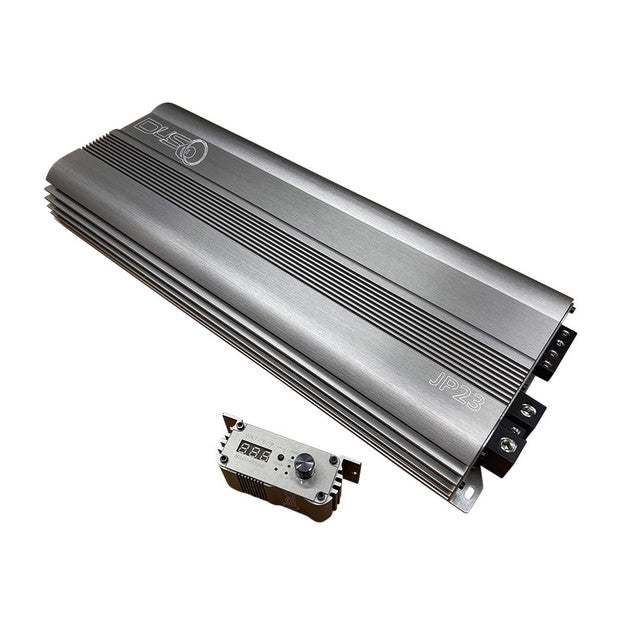

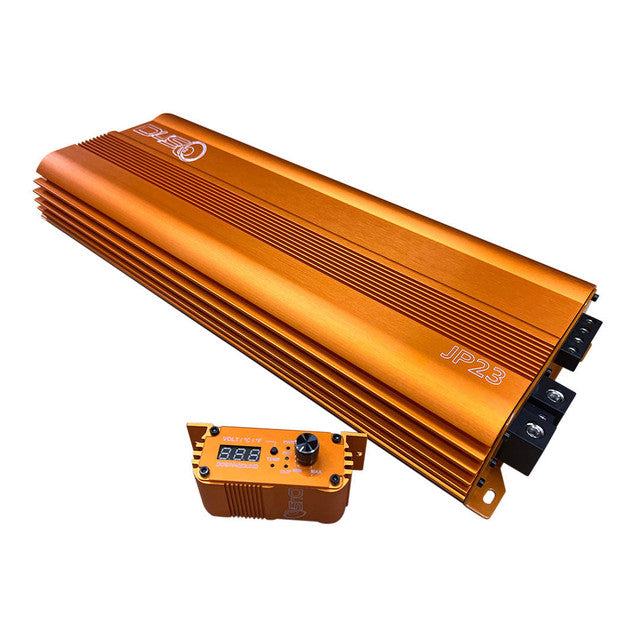

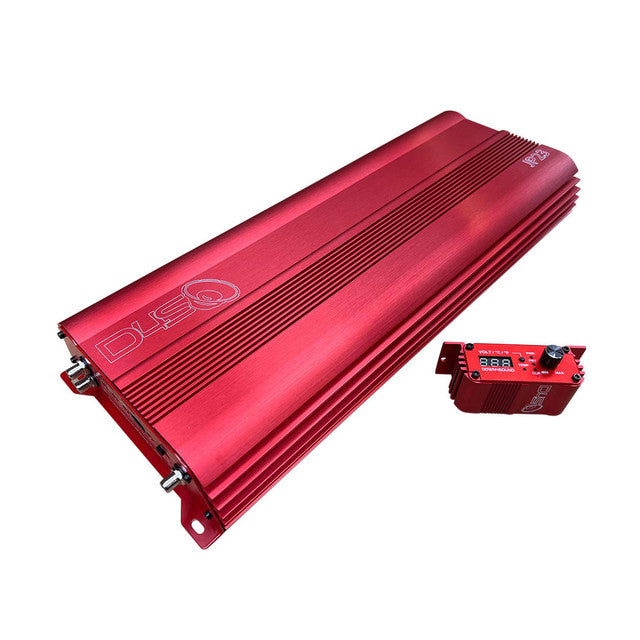

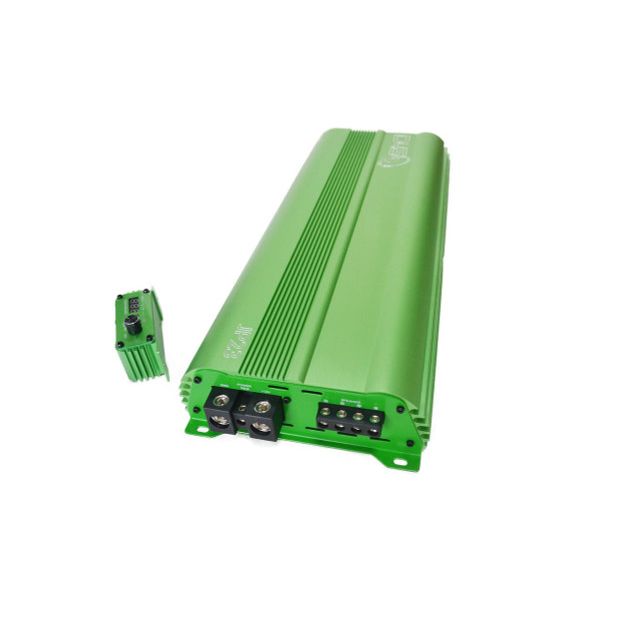

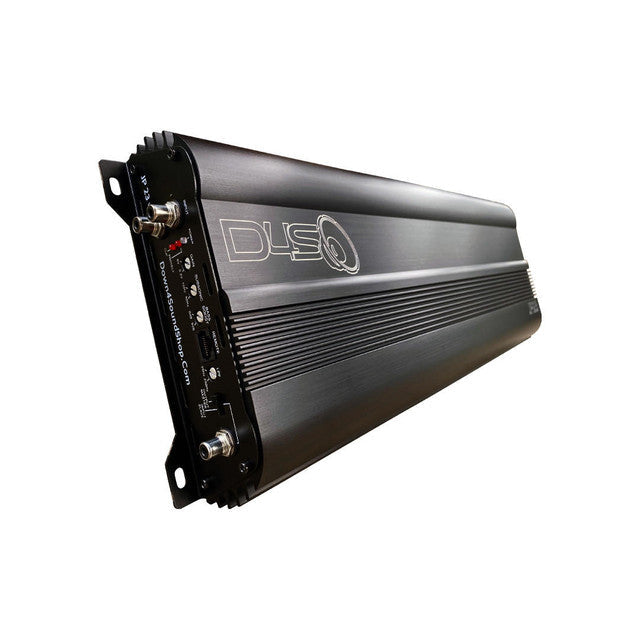

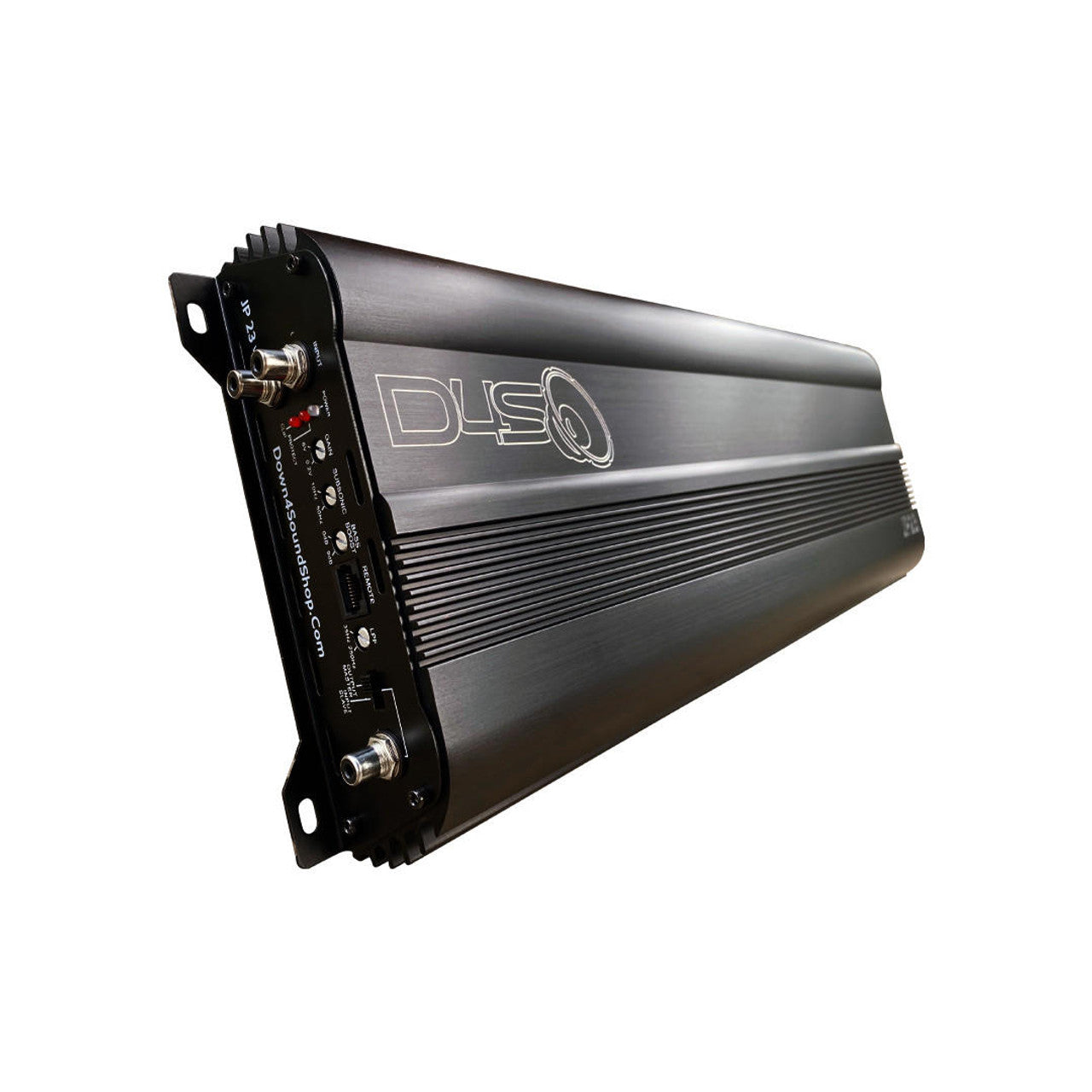

Down4Sound JP23 v1.5 2300W RMS Class D Monoblock Amplifier

JP 23 AMP V1.5: 2300W RMS MONOBLOCK Amplifier

Crafted with precision from Las Vegas, NV, and Dunnellon, FL, the JP 23 AMP V1.5 marries the revered traditions of car audio's golden age with today's cutting-edge technology. Designed for the discerning BassHead, this amplifier is a testament to timeless quality and modern innovation.

Technical Highlights:

• Power Output:
  • 1ohm: 2000W @ 12v | 2300W @ 14.4v
  • 2ohms: 1000W @ 12v | 1300W @ 14.4v
  • 4ohms: 700W @ 12v
  • 2ohm Linked: 4900W @ 14.4v
• Frequency Spectrum: 10Hz - 250Hz
• Cooling: Built-in fan ensures optimal performance.
• Voltage Range: 9 to 15.5 Volts
• Class: D - DIGITAL

User Advantages:

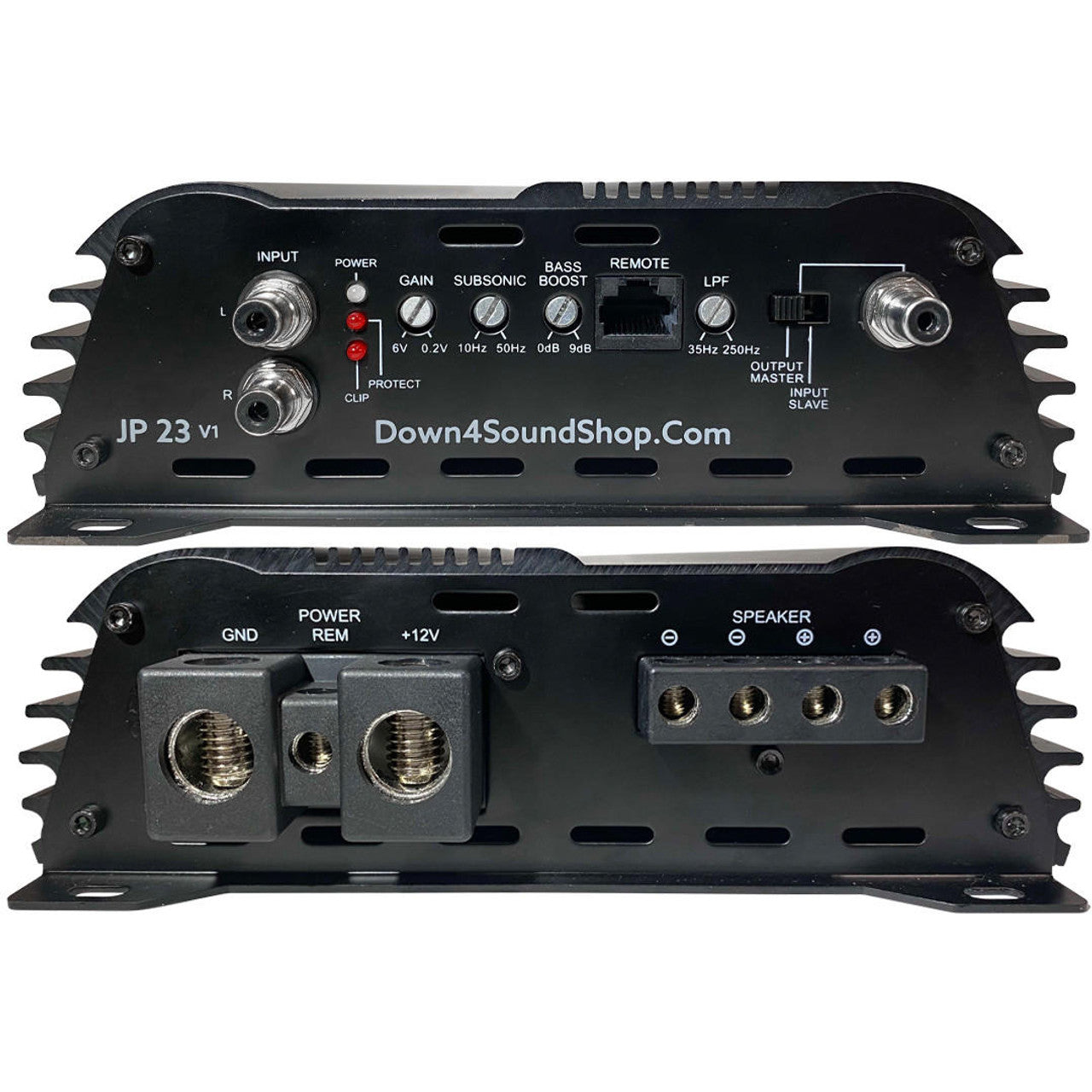

• Sound Tailoring: Fine-tune with Low Pass Filters, Subsonic Filters, and Bass Boost.

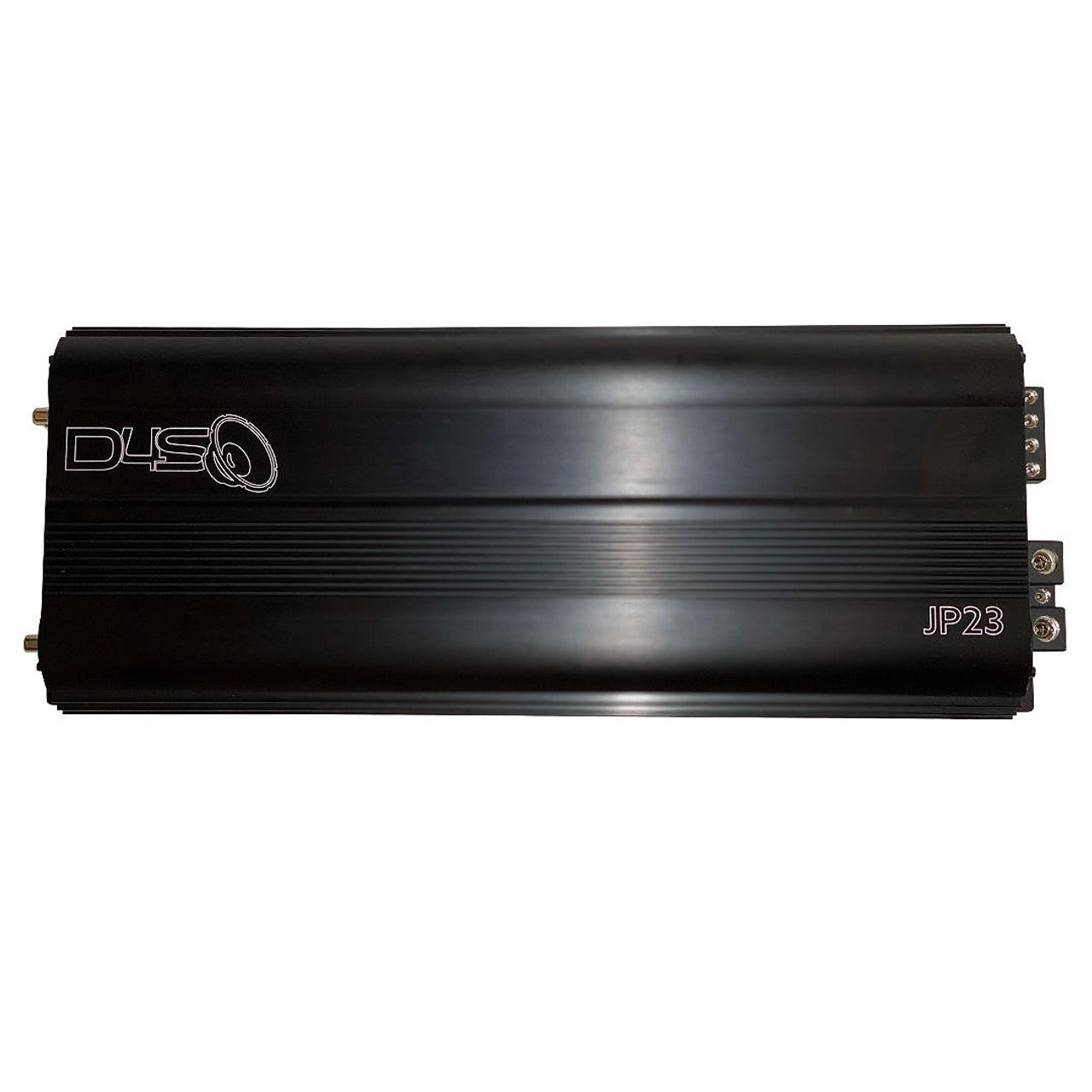

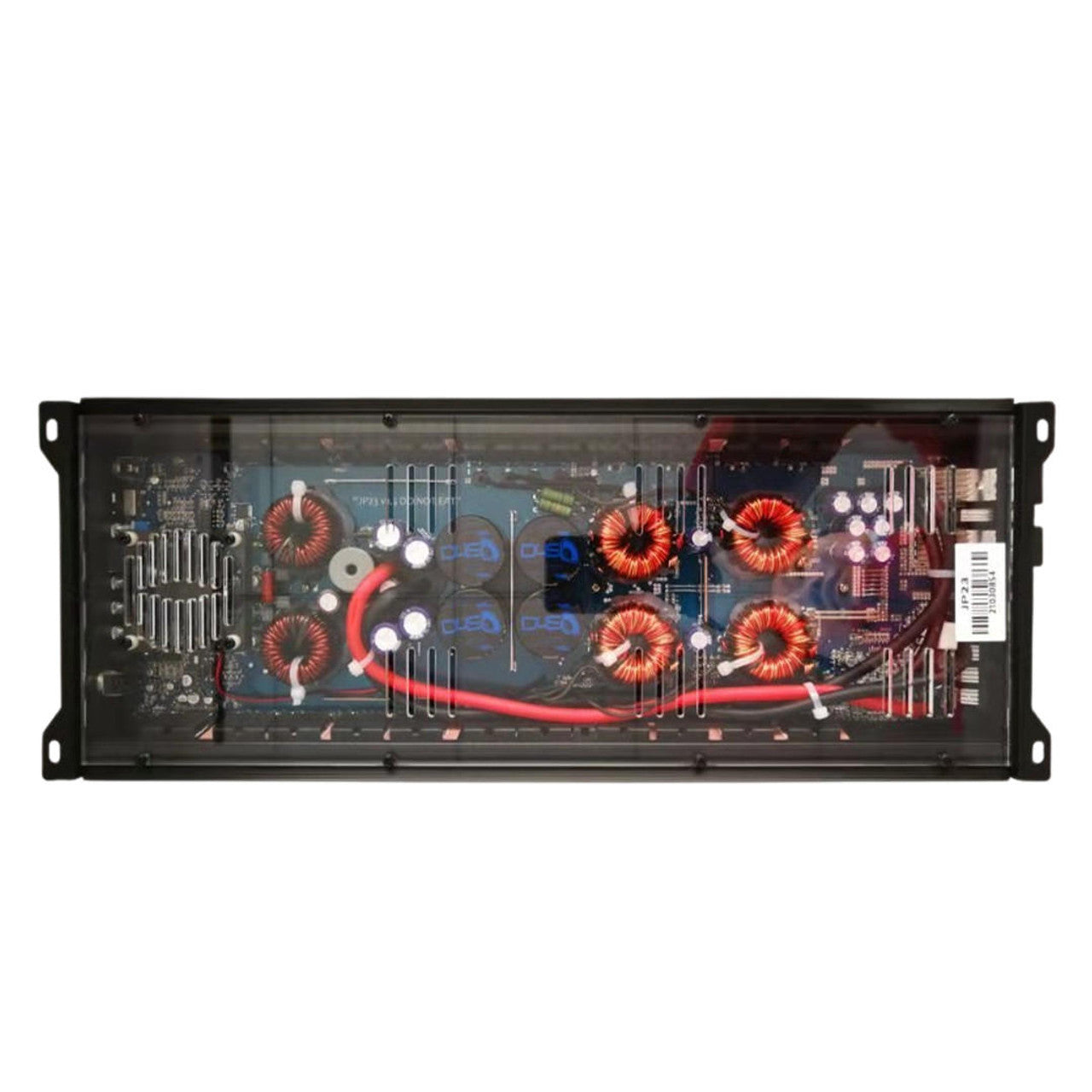

• Sleek Design: The V1.5 showcases a robust PLEXI BackPlate and a sophisticated black finish.

Detailed Specifications:

• Tuning:
  • Low Pass Filter: 35Hz - 250Hz
  • Subsonic Filter: 10Hz - 50Hz
  • Bass Boost: 0 - 9 Db
• Sound Quality: Signal to Noise Ratio: 88dB <, T.H.D @ 4ohm: <0.1%
• Protection: Fuse Ratings - Single unit: 200A, Strapped: 400A
• Dimensions: 17.71" L x 7.32" W x 2.24" H
• Color: Black

Why JP 23 AMP V1.5?
For unparalleled audio clarity and power. Elevate your auditory experience. When only the best will do, choose JP 23 AMP V1.5. Your passion for sound deserves nothing less.
