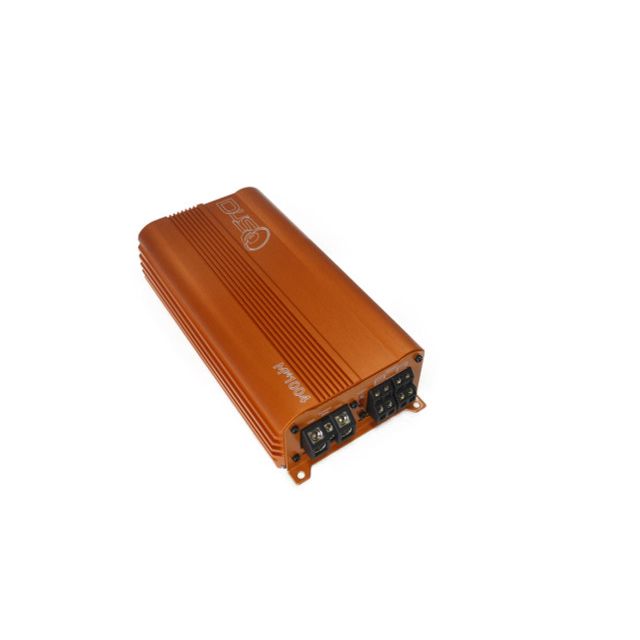

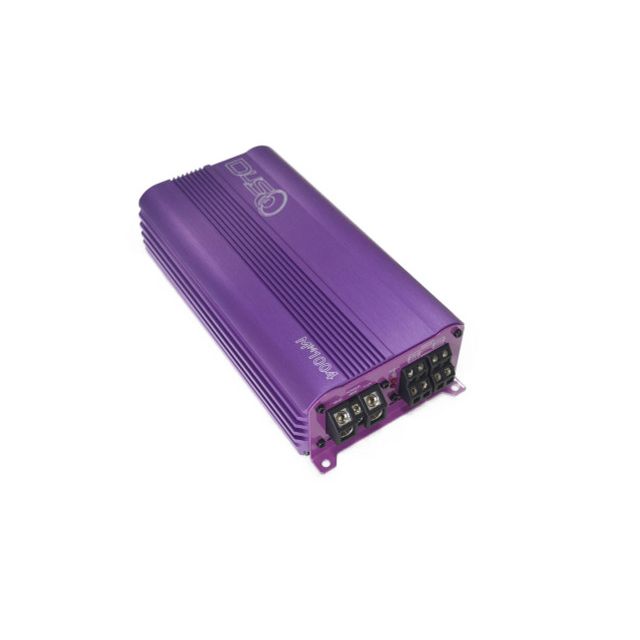

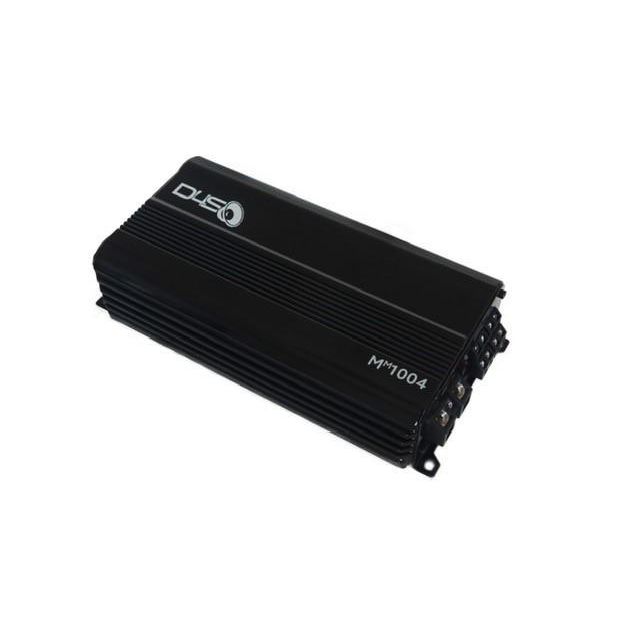

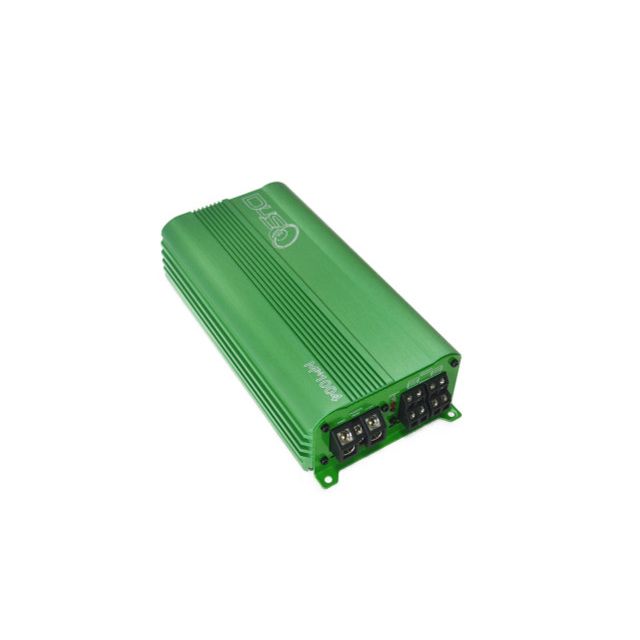

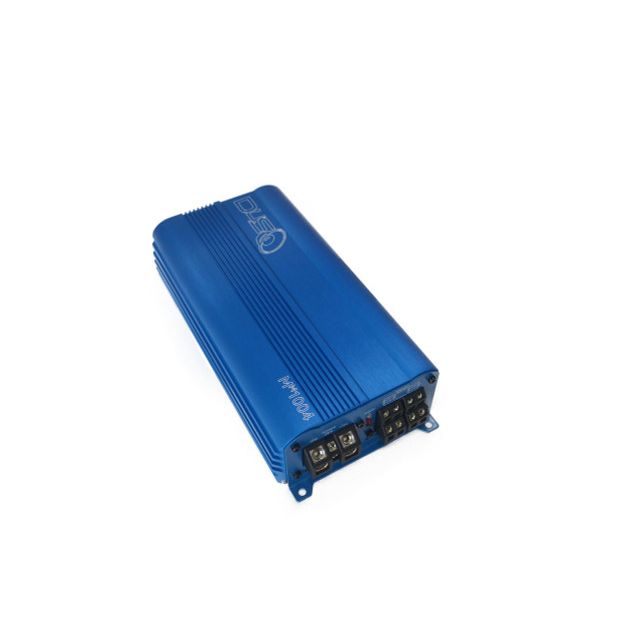

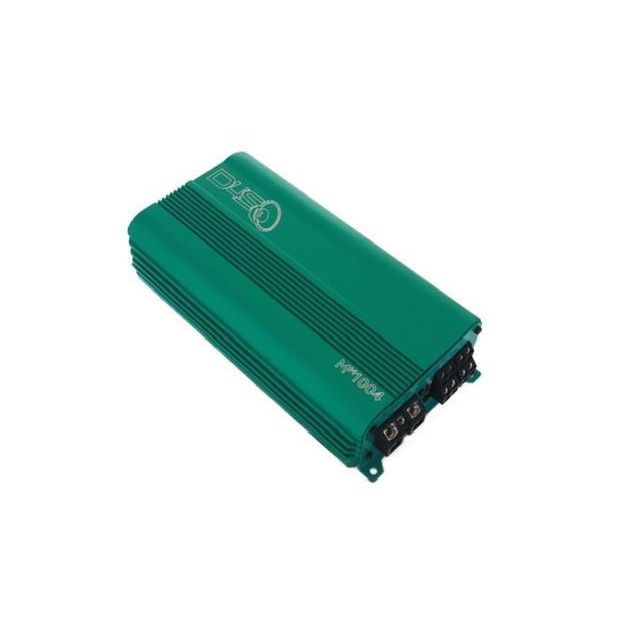

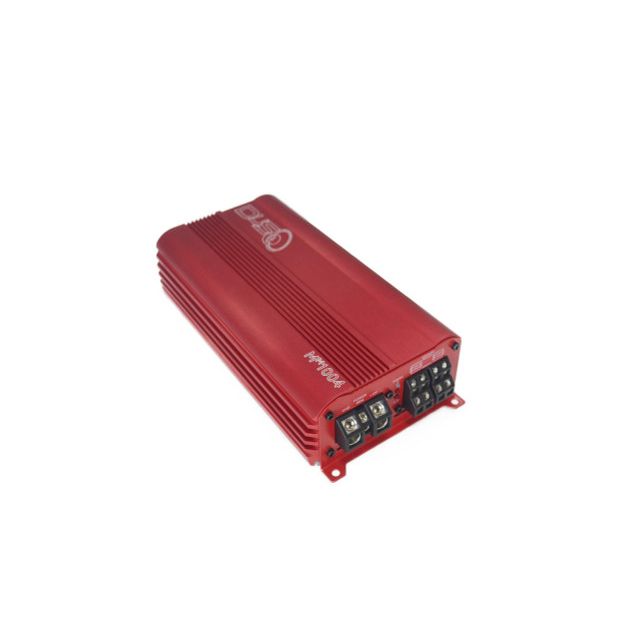

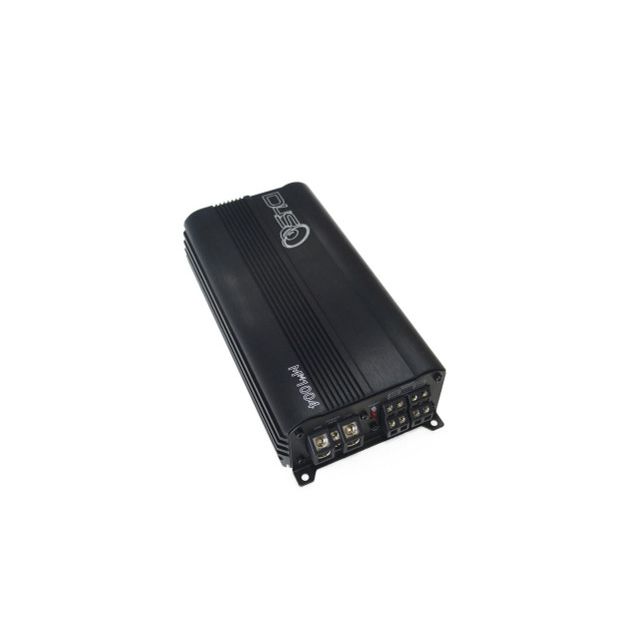

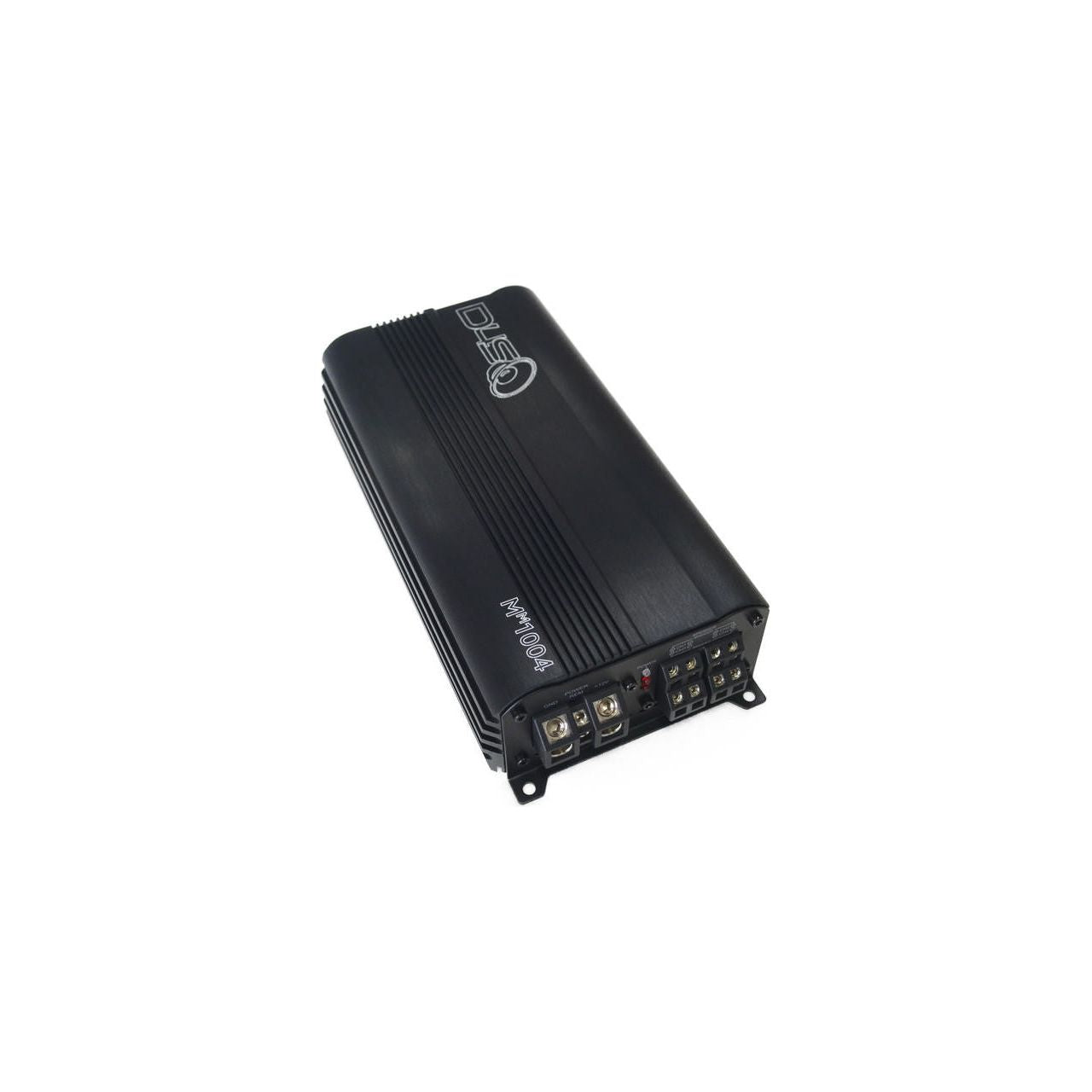

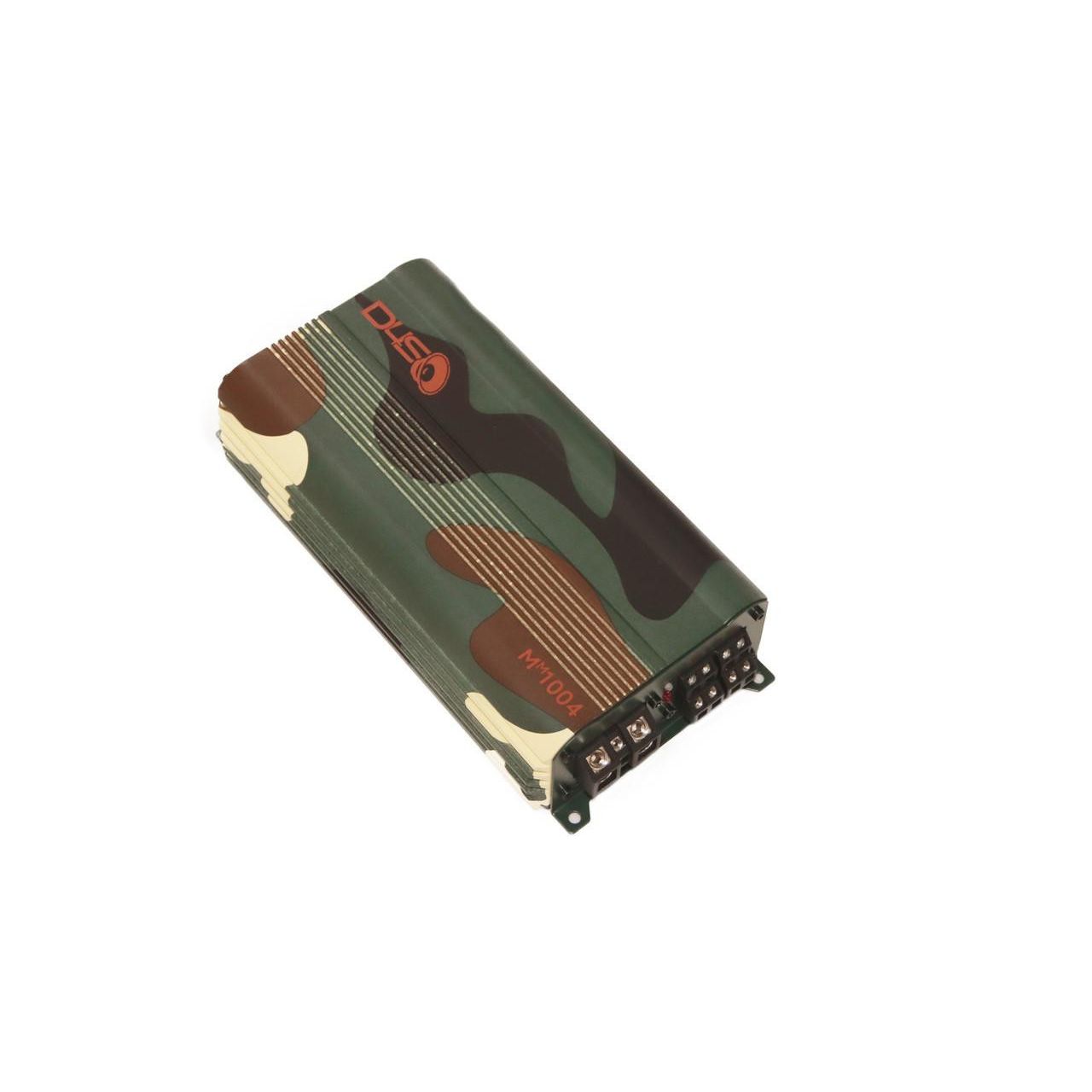

Down4Sound MM1004 MINI MAXX 700W 4-Channel Mini Amplifier

Highlight title

Text to highlight a key feature of your product

Description

Unleash the sound of music to it full potential with the MM1004 a MINI 4-Channel Amplifier

Designed to be compact with band-passable crossovers X1 & X10, this dynamic amplifier allows you to run mids and highs on one channel and bass on the other, or bi-amplify the 4 channels differently for a customizable listening experience.

**Technical Specifications:**

4ohm rms power : 100W x 4ch
2ohm rms power : 150W x 4ch
4ohm rms bridged power : 300W - 350W x 2ch Tested at 14,4V & 1% THD (RANGE).
Frequency response : 10Hz –23.8KHz
Signal to noise : 93dB Damping factor : 100
Input sensitivity : 6V –0.2V

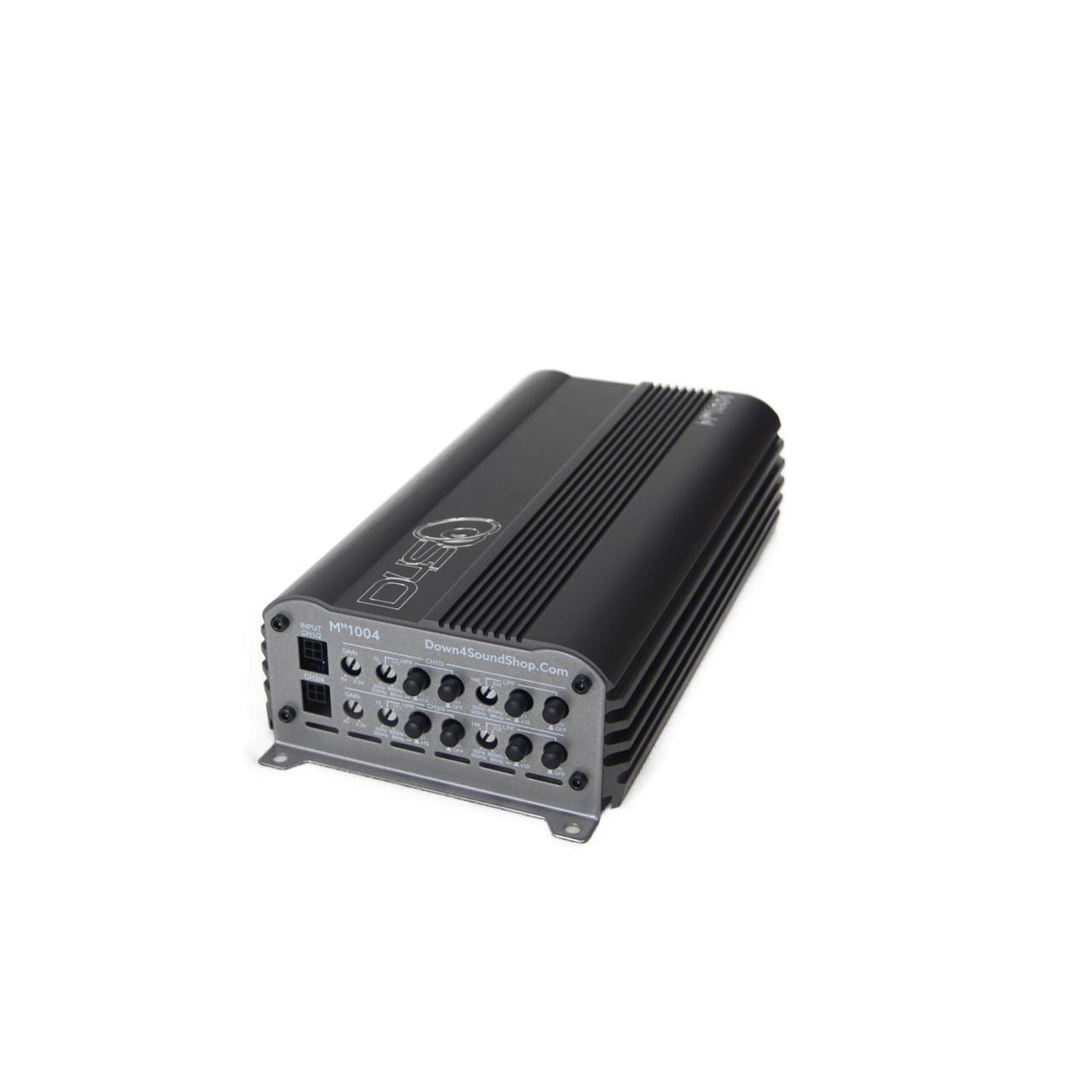

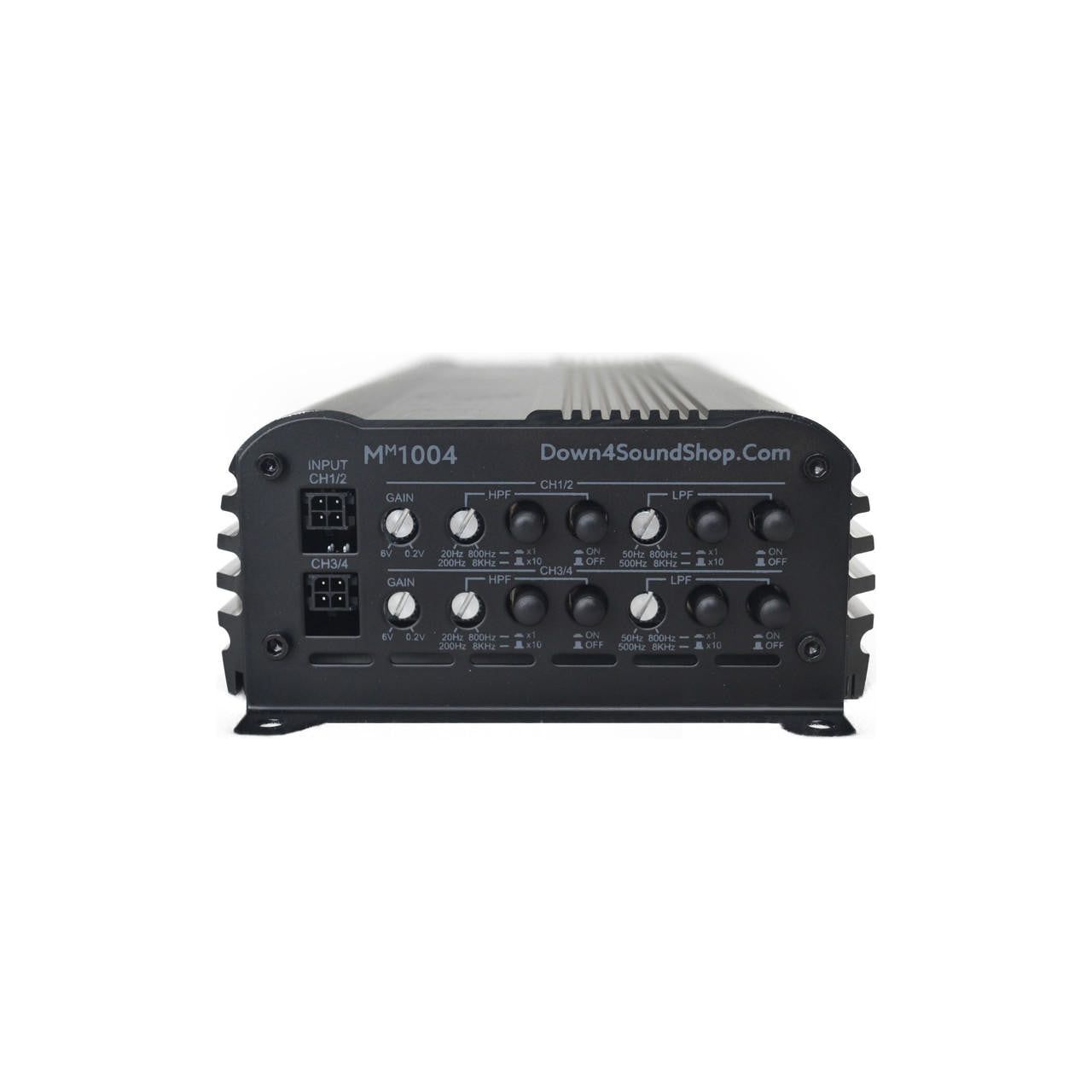

CH1/2 High Pass Filter : 20Hz –800Hz
HighPass multiply : x1, x10 ( 200Hz –8Khz )
Low Pass Filter : 50Hz –800Hz Low Pass multiply : x1, x10 ( 500Hz –8Khz ) Bandpass capable
CH3/4 High Pass Filter : 20Hz –800Hz
High Pass multiply : x1, x10 ( 200Hz –8Khz )
Low Pass Filter : 50Hz –800Hz Low Pass multiply : x1, x10 ( 500Hz –8Khz ) Bandpass capable
Clipping Indicator
Working voltage : 9 to 15.5Volts.

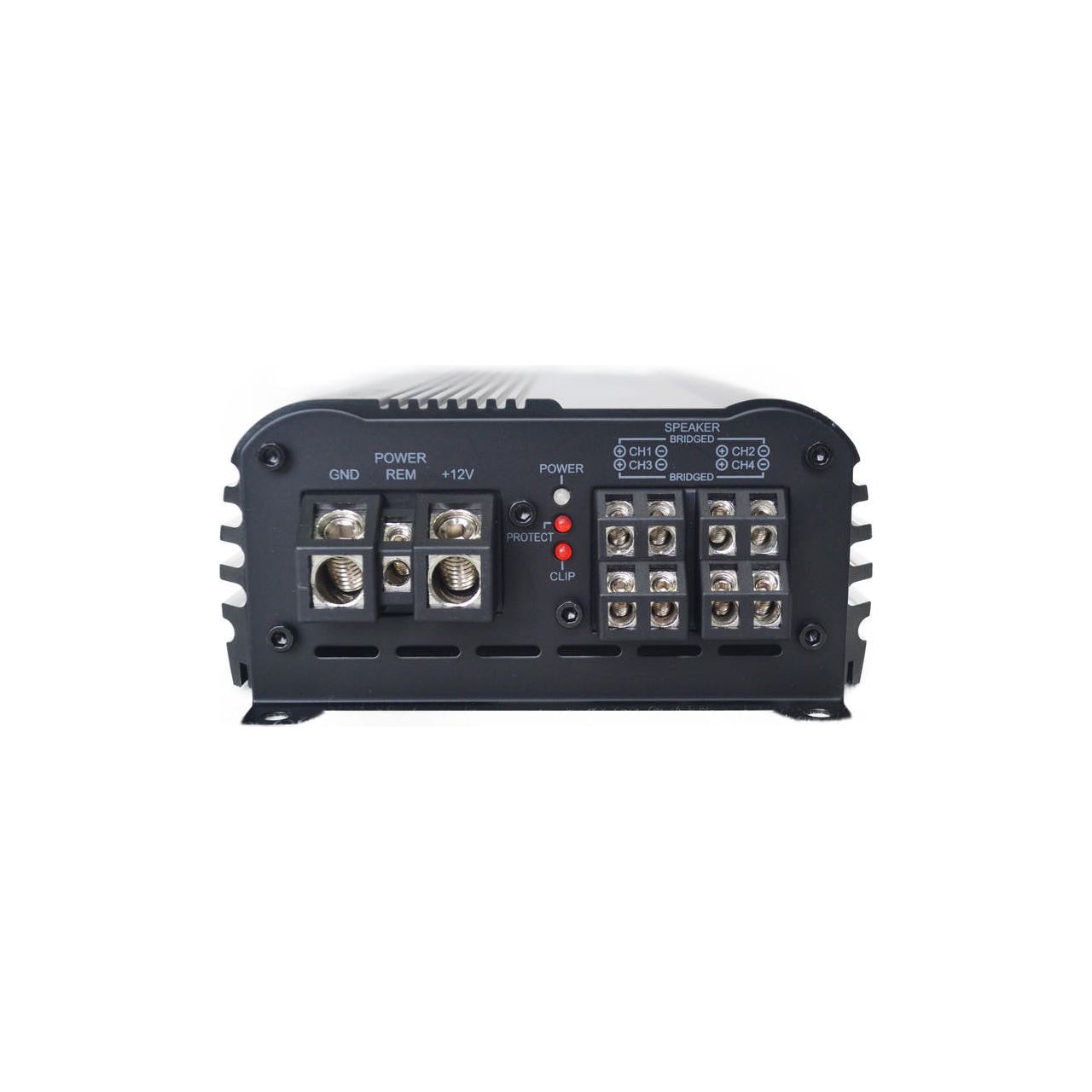

4 GA Power & Ground Terminal
14GA Speaker wire Terminal

Dimensions :

220mm L x 123.9mm W x 54.3mm H
8.66 x 4.87 x 2.13 inches
