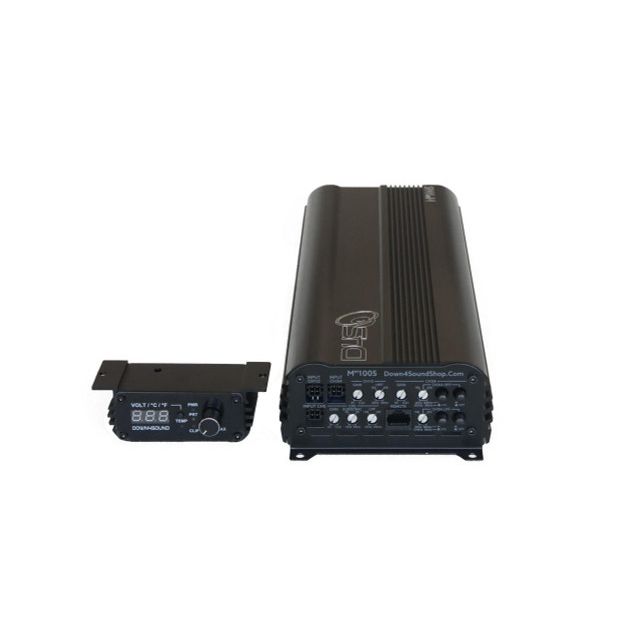

DOWN4SOUND MM1005 (MINI MAXX) - BLACK | 1100W RMS MINI 5 CH CAR AUDIO AMPLIFIER
DOWN4SOUND MM1005 (MINI MAXX) - BLACK | 1100W RMS MINI 5 CH CAR AUDIO AMPLIFIER - Black is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
DOWN4SOUND MM1005 (MINI MAXX) - BLACK | 1100W RMS MINI 5 CH CAR AUD...
DOWN4SOUND MM1005 (MINI MAXX) - BLACK | 1100W RMS MINI 5 CH CAR AUDIO AMPLIFIER - Black is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
Prepare to take your car audio system to the next level with the Down4Sound MM1005 (MINI MAXX) - BLACK, a powerful 5-channel amplifier designed to deliver exceptional sound quality and performance.
Key Features:
- FULL RANGE & DIGITAL 5 CHANNEL AMPLIFIER
- CH1-CH4 STABLE INTO 2OHM STEREO OR 4OHM BRIDGED
- CH5 STABLE INTO 1OHM MONO
- HIGH SPEED MOSFET POWER SUPPLY
- VARIABLE HIGH PASS FILTER
- VARIABLE HIGH PASS FILTER X10 FOR CH3 & CH4
- LOW PASS FILTER MULTIPLY X10 FOR CH3 & CH4
- BAND PASS FILTER CAPABLE FOR CH3 & CH4
- VARIABLE SUBSONIC FILTER
- 4 WAY PROTECTION CIRCUITS (THERMAL, HIGH & LOW VOLTAGE, SPEAKER TEMPERATURE DISPLAY, SHORT AND DC)
- REMOTE BASS KNOB WITH VOLTMETER & SHORT AND DC
- HIGH PURITY COPPER PRINTED CIRCUIT BOARD
- 4 GAUGE POWER / GROUND TERMINALS
Specifications:
- RMS power, 1ohm for CH5: 500W x 1
- RMS power, 2ohm: 120W x 4 + 400W x 1
- RMS power, 4ohm: 80W x 4 + 250W x 1
- RMS power, 4ohm Bridged: 260W x 2 + 250W x 1
- Frequency Response: 10Hz - 23KHz for CH1 - CH4, 11Hz - 260Hz for CH5
- High Pass Filter (CH1 & CH2): 20Hz - 5KHz
- High Pass Filter (CH3 & CH4): 20(200)Hz - 800(8K)Hz, MULTIPLY X10
- Low Pass Filter (CH3 & CH4): 50(500)Hz - 800(8K)Hz, MULTIPLY X10
- BANDPASS FILTER: YES
- Subsonic Filter (CH5): 10Hz - 50Hz
- Low Pass Filter (CH5): 35Hz - 250Hz
- Remote Bass Knob: Voltmeter & Temperature display remote control included
- Input Sensitivity: 6V - 0.2V
- Signal to Noise Ratio: 92dB <
- Total Harmonic Distortion (T.H.D @ 4ohm): Less than 0.1%
- Fuse Rating: 80A
- Length (inches): 12.20"
- Width x Height (inches): 4.87" W x 2.13" H
Power up your car audio system with the Down4Sound MM1005 (MINI MAXX) - BLACK and experience a new level of sound quality and performance.
