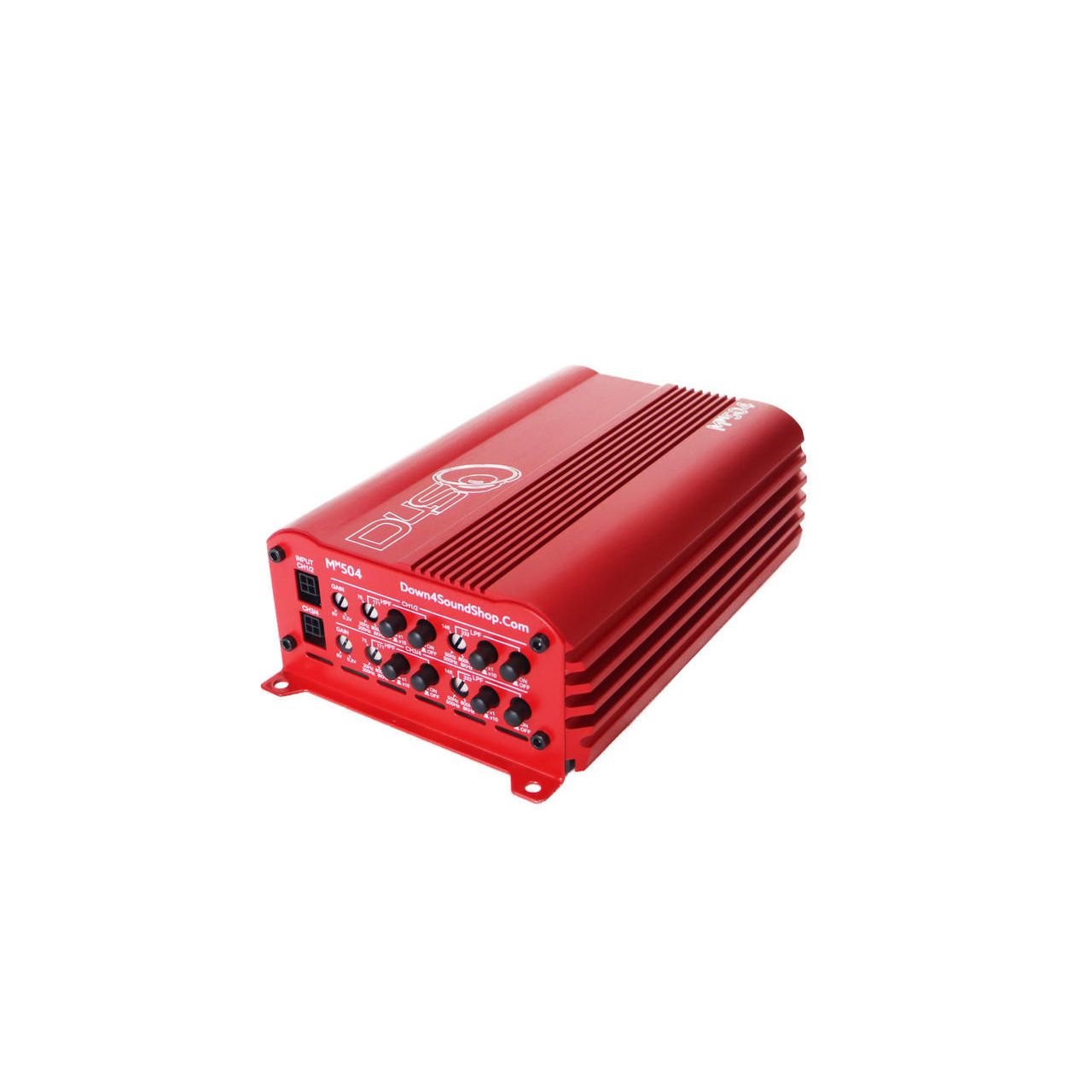

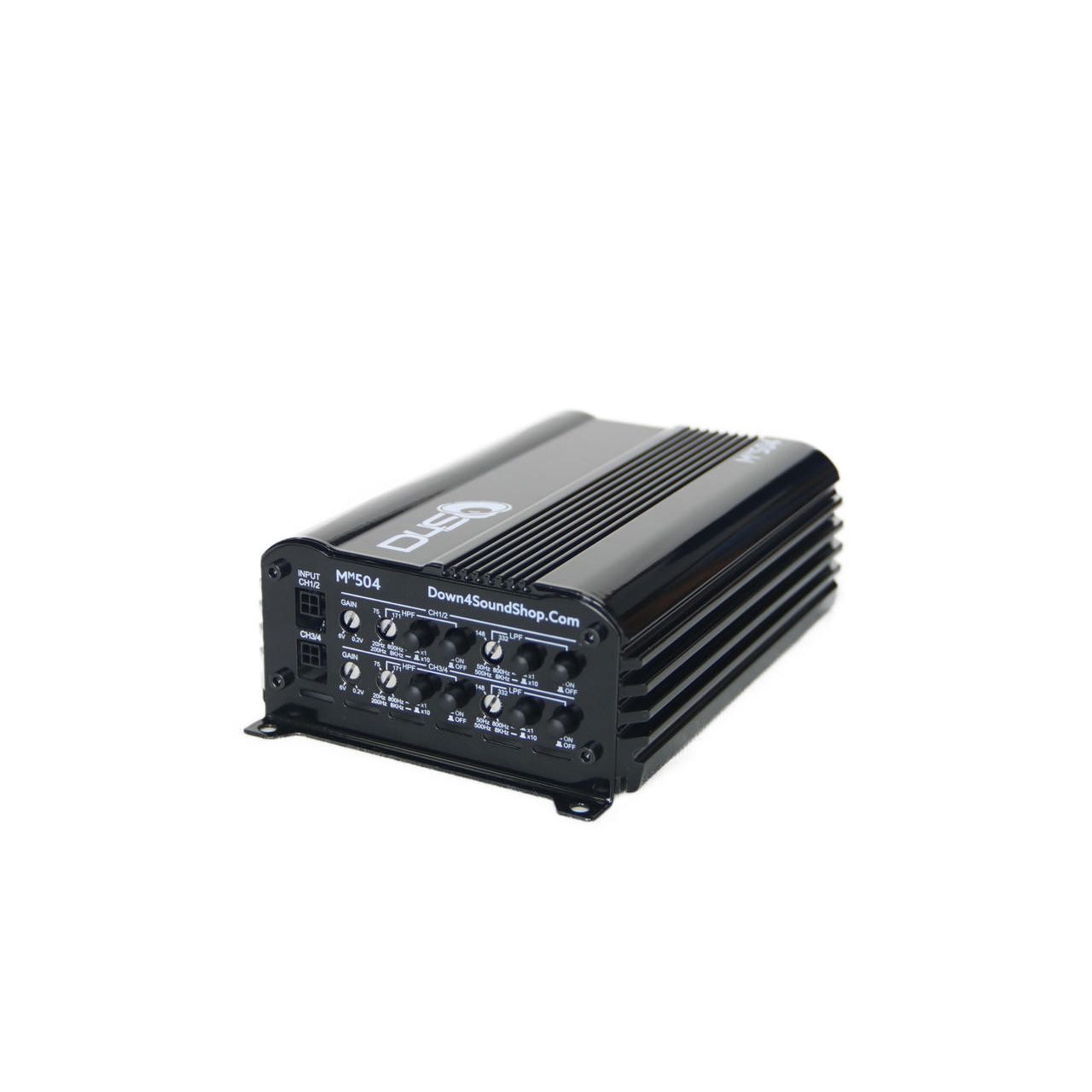

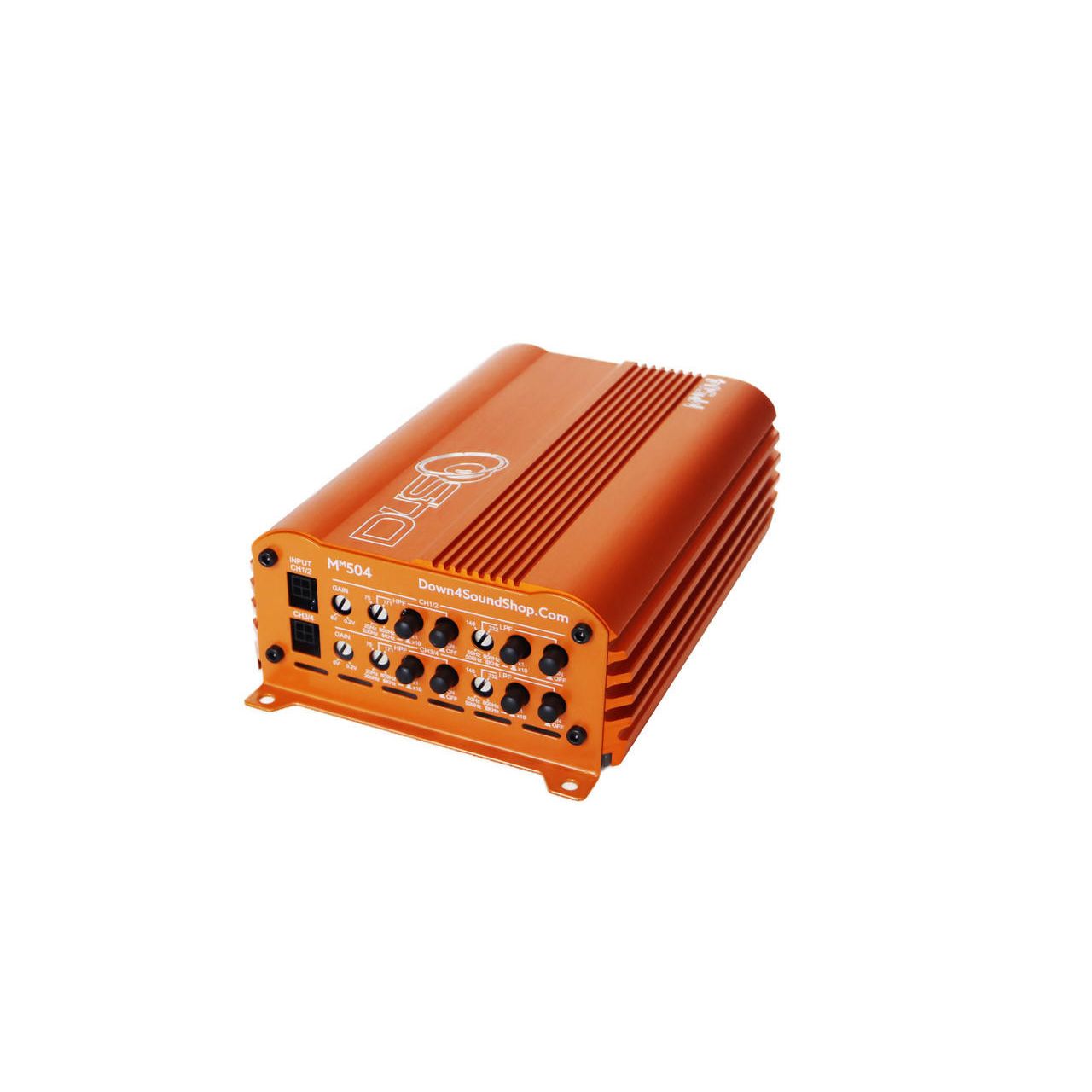

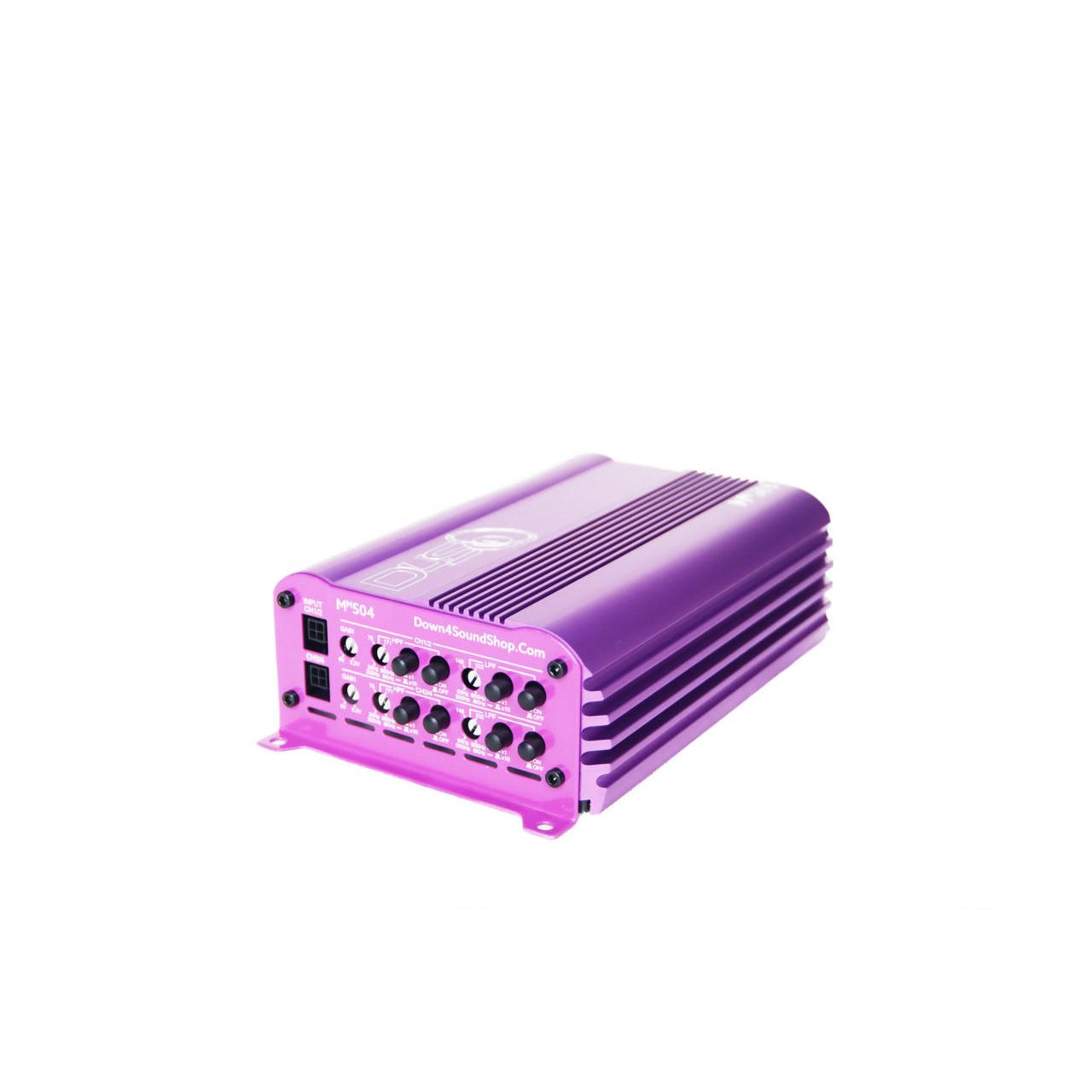

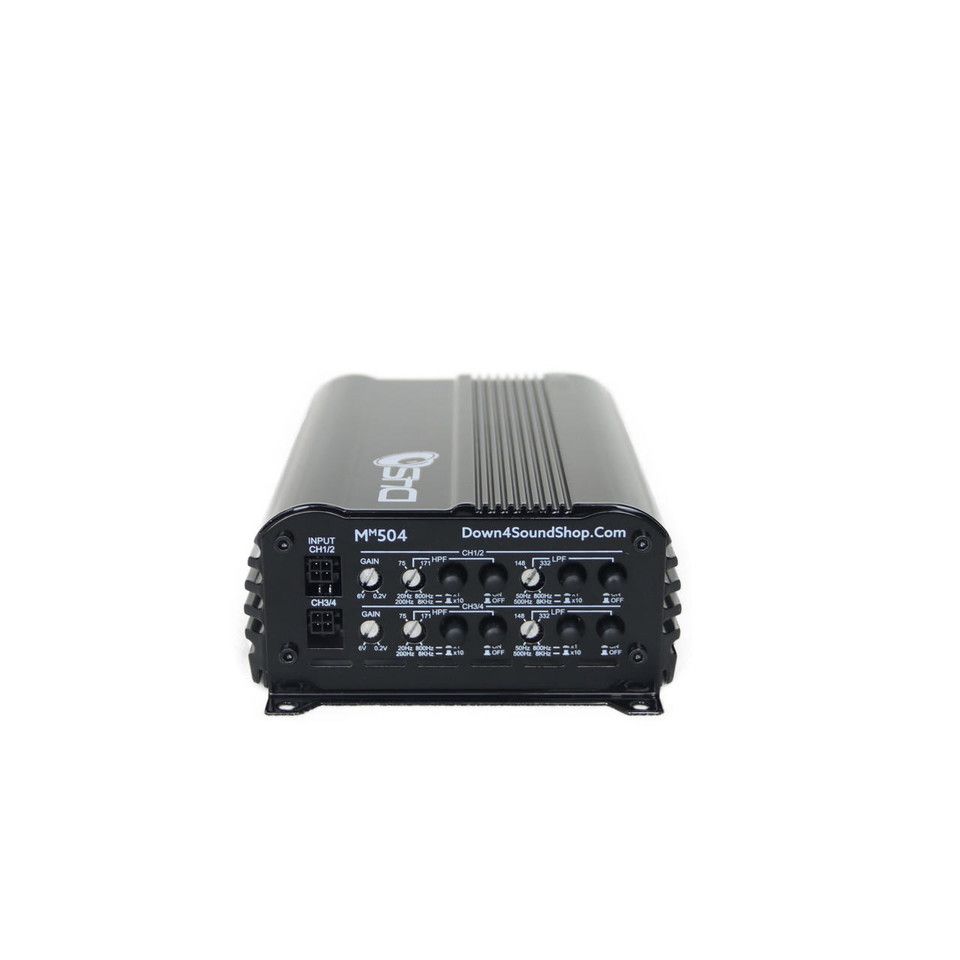

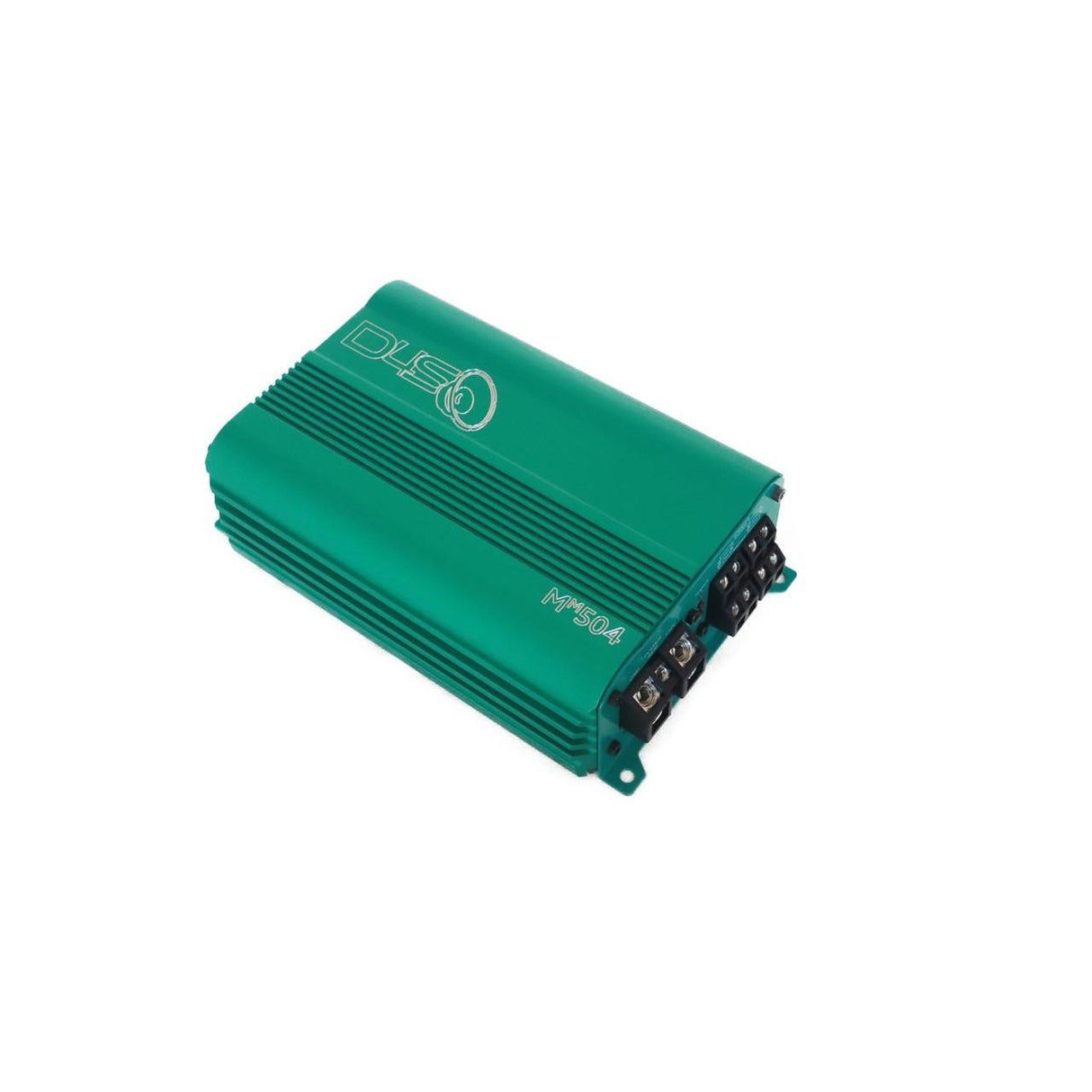

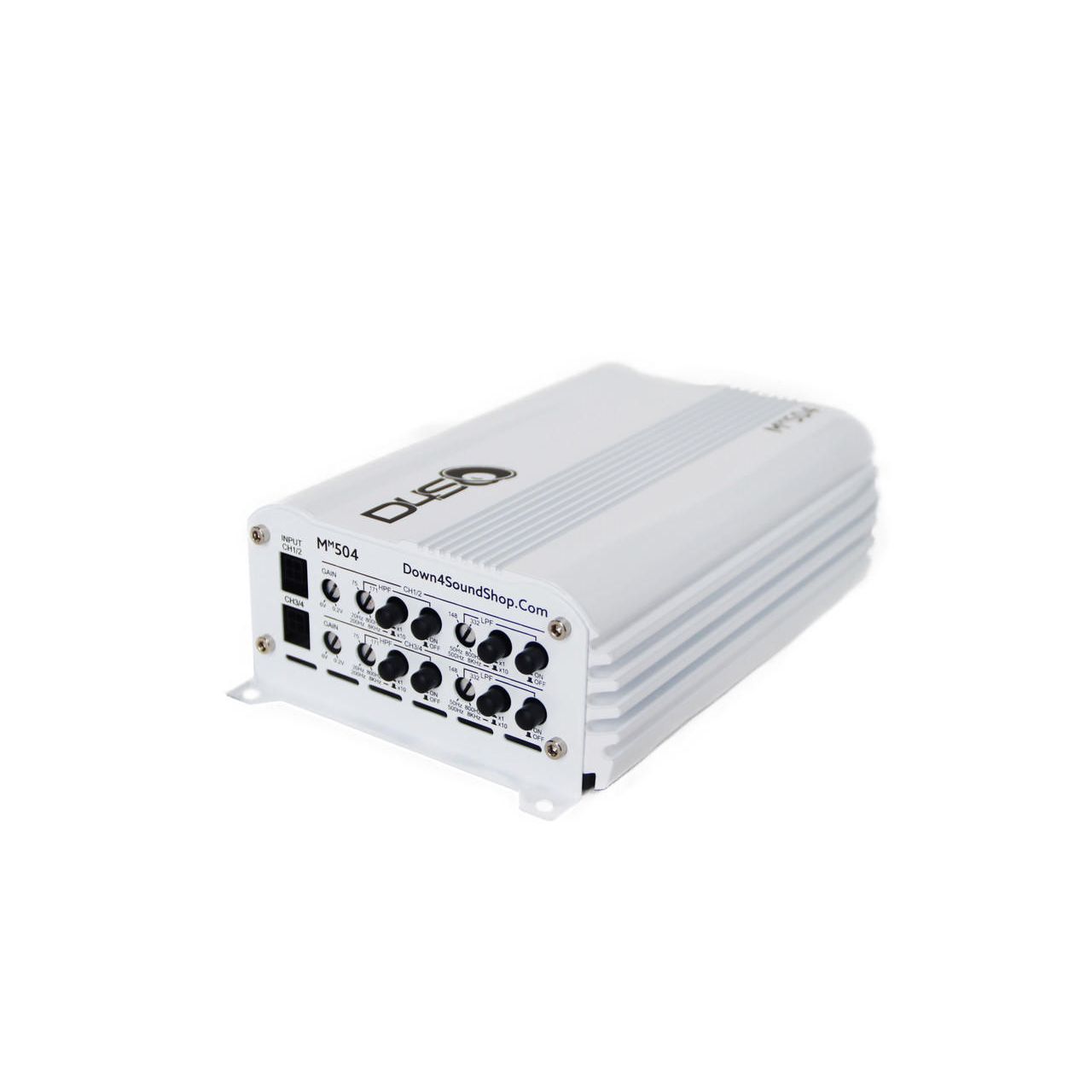

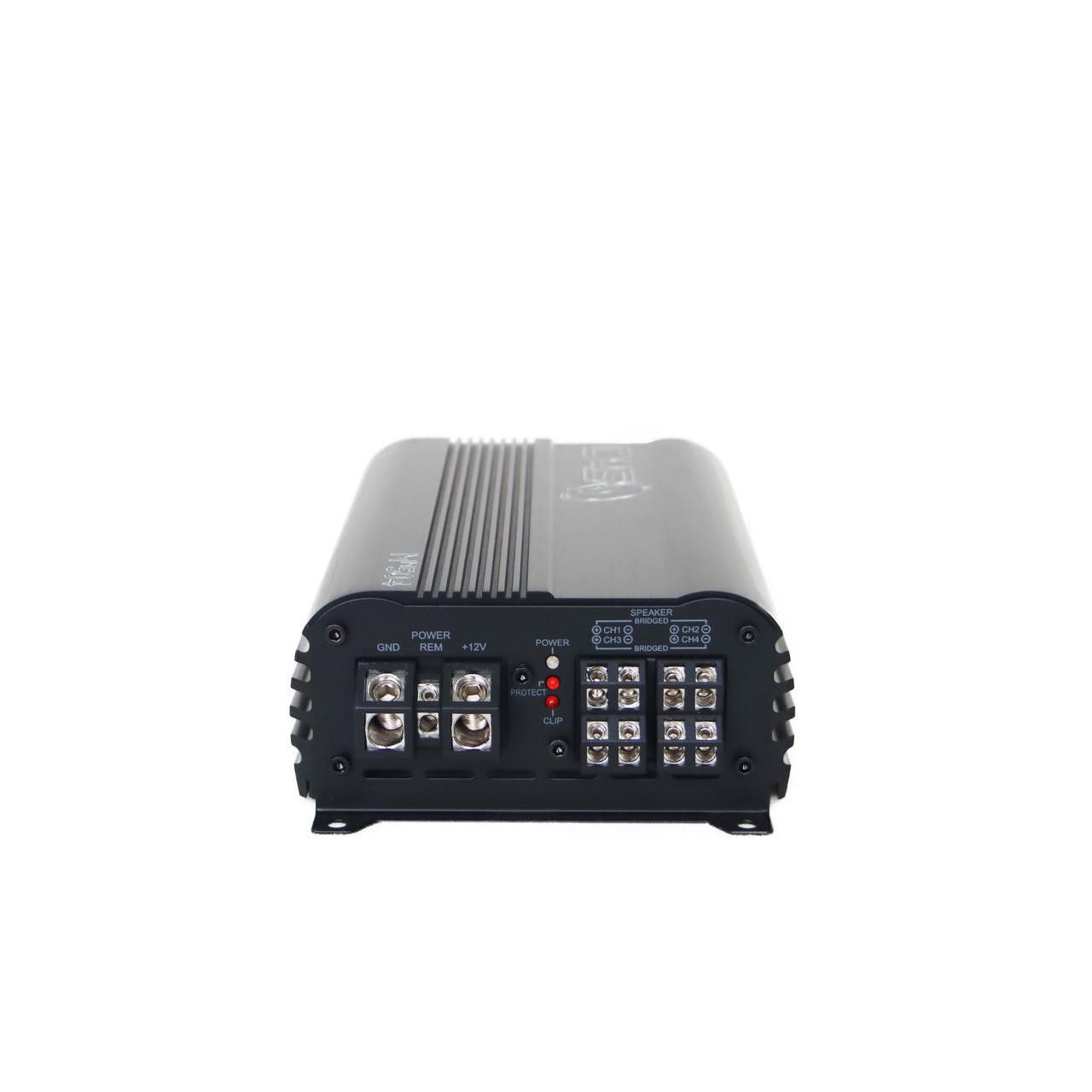

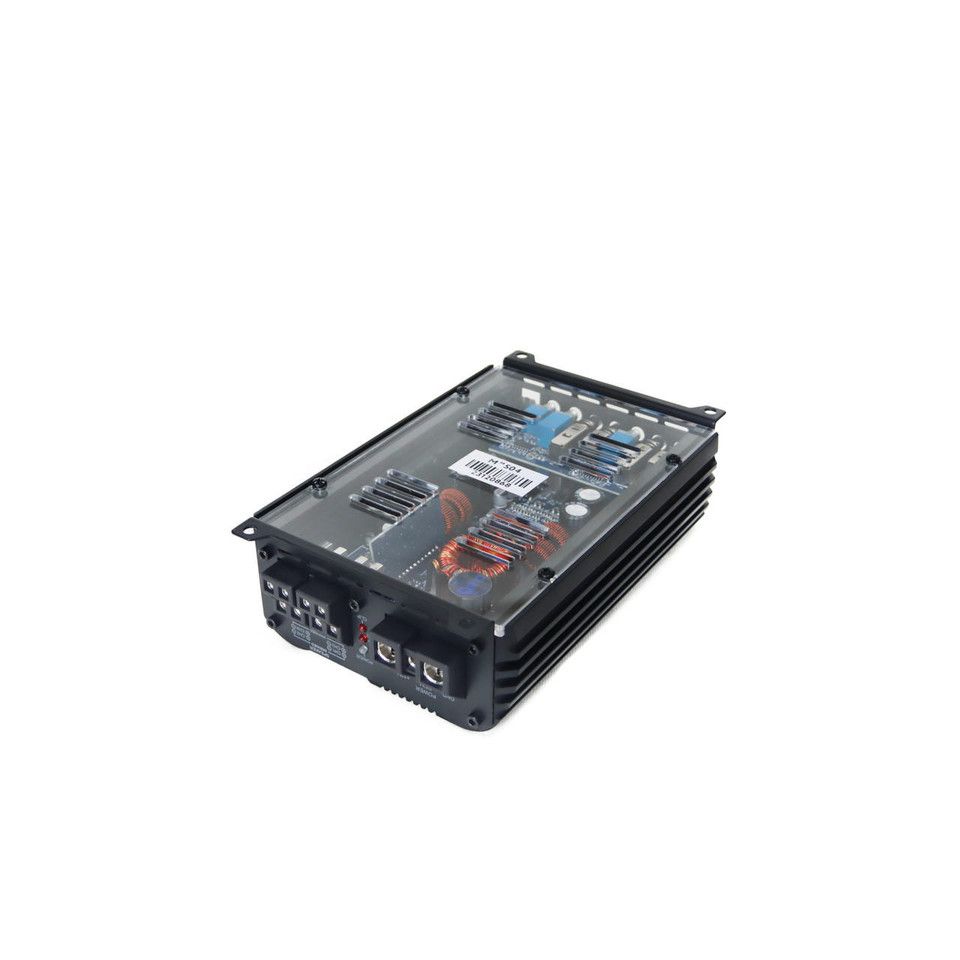

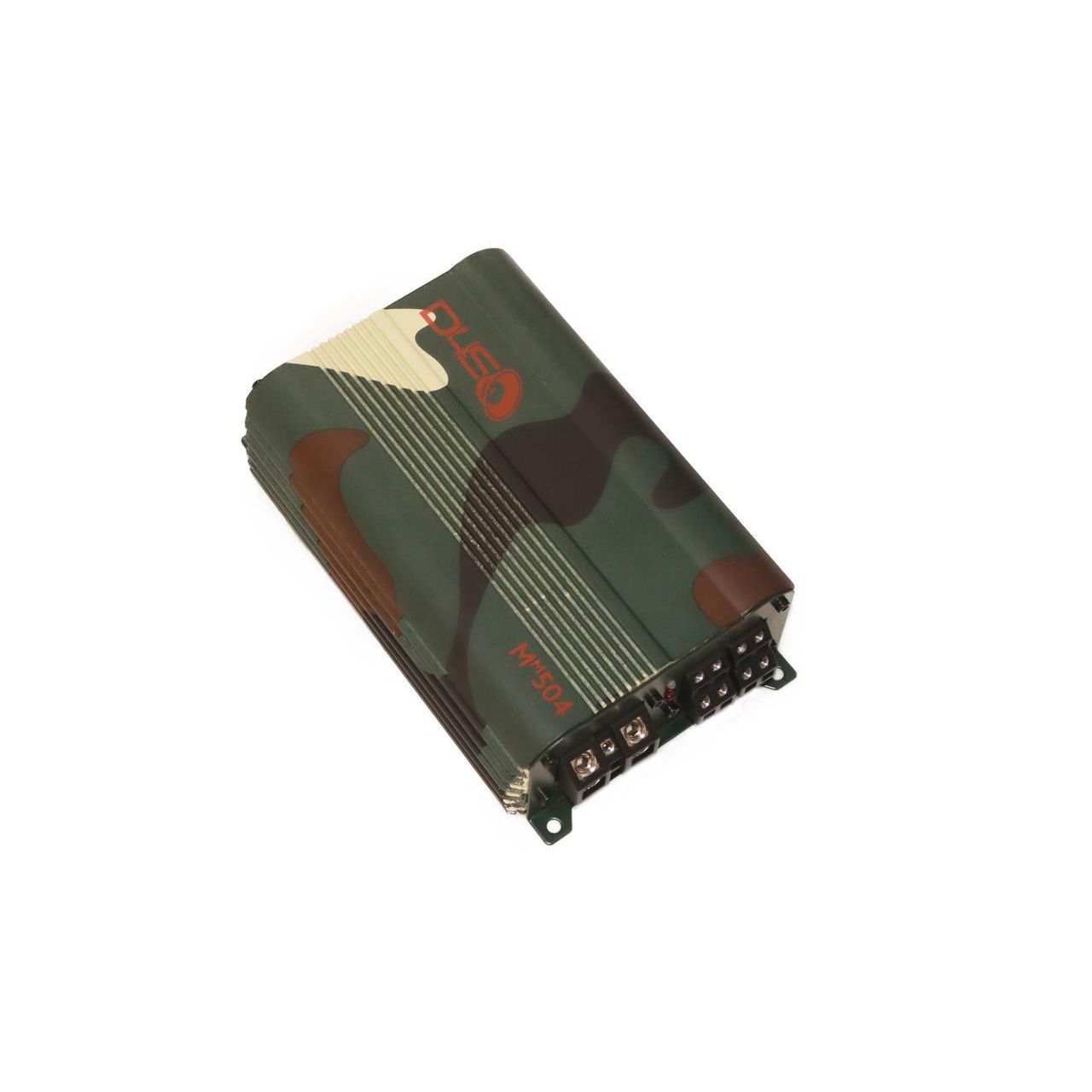

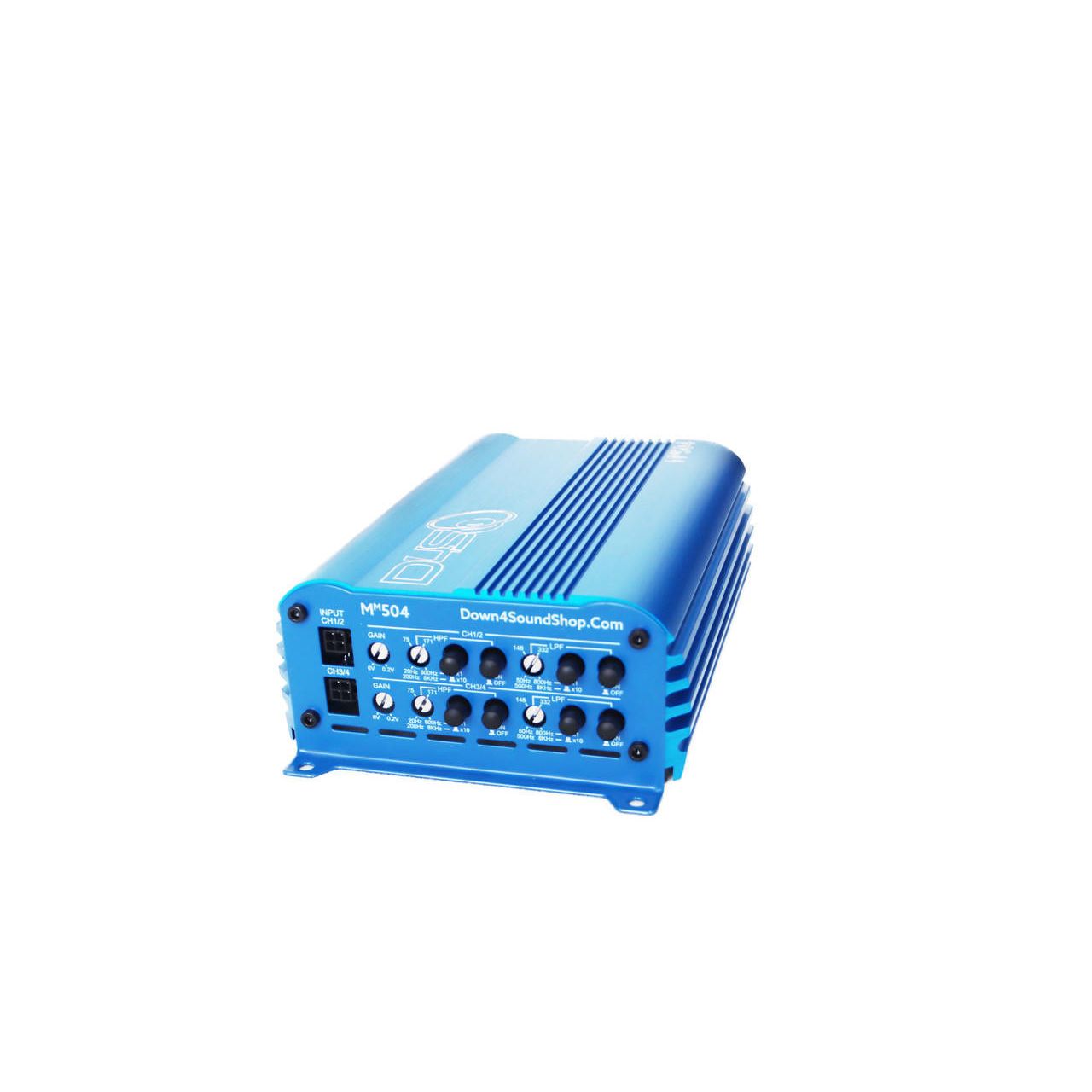

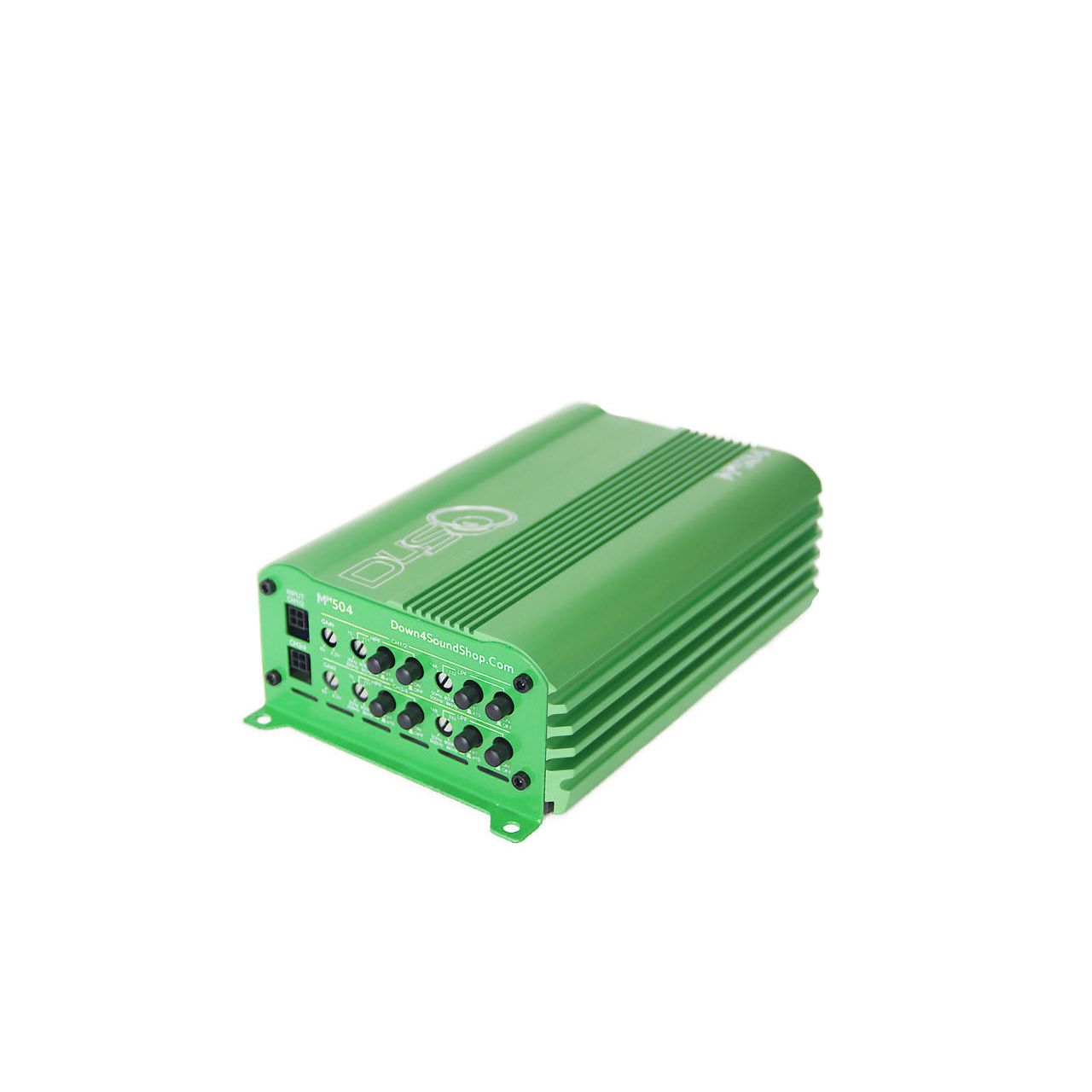

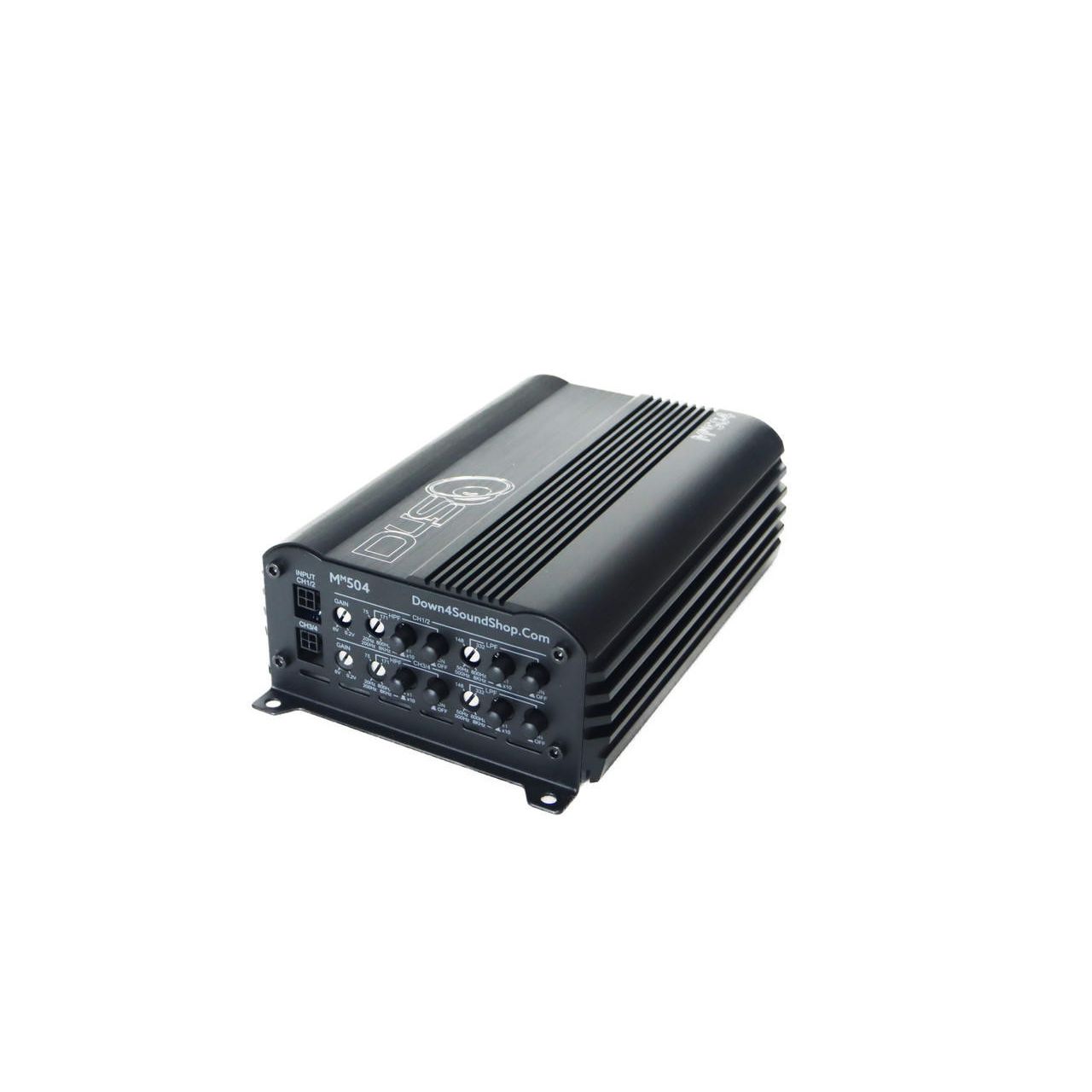

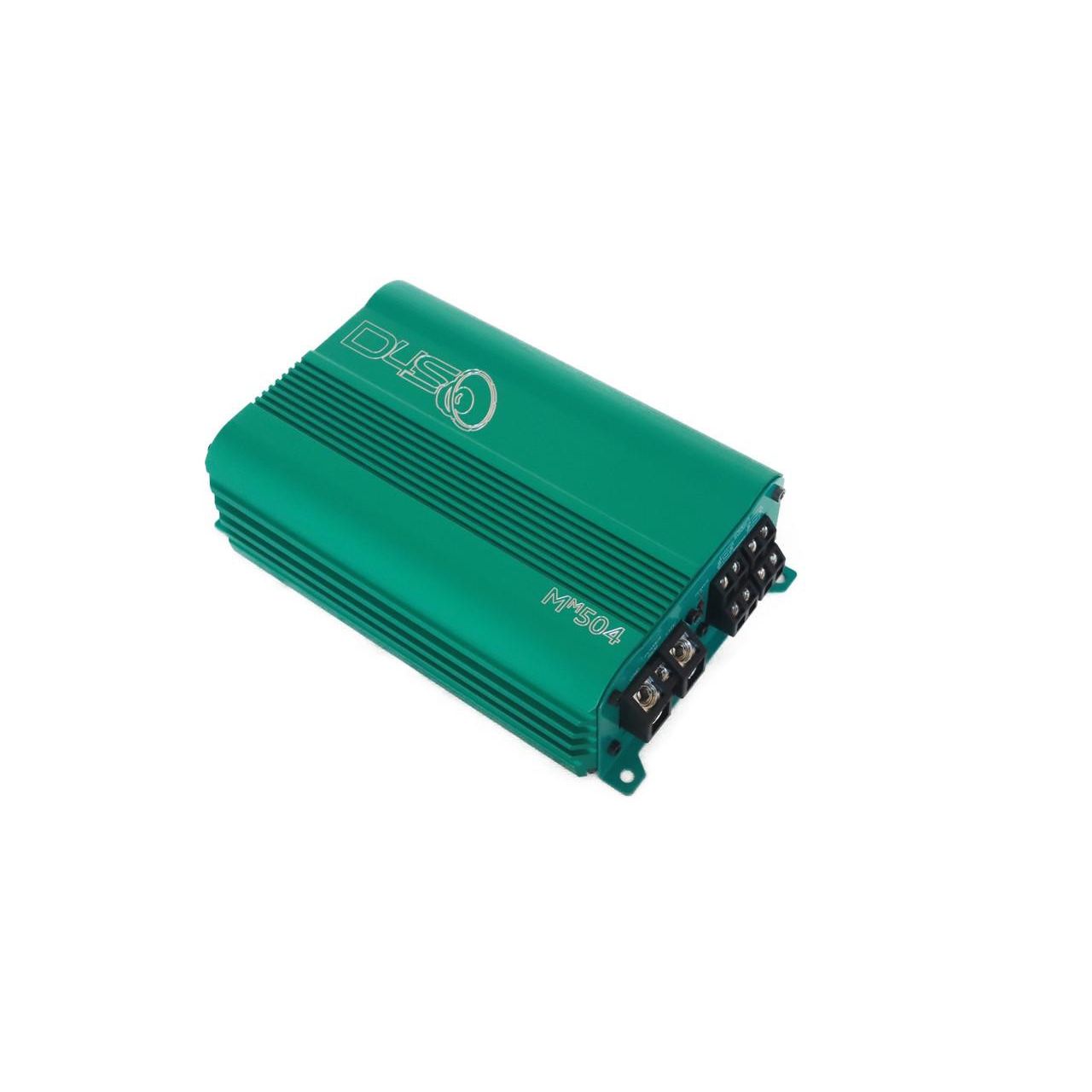

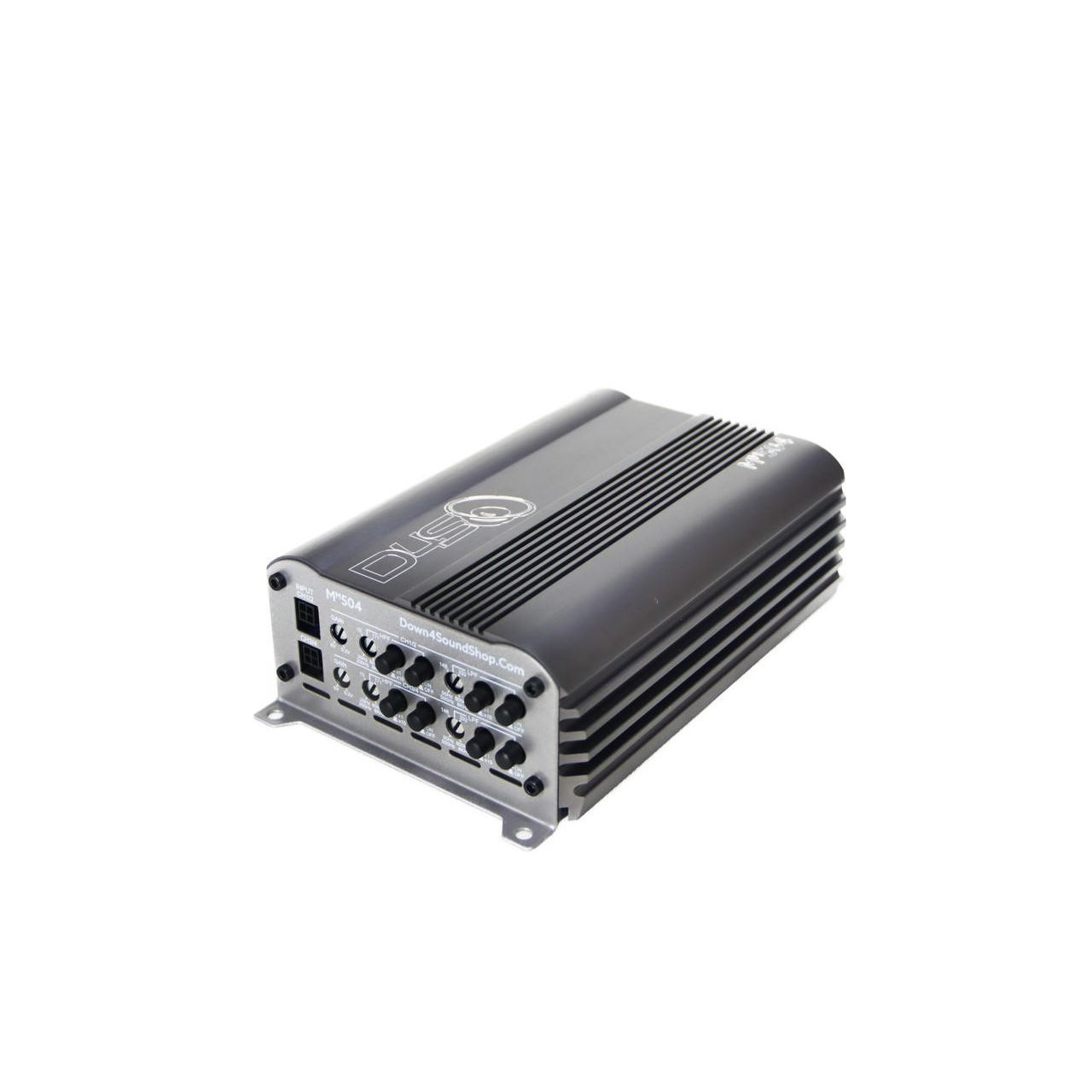

Down4Sound MM504 (MINI MAXX) 300W RMS MINI 4-Channel Amplifier

Introducing the DOWN4SOUND MM504 (MINI MAXX) - a compact yet powerful 300W RMS 4-Channel Car Audio Amplifier. This sleek and efficient amplifier is designed to deliver exceptional audio performance in a small package, making it perfect for car audio enthusiasts who demand quality and power without compromising on space.

Key Features:

• Full Range Class D 4 Channel Amplifier, offering high-quality sound in a compact design.
• Stable performance into 2ohm stereo or 4ohm bridged configurations, ensuring versatility for various audio setups.
• High-speed MOSFET power supply for reliable and consistent power delivery.
• Variable high pass and low pass filters, allowing for precise sound customization.
• Crossover multiply x10 feature, providing a wide range of audio tuning options.
• 4 WAY PROTECTION CIRCUITS ( THERMAL, HIGH & LOW VOLTAGE, SPEAKER SHORT AND DC )

Technical Specifications:

• Rated Power Output:
  • RMS power, 2ohm: 50W x 4
  • RMS power, 4ohms: 80W x 4
  • RMS power, 4ohms Bridged: 160W x 2
• Frequency Response: 10Hz - 23.7KHz
• High Pass Filter: 20Hz - 800Hz
• High Pass Filter Multiply: x1, x10 ( 200Hz - 8KHz )
• Low Pass Filter: 50Hz - 800Hz
• Low Pass Filter Multiply: x1, x10 ( 500Hz - 8KHz )
• Input sensitivity: 6V - 0.2V
• Signal to Noise Ratio: 88dB <
• T.H.D @ 4ohm: less than 0.1%
• Working voltage:9V - 15.5V
• Fuse rating: 25A
• Dimensions:
  • Length:6.69 inches
  • Width: 4.87 x Height: 2.13 inches

The DOWN4SOUND MM504 (MINI MAXX) is a testament to the continuous effort to improve and innovate in car audio technology. Please note that all features are subject to change as part of ongoing efforts to enhance product performance without prior notice. Experience the power and clarity of this compact amplifier and take your car audio to the next level.
