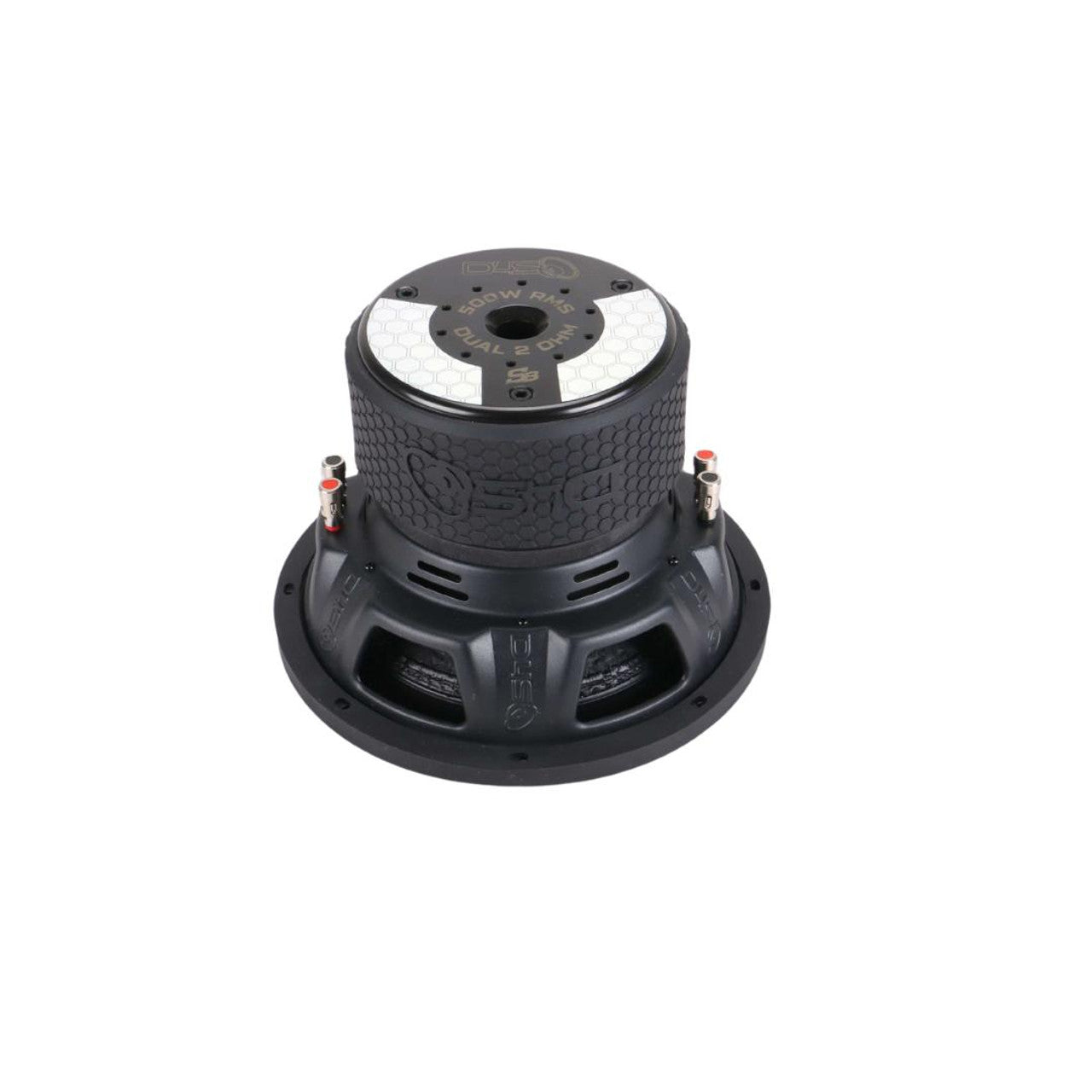

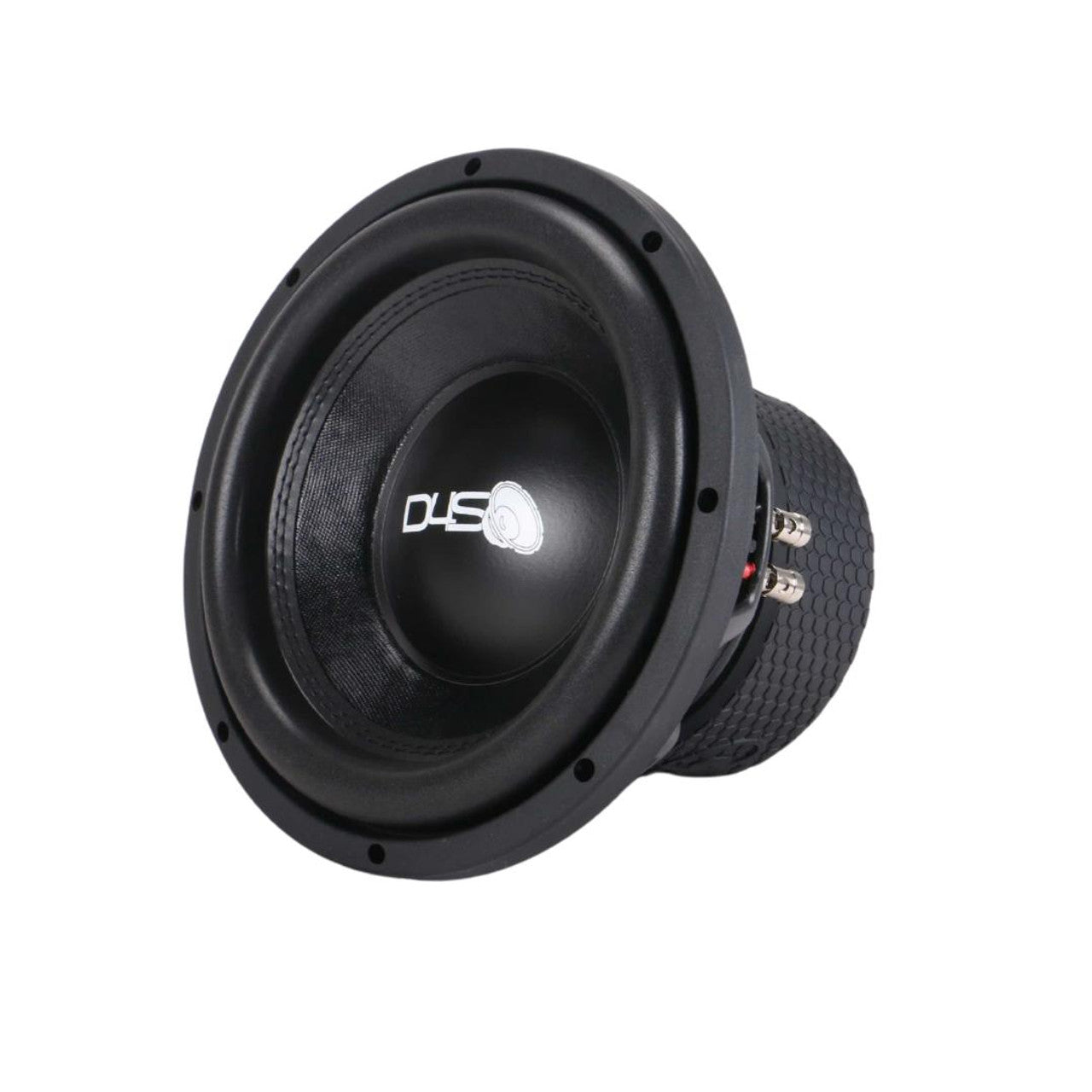

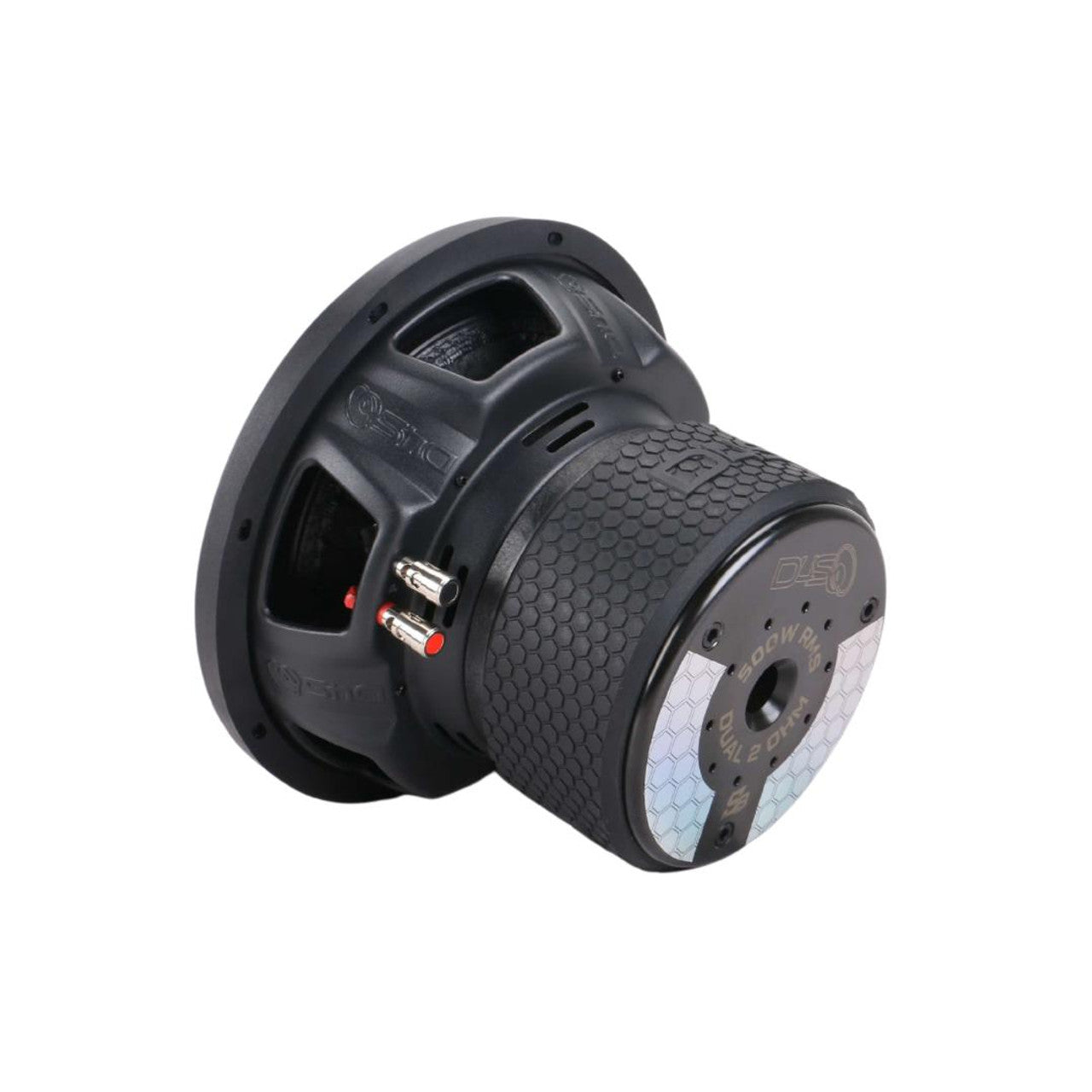

Down4Sound SB 10" 500W RMS Subwoofer DVC
Down4Sound SB 10" 500W RMS Subwoofer DVC - Dual 2 Ohm is backordered and will ship as soon as it is back in stock.
Buy with confidence
Verify fitment, selected options, availability and included components before checkout. Secure payment options and order confirmation are provided at checkout.
Description
Description
Upgrade your car audio experience with the DOWN4SOUND SB 10” Subwoofer, built to deliver precise, deep bass and exceptional clarity. Featuring a dual 2-ohm/4-ohm voice coil configuration and 500W RMS power handling, this subwoofer offers a perfect balance of compact design, durability, and high-performance audio.
QUICK NOTES:
- RMS Handling: 500W RMS
- Coil Size: 2.5 Inch
- Cutout Diameter: 9.06 inches / 230 mm
- Outer Diameter: 10.28 inches / 261 mm
- Mounting Depth: 6.46 inches / 164 mm
- Motor Height: 3.54 inches / 90 mm
- Net Weight: 41.9 lbs / 19 kg
- Gross Weight: 45.2 lbs / 20.5 kg
- Highly optimized suspension for accurate sound reproduction
- Compact design for versatile installations
Technical Specifications:
- Revc (DC Resistance): 2.03 Ohm
- Resonance Frequency (Fs): 30.88 Hz
- BL Product: 19.38 T·m
- Total Moving Mass (Mms): 171.79 g
- Suspension Compliance (Cms): 151.45 μm/N
- Effective Piston Area (Sd): 506.71 cm²
- Equivalent Volume (Vas): 24.35 L
- Sensitivity (SPL): 83.0 dB
- Qms (Mechanical Q): 3.474
- Qes (Electrical Q): 0.555
- Qts (Total Q): 0.479
- Outside Diameter: 10.28 in (261 mm)
- Displacement: 0.09 cu ft
Recommended Enclosures:
- Ported Enclosure Size: 1.0 cu ft (net)
- Port Area: 15 sq in
- Port Tuning: 35 Hz
- Sealed Enclosure: Not Recommended
Why You Should Buy:
- Powerful Performance in a Compact Design: Offers impressive bass response with a space-saving design.
- Dual 2-Ohm/4-Ohm Flexibility: Supports versatile wiring configurations for seamless amplifier pairing.
- Built for Longevity: Engineered with premium materials to handle intense use and provide long-lasting performance.
- Superior Sound Quality: Optimized suspension delivers precise, clean low frequencies for any genre of music.
