Down4Sound TCX 12" 2700W RMS Subwoofer DVC
Down4Sound TCX 12" 2700W RMS Subwoofer DVC - Dual 1 Ohm is backordered and will ship as soon as it is back in stock.
Buy with confidence
Verify fitment, selected options, availability and included components before checkout. Secure payment options and order confirmation are provided at checkout.
Description
Description

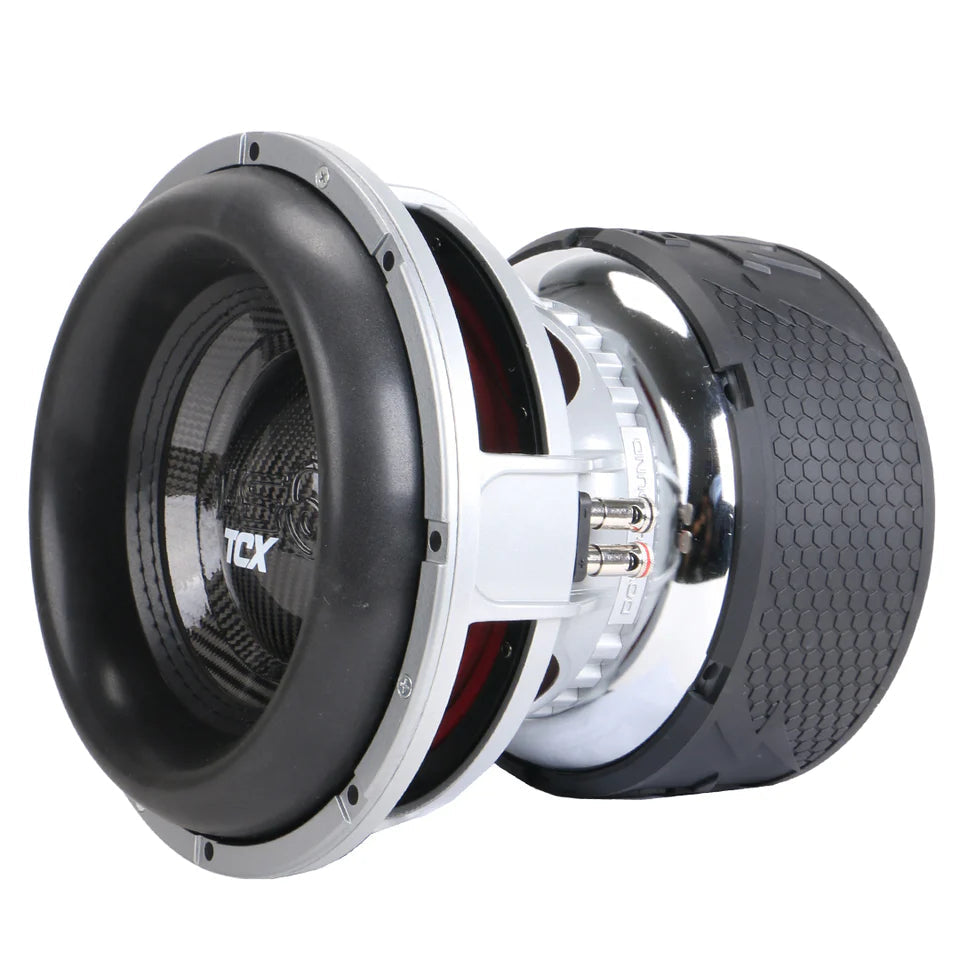

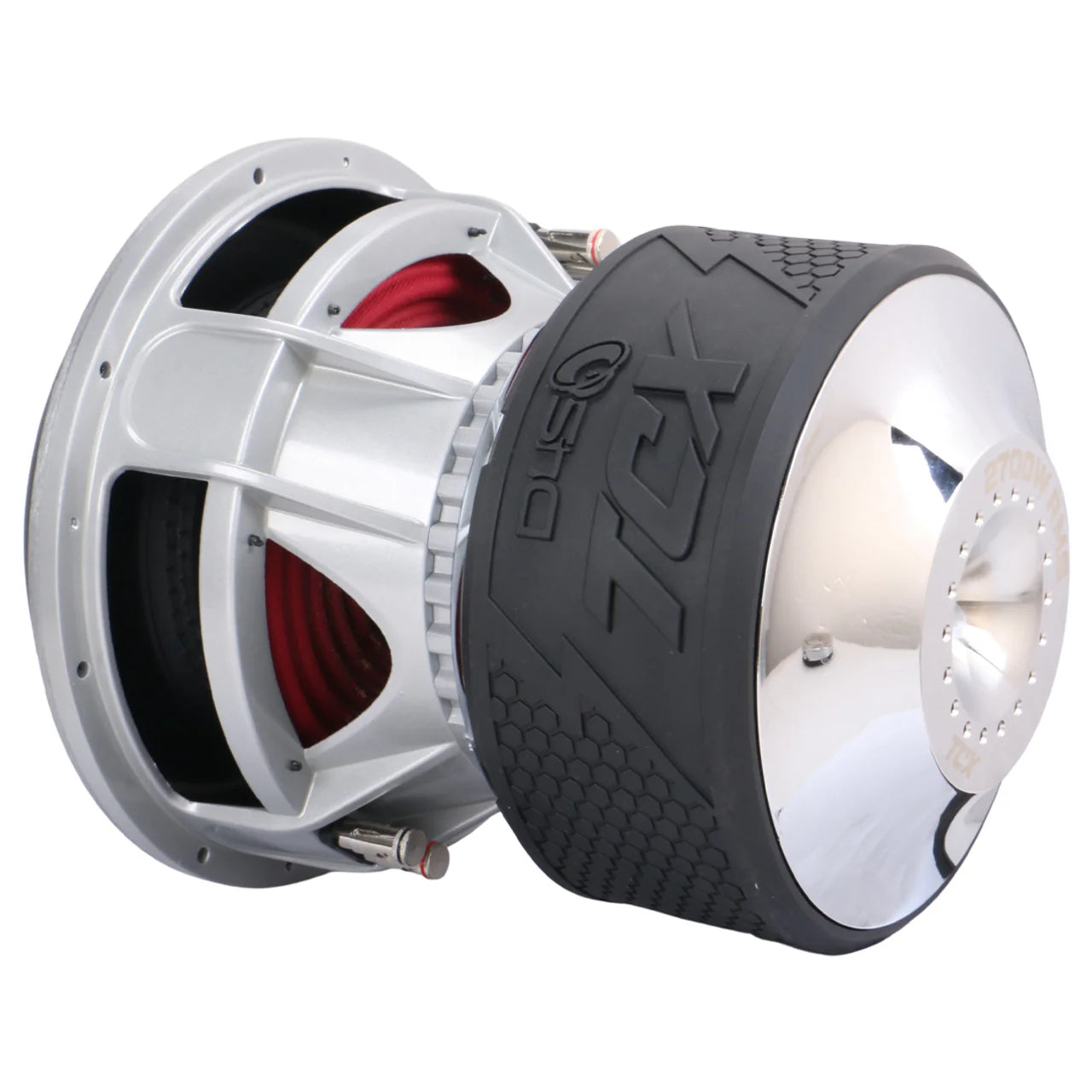

The DOWN4SOUND TCX 12” Subwoofer D1 is a high-output, high-control subwoofer designed for the demands of daily drivers and demo builds alike. With 2700W RMS power handling and a carefully engineered motor structure, it delivers clean, forceful low-frequency output without compromise.

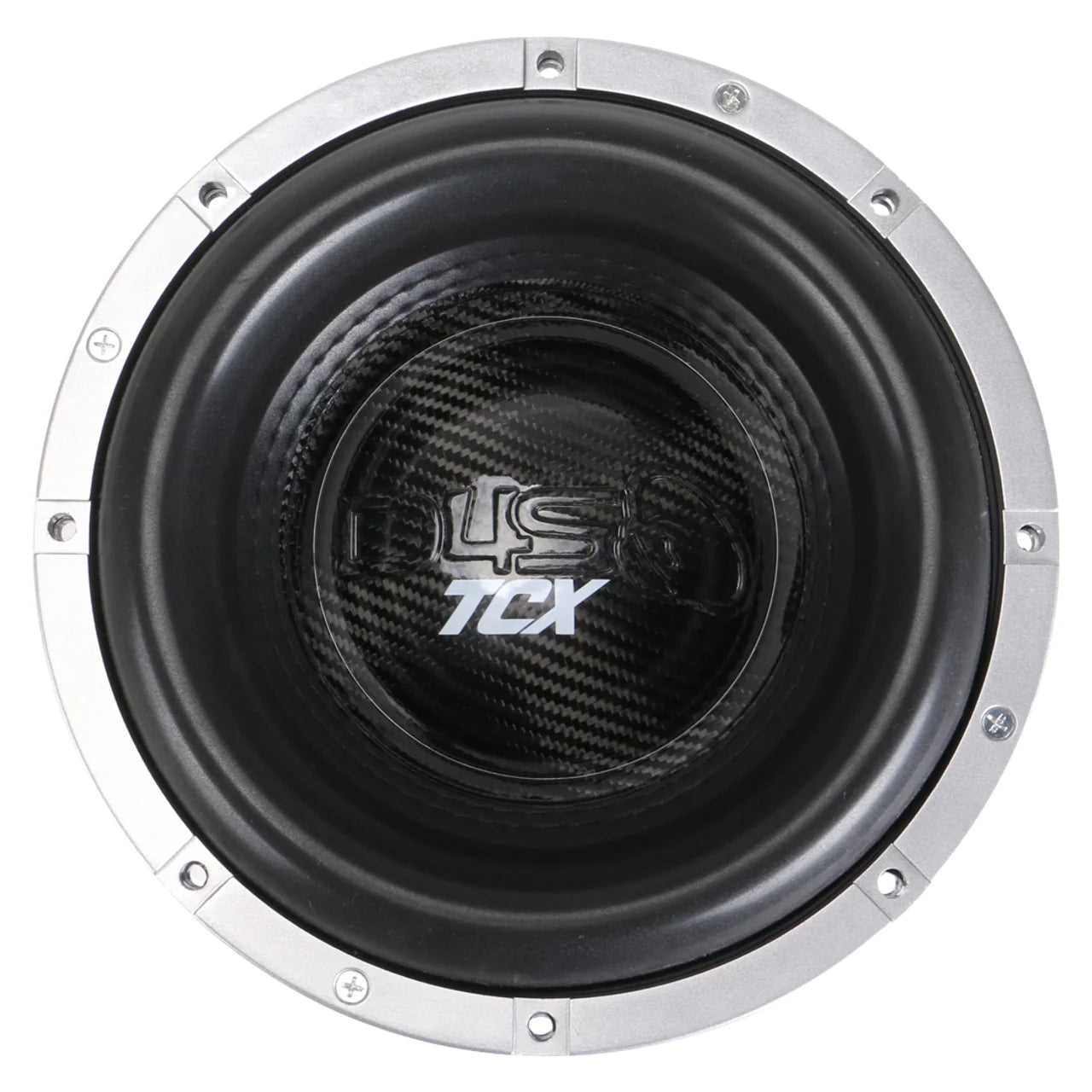

Featuring a 3" 8-layer flat aluminum voice coil, a lightweight carbon fiber cone, and a massive 5-stack Y35 ferrite motor, the TCX-12 D1 maintains strength, efficiency, and long-term durability even under continuous heavy load.
QUICK NOTES:
- RMS Handling: 2700W RMS
- Coil Size: 3 Inch – 8 Layer Flat Aluminum
- Impedance: Dual 1 Ohm (D1)
- Cutout Diameter: 11.14 inches / 283 mm
- Mounting Depth: 9.1 inches / 231 mm
- Weight: ~70 lbs
- Xmax: ~33 mm (one-way)
- Motor Size: 240 mm (9.45 in)
- Extended pole piece for clean, deep throw
- Dual flared pole vent for reduced coil noise and better cooling

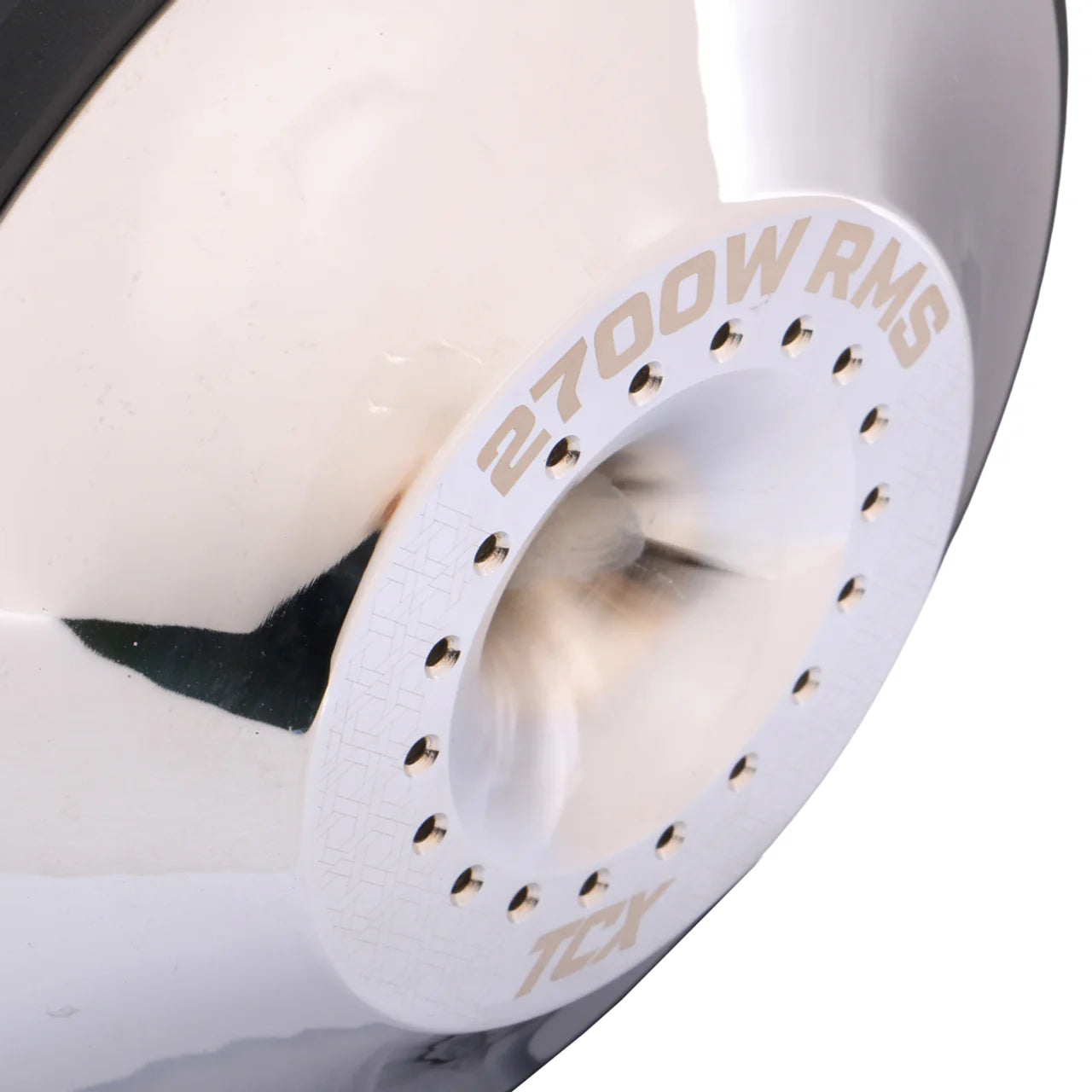

- Full backplate and gap venting for thermal management
PRECISION ENGINEERING:
The TCX-12 D1 features a BL product of 20.200 T·m, which keeps its lightweight cone tight and responsive during high excursion. The 8-layer coil improves thermal resistance and power handling, making it ideal for daily pounding or demo abuse.
Its triple-spider suspension and oversized motor keep it stable and reliable, while the high-roll foam surround and carbon fiber cone allow it to move air fast and efficiently.
TECHNICAL SPECIFICATIONS:
- Resonance Frequency (Fs): 36.451 Hz
- Sd: 113.411 cm²
- Mms: 507.996 g
- BL: 20.200 T·m
- Qms (Mechanical Q): 3.949
- Qes (Electrical Q): 0.458
- Qts (Total Q): 0.396
- No (Efficiency): 0.108%
- Sensitivity (SPL): 83.5 dB
- Vas: 9.179 L
- Cms: 41.047 μm/N
- Krm: 38.767 mOhm
- Erm: 0.620
- Kxm: 92.944 mH
- Exm: 0.594
RECOMMENDED ENCLOSURE:
- Ported Box Volume: 2.0 – 2.5 cu ft
- Tuning Frequency: 32 Hz
