Driven Diesel SD High Volume Fuel Delivery Kit, Fuelab, 1999-2007 Ford 7.3L 6.0L Powerstroke

Driven Diesel SD High Volume Fuel Delivery Kit, Fuelab

For 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 Ford 7.3L 6.0L Powerstroke

I understand that the Driven Diesel High Volume Fuel Delivery Kit DOES NOT INCLUDE the necessary fuel tank connection (5/8 Pickup, Sump, Etc.). I am aware that these are available to add to my order, and that I am not required to purchase the tank connection from Strictly Diesel.

This DRIVEN DIESEL HIGH VOLUME FUEL DELIVERY KIT for 1999-2007 Ford 7.3L & 6.0L Super Duty Trucks was designed to support everything from high performance street builds to full competition race builds. Based on the tough Fuelab Prodigy fuel pump, this kit will ensure that you have plenty of fuel flow and pressure for the largest injectors and hottest programs available. Coupled with our newly revised Compact Fuel Pump & Filter Mount and our Killer Billet Fuel Filter Heads, this kit provides everything you need to feed your monster 7.3L Powerstroke truck.

Kit Features:
• SUPPORTS THE LARGEST Injectors (1999-2007 7.3L & 6.0L)
• INCLUDES FUELAB Prodigy (41401-1) Brushless Fuel Pump Made in the USA!
• NEW DRIVEN DIESEL BILLET High Flow Pre & Post Pump Fuel Filter Heads Made in the USA!
• NEW DRIVEN DIESEL Mounting Bracket Assembly (Improved Fit and Flexibility) Made in the USA!
• High Quality Baldwin Fuel Filters Made in the USA!
• DRIVEN DIESEL 40A Fuel Pump Wiring Harness Made in the USA!

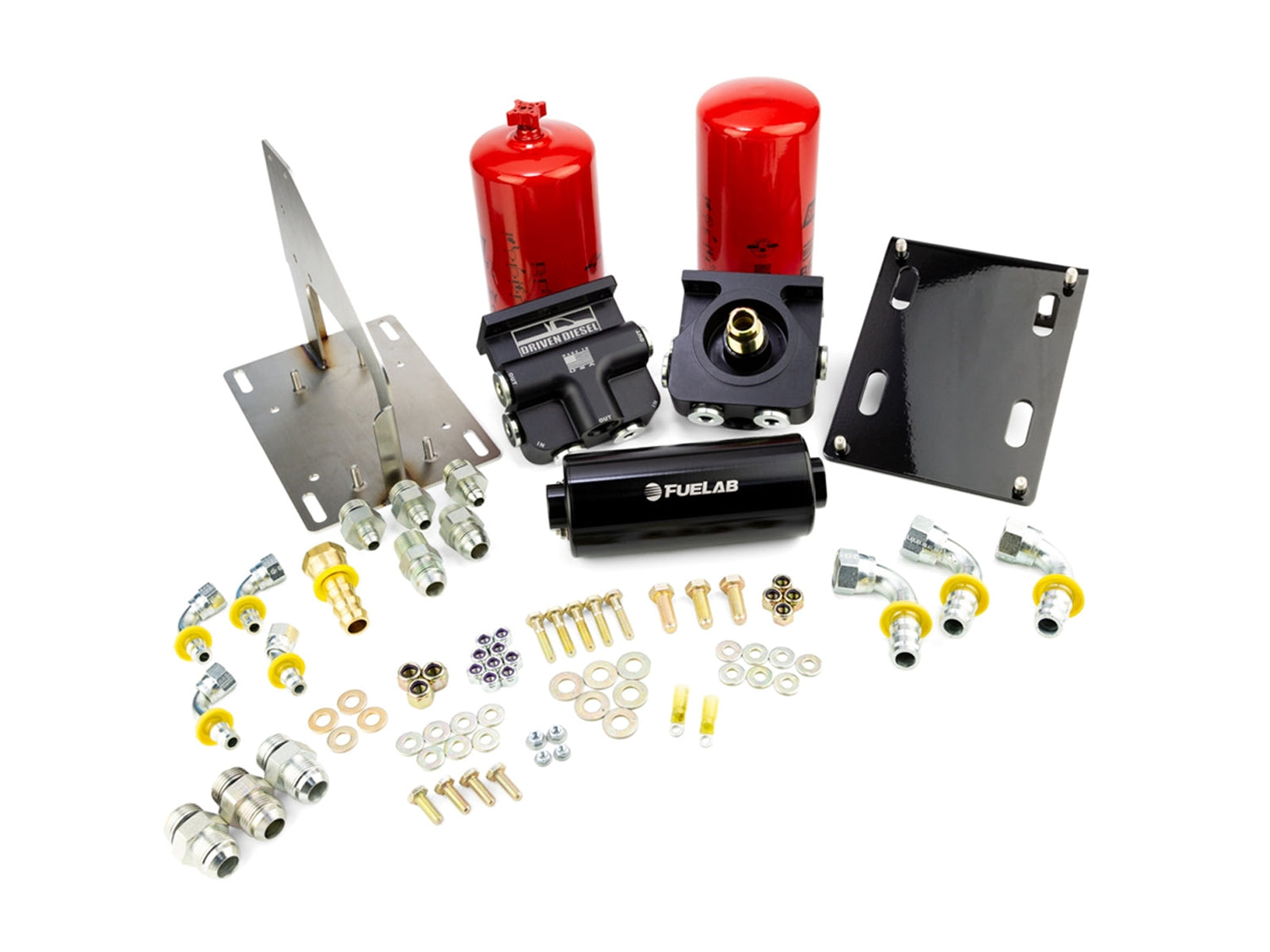

• ALL Necessary Hose / Fittings / Clamps / Hardware
• Adapter Fitting for FASS Electric Fuel Heater INCLUDED!
• Full Color Installation Instructions
• FUEL TANK CONNECTION NOT INCLUDED!

This kit was designed to mount INSIDE the frame rail, forward of the stock fuel tank. The fully assembled pump bracket requires about 13-15" of straight frame space to allow for the inlet and outlet hoses to route cleanly. If you have a short wheelbase truck or you have other equipment already mounted in the area forward of the fuel tank, you will need to plan on installing the kit on the OUTSIDE of the frame rail. In these cases, care will need to be taken with regard to the parking brake cable and fuel line routing. All of the pictures in the instructions show a system plumbed for INSIDE the frame mounting, but we have tested and confirmed that it will fit outside the frame as well.

* 99-03 7.3L & 03-07 6.0L STOCK FUEL FILTER BOWL NOTE : This kit was designed to work with our very popular 7.3L & 6.0L "Fuel Bowl Delete" Regulated Return Kits. As such, it DOES NOT INCLUDE the proper fittings to supply fuel to the factory fuel filter bowl. While is is possible to use this kit with the factory fuel filter bowl, it is not recommend because the OEM fuel pressure regulator isn't designed to handle the higher volume of fuel supplied by this product.

This kit uses the Baldwin BF1252 "Pre-Pump" Fuel Filter/Water Separator and the Baldwin BF7633 "Post Pump" Fuel Filter.

STOCK NOTICE : Due to the large number of options within our "High Volume Fuel Delivery System" line, we do not have these kits pre-assembled and ready to ship. Each kit will be BUILT-TO-ORDER, once the order has been received. PLEASE ALLOW 3-5 BUSINESS DAYS FOR ORDER PROCESSING, KIT ASSEMBLY AND SHIPPING. If you have a need that is more urgent, please call our office and discuss it with a member of our staff to confirm that we can meet your deadline before ordering. Thank You for your patience and understanding!
