Description
Description
- The PRO-X6.4BM 6.5" Midrange Loudspeaker has a sensitivity of 94 dB
- 4 Channel EXL-P800X4 has Remote Bass Knob and Latest SMC and MOSFET Technology
- The PRO-X6.4BM 6.5" Midrange Loudspeaker has voice coil diameter of 1.5
DS18 4 Channel Amplifier 2 TWX1 Super Tweeters 4x 6.5 Full Range Loud Speakers

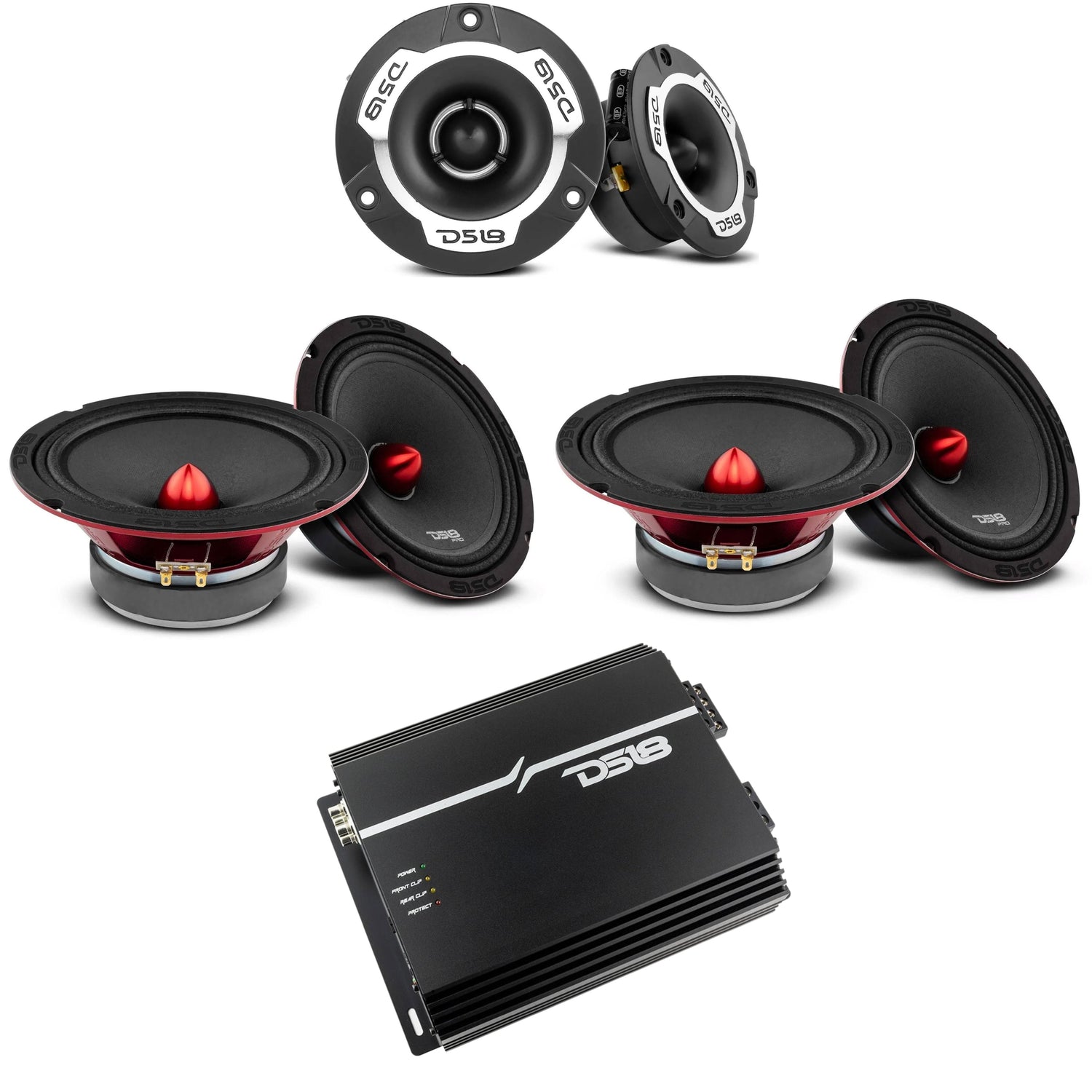

This listing includes:
- (1) DS18 EXL-P800X4 4 Channel Full Range Korean Amplifier
- (2) DS-PRO-TWX1 Super Tweeters
- (4) DS-PRO-X6.4MB 6.5'' Full Range Loud Speakers
With a combination like this, you will have loudspeakers that deliver a concert-like audio experience without any distortion; a Gen-X series AMP that is durable and provides maximum wattage for your budget; and tweeters that are engineered and designed in the US, that are top of the line in the Pro Audio market.
Features per item in this combo:
- The PRO-X6.4BM 6.5" Midrange Loudspeaker has a sensitivity of 94 dB
- 4 Channel EXL-P800X4 has Remote Bass Knob and Latest SMC and MOSFET Technology
- The PRO-X6.4BM 6.5" Midrange Loudspeaker has voice coil diameter of 1.5

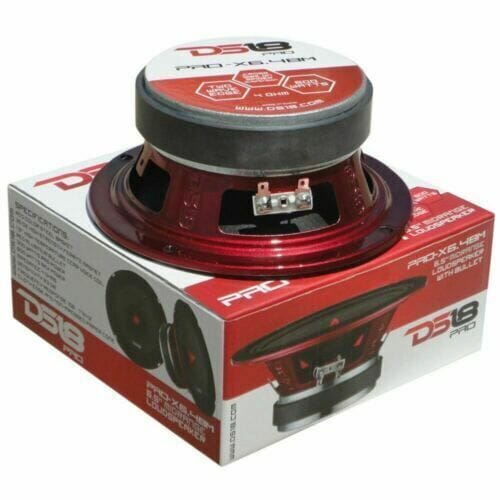

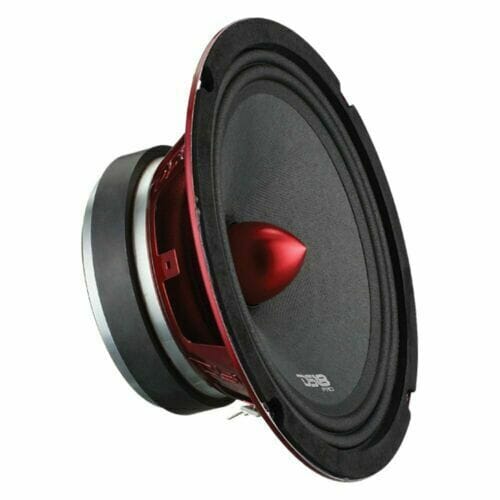

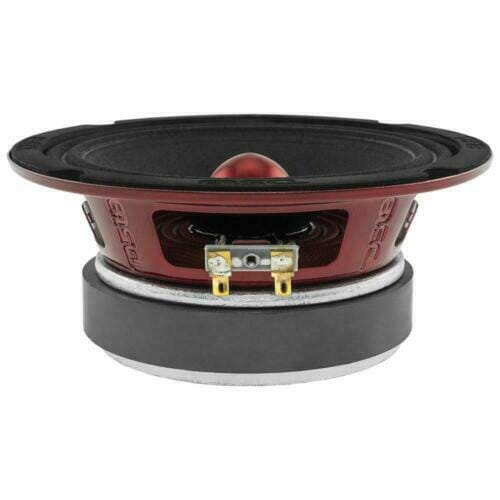

6.5" Midrange Loudspeaker PRO-X6.4BM:
- Nominal Diameter: 6.5"
- Nominal Impedance: 4 Ohm
- MAX Power Handling: 500 Watts
- RMS Power Handling: 250 Watts
- Sensitivity (1w/1m): 94 dB
- Frequency Response: 125Hz ~ 12KHz
- Recommended HI Pass Crossover: 120Hz
- Voice Coil Diameter: 1.5"
- Voice Coil Former Material: Kapton
- Winding Material: CCAW
- Cone Material: Non-press Paper
- Surround Material: Cloth Edge
- Basket Material: Steel
- Magnet Material: Ferrite
- Equivalent Volume: Vas - 3.810L
- Excursion: X-max - 8.2mm
- Free Air Resonance: Fs - 106Hz
- Mechanical Factor: Qms - 8.027
- Electrical Factor: Qes - 0.471
- Total Factor: Qts - 0.445
- Dc Resistance: Re - 3.2 Ohm

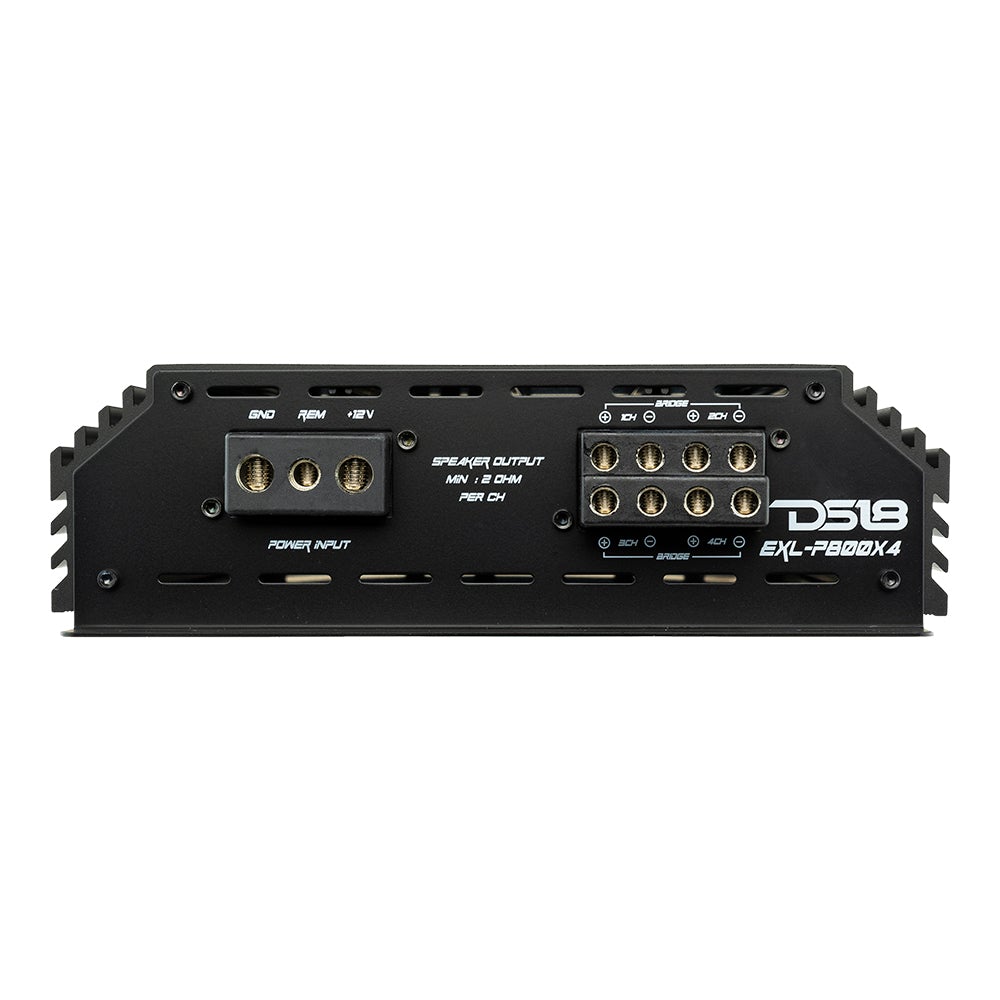

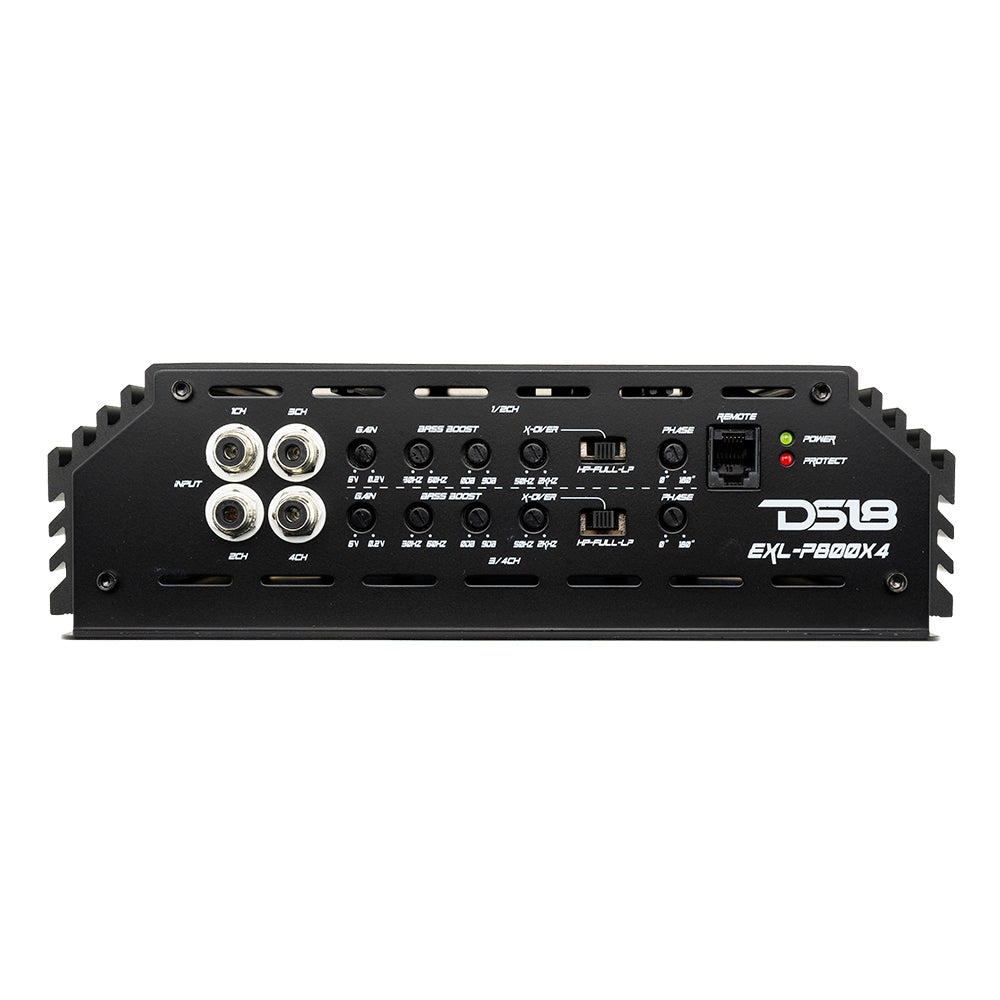

DS18 4 Channel Korean Amplifier Class A/B Full Range w/ Bass Knob EXL-P800X4:
- RMS Power @ 4 Ohm: 150W x 4CH
- RMS Power @ 2 Ohm: 200W x 4CH
- RMS Power @ 4 Ohm Bridge : 400W x 2CH
- Frequency Response: 20Hz-20KHz
- Signal/Noise Ratio: Greater than 98dB
- Efficiency @4 Ohm: Greater than 63%
- Damping Factor: 140
- THD%: Greater than 0.10%
- Low Level Input Range: 200MV-6V
- Selectable X-Over: Yes, HPF/FULL/LPF
- X-Over Filter Range: 50Hz-2KHz
- Bass Boost Range: 0-+9dB
- Bass Boost Frequency: 30Hz-60Hz
- Infrasonic Filter: No
- Phase Selector: 0-180
- Class: AB (Analog)
- Amplifier Type: Stereo Full - Range
- Channels: 4 CH
- Minimum Impedance: 2 Ohm/CH (4 Ohm Bridge)
- Led Indicator: PWR / CLIP / PROTECT
- Power Input Size: 4 AWG
- Fuse Rating: 120A
- Remote Level Control: Yes - Dash Mount
- Cooling Fan: Yes
- Thermal Protection: Yes > 97C / 206F
- Over-Load Protection: Yes
- Dc Output Protection: Yes
- Short Circuit Output Protection: Yes
- Voltage Input Protection: Yes, greater than 15.5V
- Clipping Protection: Yes
- Body Color/Finish: Black Aluminum

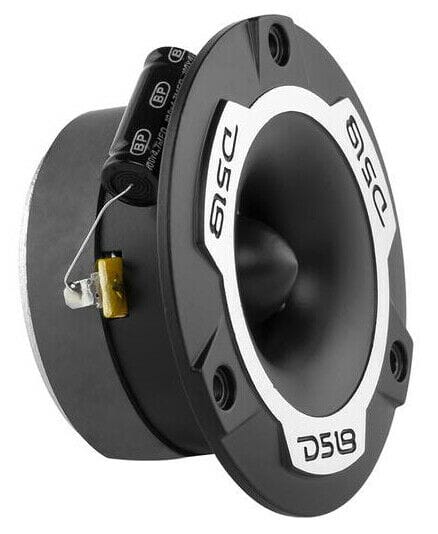

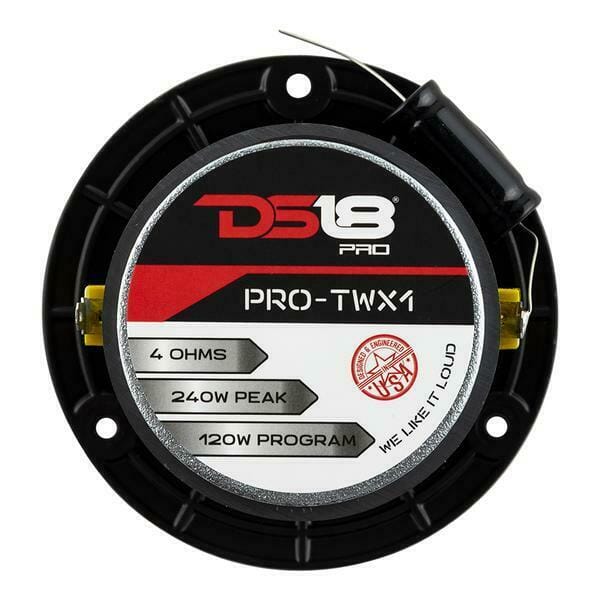

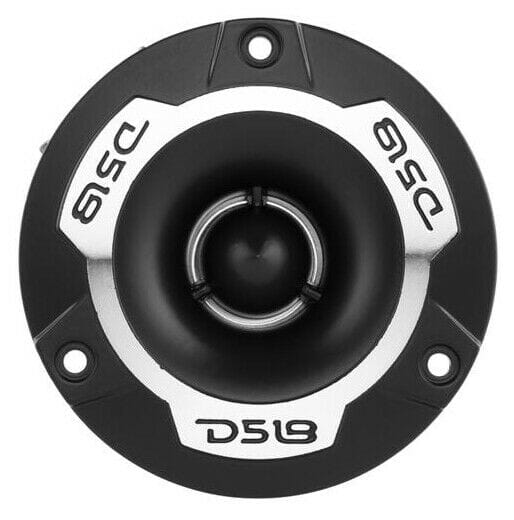

TWX1 Super Bullet Tweeter per speaker:
- Nominal Impedance: 4 Ohms
- 60W RMS
- 120W MAX
- Sensitivity (1W/1W): 103 dB
- Frequency Response: 3.5K-20kHz
- Voice Coil Diameter: 1"
- Diaphragm Material: Aluminum
- Magnet Material: Ferrite
- Body Material: Aluminum
Recommendation(s) per item in this combo:
DS18 6.5" Loudspeaker PRO-X6.4BM per speaker:
- Recommended HI Pass Crossover: 120Hz
TWX1 Super Bullet Tweeter per speaker:
- Recommended Hi Pass Crossover: 2kHz
Item Dimensions per item in this combo:
6.5 PRO-X6.4BM Mid-Range Speakers:
- Overall Diameter: 6.61 inches
- Front Mount Baffle Cutout: 5.7 inches
- Mounting Depth: 2.44 inches
- Overall Depth: 2.72 inches
- Magnet Weight: 30 oz
- Weight: 6 lb
DS18 4 Channel Korean Amplifier Class A/B Full Range w/ Bass Knob EXL-P800X4:
- Length: 11.5 inches
- Width: 8.77 inches
- Height: 2.67 inches
- Heatsink Length: 9.84 inches
TWX1 Super Bullet Tweeter per speaker:
- Overall Diameter: 3.78 inches
- Overall Depth: 1.78 inches
- Front Mount Baffle Cutout: 2.76 inches
- Mounting Depth: 1.57 inches
- Weight: 3 lb
