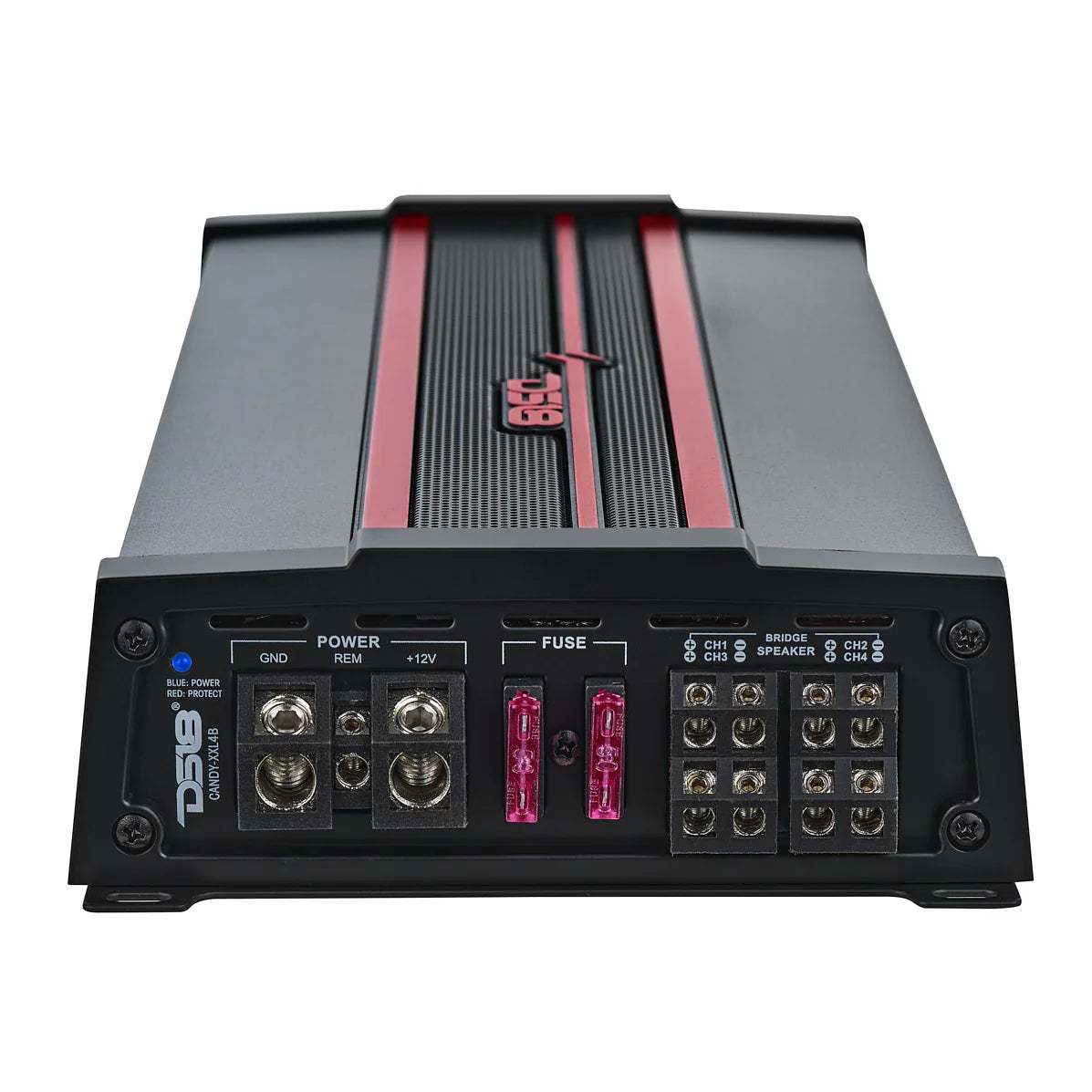

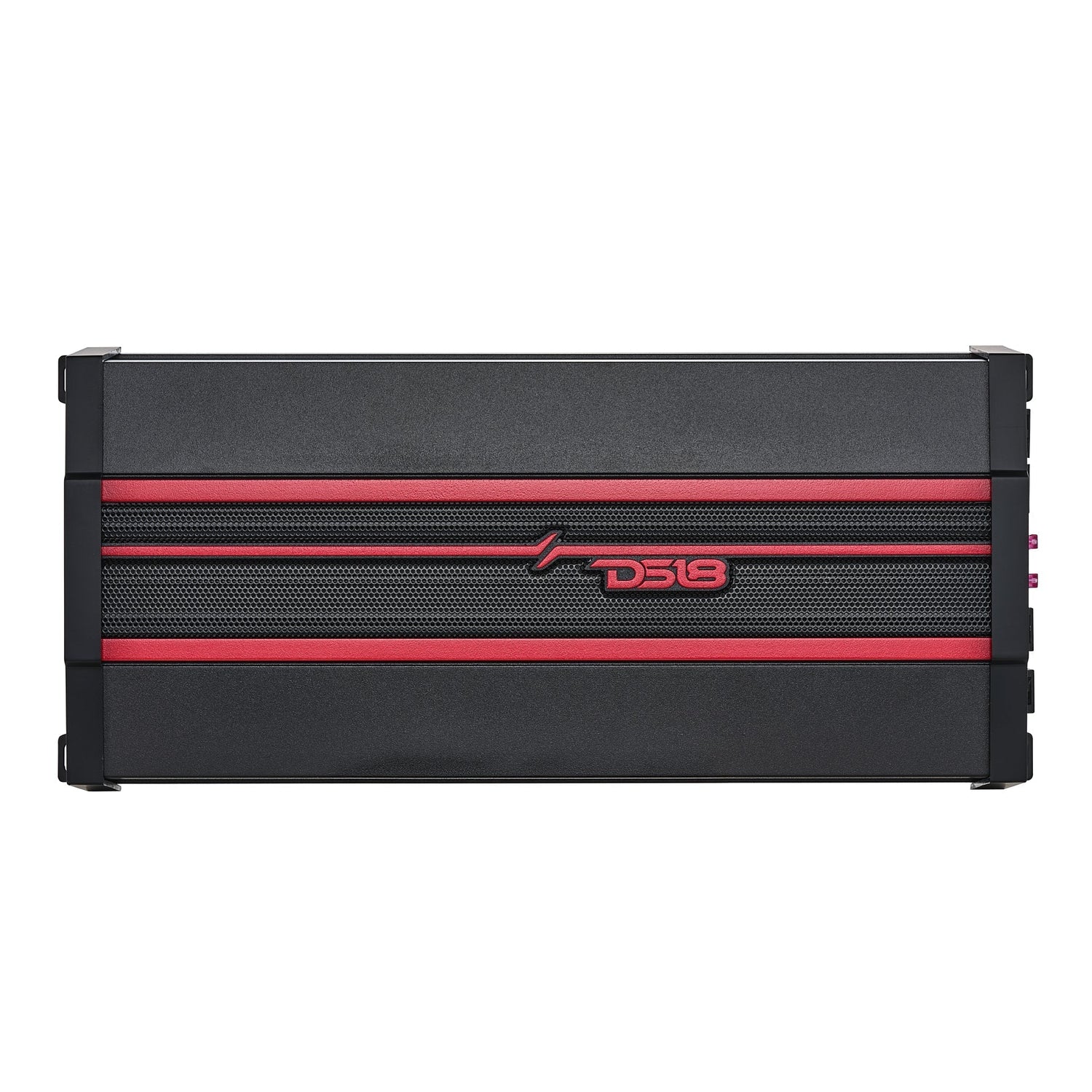

DS18 CANDY-XXL4B Compact Full-Range Class D 4-Channel Amplifier 880W

Name: DS18 CANDY-XXL4B Compact Full-Range Class D 4-Channel Amplifier 880W
SKU: DS18-CANDYXXL4B
Price: 299.95 USD
Availability: InStock

No reviews yet. Bought this? Write the first review

$299.95

Shipping calculated at checkout.

Shipping & delivery

Usually ships in 2–3 business days unless a different lead time is shown on this page. Shipping cost is calculated at checkout (UPS or USPS to the contiguous U.S.).

Shipping policy · Returns · Fitment questions? (561) 207-7988

Delivery and Shipping

Standard order processing is 2–3 business days unless this product or your order confirmation states a different lead time. Custom-built, made-to-order, backorder, and pre-order items follow their stated lead times.

Enclosures and subwoofer boxes ship for $50 per unit. Other shipping charges are calculated at checkout. Orders outside the contiguous 48 United States may require additional shipping; we will contact you for approval before shipment.

Subwoofer boxes ship UPS Ground where available. Read our Shipping Policy and Return and Refund Policy for delivery, product-specific return windows, and warranty details.

Description

Digital 4-Channel Amplifier

DS18’s CANDY-XXL4B is a 4-channel digital amplifier engineered for massive volume, clean signal, and pro-level tuning — all in a compact 13” footprint that hits hard and runs cool.

Extreme Output Without the Bulk
The CANDY-XXL4B delivers 3200W peak resulting in clean RMS output across all channels at: 4 x 220W @ 4Ω, 4 x 400W RMS @ 2Ω, and 2 x 750W @ 4Ω Bridged!

Bridge It. Boost It. Tune It.

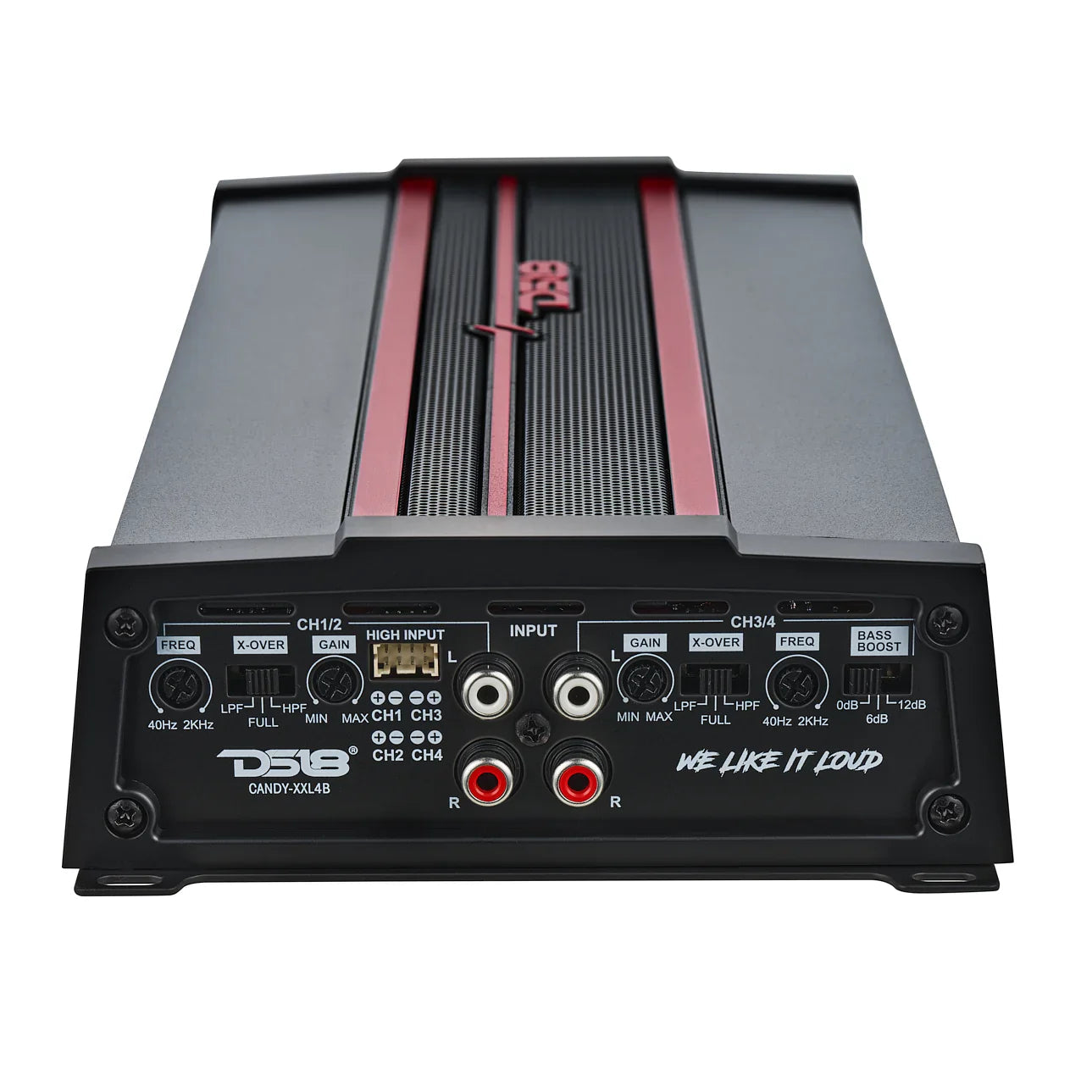

Fine-tune your system with adjustable crossovers (40Hz–2kHz) and selectable bass boost (0/6/12dB).

OEM-Ready with Pro Installer Features
Drop it in fast with Hi-Level Inputs and Auto Turn-On — perfect for factory system upgrades. This means easy installs in tight spaces, stealth builds, or even powersports applications.

Built to Last.
A high-efficiency Class D design, dual 50A fuses, and full thermal, overload, and short protection make the CANDY-XXL4B ready for anything your system throws at it.

Choose the CANDY-XXL4B when you're ready for harder, cleaner, and LOUDER sound!

SPECS

SKU
CANDY-XXL4B
Total Watts (Peak)
3200W
RMS Power @ 4 Ohm
220W x 4
RMS Power @ 2 Ohm
400W x 4
RMS Power @ 4 Ohm Bridge
750W x 2

Audio

Frequency Response
20Hz~20KHz
Signal to Noise Ratio
70dB
Efficiency @ 4ohm
>75%
Damping Factor
26
Input Impedance
10K ohm
Channel Separation
50dB
Total Harmonic Distortion (THD)
0.50%
Low Level Input Range
0.2~6V
High Level Input
Yes, 2~10V
Selectable X-Over
LPF/FULL/HPF
X-Over Filter Range
40Hz~2kHz
Bass Boost Range
0/6/12dB
Bass Boost Frequency
50Hz
Infrasonic Filter
No
Phase Selector
No

Features

Amplifier Class
Digital
Amplifier Type
Stereo Full Range
Number of Channels
4
Minimum Impedance
2 ohm St / 4 ohm Bridge
Led Indicator
Power / Protection
Power Input Terminal Size
4Ga
Fuse Size
50A x 2
Remote Level Control
No
Cooling Fan
No
Voltmeter
No
Thermal Protection
Yes (>158F)
Over-Load Protection
Yes
DC Output Protection
No
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (9-16v)
Clipping Protection
No
Body Color / Finish
Matte Black
