Description
Description

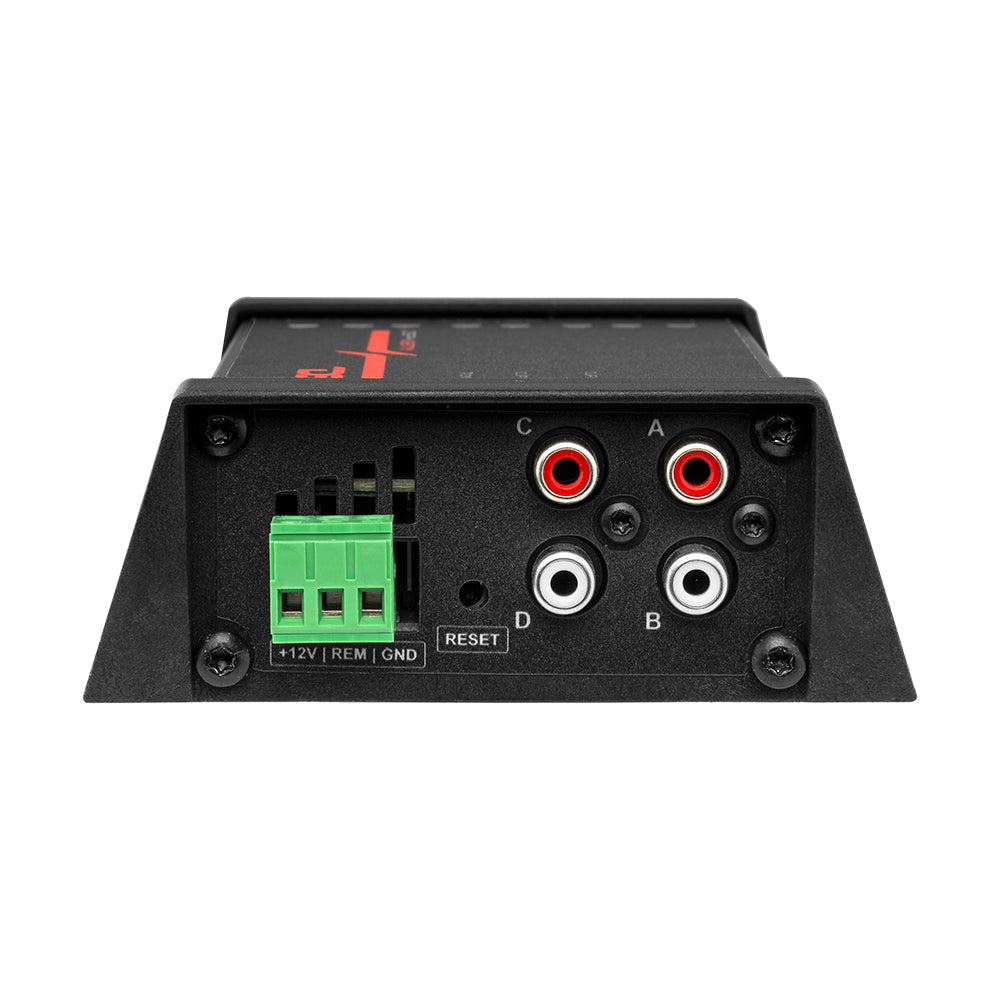

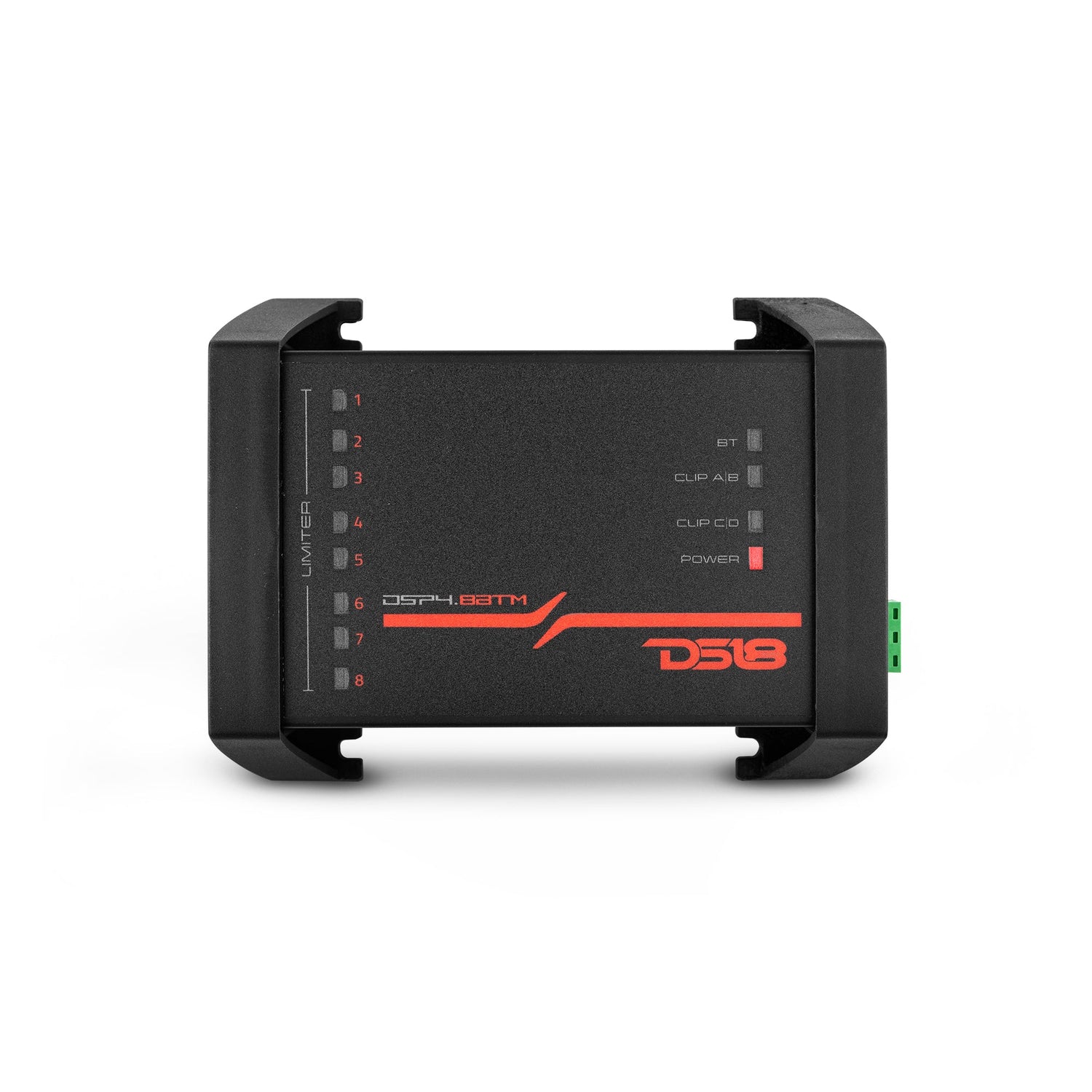

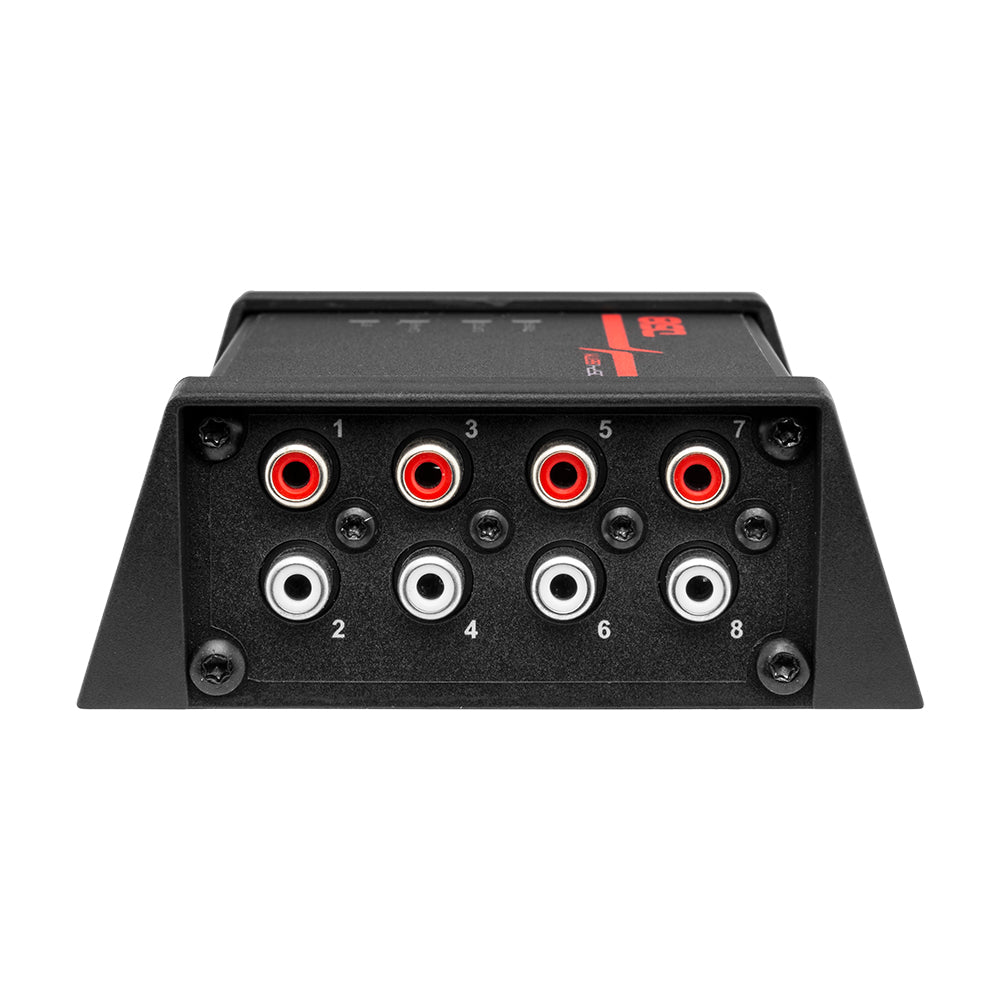

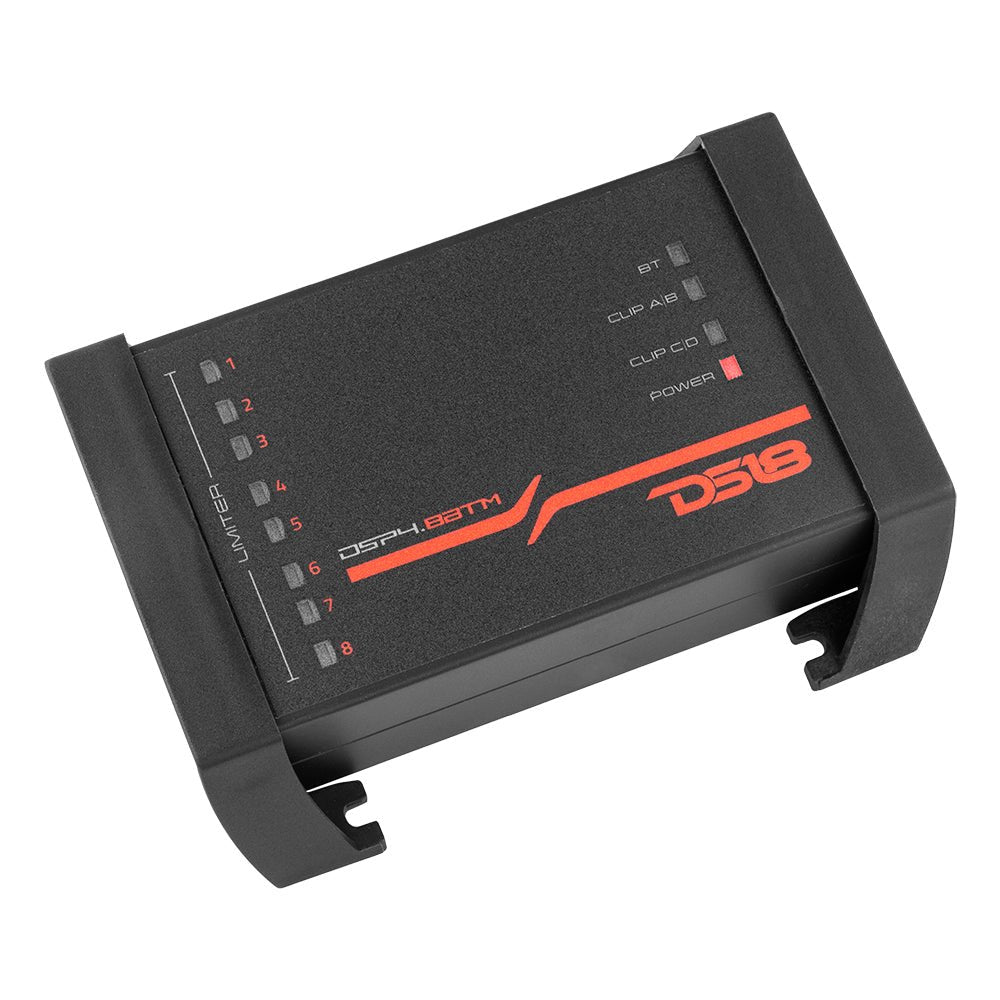

DS18 DSP4.8BTM 4-Channel In and 8-Channel Out Digital Sound Processor with Bluetooth
At DS18, our team of engineers is always working to give users unrestrained control over the unmatched power our products deliver. The DSP4.8BTM, our newest digital sound processor, gives users access to every bit of power in your vehicle’s audio system, allowing you to gain the control needed to handle and achieve the quality of sound you desire.
Creating a flawless audio system has never been easier. The DSP4.8BTM gives users access to a list of filtrations settings directly from our BT Interface. This interface also gives users option to save presets for certain songs or genres allowing for the perfect listening experience one hundred percent of the time.
The DSP4.8BTM gives you access to a great number of tuning options that can be adjusted using the DSP4.8BTM Application on the App Store or Google Play.
Highlights
- Bluetooth connectivity to allow for easy and accessible audio tuning
- Easy to use software found on Google Play or the App Store to fine tune and monitor every aspect of your signal processing.
- 4 Channel RCA inputs
- 8 Channel RCA outputs
- Parametric equalizer with 8 independent band per channel
- Crossover with filters: Butterworth, Linkwitz-Riley and Bessel.
Great for:
- Car Audio
- Pro Audio
- Motor Cycles
- Home Studio
- Stunt Walls
- DIY Projects
Technical Details
| Specifications | |
| ROUTING CHANNEL | |
| Routing Options | A / B / C / D / A+B / A+C / B+C |
| GAIN | GAIN / GANANCIA |
| General Gain | -53 to 0dB |
| Channel Gain | -33 to +9dB |
| FREQUENCY CUTS (CROSSOVER) | |
| Cutoff Frequency | 20Hz to 20KHz |
| Types of Cuts | Linkwitz-Riley / Butter worth / Bessel |
| Attenuations | 6 / 12 / 18 / 24 / 36 / 48dB/OCT |
| INPUT EQUALIZER (EQ IN) | |
| Equalization Bands | 15 Bands |
| Gain | -12 to +12dB |
| CHANNEL EQUALIZER (EQ CHANNEL) | |
| Equalization Bands | 8 Parametric per Channel |
| Gain | -12 to +12dB |
| Q Factor | 0.6 to 9.9 |
| TIME ALIGNMENT (DELAY) | |
| Time | 0 to 18,95ms |
| Distance | 0 to 6500mm |
| LIMITER | |
| Threshold | -54 to +6dB |
| Attack | 1 to 200ms |
| Release | 1 to 988ms |
| POLARITY INVERSION (PHASE) | |
| Phase | 0 or 180º |
| MEMORIES (PRESETS) | |
| Memories | 3 - 100% Configurable |
| INPUT A/B/C/D | |
| Input Channels | 4 |
| Type | Electronically Symmetrical |
| Connectors | RCA |
| Max Input Level | 4,00Vrms (+14dBu) |
| Input Impedance | 100KΩ |
| OUTPUT | |
| Output Channels | 8 |
| Connectors | RCA |
| Type | Electronically Symmetrical |
| Max Input Level | 3,50Vrms (+13dBu) |
| Output Impedance | 100Ω |
| DSP | |
| Frequency Response | 10Hz to 24KHz (-1dB) |
| THD+N | <0,01% |
| Signal Latency | <0,6ms |
| Bit Rate | 32Bits |
| Sampling Frequency | 96KHz |
| POWER SUPPLY | |
| Voltage DC | 10~15VDC |
| Maximum Consumption | 300mA |
| DIMENSION | |
| Height x Length x Depth | 1.6" x 5.6" x 4.25" / 41mm x 142mm x 108mm |
| Weight | 277g / 9.7Oz |
