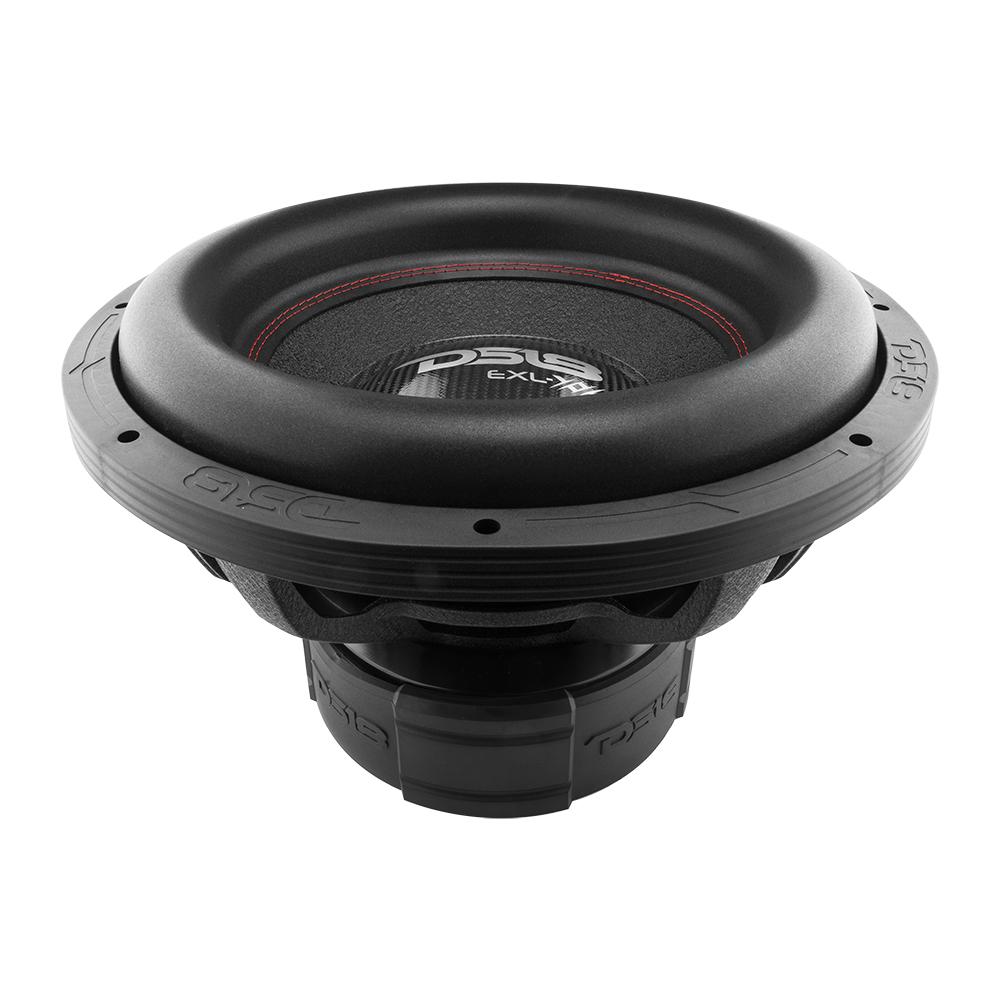

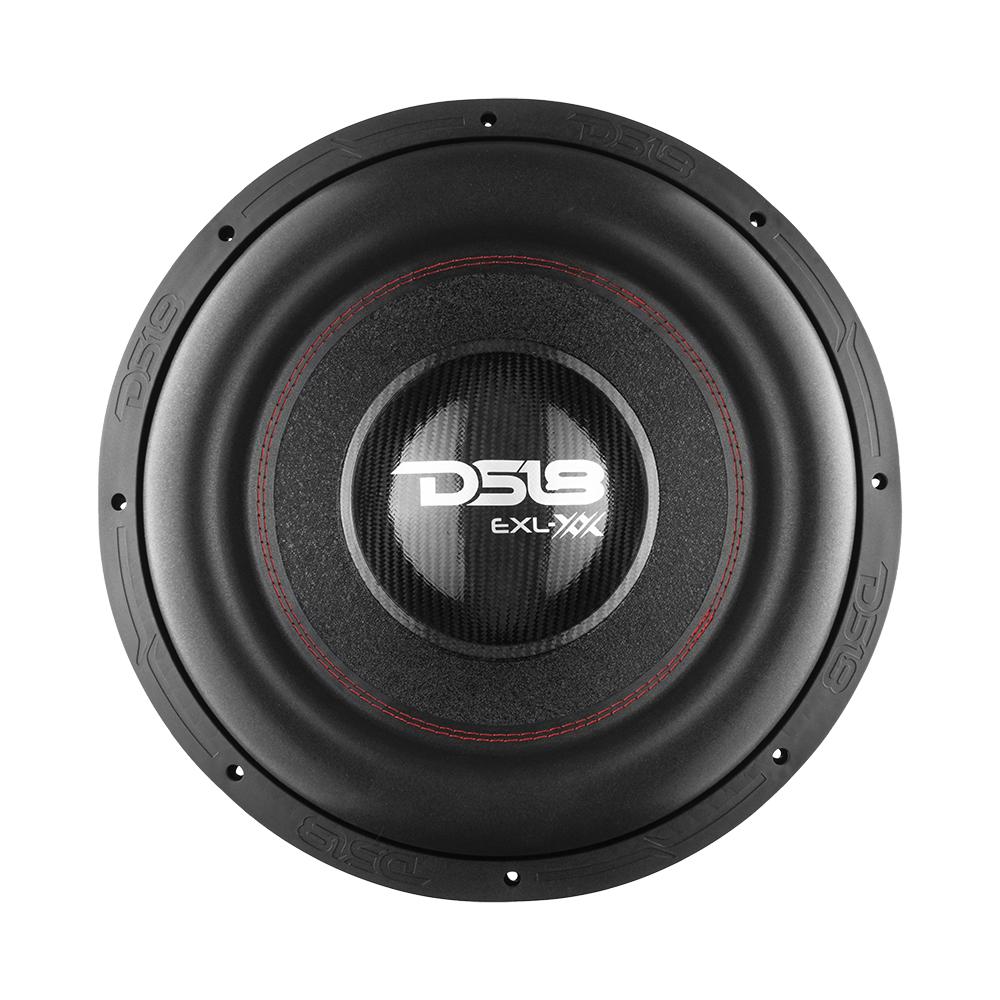

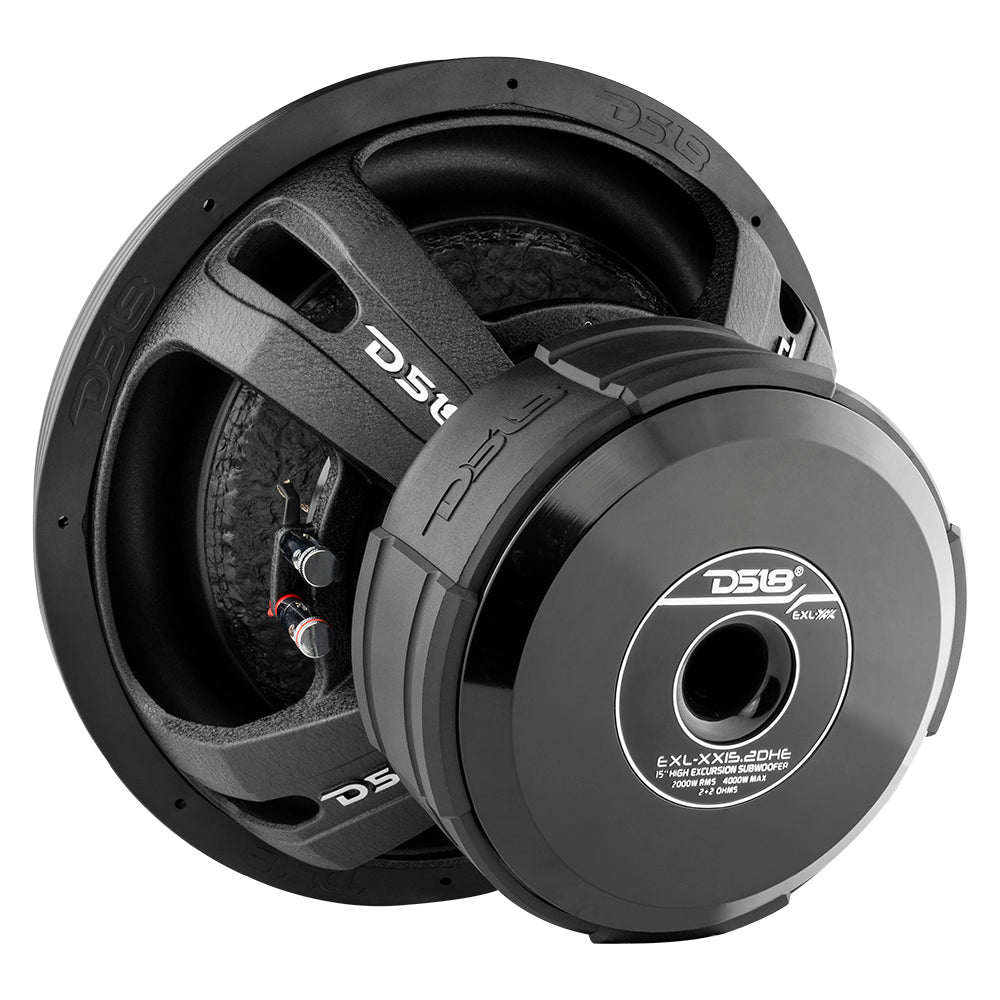

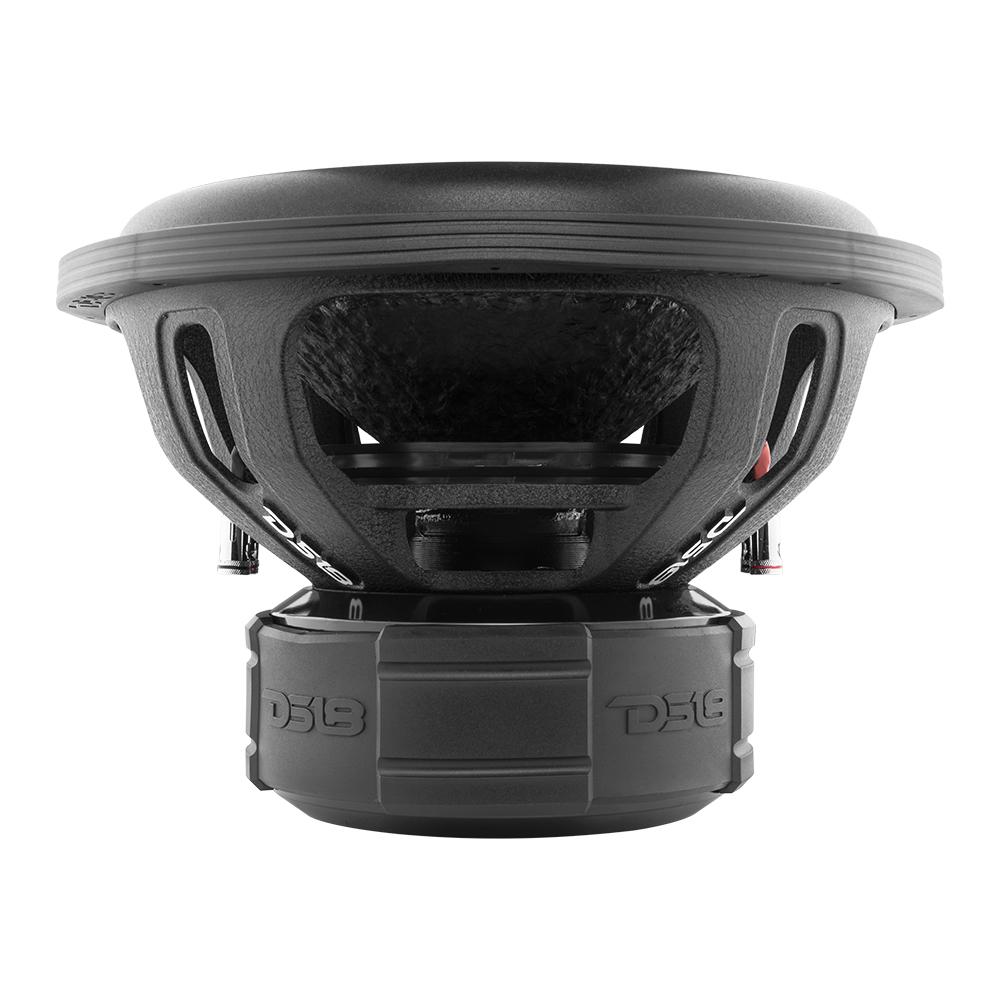

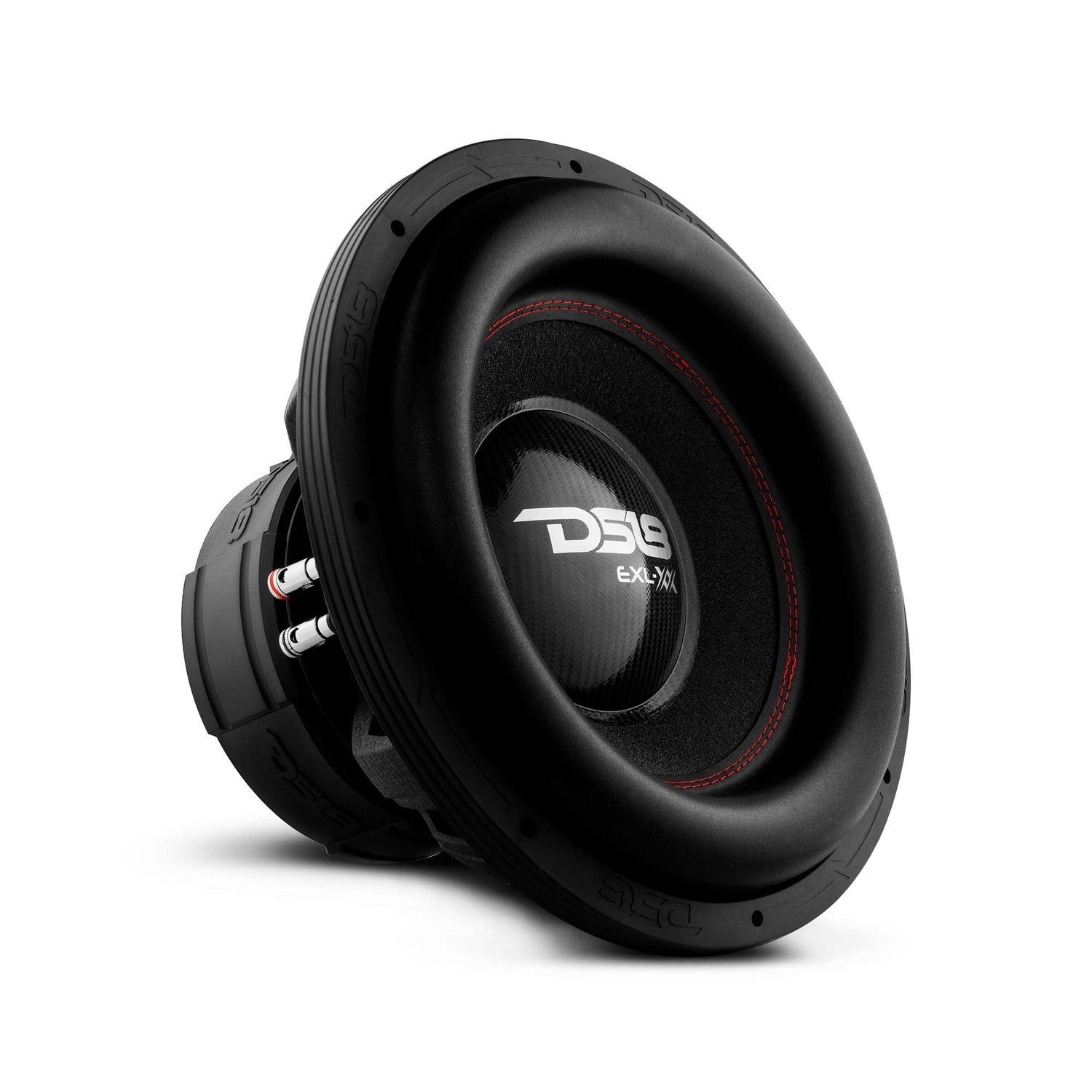

EXL XX 15" High Excursion Subwoofer 2000 Watts Rms DVC 2-Ohm

Name: EXL XX 15" High Excursion Subwoofer 2000 Watts Rms DVC 2-Ohm
SKU: EXL-XX15-2DHE
Price: 599.95 USD
Availability: InStock

No reviews yet. Bought this? Write the first review

$599.95

Shipping calculated at checkout.

Shipping & delivery

Usually ships in 2–3 business days unless a different lead time is shown on this page. Shipping cost is calculated at checkout (UPS or USPS to the contiguous U.S.).

Shipping policy · Returns · Fitment questions? (561) 207-7988

Delivery and Shipping

Standard order processing is 2–3 business days unless this product or your order confirmation states a different lead time. Custom-built, made-to-order, backorder, and pre-order items follow their stated lead times.

Enclosures and subwoofer boxes ship for $50 per unit. Other shipping charges are calculated at checkout. Orders outside the contiguous 48 United States may require additional shipping; we will contact you for approval before shipment.

Subwoofer boxes ship UPS Ground where available. Read our Shipping Policy and Return and Refund Policy for delivery, product-specific return windows, and warranty details.

Description

DS18 EXL-XX15.2DHE 15" High Excursion Car Subwoofer 4000 Watts Max 2-Ohm DVC

High excursion is now the standard in all big bass applications and we want to bring the experience of low frequency bass and high power to every user at a great price point. The EXL-XX15.2DHE is the answer to that. This subwoofer is a high tier addition that comes in at an amazing price point while getting all those features other much more expensive high excursion subs come with.
Also, with a power rating of 2000w RMS and 4000w Max, with the right power this sub will have increased excursion, decibels, and loudness altogether for a real competition bass experience.

Highlights

High Excursion surround for a very high amount of xmax.
Great power handling of 2000w RMS and 4000w max.
Three inch black aluminum voice coil for high power handling and great efficiency.
FS of 35 hz so you can easily dip in the subsonic range with no issues along as your box is tuned accordingly.

high excursion car subwoofer

Technical details

EXL-XX15.2DHE Product Manual

Specifications
Nominal Diameter	15
Nominal Impedance	2 + 2 Ohms
RMS Power Handling	2000W
MAX Power Handling	4000W
Sensitivity (1w/1m)	88 dB
Frequency Response	20Hz - 1.5KHz
Recommended Lo Pass Crossover	80 Hz
Motor:
VC Diameter	3" / 75.6mm
VC Former Material	Black Aluminum
Winding Material	CCAW
Cone Material	Paper
Dust Cap Material	Glass Fiber
Surround Material	Foam
Basket Material	Aluminum
Basket Color/Finish	Black
Magnet Material	Ferrite
Magnet Weight	306 Oz
Displacement Volume	3.26L
Thiele & Small Parameters
Equivalent Vol	Vas 31.976L
Excursion(one way)	Xmax 42 mm
Free Air Resonance	Fs 34.9 Hz
Mechanical Factor	Qms 5.159
Electrical Factor	Qes 0.584
Total Factor	Qts 0.525
Moving Mass	Mms 440.158 g
Compliance	Cms 0.026 mm/N
Bl Factor	BL 18.453
VC Inductance	Le 8.562 mH
Diaphragm Area	Sd 804.25 cm²
Dc Resistance	Re 2 + 2 ohms
Efficiency Bandwidth Product	EBP 59.7

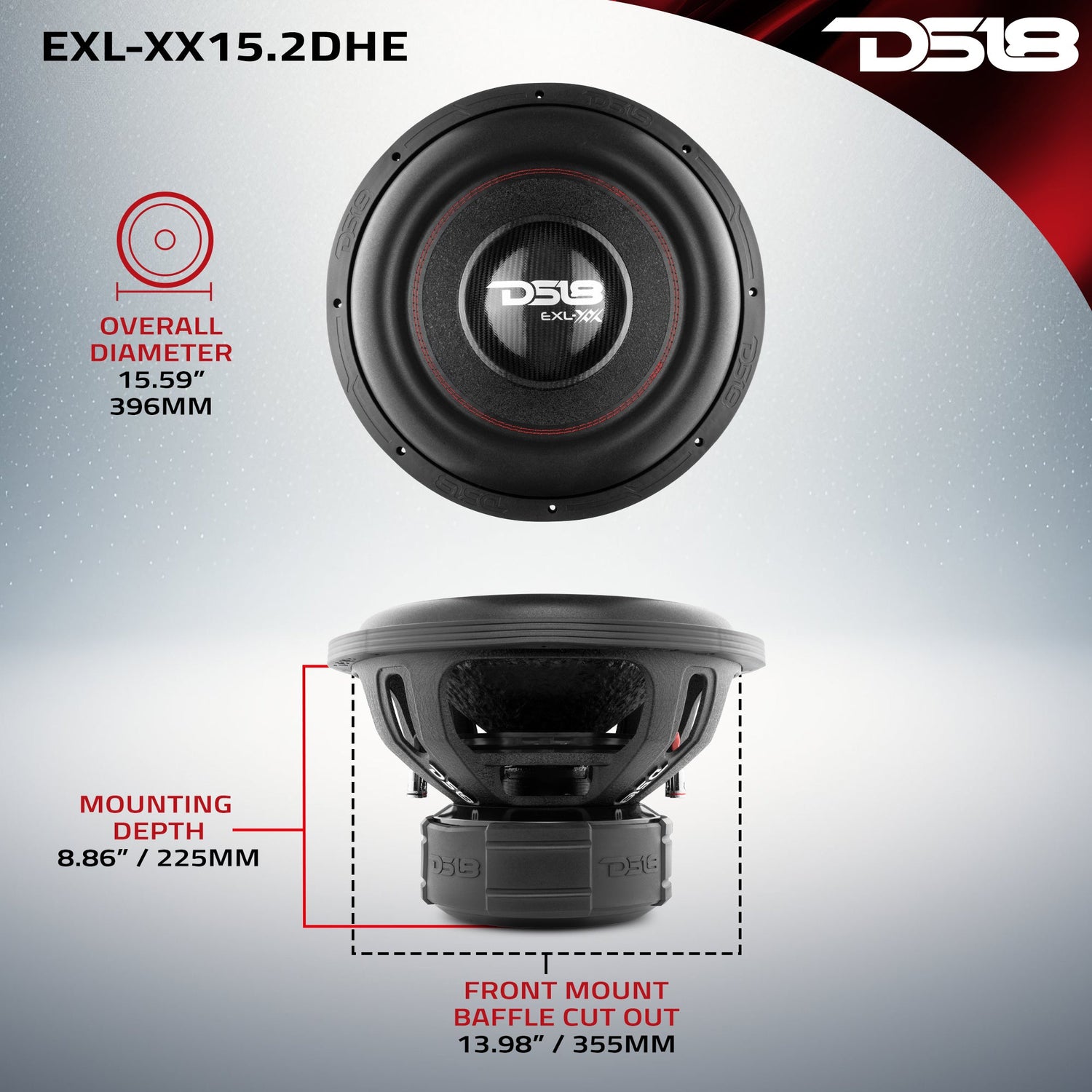

Measurements
Overall Diameter	15.59" / 396mm
Overall Depth	10.24" / 260mm
Front Mount Baffle Cutout	13.98" / 355mm
Mounting Depth	8.86" / 225mm
Motor Diameter	8.86" / 225mm
