Down4Sound EZY DSP68 All-in-One LOW LEVEL Car Audio DSP 6-in-8 Out
Down4Sound EZY DSP68 All-in-One LOW LEVEL Car Audio DSP 6-in-8 Out is backordered and will ship as soon as it is back in stock.
Buy with confidence
Verify fitment, selected options, availability and included components before checkout. Secure payment options and order confirmation are provided at checkout.
Description
Description

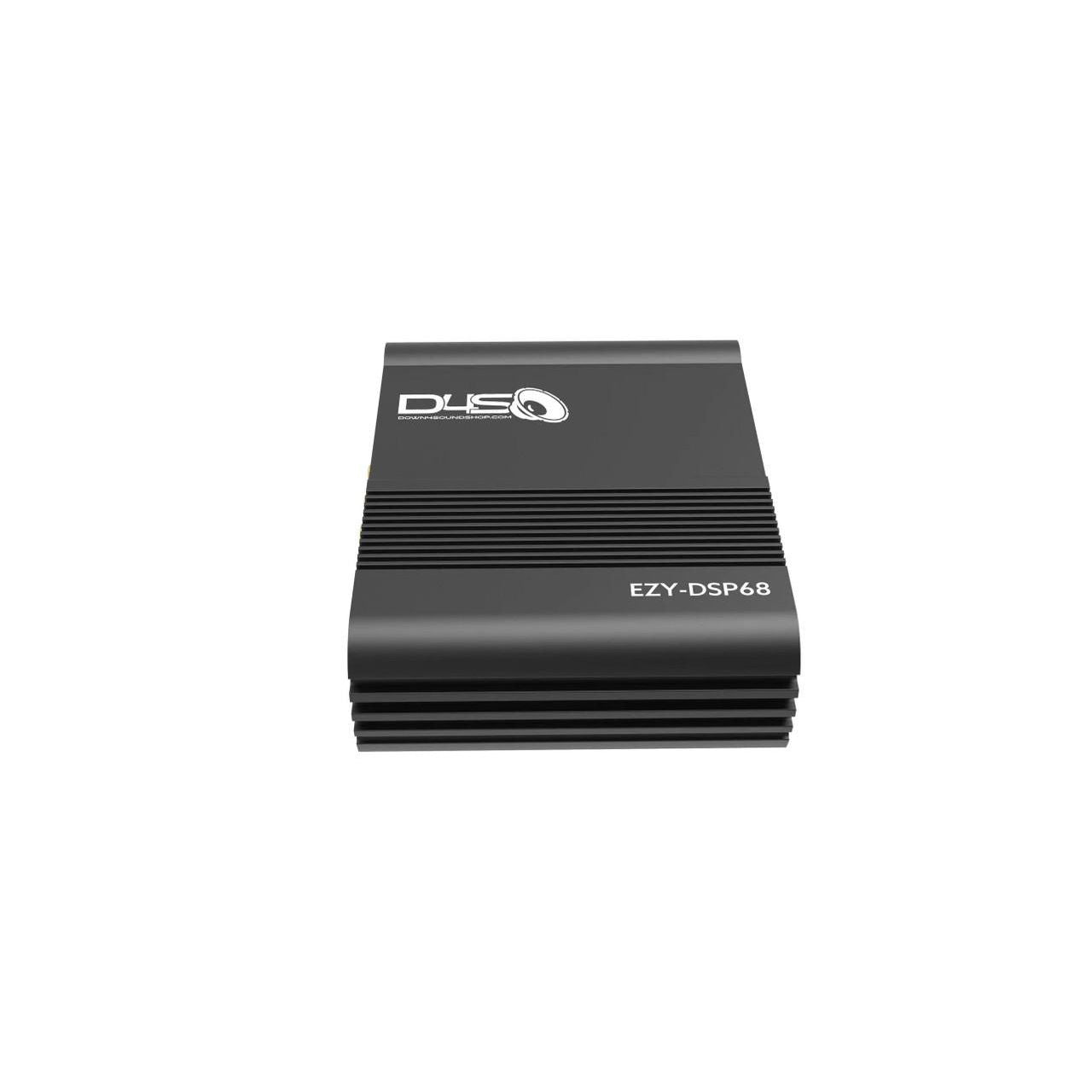

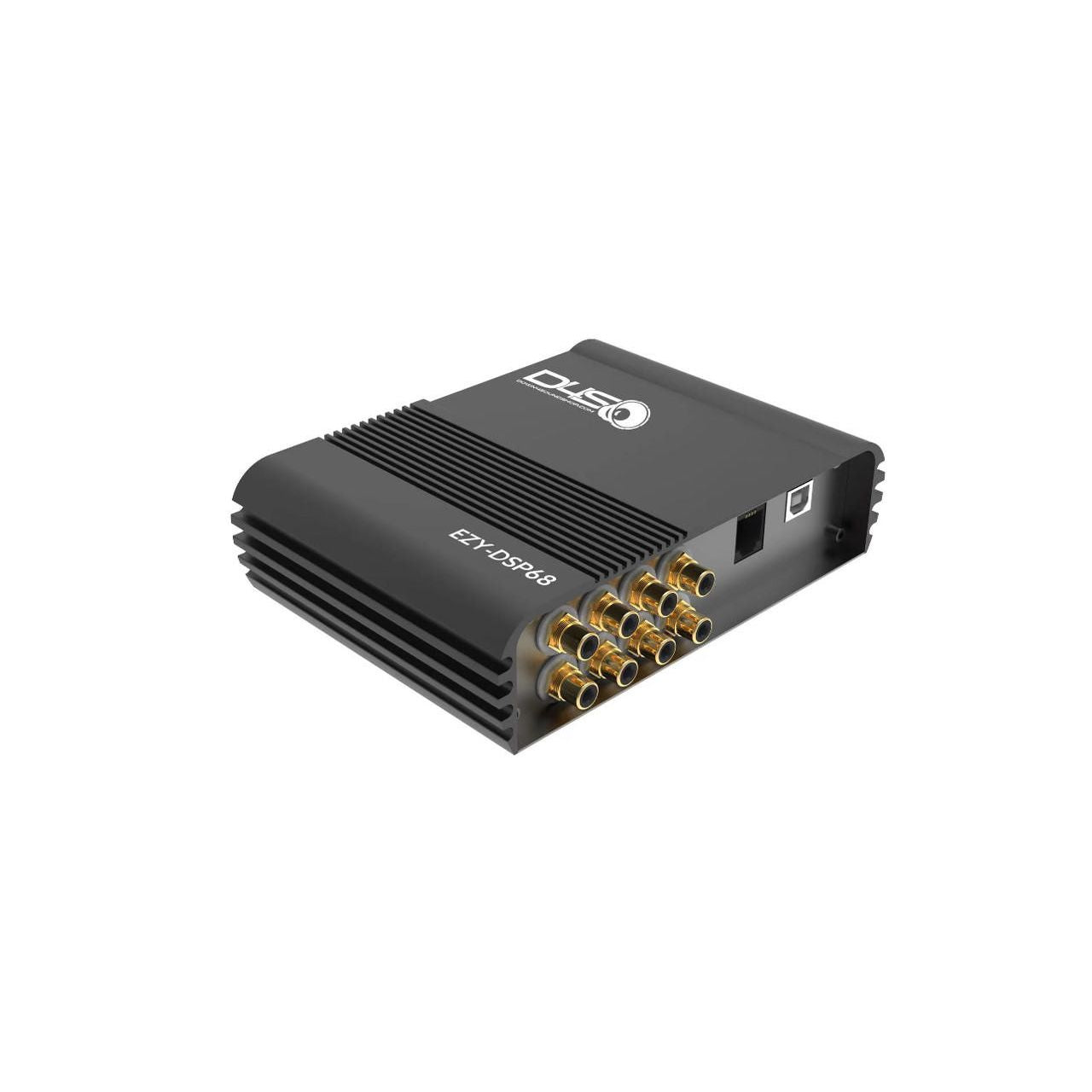

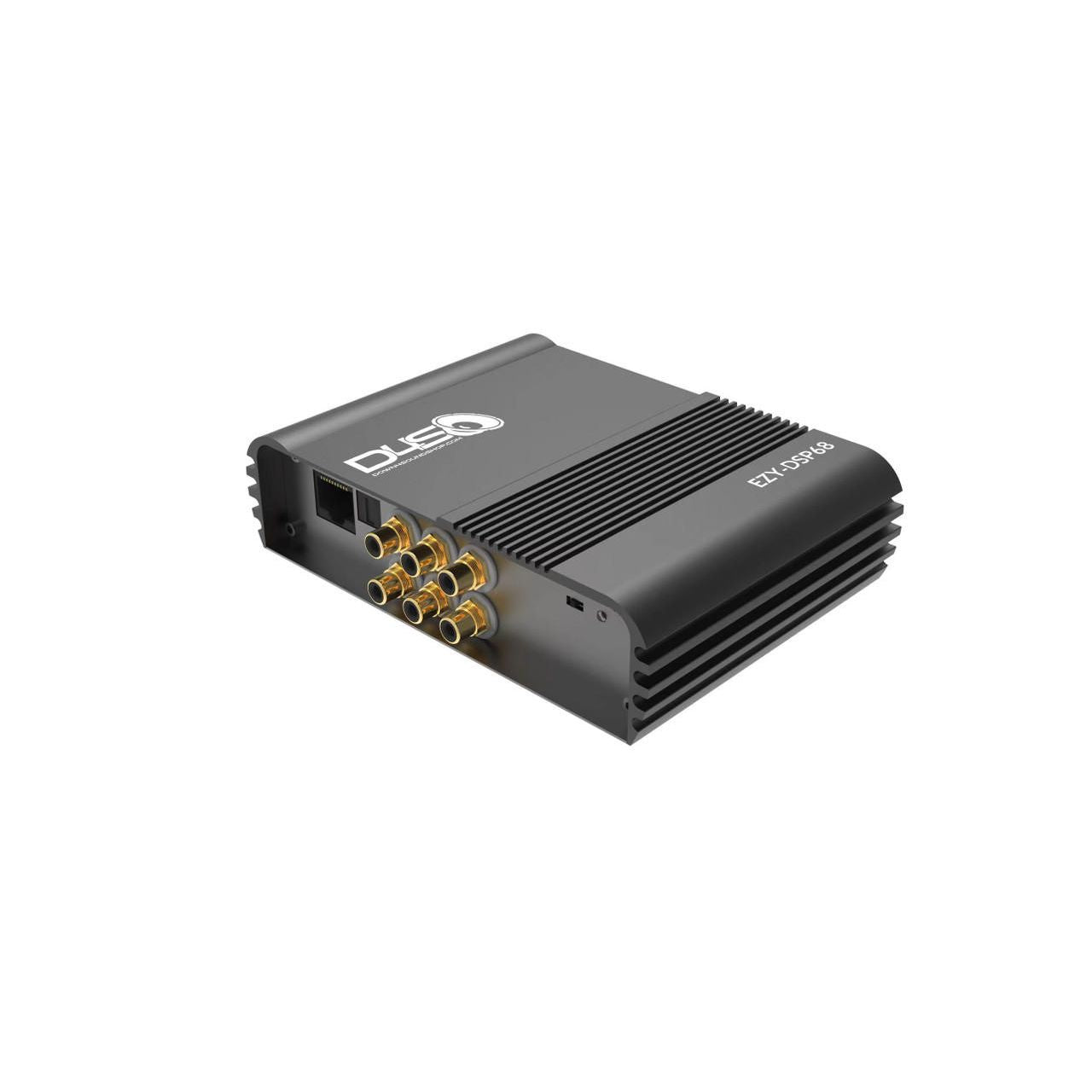

Introducing the DOWN4SOUND EZY DSP68, the pinnacle of all-in-one car audio DSP solutions from Ezy AudioParts. Probably the best low-level DSP on the market, this model is crafted specifically for Down4sound enthusiasts. The EZY DSP68 is both user-friendly and highly advanced, offering unparalleled control and customization.
Use a radio of your choosing or stream your audio directly to the EZY DSP in TRUE HD AUDIO, with the fastest speed and stream rates ever seen.
Key Features:

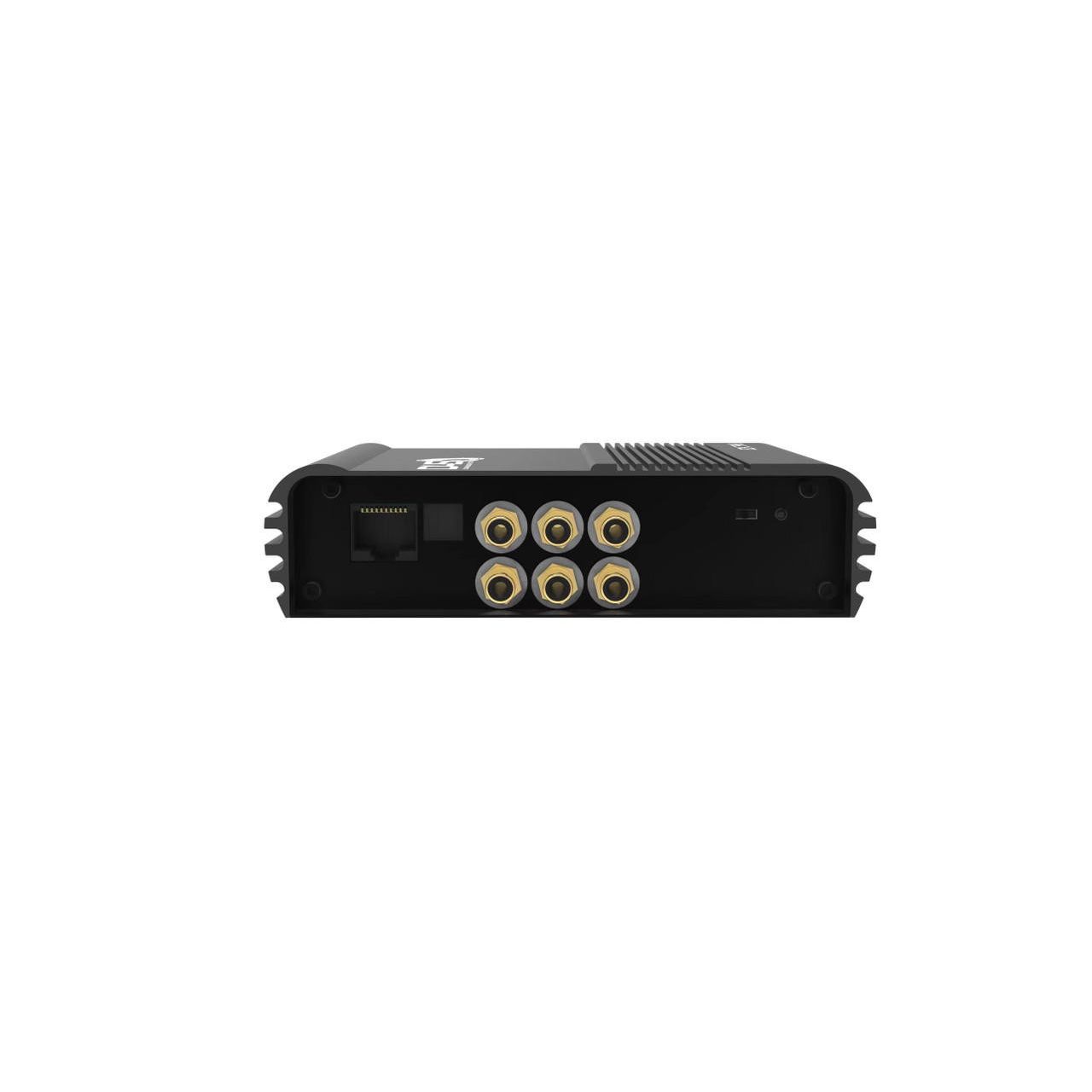

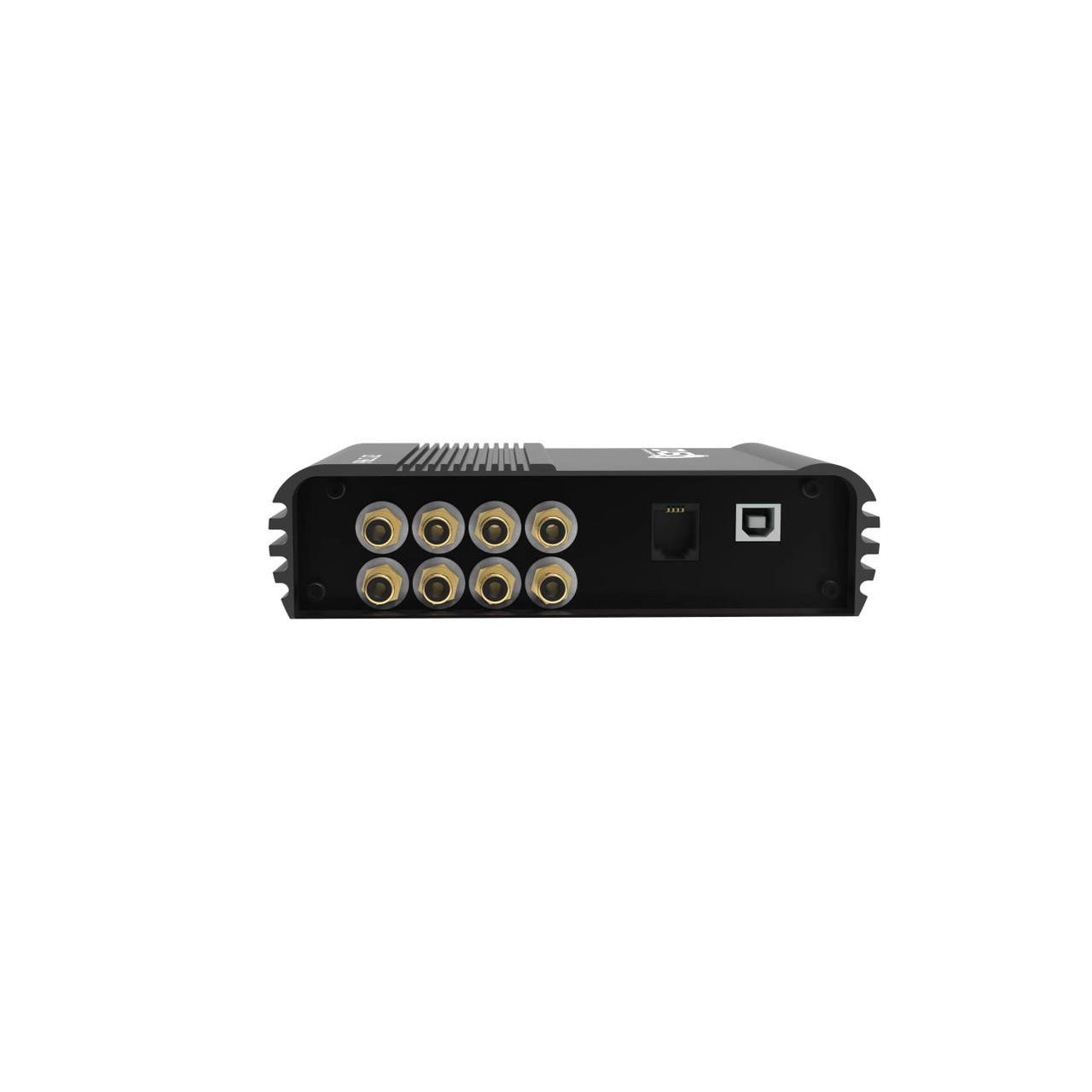

- Premium Audio Quality: Enjoy exceptional audio clarity with 6CH low-level inputs (RCA 2.8Vrms) and 8CH low-level outputs (RCA 4.2Vrms) featuring Tiffany Gold connectors.
- Wireless Connectivity: Seamlessly connect your devices with built-in Bluetooth 5.0, supporting HD audio. Optical fiber and coaxial options are available for versatile connections. (You can still connect a radio to the EZY DSP)
- Advanced DSP Technology: Featuring a powerful DSP IC with 32-bit processing and a 148 MHz clock speed for precise audio tuning.
- High Resolution: With 31 segments and 8ms processing time, this DSP delivers a sampling rate of 48KHz/24Bit for unrivaled audio clarity.
- Signal Conversion Excellence: Equipped with high-quality signal conversion chips to maintain signal integrity.
- Wide Frequency Range: Experience a full spectrum of sound with a frequency response ranging from 20Hz to 20KHz.
- Exceptional Signal-to-Noise Ratio: Achieve superior audio quality with a Signal-to-Noise Ratio (S/N) of over 100dB (RCA).
- Minimal Distortion: Keep your audio pristine with total harmonic distortion (THD+N) less than 0.05%.
- Low Noise Floor: Enjoy clean sound even at low volumes with a noise floor (Noise) of over 95dB (RCA).
- Precise Tuning: Benefit from all-pass filtering, channel renaming (output type), and channel separation (crosstalk) exceeding 70dB.
- Efficient and Reliable: The EZY DSP68 operates with a low dark current of <3mA and a wide voltage range (DC9V ~ 16V).
- Operational temperature: operating range of -30°C to 70°C (-22 - 158°F).
Technical Specifications:
- Dynamic Range (RCA Input): ≥100dB
- Signal-to-Noise Ratio (RCA Input): ≥102dB
- Total Harmonic Distortion (T.H.D.): ≤0.05%
- Frequency Response: 20Hz~20kHz
- Sampling Rate: 48kHz/24Bit
- RCA Input Impedance: 10kΩ
- RCA Output Impedance: 51Ω
- Max Signal Input/Output (RCA): 12Vpp
- Ambient Temperature: -30°C to 70°C
- Working Voltage: DC 9V~16V
- REM Input/Output: ACC start / +12V starting voltage output (0.2A)
- Standby Power: ≤0.1W
- Dimensions: 5 in x 3 in x 3 in (Width x Height x Depth)
- Weight: 2 lbs
Additional Features:
- D4S EZ DSP Mobile App: Download the mobile app for Apple and Android devices to customize your audio settings.
- Visual Indicators: Stay informed with clipping indicator lights and Bluetooth indicator lights.
- Advanced Features: Includes a noise gate switch, limiter, minimum source attenuation, shutdown delay, and presets to ensure your speaker components are perfectly tuned for optimal sound.
Note: Bluetooth technology is only as good as the device it streams from. For best results, use the latest technology and check your Bluetooth version with your device manufacturer. Older versions like Bluetooth 2.1 will perform differently compared to the latest Bluetooth 5.0. Always ensure compatibility for optimal performance.
Upgrade your car audio system with confidence using the DOWN4SOUND EZY DSP68. Experience unparalleled sound quality, precise tuning, and effortless customization. Elevate your driving experience today!
