SKU: DS18-G4000.5

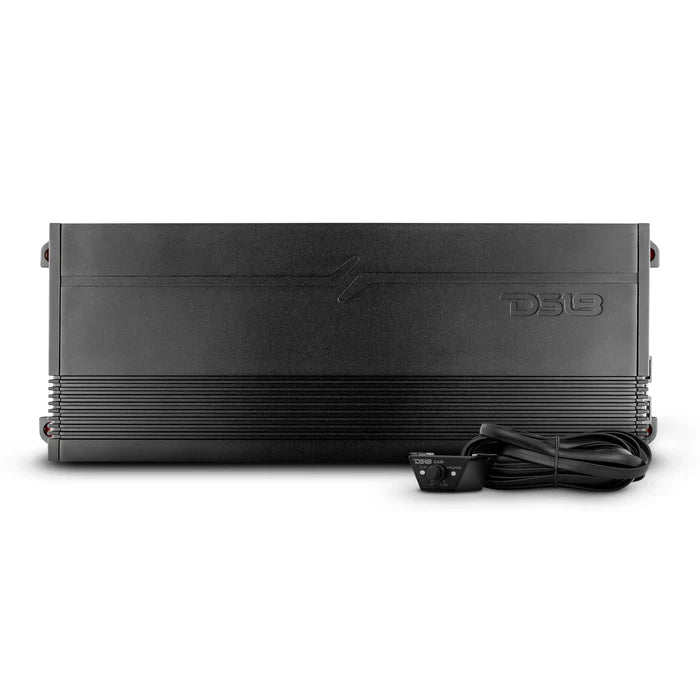

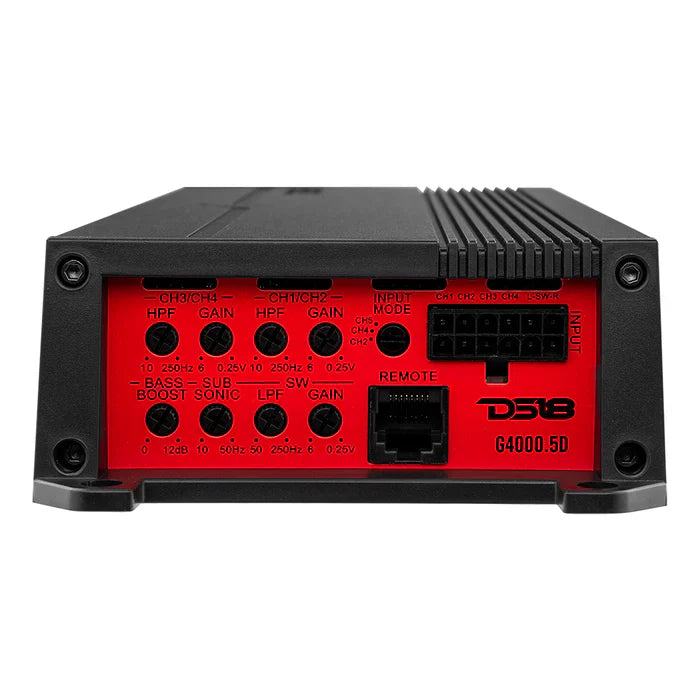

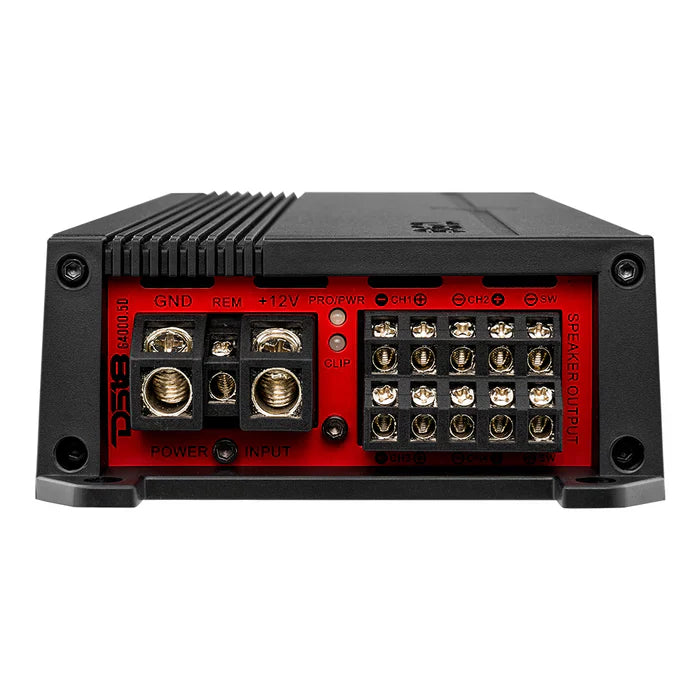

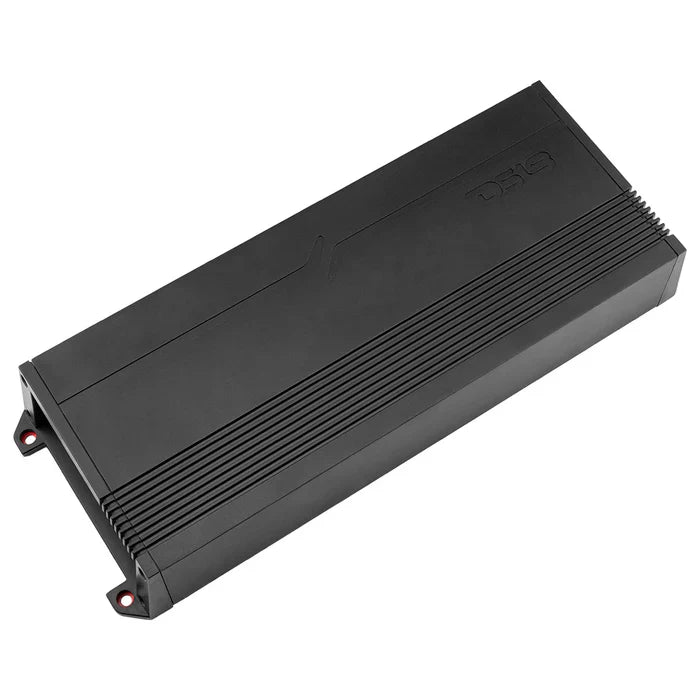

DS18 G4000.5 GEN-X 5-Channel Class D Amplifier

Regular price $395.95
Shipping calculated at checkout.


Confirm vehicle fitment

Confirm fitment before ordering. Match the year, make, model, trim, engine, drivetrain and selected options shown on this page. If any detail is unclear, search your exact vehicle or contact us before checkout.

Shipping expectations

Availability and processing time can vary by manufacturer. Available shipping choices and charges appear at checkout. Tracking is emailed after shipment. Oversized, special-order and supplier-shipped items can require additional processing time.

Returns and cancellations

Please review eligibility before purchase. Installed, used, electronic, custom, special-order and clearance items may have return restrictions. Contact us promptly if you need to change or cancel an order.

What’s included

The product description and selected variant determine what is included. Items shown in lifestyle or installation photos are not included unless they are specifically listed in the description.

Before you add to cart ✓ Confirm year, make, model, trim and engine ✓ Check the selected variant and what’s included ✓ Review availability, shipping and return eligibility

Buy with confidence

Verify fitment, selected options, availability and included components before checkout. Secure payment options and order confirmation are provided at checkout.

Description

Key Features

  • 5 Channel Full Range
  • Class D
  • 1 ~ 4 Ohm Stable
  • 4 x 130 Watts  @ 4 Ohm + 1 x 900 Watts @ 1 Ohm
  • Power/Protection/Clip Indicator
  • Crossover/ Bass Control Knob

POWER

Total Watts (Peak)
4000W
Rms Power @ 4 OHM
4 x 130W / SUB: 300W
Rms Power @ 2 OHM
4 x 220W / SUB: 600W
Rms Power @ 1 OHM
SUB: 900W
Rms Power @ 4 OHM Bridge
2 x 420W


AUDIO

Frequency Response
20Hz-20Khz
Signal To Noise Ratio
>90 dB
Efficiency @ 4 OHM
83%
Damping Factor
78
Input Impedance
22 K
Channel Separation
55 dB
Total Harmonic Distortion (THD)
0.01%
Low Level Input Range
0.25 - 6 V
High Level Input
No
Selectable X-over
HPF/LPF
X-over Filter Range
HPF:10-250Hz / LPF:50-250Hz
Bass Boost Range
0-12dB
Bass Boost Frequency
Fixed @ 45Hz
Infrasonic Filter
10-50Hz


FEATURES

Amplifier Class
Digital (D)
Amplifier Type
5CH Full Range
Number Of Channels
5 Ch
Minimum Impedance
2ohm St / 4ohm Bridge (Puente) / 1ohm Sub
Led Indicator
Power | Protection | Clip /
Power Input Terminal Size
4 GA
Fuse Size
External / 160A

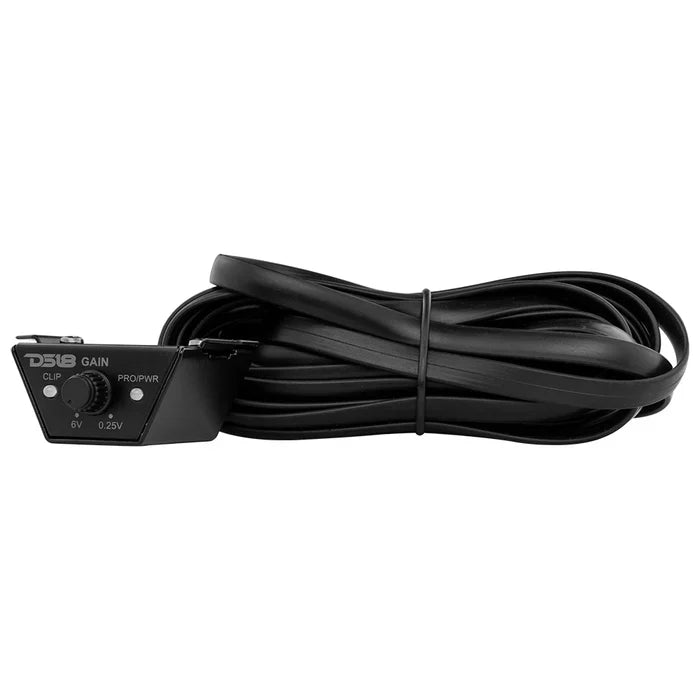

Remote Level Control
Yes
Thermal Protection
Yes
Over-Load Protection
Yes
Dc Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Clipping Protection
Yes
Body Color | Finish
Matte Black


MEASUREMENT

Overall Length
12.8" / 325mm
Overall Wide
4.72" / 120mm
Overall Height
1.96" / 50mm
Heatsink Length
11.02" / 280mm
Gross Single Unit Weight
2.2Kg


EXTRA FEATURE

Input Selector
2/4/5 ch
