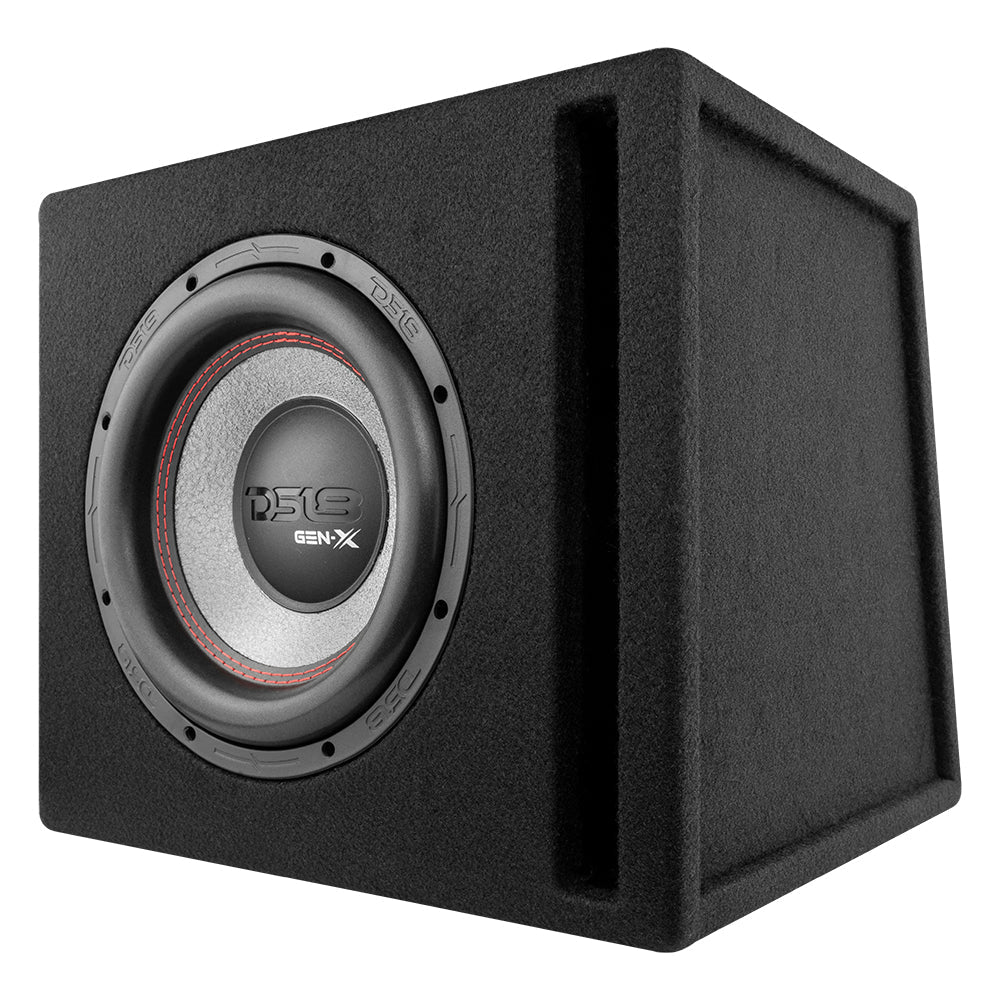

10" Loaded Subwoofer Ported Enclosure With GEN-X104D 400 Watts RMS
10" Loaded Subwoofer Ported Enclosure With GEN-X104D 400 Watts RMS is backordered and will ship as soon as it is back in stock.
Shipping & delivery
Usually ships in 2–3 business days unless a different lead time is shown on this page. Shipping cost is calculated at checkout (UPS or USPS to the contiguous U.S.).
Shipping policy · Returns · Fitment questions? (561) 207-7988
Delivery and Shipping
Delivery and Shipping
Standard order processing is 2–3 business days unless this product or your order confirmation states a different lead time. Custom-built, made-to-order, backorder, and pre-order items follow their stated lead times.
Enclosures and subwoofer boxes ship for $50 per unit. Other shipping charges are calculated at checkout. Orders outside the contiguous 48 United States may require additional shipping; we will contact you for approval before shipment.
Subwoofer boxes ship UPS Ground where available. Read our Shipping Policy and Return and Refund Policy for delivery, product-specific return windows, and warranty details.
10" Loaded Subwoofer Ported Enclosure With GEN-X104D 400 Watts RMS is backordered and will ship as soon as it is back in stock.
Description
Description
DS18 GEN-X110LD Bass Package GEN-X104D 10" Subwoofer In a Ported Box 400 Watts
Buckle up and get ready to feel the rush of crystal-clear sound and bone-shaking bass with DS18’s GEN-X110LD.
The GEN-X110LD transports you to the front row of your favorite concert, where you can feel the thumping bass in your chest. It's an experience that words can hardly capture but one that you’ll never forget.
With an internal volume of 1.28ft3, the GEN-X110LD creates the perfect environment for your subwoofer to thrive. The port tune (Fb) of 35Hz ensures deep, resonant bass that reverberates through your body. Constructed with 1/2" MDF and finished with black carpet, this enclosure is built to outlast any vehicle it’s installed into.
At the heart of the GEN-X110LD is DS18’s GEN-X104D Subwoofer. Crafted with meticulous attention to detail, this 10" powerhouse delivers a thunderous performance every session. Equipped with a 2" voice coil diameter and a black aluminum voice coil former, this subwoofer is built to handle intense power while maintaining exceptional thermal control. With a dual 4-ohm voice coil configuration, wired in parallel, resulting in a nominal impedance of 2 ohms, the GEN-X104D’s design ensures efficient power distribution and compatibility with a wide range of amplifiers, allowing you to extract every ounce of high quality performance from your car audio system. With a total RMS power handling of 400W and a MAX power handling of 800W, the GEN-X104D unleashes a surge of energy that will electrify your senses. Feel the bass resonating in your vehicle as you experience the true depth and impact of your favorite music.
Join the ranks of true audiophiles and let the GEN-X110LD become the heart and soul of your car audio system.
Highlights
- GEN-X104D delivers bone-shaking bass and crystal-clear sound
- Experience the true depth and impact of your favorite music with a total RMS power handling of 400W and a maximum power handling of 800W.
- The sleek and sophisticated enclosure with its front-ported design complements any vehicle interior and provides the ideal environment for optimal subwoofer performance.
Great For
- Car Audio
- Pro Audio
Technical Details
| SPECIFICATIONS | |
| GENERAL | |
| Speaker Type / Size | Single 10" Subwoofer (GEN-X104D) |
| Total Impedance | 2 ohm |
| Total RMS Power Handling | 400W |
| Total MAX Power Handling | 800W |
| Sensitivity (1w/1m) | 90dB |
| Frequency Response | 25 - 250Hz |
| Recommended Lo Pass Crossover | 120Hz |
| SPEAKER SPECIFICATIONS | |
| Voice Coil Diameter | 2” / 50.8mm |
| Voice Coil Former Material | Black Aluminum |
| Winding Material | SV |
| Cone Material | Paper & Fiber Glass |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Magnet Weight | 66 Oz |
| BOX SPECIFICATIONS | |
| Internal Volume | 36.3L / 1.3ft3 |
| Port Tune | 35Hz |
| Load Configuration | Parallel |
| Box Type | Front Ported |
| Box Material | 1/2" / 15mm MDF |
| Finish Material | Black Carpet |
| -3Db Dropping Point (F3) | 29Hz |
| MEASUREMENT | |
| Height | 13.78” / 350mm |
| Width | 15.75” / 400mm |
| Depth 1 | 11” / 280mm |
| Depth 2 | 14” / 356mm |
