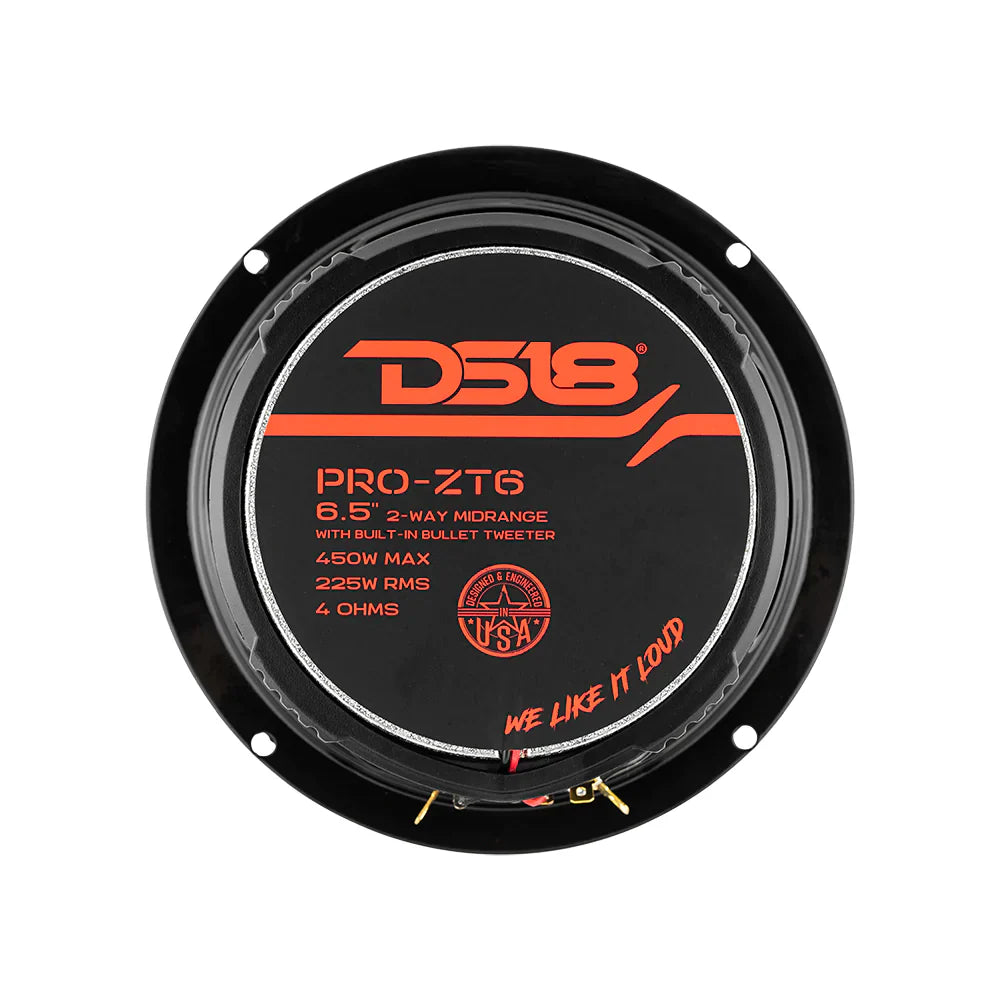

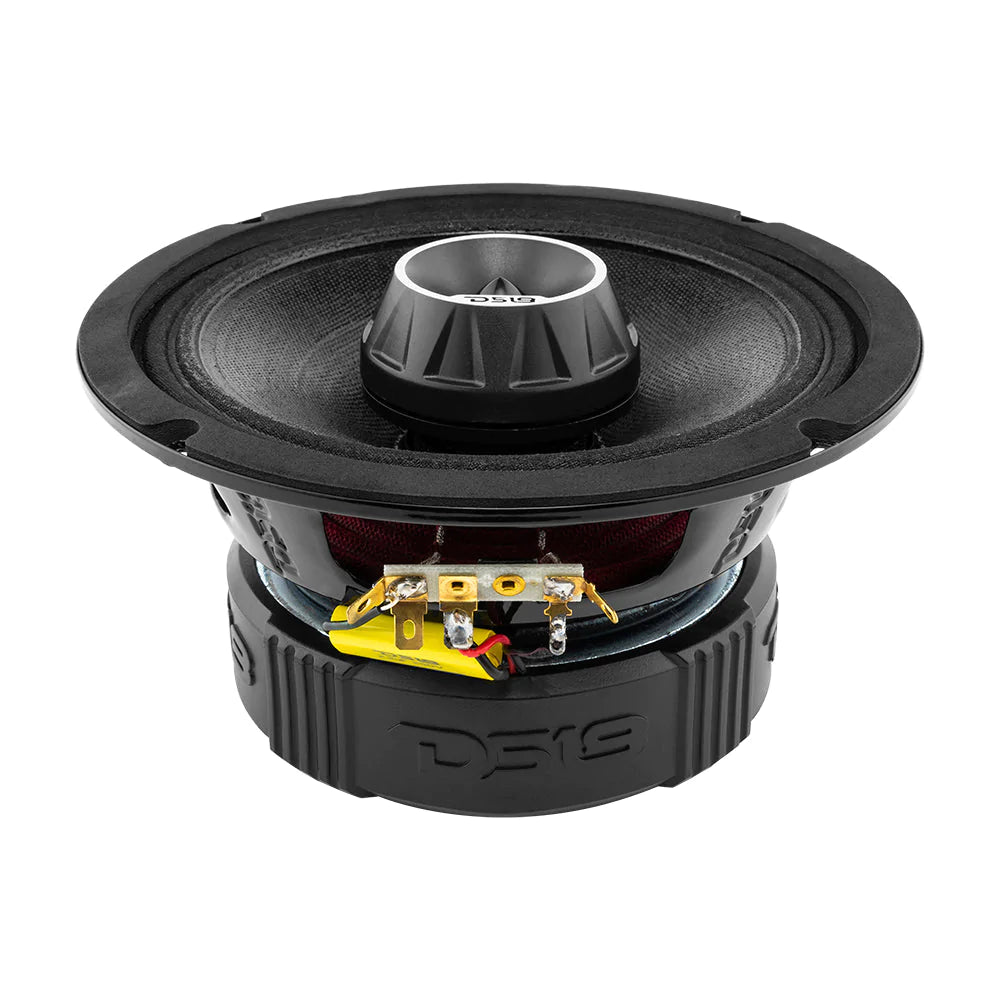

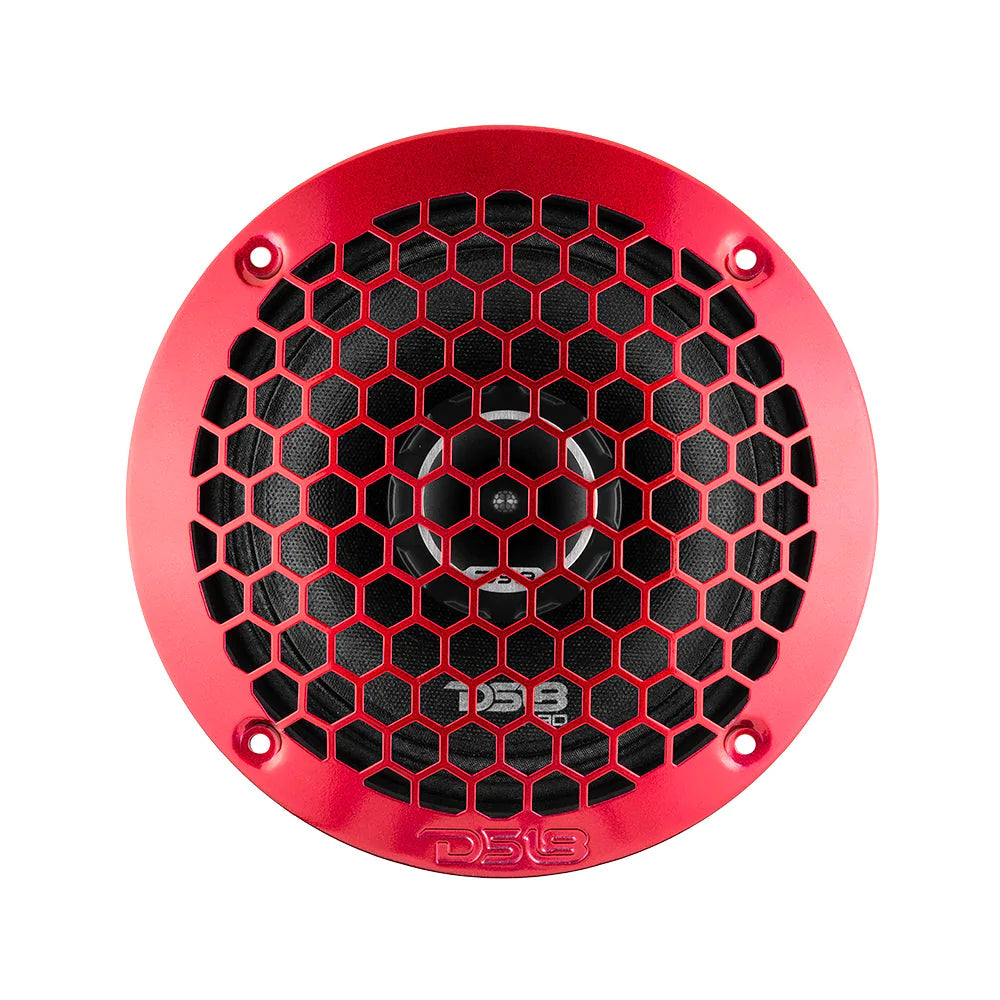

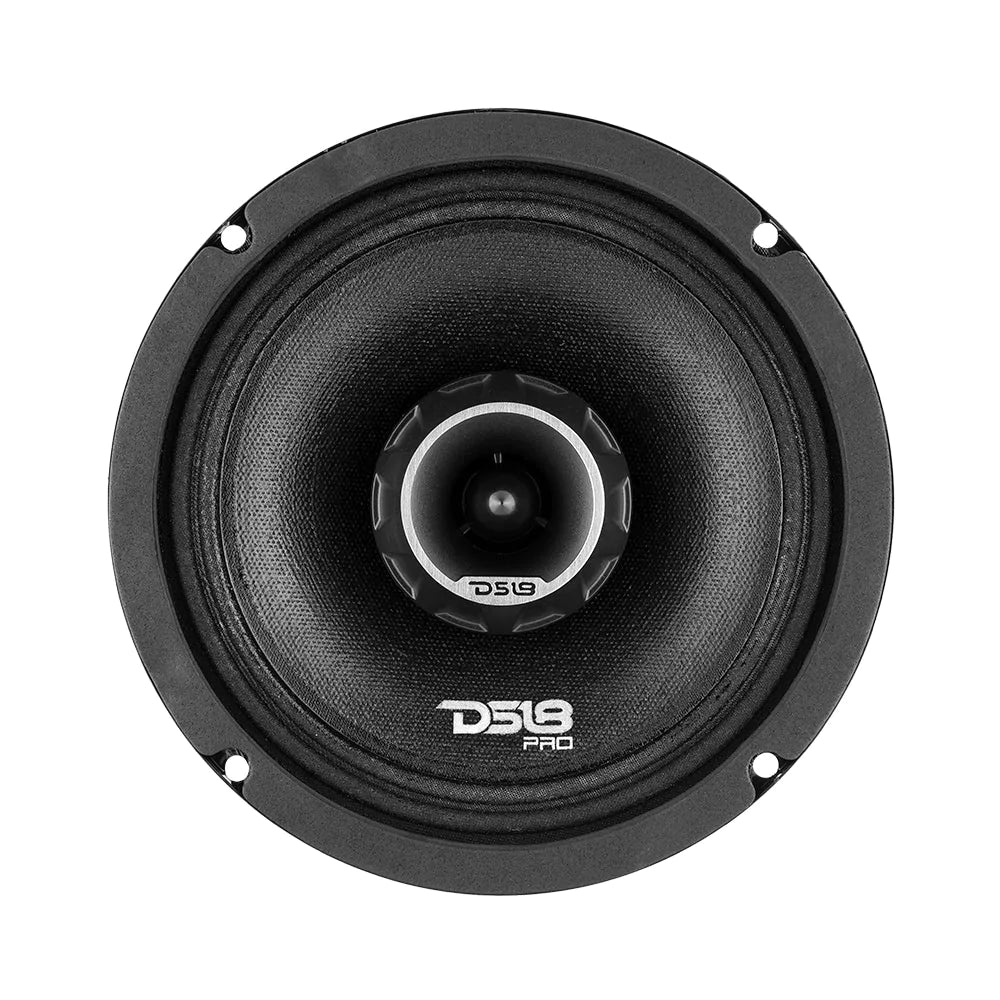

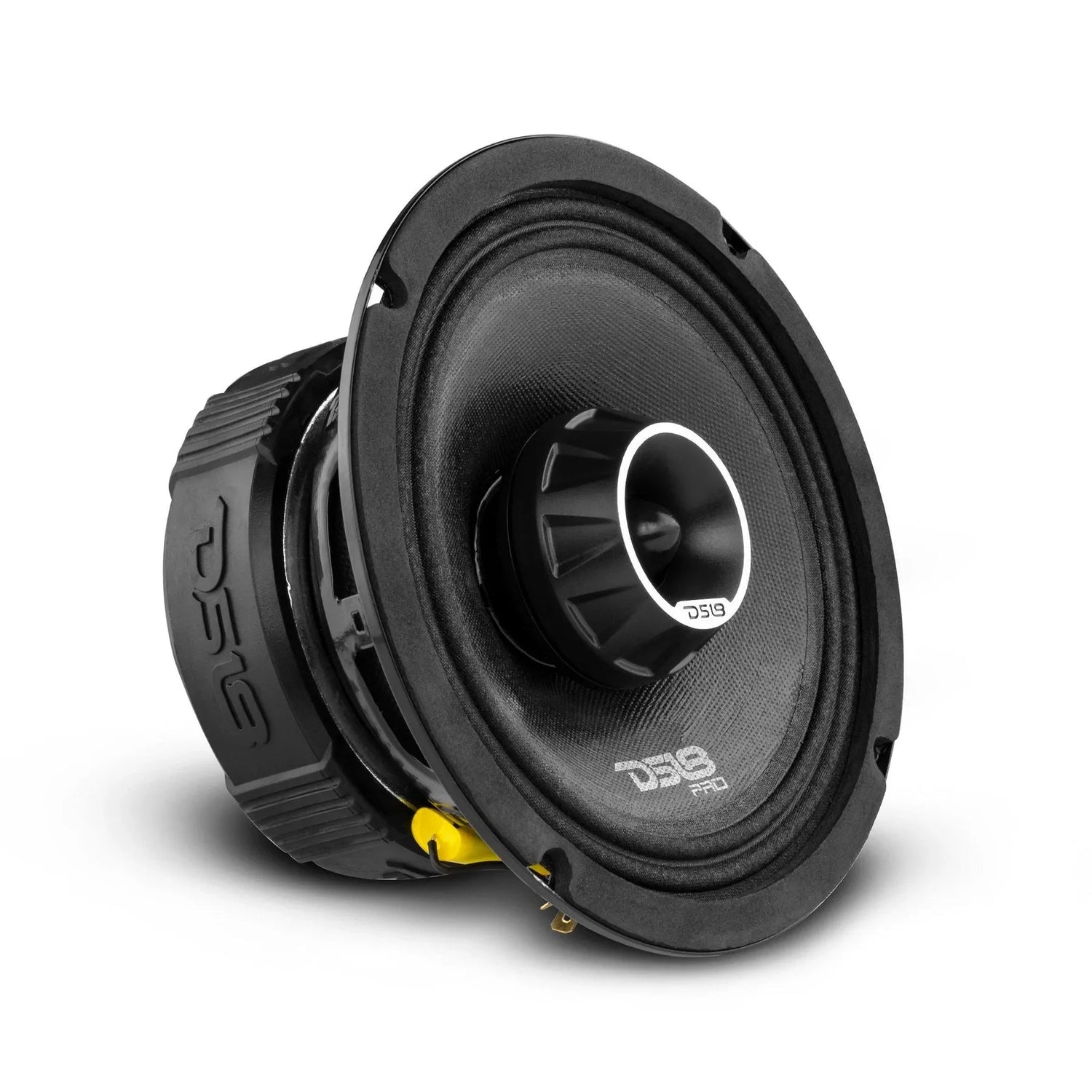

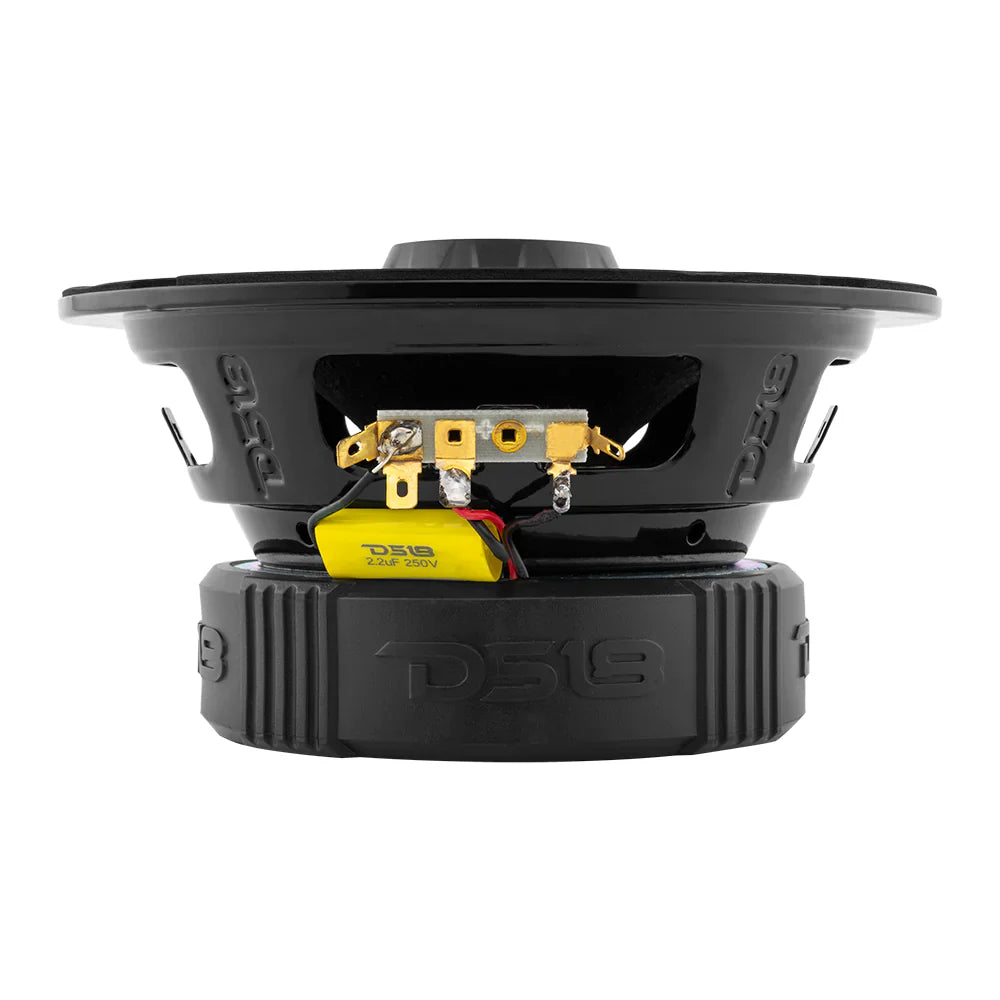

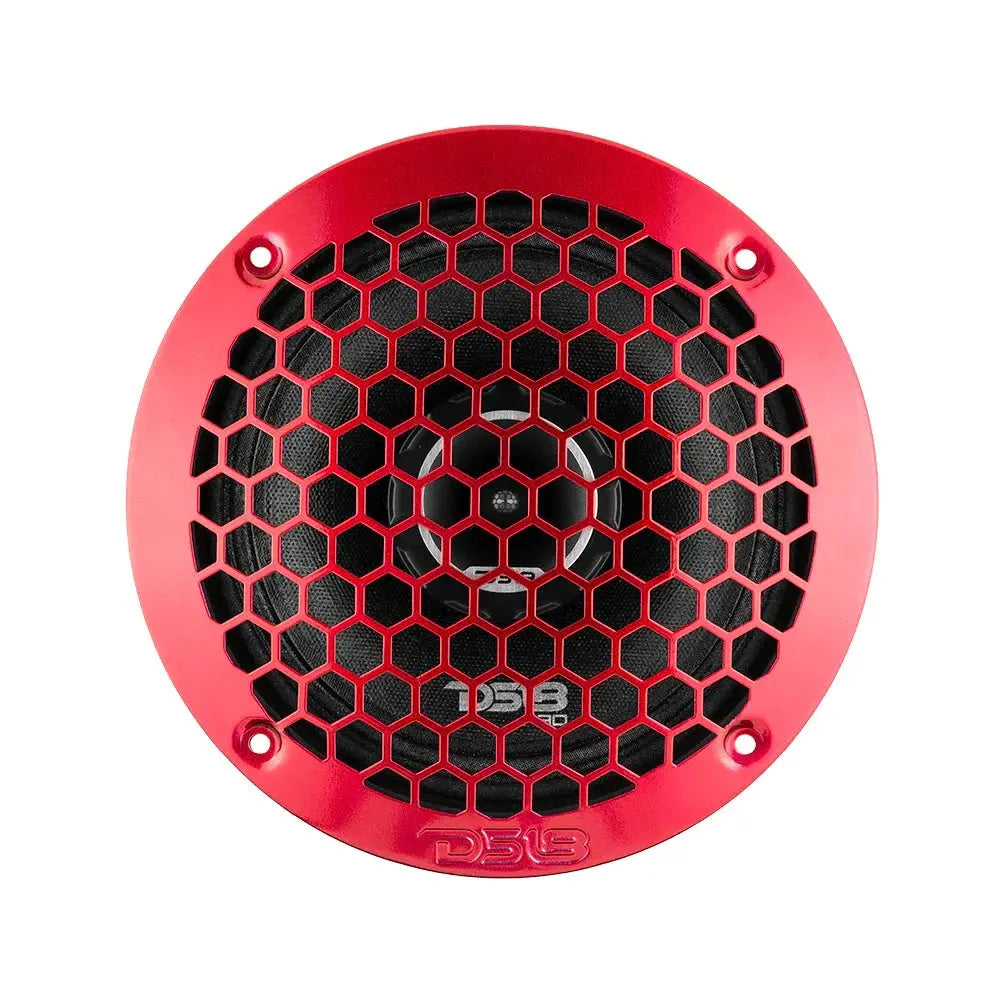

DS18 PRO-ZT6 6.5" 225W RMS Midrange Speaker w/ Built-in Bullet Tweeter 4-Ohm (Single)
DS18 PRO-ZT6 6.5" 225W RMS Midrange Speaker w/ Built-in Bullet Tweeter 4-Ohm (Single) is backordered and will ship as soon as it is back in stock.
Confirm vehicle fitment
Confirm vehicle fitment
Confirm fitment before ordering. Match the year, make, model, trim, engine, drivetrain and selected options shown on this page. If any detail is unclear, search your exact vehicle or contact us before checkout.
Shipping expectations
Shipping expectations
Availability and processing time can vary by manufacturer. Available shipping choices and charges appear at checkout. Tracking is emailed after shipment. Oversized, special-order and supplier-shipped items can require additional processing time.
Returns and cancellations
Returns and cancellations
Please review eligibility before purchase. Installed, used, electronic, custom, special-order and clearance items may have return restrictions. Contact us promptly if you need to change or cancel an order.
What’s included
What’s included
The product description and selected variant determine what is included. Items shown in lifestyle or installation photos are not included unless they are specifically listed in the description.
DS18 PRO-ZT6 6.5" 225W RMS Midrange Speaker w/ Built-in Bullet...
DS18 PRO-ZT6 6.5" 225W RMS Midrange Speaker w/ Built-in Bullet Tweeter 4-Ohm (Single) is backordered and will ship as soon as it is back in stock.
Buy with confidence
Verify fitment, selected options, availability and included components before checkout. Secure payment options and order confirmation are provided at checkout.
Description
Description
| Nominal Diameter: | 6.5" (1651.1mm) |
| Nominal Impedance: | 4 Ohms |
| RMS Power Handing: | 225 Watts |
| MAX Power Handing: | 450 Watts |
| Sensitivity (1w/1m): | 96dB |
| Frequency Response: | 65Hz - 22KHz |
| Recommended Hi Pass Crossover | 120Hz |
| Midrange | |
| Voice Coil Diameter: | 1.5" (38.1mm) |
| Voice Coil Former Material: | Kapton |
| Winding Material: | CCAW |
| Basket Material: | Steel |
| Magnet Weight: | 27 oz. |
| Tweeter | |
| Voice Coil Diameter: | 1" |
| Voice Coil Material: | Kapton |
| Winding Material: | CCAW |
| Diaphragm Material: | Aluminum Alloy |
| Magnet Weight: | 0.44 oz. |
| Magnet Material: | Neodymium |
| Thiele & Small Parameters | |
| Equivalent Volume / Vas | 2.917 L |
| Excursion / Xmax | 16mm |
| Free Air Resonance / Fs | 150Hz |
| Mechanical Factor / Qms | 3.906 |
| Electrical Factor / Qes | 0.747 |
| Total Factor / Qts | 0.627 |
| DC Resistance / Re | 3.2 |
| Measurements | |
| Overall Diameter: | 178mm (7") |
| Front Mount Baffle Cutout: | 144mm (5.67") |
| Mounting Depth: | 77mm (3.03") |
| Overall Depth: | 97mm (3.81) |
