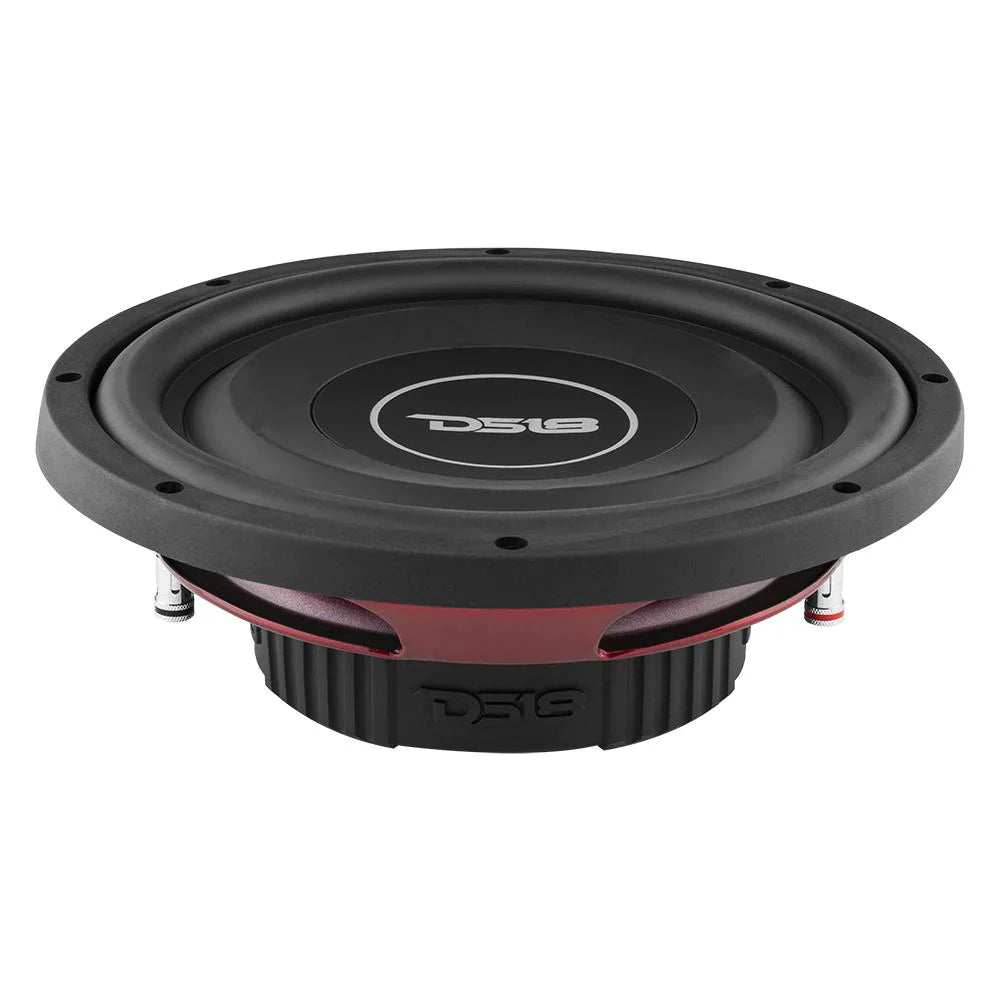

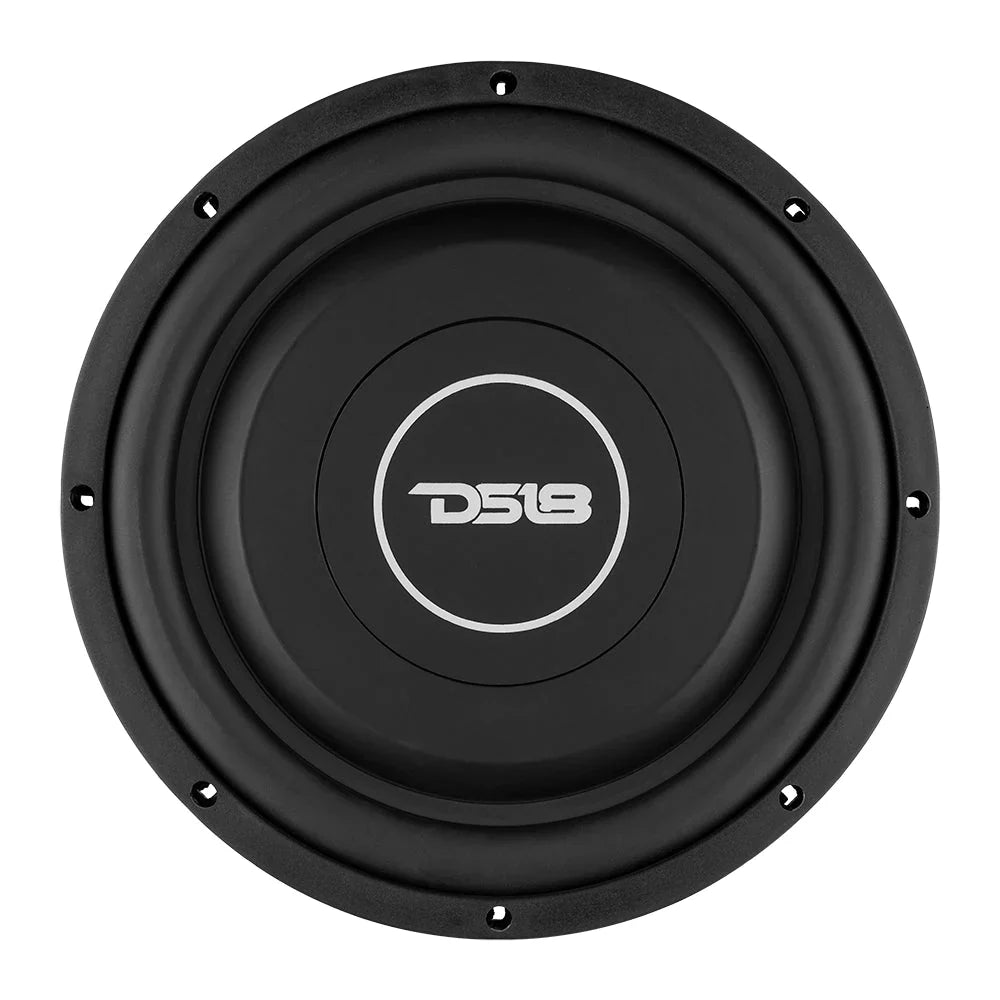

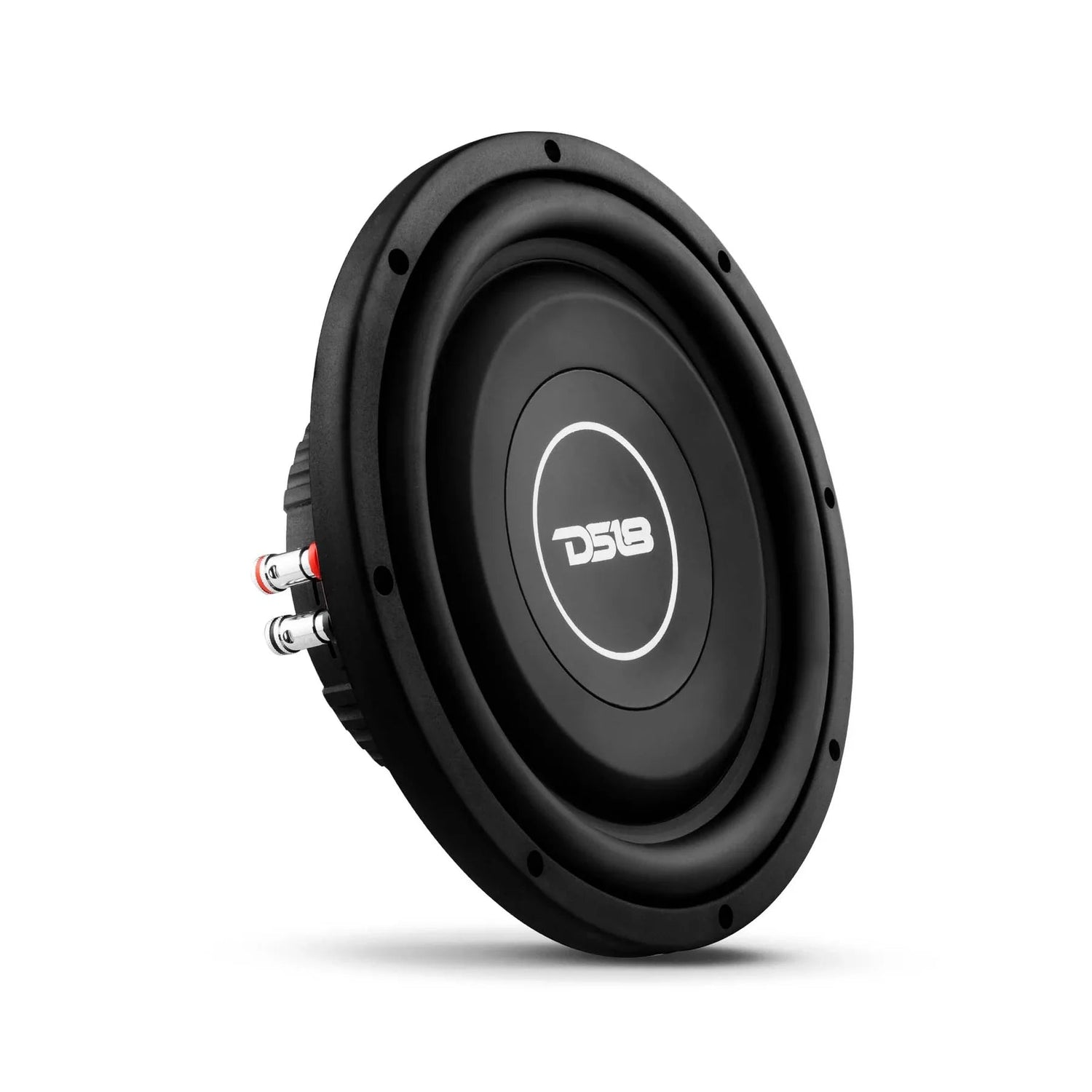

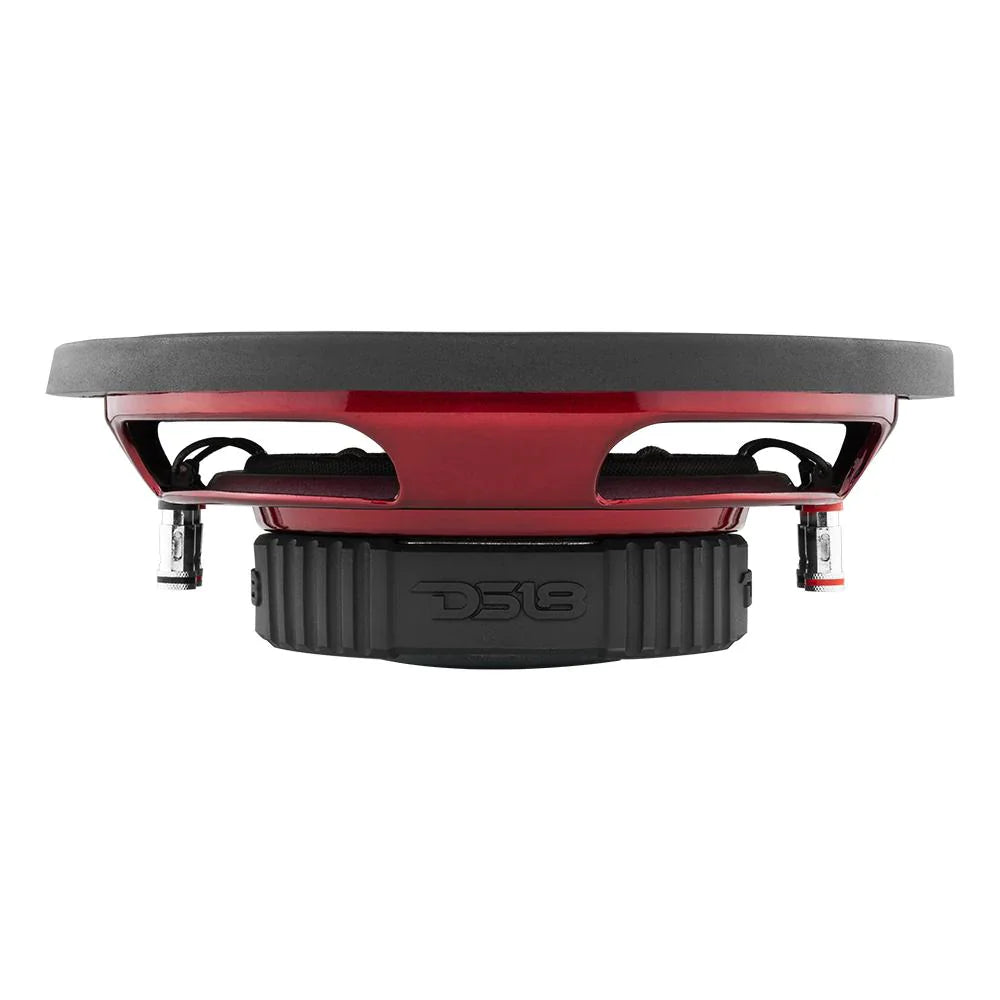

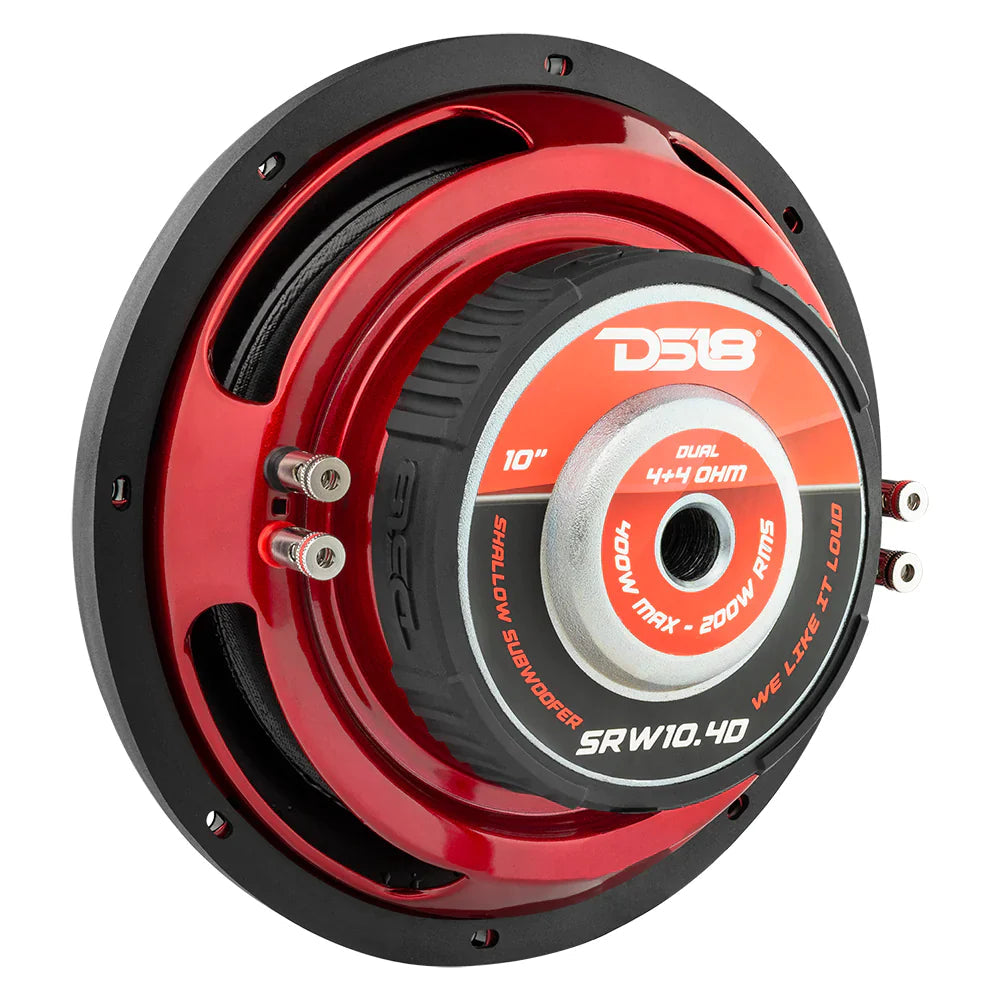

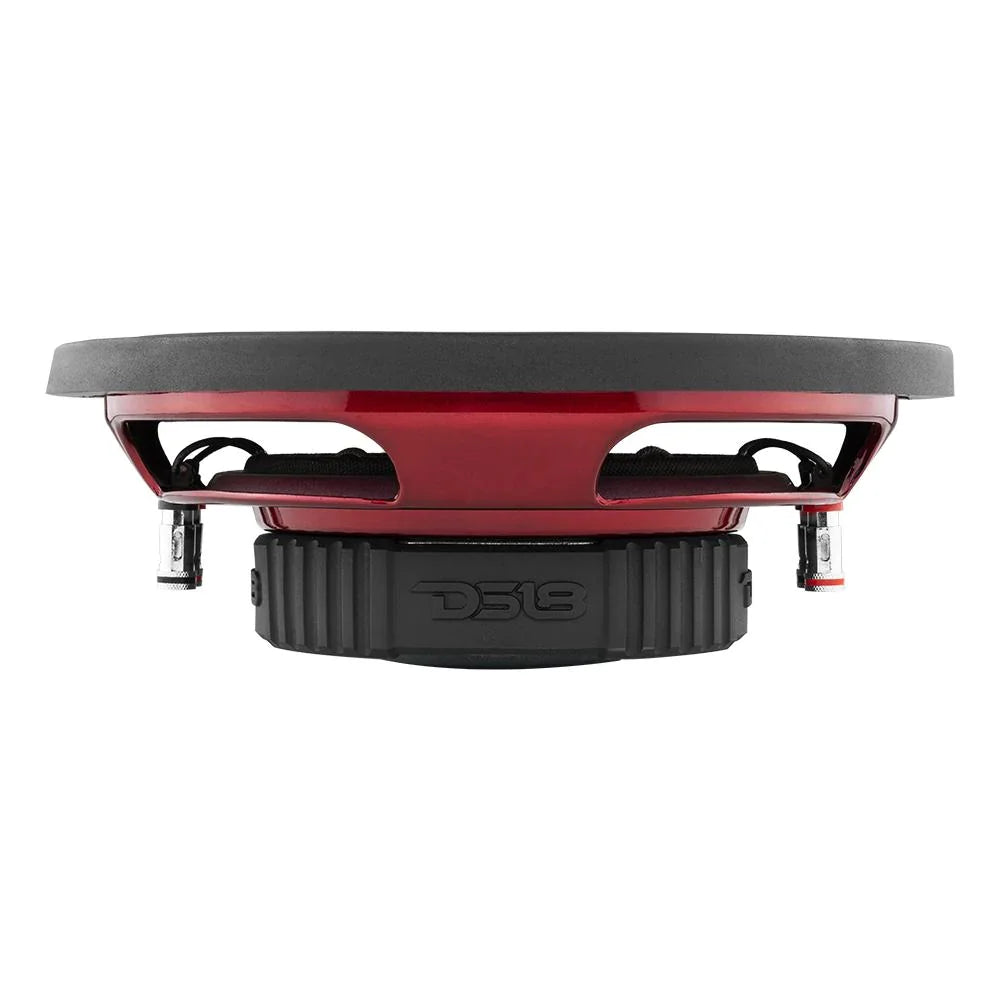

DS18 SRW10.4D
DS18 SRW10.4D is backordered and will ship as soon as it is back in stock.
Description
Description
| Nominal Diameter | 10" |
| Nominal Impedance | 4 + 4 Ohms |
| RMS Power Handling | 200 Watts |
| Maximum Power Handling | 400 Watts |
| Sensitivity (1w/1m) | 87dB |
| Frequency Response | 23-250Hz |
| Recommended Lo Pass Crossover | 90Hz |
| Voice Coil Diameter | 50.8mm / 2" |
| Voice Coil Former Material | Aluminum |
| Winding Material | SV |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Magnet Weight | 45oz |
| Measurements | |
| Overall Diameter | 260mm / 10.23" |
| Front Mount Baffle Cutout | 232mm / 9.13" |
| Overall Depth | 93mm / 3.62" |
| Mounting Depth | 78mm / 3.07" |
