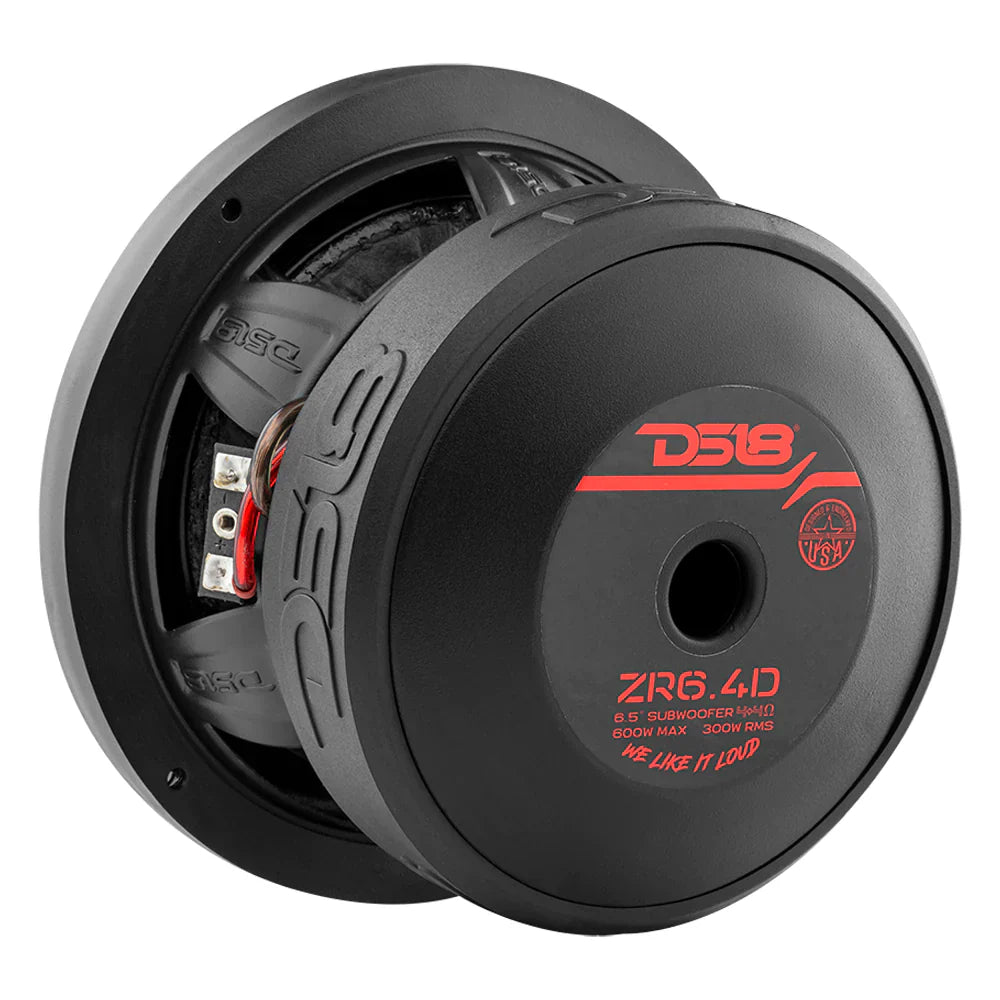

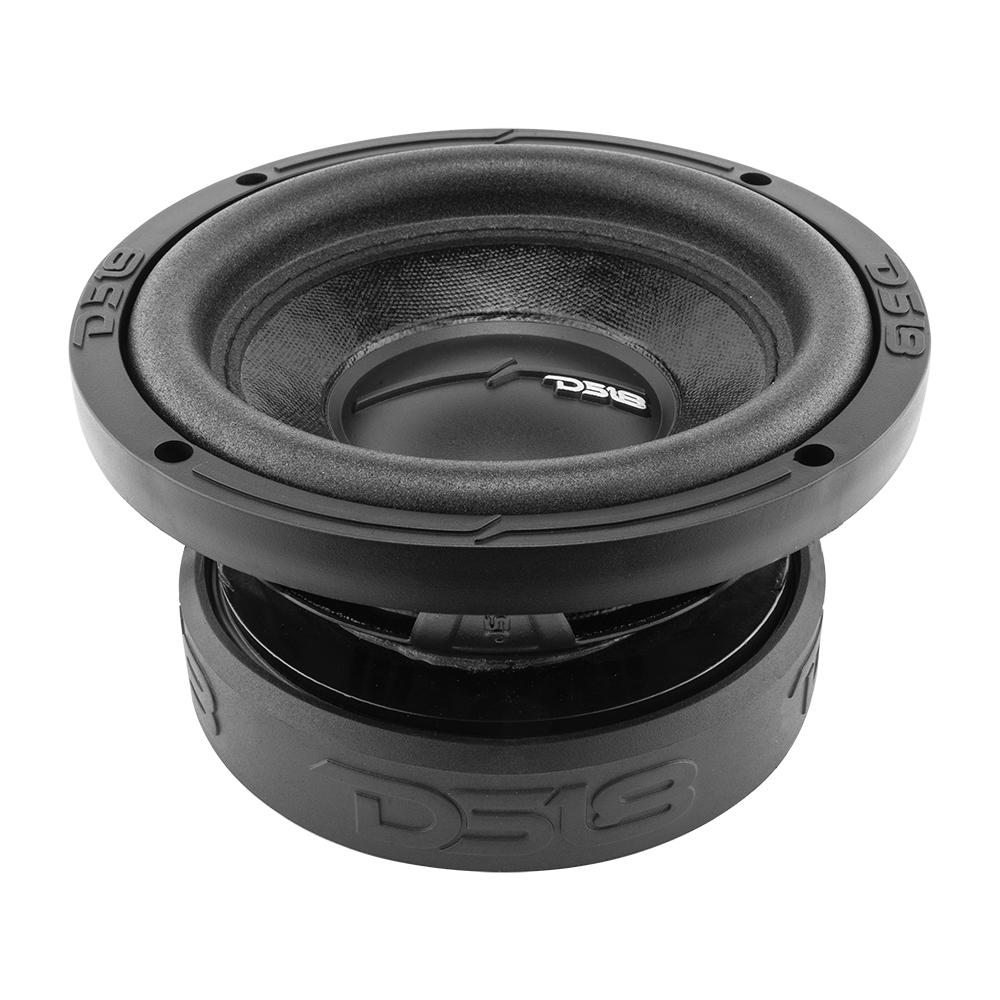

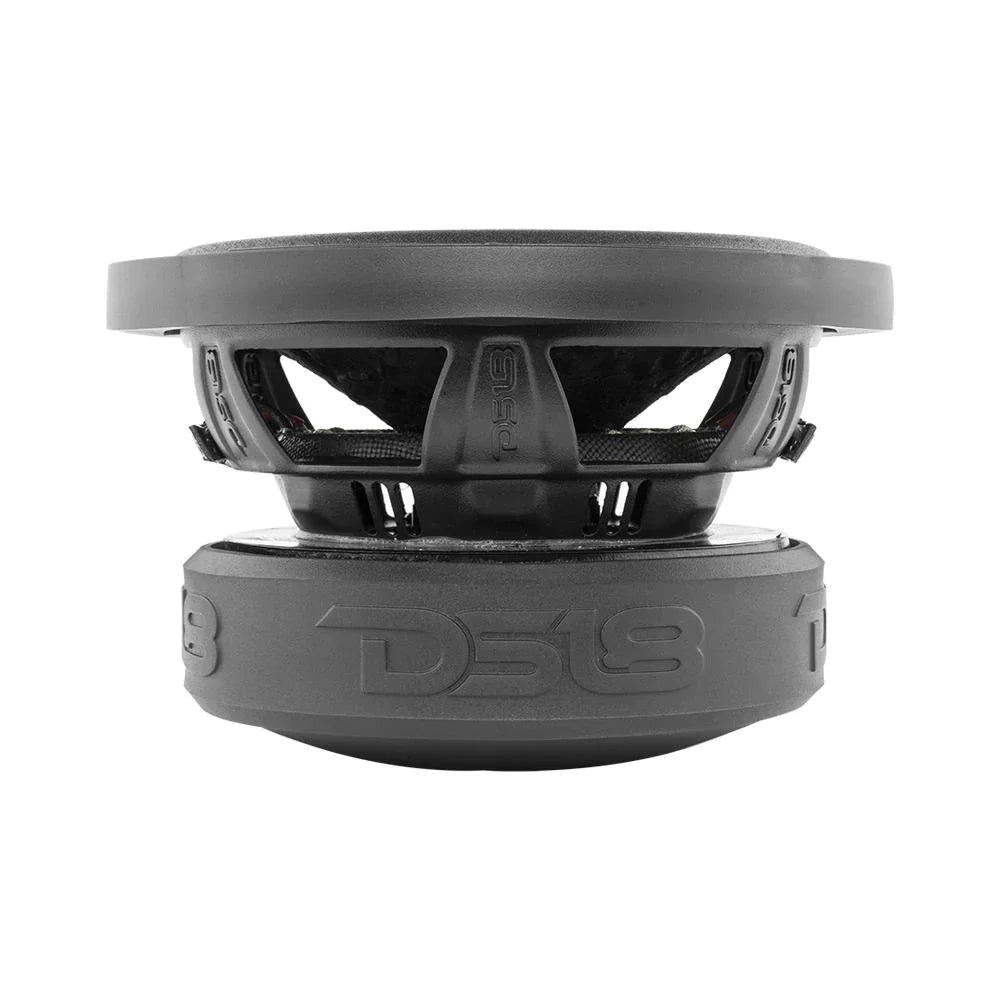

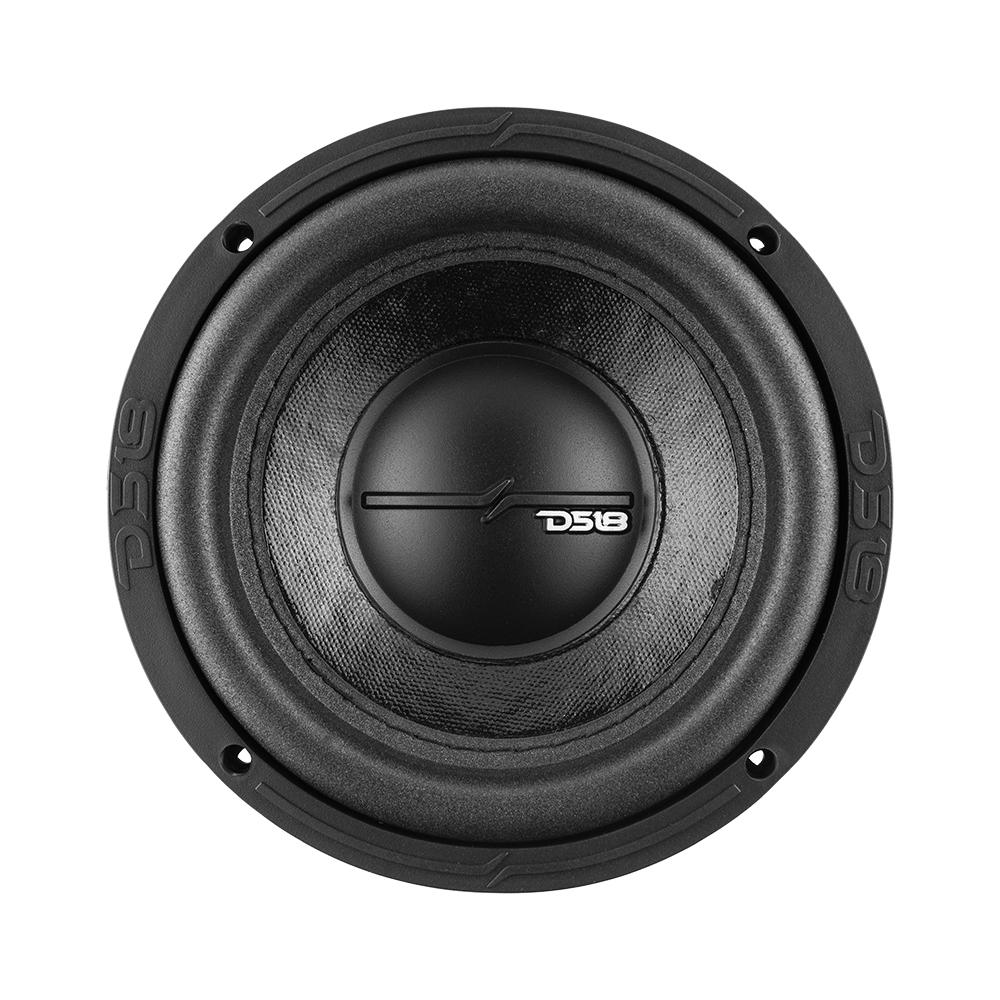

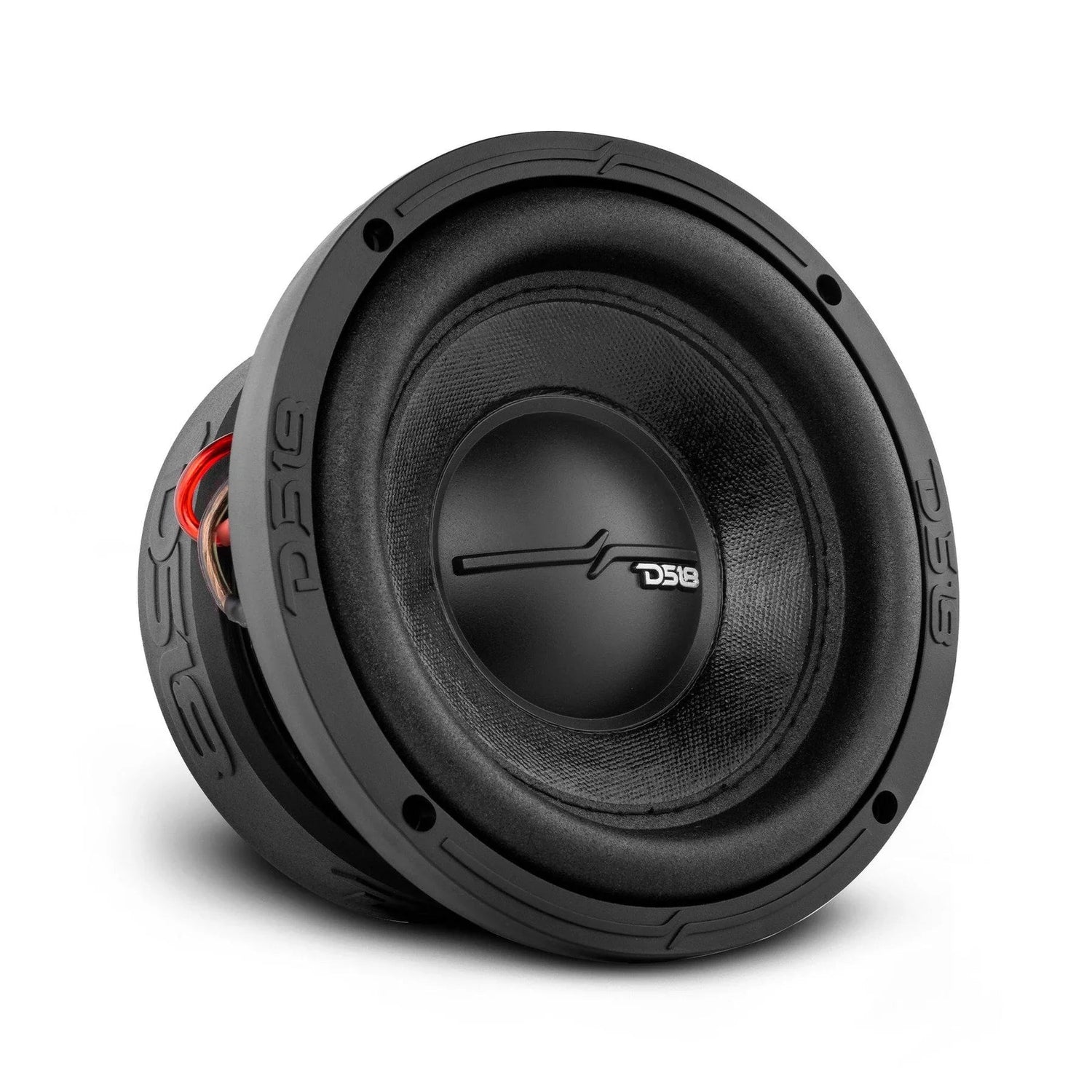

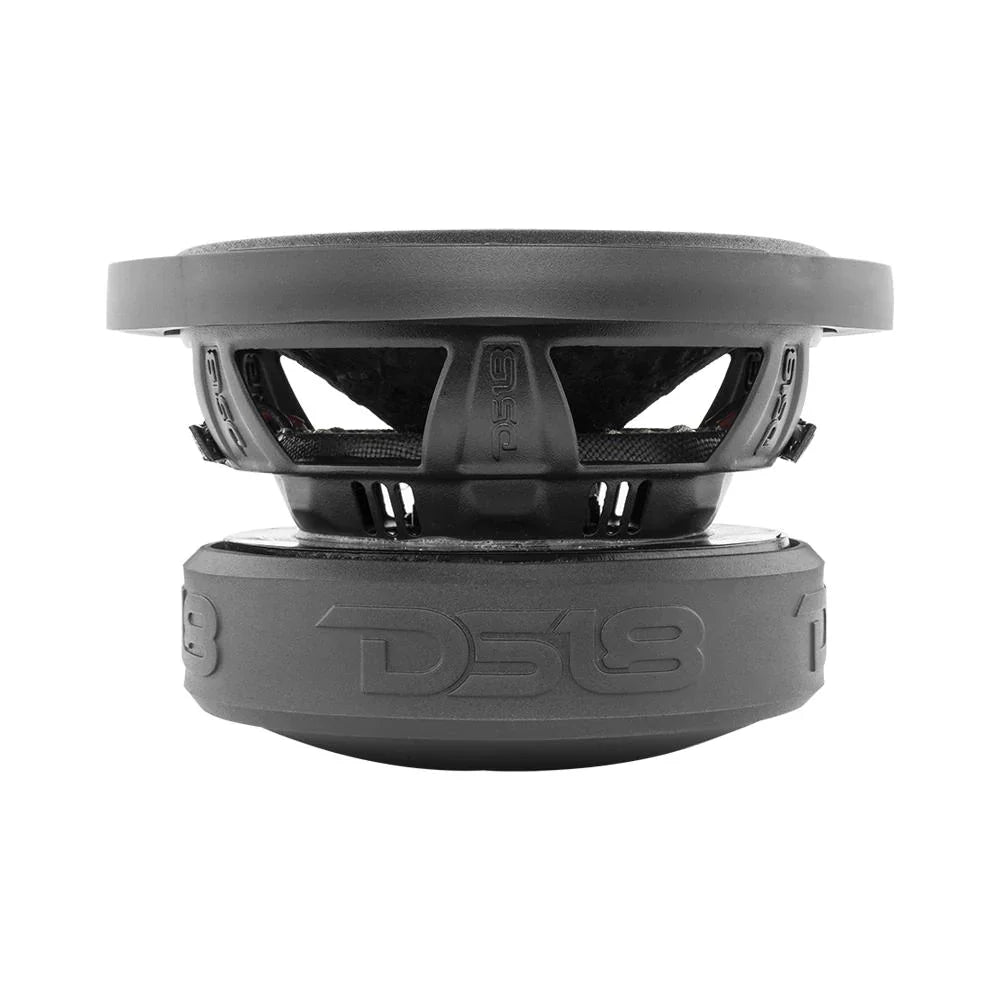

DS18 ZR6.4D
DS18 ZR6.4D is backordered and will ship as soon as it is back in stock.
Buy with confidence
Verify fitment, selected options, availability and included components before checkout. Secure payment options and order confirmation are provided at checkout.
Description
Description
| Nominal Diameter | 6.5” |
| Nominal Impedance | 4+4 Ohms |
| RMS Power Handling | 300W |
| MAX Power Handling | 600W |
| Sensitivity (1w/1m) | 82 dB |
| Frequency Response | 38Hz - 200Hz |
| Recommended Lo Pass Crossover | 160 Hz |
| MOTOR | |
| Voice Coil Diameter | 1.5” / 38.8mm |
| VC Former Material | Aluminum |
| Winding Material | Copper |
| Cone Material | Non Pressed Paper |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Steel |
| Basket Color/Finish | Matte Black |
| Magnet Material | Ferrite |
| Magnet Weight | 50 oz |
| Displacement Volume | 0.02 ft3 |
| THIELE & SMALL PARAMETERS | |
| Equivalent Volume | 2.79 L |
| Excursion (one way) | 15mm |
| Free Air Resonance | 70Hz |
| Mechanical Factor | 3.611 |
| Electrical Factor | 0.86 |
| Total Factor | 0.695 |
| Moving Mass | 44.6g |
| Compliance | 96.01µ m/N |
| BL Factor | 6.53 |
| Voice Coil Inductance | 461.9m mH |
| Cone Area | 143 Cm2 |
| DC Resistance | 3.4 + 3.4 ohm |
| Efficiency Bandwidth Product | 81.4 |
| MEASUREMENTS | |
| Overall Diameter | 6.75” / 171.6mm |
| Overall Depth | 4.23” / 107.4mm |
| Front Mount Baffle Cutout | 5.54” / 140.8mm |
| Mounting Depth | 3.49” / 88.8mm |
| Motor Diameter | 5.23" / 133mm |
