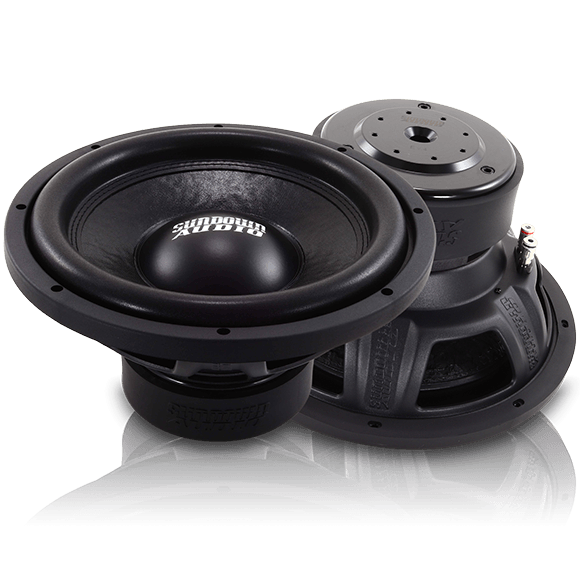

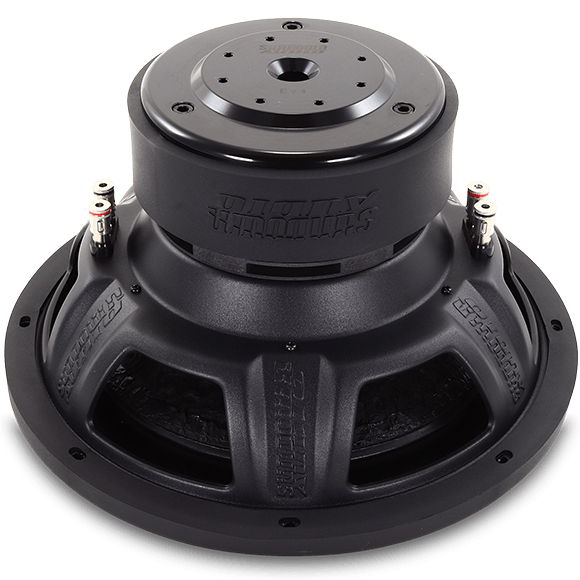

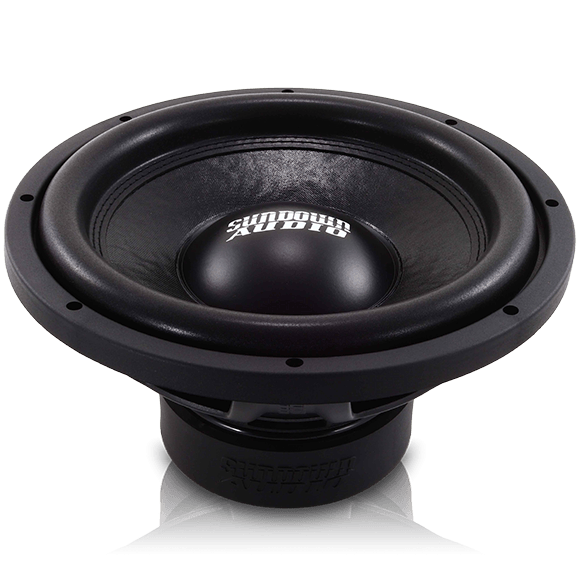

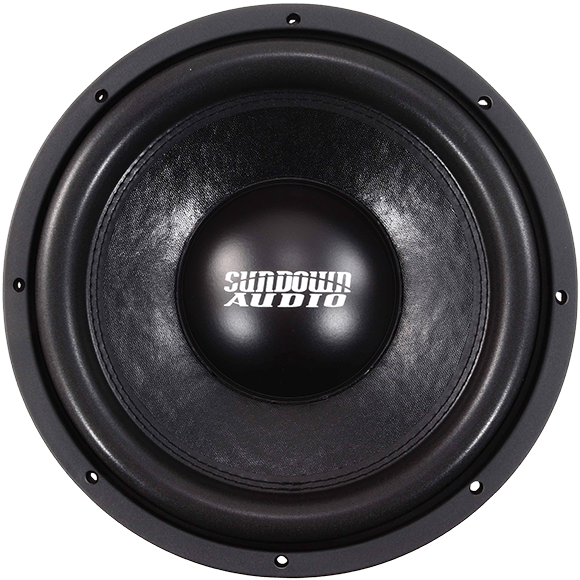

E-Series V.4 12” Subwoofer *Refurbished*
E-Series V.4 12” Subwoofer *Refurbished* - D4 is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
E-Series V.4 12” Subwoofer *Refurbished*
E-Series V.4 12” Subwoofer *Refurbished* - D4 is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
- RMS 500 watts
- Dual 2 or 4 ohm voice coils
- Optimized for ported enclosures
- Class-leading 14mm Xmax
- Double-stacked magnet
- Vented magnetic gap & pole piece for superior cooling
- High strength stamped steel frame
- High temp 4-layer copper voice coil wire
- High-quality push terminals

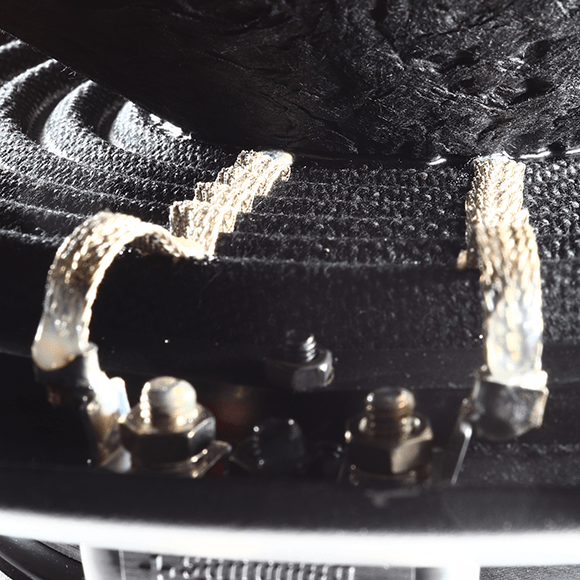

- Stitched-on Mini-XL tinsel leads
Through relentless research in our North Carolina Headquarters, Sundown optimized a 2.5” voice coil and a truly unique motor design to get the deepest possible bass response out of a 10” subwoofer.
The subwoofer showcases a distinctive motor design, featuring a heavily vented magnetic gap and solid pole piece, enabling exceptional thermal power handling. The spider itself is a high strength poly-cotton blend designed to handle the full capacity of the motor. To provide an additional level of ruggedness the spider is bolted down and glued to the frame. Its motor geometry allows for a remarkable 14mm one-way linear Xmax, delivering excursion equivalent to far larger cones.
Specifications
| T/S Specs |
E v.4 12" D2 |
E v.4 12" D4 |
|---|---|---|
| RE (Ohms) | 4.030 | 6.130 |
| FS (Hz) | 28.480 | 28.373 |
| VAS (L) | 53.059 | 54.292 |
| Qes | 0.509 | 0.570 |
| Qms | 5.249 | 3.542 |
| Qts | 0.464 | 0.491 |
| BL (NA) | 17.576 | 20.249 |
| Mms (Grams) | 217.987 | 213.033 |
| Cms (mm/N) | 143.258 | 146.589 |
| Sens (dB @ 1w/1m) | 85.7 | 85.3 |
| Xmax | 14mm | 14mm |
Enclosure Specs
- Ported Enclosure
- Size: 1.75 cu. ft. net
- Port Area: 26 sq. in.
- Port Tuning: 35 Hz
- Sealed Enclosure
- Not Recommended
- Displacement: 0.12 cu. ft.
- Depth: 6.50"
- Outside Diameter: 12.250"
- Cutout: 11.125"
