Edelbrock Timing Chain And Gear Set BBC Sng/Keyway
Edelbrock Timing Chain And Gear Set BBC Sng/Keyway
Regular price
$75.99 USD
Regular price
Sale price
$75.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

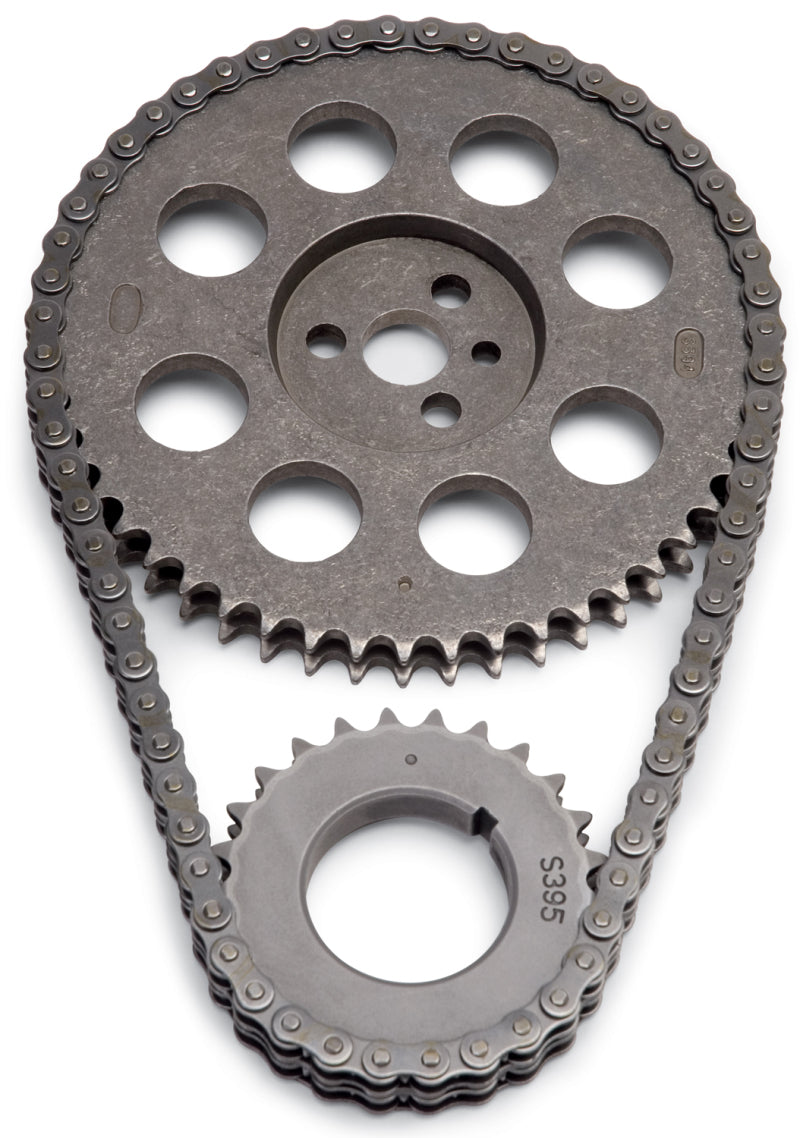

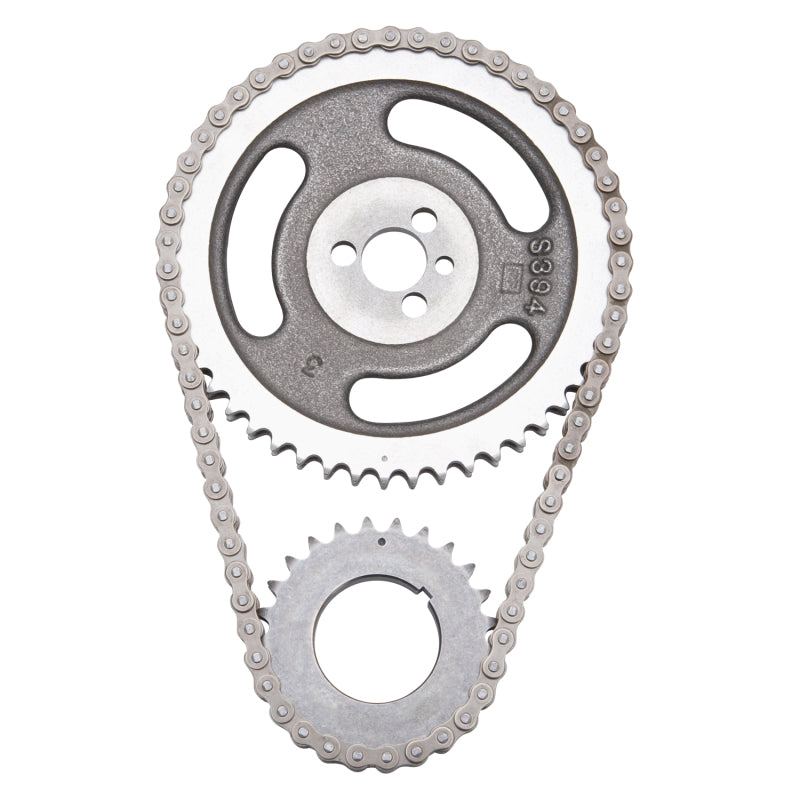

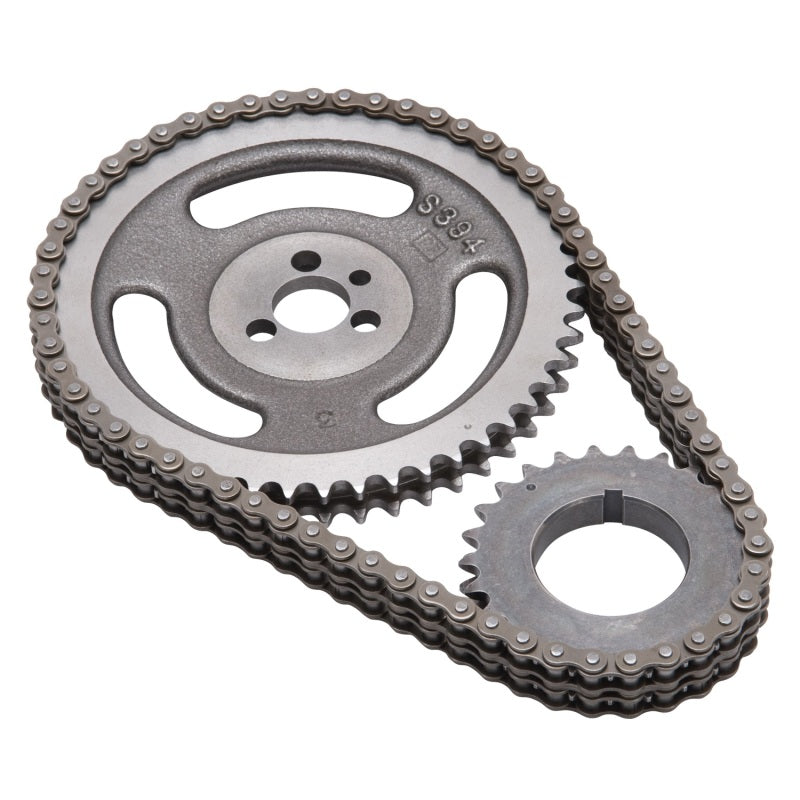

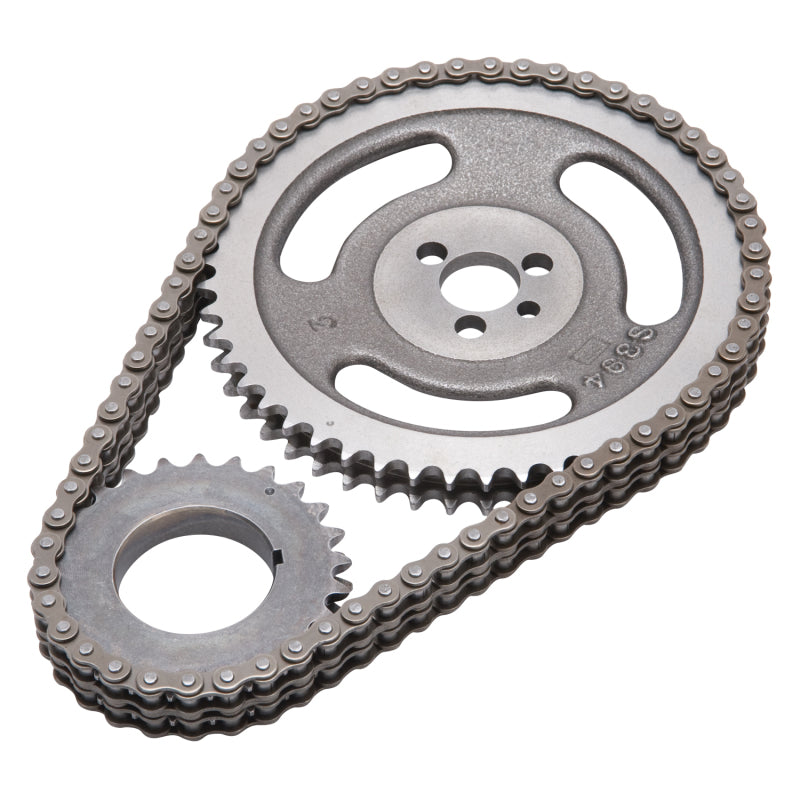

Edelbrock part #7809 Performer-Link timing chain is for use with Edelbrock or stock cams. They have a solid-bushing chain for a true bearing surface that rolls with the sprockets, eliminating chain stretch. Cam sprockets are made from 35,000 psi tensile strength cast iron. Crank sprockets are made from billet SAE-1144 steel and induction heat treated. Four Performer-Link sets are stock replacement parts and 50-state legal (see listings in bold type). All other sets have three keyway setting points to ensure accurate timing selection for early or late-model vehicles. Performer-Link timing sets are not for use above 6500 rpm- ? Performer roller chain sets are engineered to operate up to 6500 rpm.- ? Never hammer directly on chain or sprockets. You can crack the hardened links and pins and cause early failures. - ? Use a sleeve for installations that require hammering, a brass drift punch may be used if you carefully alternate blows on either side of the sprocket to avoid cocking. - ? Never stretch the chain with a screwdriver. - ? Check for clearance between the timing chain and block and between the chain and front cover before reassembly. - ? Be sure that both cam and crank sprockets are exactly in line with each other. Misalignment can cause chain to break
Warranty
This Part Fits:
Warranty
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1965-1975 | Chevrolet | Bel Air | Base |
| 1965-1972 | Chevrolet | Biscayne | Base |
| 1973 | Chevrolet | Blazer | Base |
| 1978-1980 | Chevrolet | C10 | Big Ten |
| 1975-1980 | Chevrolet | C10 | Cheyenne |
| 1975-1980 | Chevrolet | C10 | Custom Deluxe |
| 1975-1980 | Chevrolet | C10 | Scottsdale |
| 1975-1980 | Chevrolet | C10 | Silverado |
| 1968-1969,1973-1974 | Chevrolet | C10 Pickup | Base |
| 1968-1969,1973-1974 | Chevrolet | C10 Suburban | Base |
| 1975-1980 | Chevrolet | C10 Suburban | Custom Deluxe |
| 1975-1980 | Chevrolet | C10 Suburban | Scottsdale |
| 1975-1980 | Chevrolet | C10 Suburban | Silverado |
| 1990-1993 | Chevrolet | C1500 | 454 SS |
| 1990-1992 | Chevrolet | C1500 | Cheyenne |
| 1990 | Chevrolet | C1500 | Scottsdale |
| 1990-1992 | Chevrolet | C1500 | Silverado |
| 1990-1992 | Chevrolet | C1500 | WT |
| 1975-1981 | Chevrolet | C20 | Cheyenne |
| 1981-1986 | Chevrolet | C20 | Custom |
| 1975-1980 | Chevrolet | C20 | Custom Deluxe |
| 1981 | Chevrolet | C20 | Deluxe |
| 1975-1986 | Chevrolet | C20 | Scottsdale |
| 1975-1986 | Chevrolet | C20 | Silverado |
| 1968-1969,1973-1974 | Chevrolet | C20 Pickup | Base |
| 1968-1969,1973-1974 | Chevrolet | C20 Suburban | Base |
| 1981-1986 | Chevrolet | C20 Suburban | Custom |
| 1975-1980 | Chevrolet | C20 Suburban | Custom Deluxe |
| 1981 | Chevrolet | C20 Suburban | Deluxe |
| 1975-1980,1982,1984-1986 | Chevrolet | C20 Suburban | Scottsdale |
| 1975-1977,1979-1980,1982-1986 | Chevrolet | C20 Suburban | Silverado |
| 1994-1995 | Chevrolet | C2500 | Base |
| 1991-1995 | Chevrolet | C2500 | Cheyenne |
| 1991-1992 | Chevrolet | C2500 | Scottsdale |
| 1991-1995 | Chevrolet | C2500 | Silverado |
| 1994-1995 | Chevrolet | C2500 | WT |
| 1992-1995 | Chevrolet | C2500 Suburban | Base |
| 1995 | Chevrolet | C2500 Suburban | LS |
| 1995 | Chevrolet | C2500 Suburban | LT |
| 1992-1994 | Chevrolet | C2500 Suburban | Silverado |
| 1975-1981 | Chevrolet | C30 | Cheyenne |
| 1981-1986 | Chevrolet | C30 | Custom |
| 1975-1980 | Chevrolet | C30 | Custom Deluxe |
| 1981 | Chevrolet | C30 | Deluxe |
| 1975-1986 | Chevrolet | C30 | Scottsdale |
| 1975-1986 | Chevrolet | C30 | Silverado |
| 1968-1969,1973-1974 | Chevrolet | C30 Pickup | Base |
| 1994-1995 | Chevrolet | C3500 | Base |
| 1988-1995 | Chevrolet | C3500 | Cheyenne |
| 1988-1992 | Chevrolet | C3500 | Scottsdale |
| 1988-1995 | Chevrolet | C3500 | Silverado |
| 1967 | Chevrolet | Camaro | Base |
| 1967 | Chevrolet | Camaro | RS |
| 1967-1969 | Chevrolet | Camaro | SS |
| 1966-1972 | Chevrolet | Caprice | Base |
| 1973-1976 | Chevrolet | Caprice | Classic |
| 1976 | Chevrolet | Caprice | Classic Estate |
| 1976 | Chevrolet | Caprice | Classic Landau |
| 1975-1976 | Chevrolet | Caprice | Classic Sport |
| 1973-1974 | Chevrolet | Caprice | Estate |
| 1975 | Chevrolet | Caprice | Estate Wagon |
| 1968 | Chevrolet | Chevelle | 300 |
| 1968-1969 | Chevrolet | Chevelle | 300 Deluxe |
| 1966-1967,1970-1972 | Chevrolet | Chevelle | Base |
| 1967-1972 | Chevrolet | Chevelle | Concours |
| 1969-1972 | Chevrolet | Chevelle | Concours Estate |
| 1967,1973 | Chevrolet | Chevelle | Deluxe |
| 1969-1972 | Chevrolet | Chevelle | Greenbrier |
| 1968-1972 | Chevrolet | Chevelle | Malibu |
| 1968-1972 | Chevrolet | Chevelle | Nomad |
| 1966-1972 | Chevrolet | Chevelle | SS |
| 1968 | Chevrolet | Chevy II | Nova |
| 1966-1974 | Chevrolet | Corvette | Base |
| 1966-1975 | Chevrolet | El Camino | Base |
| 1968-1974 | Chevrolet | El Camino | Custom |
| 1968-1974 | Chevrolet | El Camino | SS |
| 1973-1974 | Chevrolet | G10 Van | Base |
| 1976 | Chevrolet | G20 | Beauville |
| 1976 | Chevrolet | G20 | Chevy Van |
| 1973-1974 | Chevrolet | G20 Van | Base |
| 1973-1974 | Chevrolet | G20 Van | Sportvan |
| 1975-1976,1988-1996 | Chevrolet | G30 | Beauville |
| 1975-1976,1988-1996 | Chevrolet | G30 | Chevy Van |
| 1975-1976,1988-1996 | Chevrolet | G30 | Hi-Cube |
| 1988-1996 | Chevrolet | G30 | Sportvan |
| 1973-1974 | Chevrolet | G30 Van | Base |
| 1965-1976 | Chevrolet | Impala | Base |
| 1975-1976 | Chevrolet | Impala | Custom |
| 1976 | Chevrolet | Impala | Custom Landau |
| 1976 | Chevrolet | Impala | S |
| 1975-1976 | Chevrolet | Impala | Sport |
| 1965-1967 | Chevrolet | Impala | SS |
| 1976,1979-1980 | Chevrolet | K10 | Cheyenne |
| 1976,1979-1980 | Chevrolet | K10 | Custom Deluxe |
| 1976,1979-1980 | Chevrolet | K10 | Scottsdale |
| 1976,1979-1980 | Chevrolet | K10 | Silverado |
| 1968-1969,1974 | Chevrolet | K10 Pickup | Base |
| 1968-1969 | Chevrolet | K10 Suburban | Base |
| 1976-1978,1980 | Chevrolet | K20 | Cheyenne |
| 1976-1978,1980 | Chevrolet | K20 | Custom Deluxe |
| 1976-1978,1980 | Chevrolet | K20 | Scottsdale |
| 1976-1978,1980 | Chevrolet | K20 | Silverado |
| 1968-1969,1973-1974 | Chevrolet | K20 Pickup | Base |
| 1973 | Chevrolet | K20 Suburban | Base |
| 1985 | Chevrolet | K20 Suburban | Custom |
| 1985 | Chevrolet | K20 Suburban | Scottsdale |
| 1985 | Chevrolet | K20 Suburban | Silverado |
| 1994-1995 | Chevrolet | K2500 | Base |
| 1991-1995 | Chevrolet | K2500 | Cheyenne |
| 1991-1992 | Chevrolet | K2500 | Scottsdale |
| 1991-1995 | Chevrolet | K2500 | Silverado |
| 1994-1995 | Chevrolet | K2500 | WT |
| 1992-1995 | Chevrolet | K2500 Suburban | Base |
| 1995 | Chevrolet | K2500 Suburban | LS |
| 1995 | Chevrolet | K2500 Suburban | LT |
| 1992-1994 | Chevrolet | K2500 Suburban | Silverado |
| 1977,1980-1981 | Chevrolet | K30 | Cheyenne |
| 1981-1986 | Chevrolet | K30 | Custom |
| 1977,1980 | Chevrolet | K30 | Custom Deluxe |
| 1981 | Chevrolet | K30 | Deluxe |
| 1977,1980-1986 | Chevrolet | K30 | Scottsdale |
| 1977,1980-1986 | Chevrolet | K30 | Silverado |
| 1968-1969,1973-1974 | Chevrolet | K30 Pickup | Base |
| 1994-1995 | Chevrolet | K3500 | Base |
| 1988-1995 | Chevrolet | K3500 | Cheyenne |
| 1988-1992 | Chevrolet | K3500 | Scottsdale |
| 1988-1995 | Chevrolet | K3500 | Silverado |
| 1976 | Chevrolet | K5 Blazer | Base |
| 1976-1978 | Chevrolet | K5 Blazer | Cheyenne |
| 1977-1978 | Chevrolet | K5 Blazer | Custom Deluxe |
| 1978 | Chevrolet | K5 Blazer | Silverado |
| 1970,1972 | Chevrolet | Kingswood | Base |
| 1970,1972 | Chevrolet | Kingswood | Estate |
| 1973-1975 | Chevrolet | Laguna | Base |
| 1973 | Chevrolet | Laguna | Estate |
| 1975 | Chevrolet | Laguna | S3 |
| 1974 | Chevrolet | Laguna | Type S-3 |
| 1966-1967,1973-1974 | Chevrolet | Malibu | Base |
| 1974-1975 | Chevrolet | Malibu | Classic |
| 1973-1974 | Chevrolet | Malibu | Estate |
| 1970-1974 | Chevrolet | Monte Carlo | Base |
| 1973-1974 | Chevrolet | Monte Carlo | Landau |
| 1973,1975 | Chevrolet | Monte Carlo | S |
| 1969-1970 | Chevrolet | Nova | Base |
| 1988 | Chevrolet | R20 | Cheyenne |
| 1987-1988 | Chevrolet | R20 | Custom Deluxe |
| 1987-1988 | Chevrolet | R20 | Scottsdale |
| 1987-1988 | Chevrolet | R20 | Silverado |
| 1987 | Chevrolet | R20 Suburban | Custom Deluxe |
| 1987-1988 | Chevrolet | R20 Suburban | Scottsdale |
| 1987-1988 | Chevrolet | R20 Suburban | Silverado |
| 1989 | Chevrolet | R2500 | Cheyenne |
| 1989 | Chevrolet | R2500 | Scottsdale |
| 1989 | Chevrolet | R2500 | Silverado |
| 1989-1991 | Chevrolet | R2500 Suburban | Scottsdale |
| 1989-1991 | Chevrolet | R2500 Suburban | Silverado |
| 1988 | Chevrolet | R30 | Cheyenne |
| 1987-1988 | Chevrolet | R30 | Custom Deluxe |
| 1987-1988 | Chevrolet | R30 | Scottsdale |
| 1987-1988 | Chevrolet | R30 | Silverado |
| 1989-1991 | Chevrolet | R3500 | Cheyenne |
| 1989-1990 | Chevrolet | R3500 | Scottsdale |
| 1989-1991 | Chevrolet | R3500 | Silverado |
| 1970,1972 | Chevrolet | Townsman | Base |
| 1987 | Chevrolet | V20 Suburban | Custom Deluxe |
| 1987-1988 | Chevrolet | V20 Suburban | Scottsdale |
| 1987-1988 | Chevrolet | V20 Suburban | Silverado |
| 1990 | Chevrolet | V2500 Suburban | Scottsdale |
| 1990 | Chevrolet | V2500 Suburban | Silverado |
| 1988 | Chevrolet | V30 | Cheyenne |
| 1987-1988 | Chevrolet | V30 | Custom Deluxe |
| 1987-1988 | Chevrolet | V30 | Scottsdale |
| 1987-1988 | Chevrolet | V30 | Silverado |
| 1989-1991 | Chevrolet | V3500 | Cheyenne |
| 1989-1990 | Chevrolet | V3500 | Scottsdale |
| 1989-1991 | Chevrolet | V3500 | Silverado |
| 1975-1978 | GMC | C15 | Base |
| 1977-1978 | GMC | C15 | Heavy Half |
| 1975-1978 | GMC | C15 | High Sierra |
| 1977 | GMC | C15 | Indy Hauler |
| 1975-1978 | GMC | C15 | Sierra Classic |
| 1975-1978 | GMC | C15 | Sierra Grande |
| 1978 | GMC | C15 | Street Coupe |
| 1975-1978 | GMC | C15 Suburban | Base |
| 1975-1978 | GMC | C15 Suburban | High Sierra |
| 1975-1978 | GMC | C15 Suburban | Sierra Classic |
| 1975-1978 | GMC | C15 Suburban | Sierra Grande |
| 1968-1969,1973-1974 | GMC | C15/C1500 Pickup | Base |
| 1968-1969,1973-1974 | GMC | C15/C1500 Suburban | Base |
| 1979-1980 | GMC | C1500 | Base |
| 1979-1980 | GMC | C1500 | Heavy Half |
| 1979-1980 | GMC | C1500 | High Sierra |
| 1979-1980 | GMC | C1500 | Sierra Classic |
| 1979-1980 | GMC | C1500 | Sierra Grande |
| 1979-1980 | GMC | C1500 | Street Coupe |
| 1979-1980 | GMC | C1500 Suburban | Base |
| 1979-1980 | GMC | C1500 Suburban | High Sierra |
| 1979-1980 | GMC | C1500 Suburban | Sierra Classic |
| 1979-1980 | GMC | C1500 Suburban | Sierra Grande |
| 1975-1978 | GMC | C25 | Base |
