SKU: BP38350CT1

Vortec Truck & SUV 1996-2000 - GM Small Block Compatible 383 c.i. Engine - Long Block

No reviews yet. Bought this? Write the first review
Regular price $6,749.00
Shipping calculated at checkout.


Shipping & delivery

Usually ships in 2–3 business days unless a different lead time is shown on this page. Shipping cost is calculated at checkout (UPS or USPS to the contiguous U.S.).

Shipping policy · Returns · Fitment questions? (561) 207-7988

Delivery and Shipping

Standard order processing is 2–3 business days unless this product or your order confirmation states a different lead time. Custom-built, made-to-order, backorder, and pre-order items follow their stated lead times.

Enclosures and subwoofer boxes ship for $50 per unit. Other shipping charges are calculated at checkout. Orders outside the contiguous 48 United States may require additional shipping; we will contact you for approval before shipment.

Subwoofer boxes ship UPS Ground where available. Read our Shipping Policy and Return and Refund Policy for delivery, product-specific return windows, and warranty details.

Description

Description:

  • 49 State Legal
  • Built with Small Block Chevy Engine Kit Part number BPP38350RA, California Executive Order# D-824-1

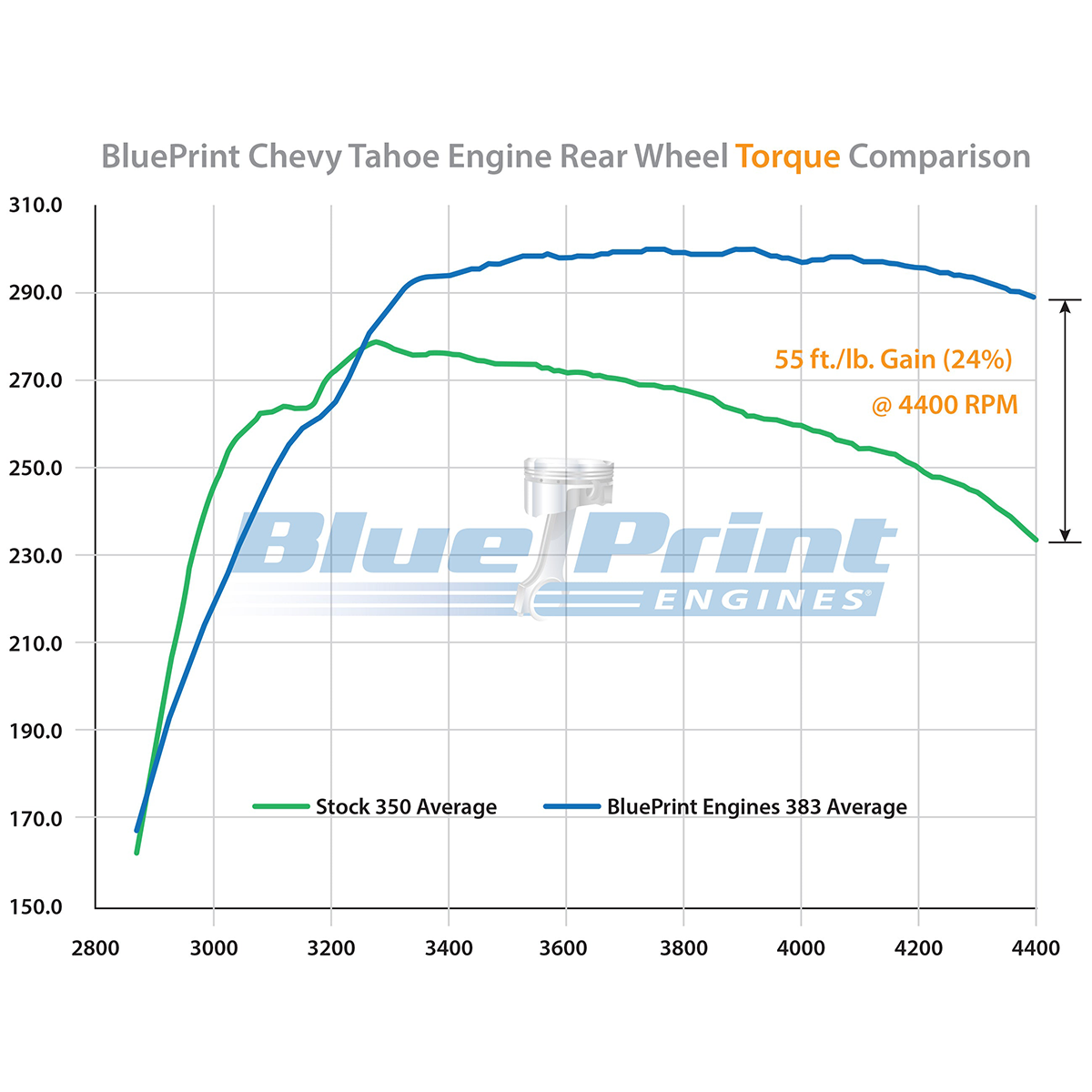

  • +47 Rear Wheel Horsepower Increase over Factory
  • + 55 Rear Wheel ft/lbs Torque Increase over Factory
  • Compression Ratio: 10:1
  • BluePrint Engines Aluminum Heads
  • BluePrint Engines Hydraulic Roller Cam
  • BluePrint Engines Cast Crankshaft
  • BluePrint Engines Hypereutectic Pistons

Block:

  • BluePrint Engines High Strength Cast Iron Block
  • Manufactured and Machined in the USA!
  • Drilled and Tapped for Clutch Linkage
  • Mech Fuel Pump Provision: Yes
  • Passenger Side Dipstick
  • 1-Piece Rear Main Seal
  • 4-Bolt Main
  • 4.000" Bore

Rotating Assembly:

  • Cast Crankshaft
  • 3.750" Stroke
  • OEM Type 5.700" Connecting Rods w/ 150,000 PSI Bolts
  • Hypereutectic Pistons
  • Externally Balanced Front and Rear

Cylinder Heads:

  • BluePrint Aluminum Cylinder Heads - H8002K
  • 64cc Chamber
  • 2.02" Intake / 1.60" Exhaust Valves
  • 195cc Intake / 75cc Exhaust Runners

Cam Specs:

  • Hydraulic Roller Cam
  • .477 Intake / .471 Exhaust Lift
  • 202 Intake / 212 Exhaust Duration
  • @ .050-115 Degree Lobe Separation

Ignition Timing:

  • Computer-Controlled

Also Includes:

  • Harmonic Balancer
  • Timing Cover
  • Valve Covers
  • Dipstick
  • Oil Pan

Notes:

  • This engine features a true 4-inch bore, which mathematically yields 377 CID with a 3.75-inch stroke.
  • This 383 stroker is designed for use in 1996 - 2000 Chevrolet Pickup or SUV that was originally equipped with a 350ci (5.7L) engine.
  • No ECU tuning or recalibration is required.
  • Advertised horsepower gains were achieved on chassis dyno, w/ factory EFI and ECU, in a Vortec equipped, otherwise factory, GM truck.
  • We have taken our BluePrint OEM style Block and assembled the Small Block Chevy Kit to give you a 24% increase of 49 state legal horsepower, when installed in a GM pickup or SUV year 2000 or older model year that came with a California certified Gen 1 naturally aspirated 5.7 gasoline engine block.
  • This engine may require modification to existing front accessory drive mounting brackets if retaining OEM front accessory drive.
  • Note: This engine kit has a California Air Resources Board (C.A.R.B.) Executive Order (E.O.) number: D-824-1.
