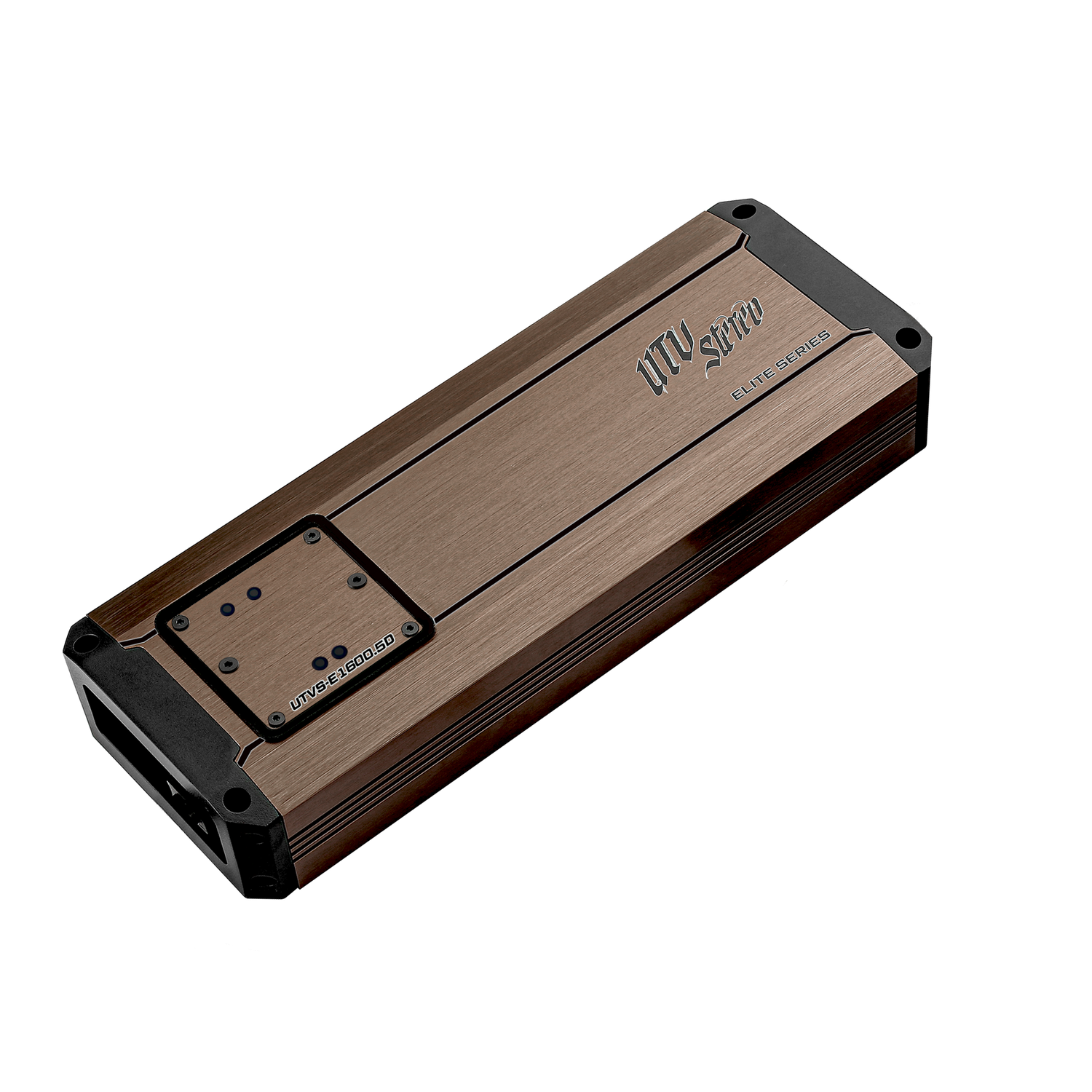

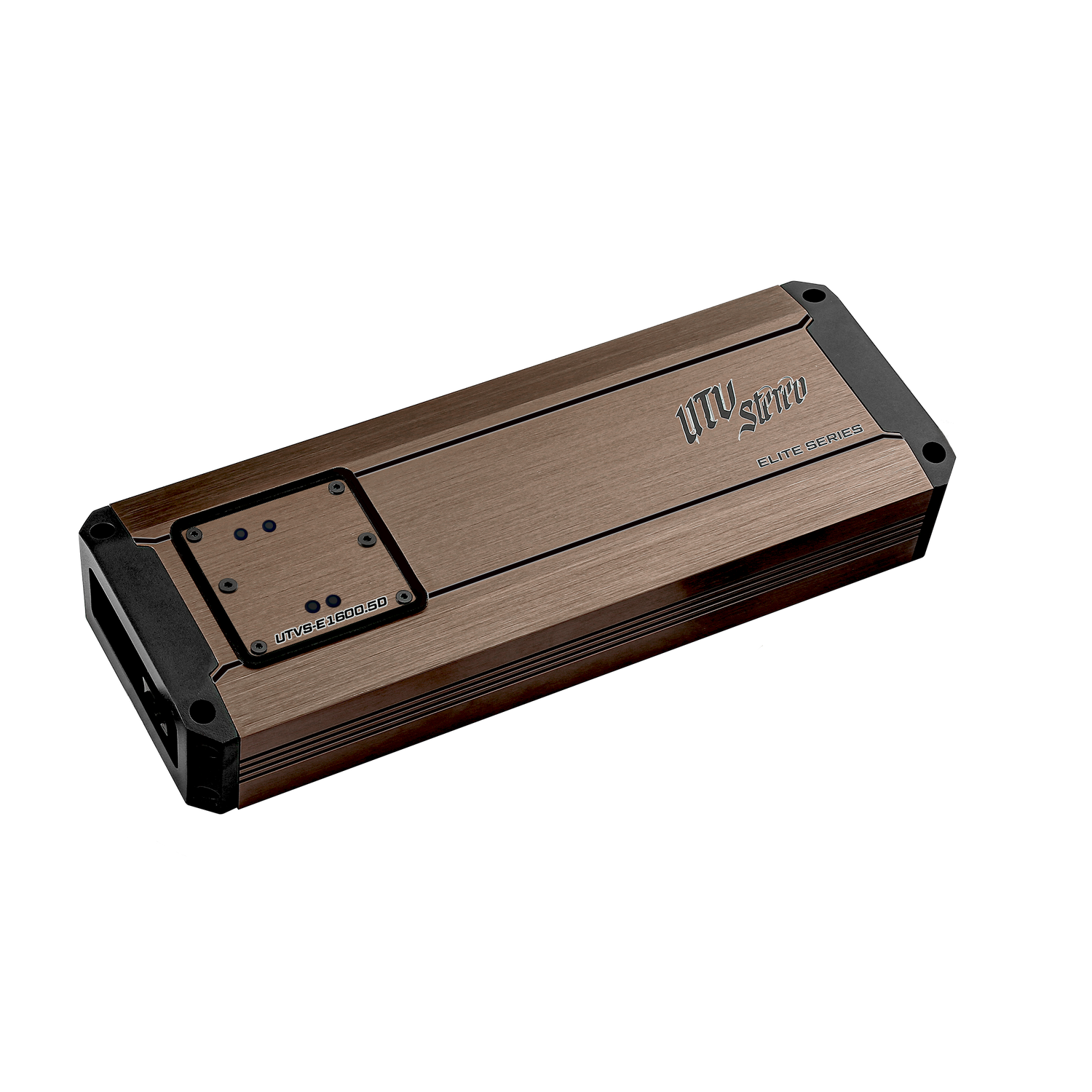

Elite Series 1600W 5-Channel Amplifier | UTVS-E1600.5D
Elite Series 1600W 5-Channel Amplifier | UTVS-E1600.5D is backordered and will ship as soon as it is back in stock.
Description
Description
Designed for high-performance systems and built to withstand the elements, this amplifier is packed with power. Not to mention more than enough features to keep any audio enthusiast beyond satisfied.
Integrates Seamlessly using our Ride Command® RCA Harness | UTVS-PRO-RC-RCA-OUT (sold separately)
Features:
- Die-Cast Aluminum Chassis
- IRS Full-Range Class D Technology

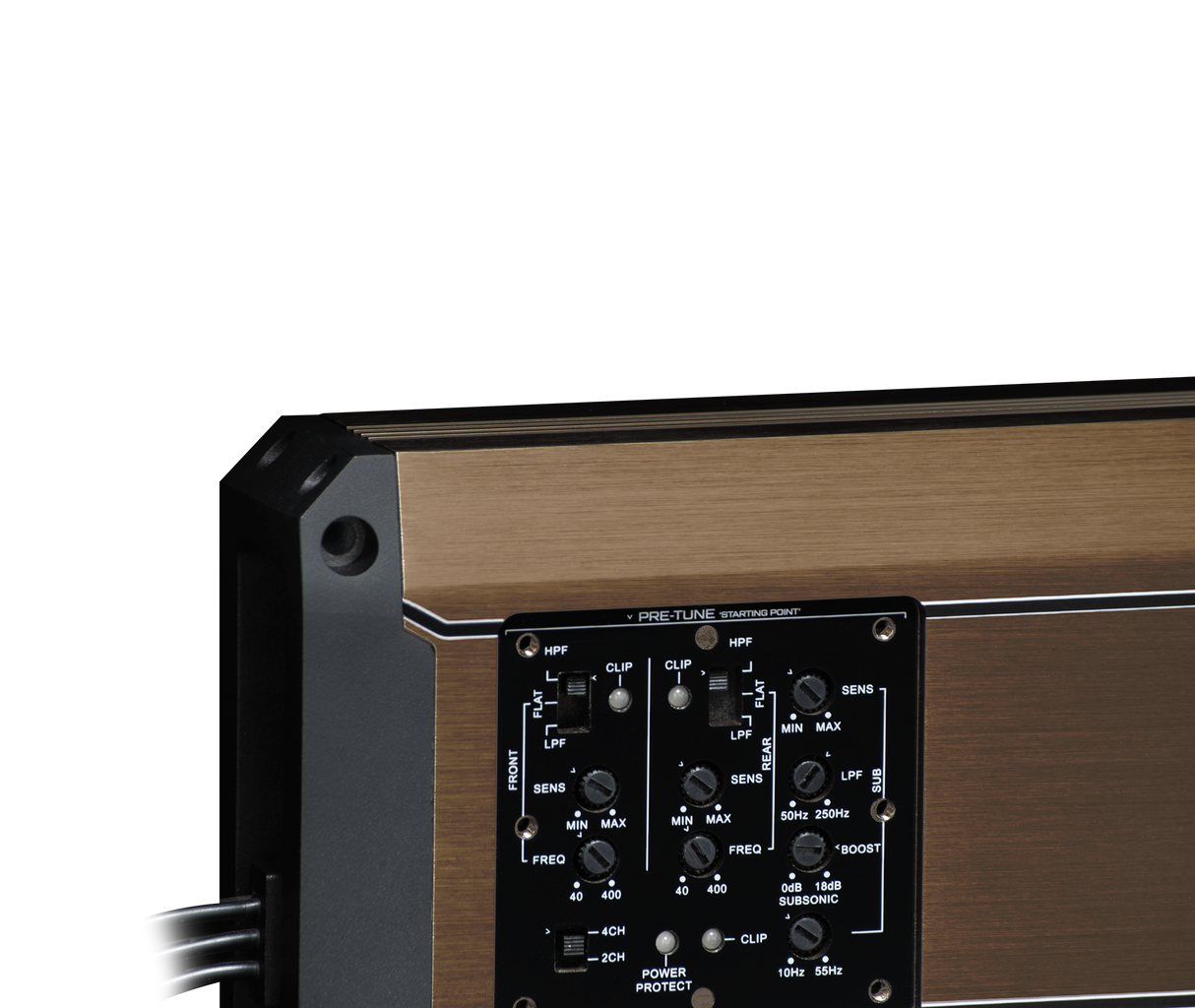

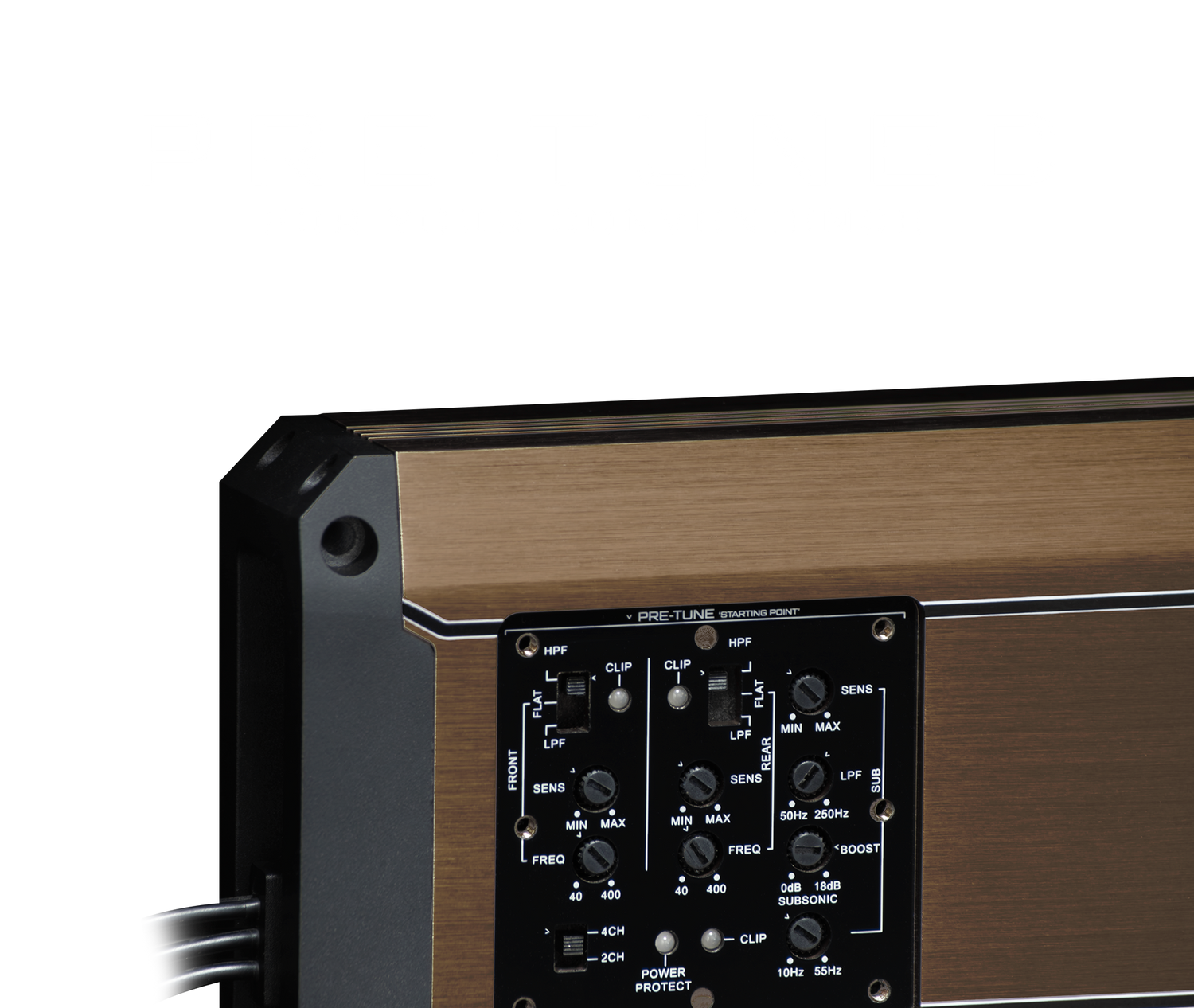

- Top Panel Tuning Control Access
- Ultra-Compact Size for Easy Installation
- Surface Mount Component Technology
- Verified for Audio Precision Quality Control
- Four-Layer PCB Trace layout
- LED Indicators for Power, Protection & Clipping
- Short Circuit, Thermal & High/Low Voltage Protection
- Excellent Signal-To-Noise Ratio & FM Noise Rejection
Specifications:
- RMS Power Output at 2 Ohms: 200W x 4CH + 800W
- RMS Power Output at 4 Ohms: 125W x 4CH + 500W
- RMS Power Output at 4 Ohms Bridged: 400W x 2CH (F&R CHs)
- HPF Crossover Range: 40-400Hz (F&R CHs)
- LPF Crossover Range: 50-250Hz (SUB)
- Frequency Range: 20-20KHz/20-250Hz
- IP65 Rated (Dustproof & Water Resistant)
- Conformal Coated PCB Certified

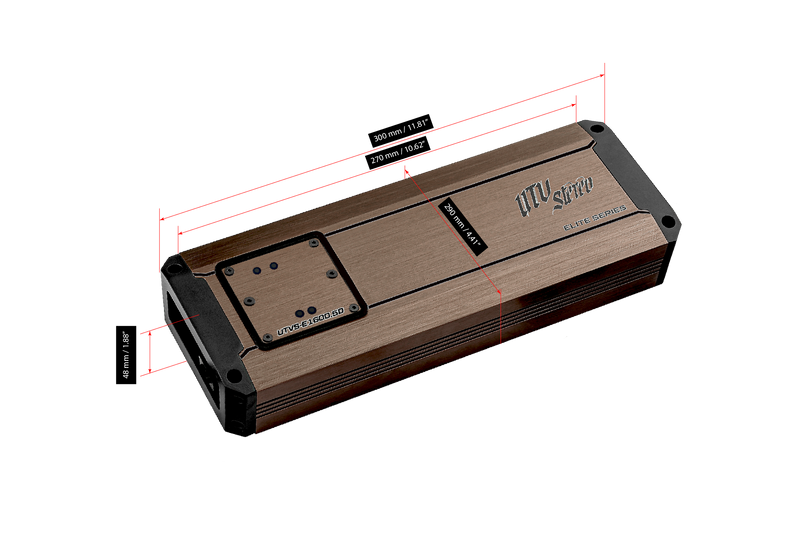

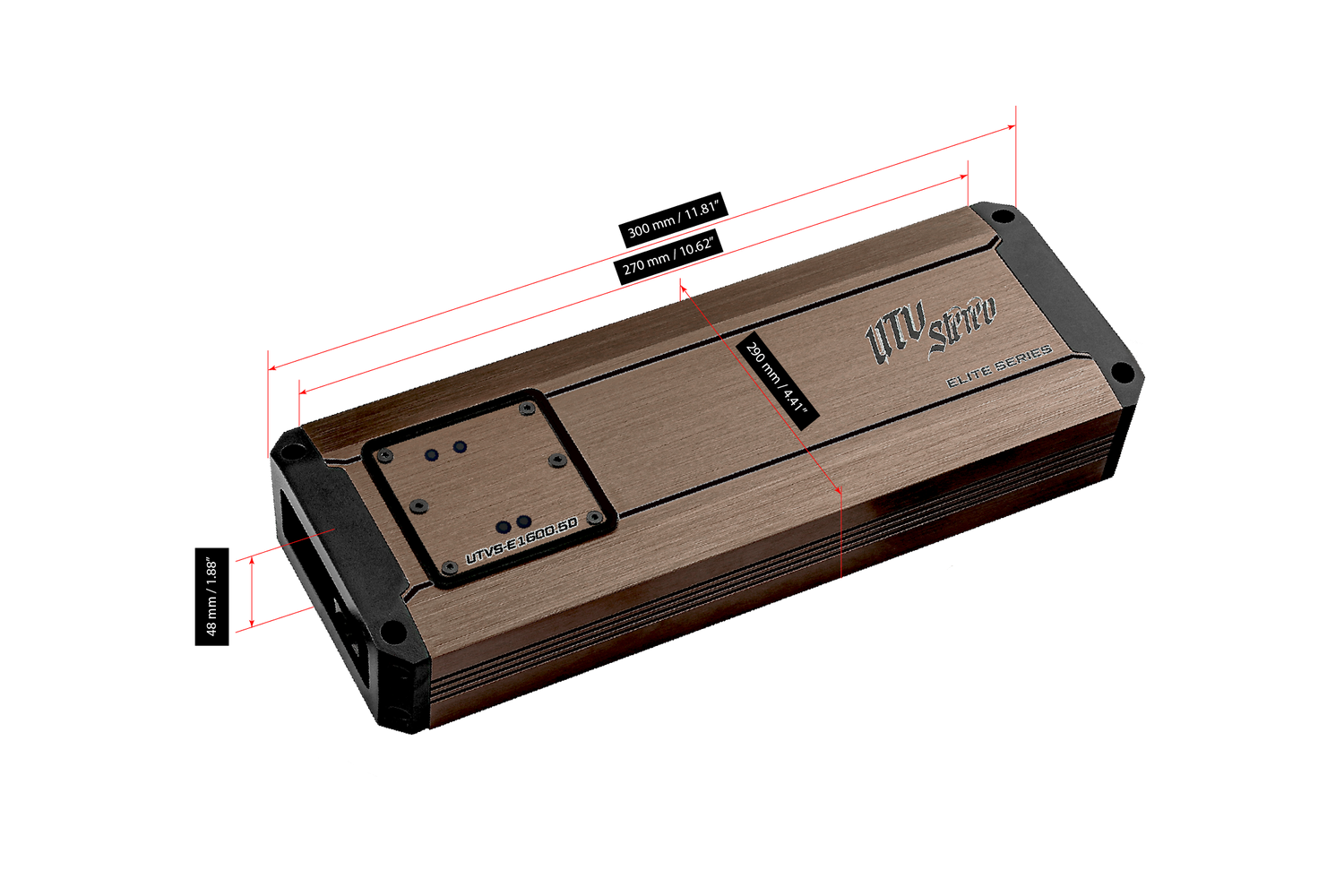

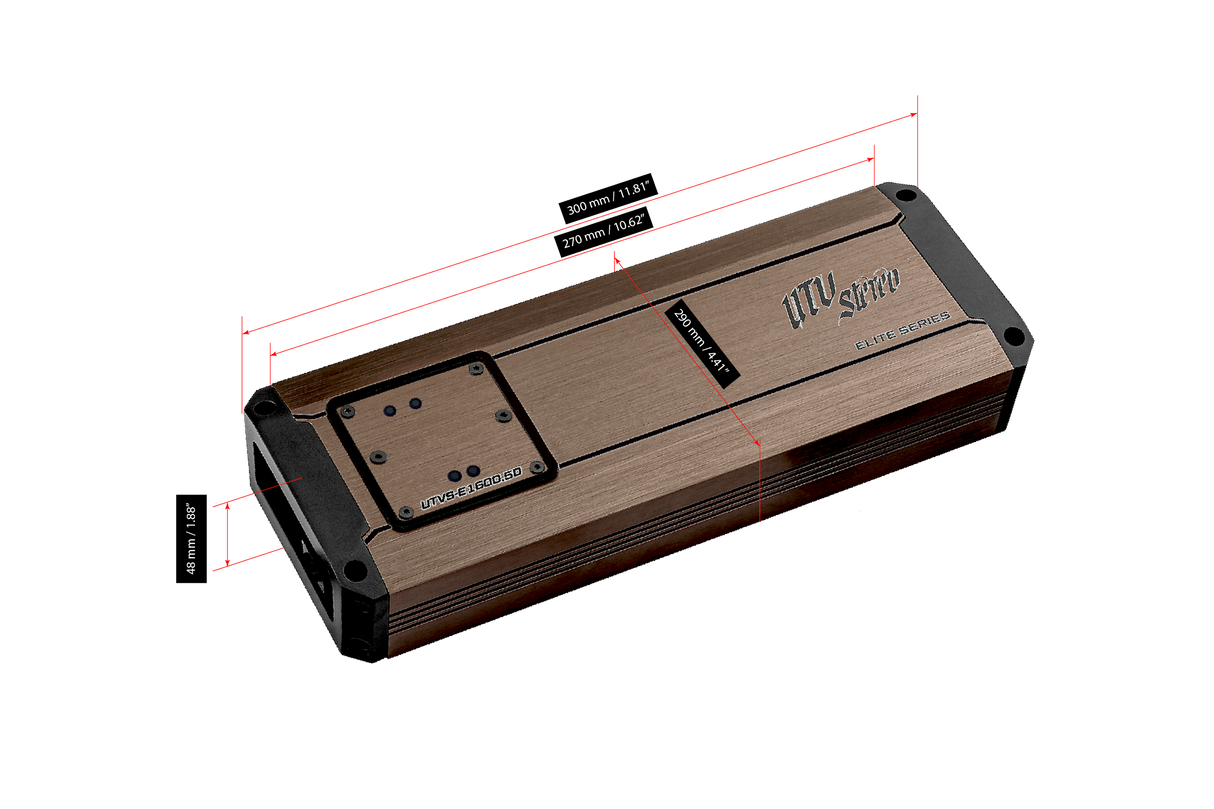

- Dimensions: 11.83" x 4.41" x 1.89"
