EQS7 | 7 Bands Equalizer

Name: EQS7 | 7 Bands Equalizer
SKU: C00001301
Price: 80.0 USD
Availability: InStock

No reviews yet. Bought this? Write the first review

$80.00

Shipping calculated at checkout.

Shipping & delivery

Usually ships in 2–3 business days unless a different lead time is shown on this page. Shipping cost is calculated at checkout (UPS or USPS to the contiguous U.S.).

Shipping policy · Returns · Fitment questions? (561) 207-7988

Delivery and Shipping

Standard order processing is 2–3 business days unless this product or your order confirmation states a different lead time. Custom-built, made-to-order, backorder, and pre-order items follow their stated lead times.

Enclosures and subwoofer boxes ship for $50 per unit. Other shipping charges are calculated at checkout. Orders outside the contiguous 48 United States may require additional shipping; we will contact you for approval before shipment.

Subwoofer boxes ship UPS Ground where available. Read our Shipping Policy and Return and Refund Policy for delivery, product-specific return windows, and warranty details.

Description

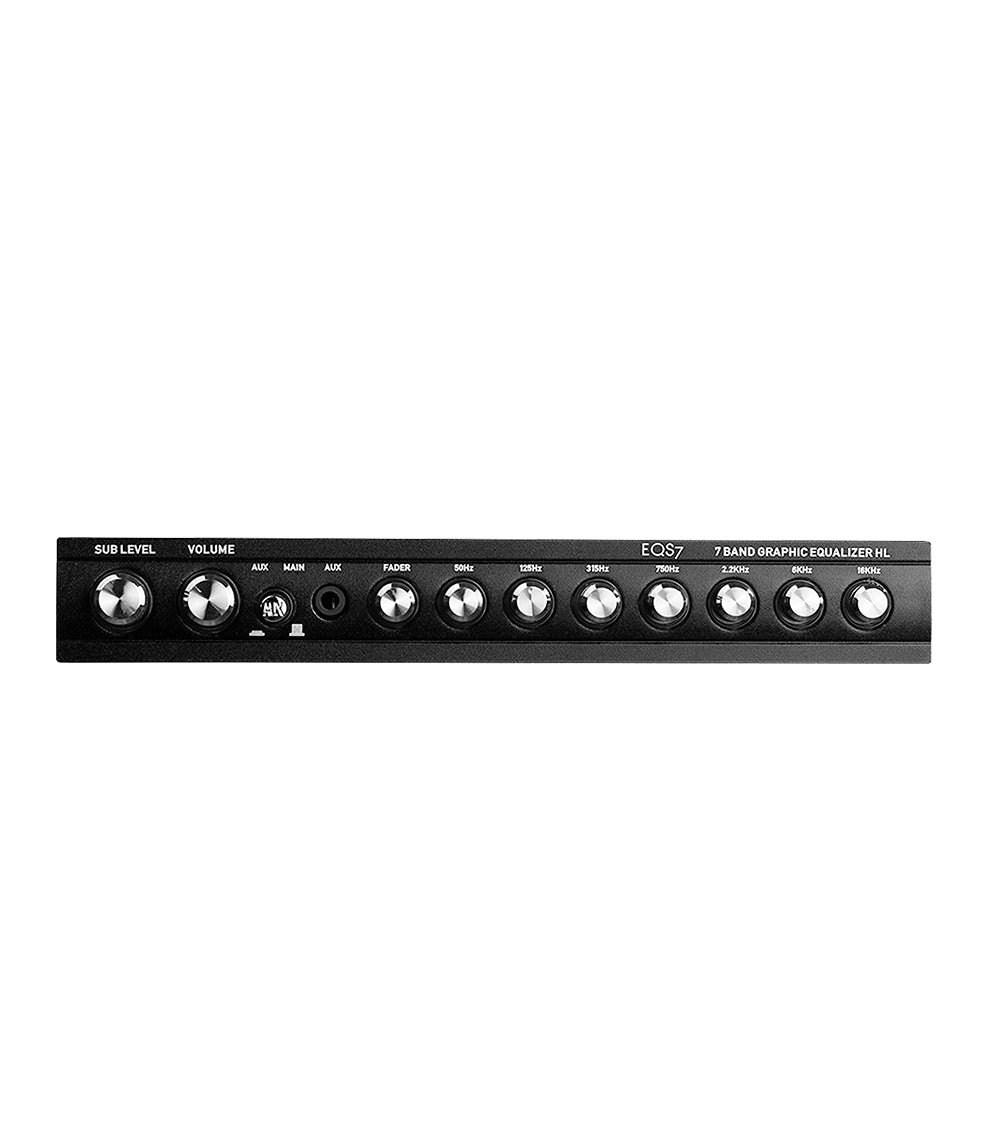

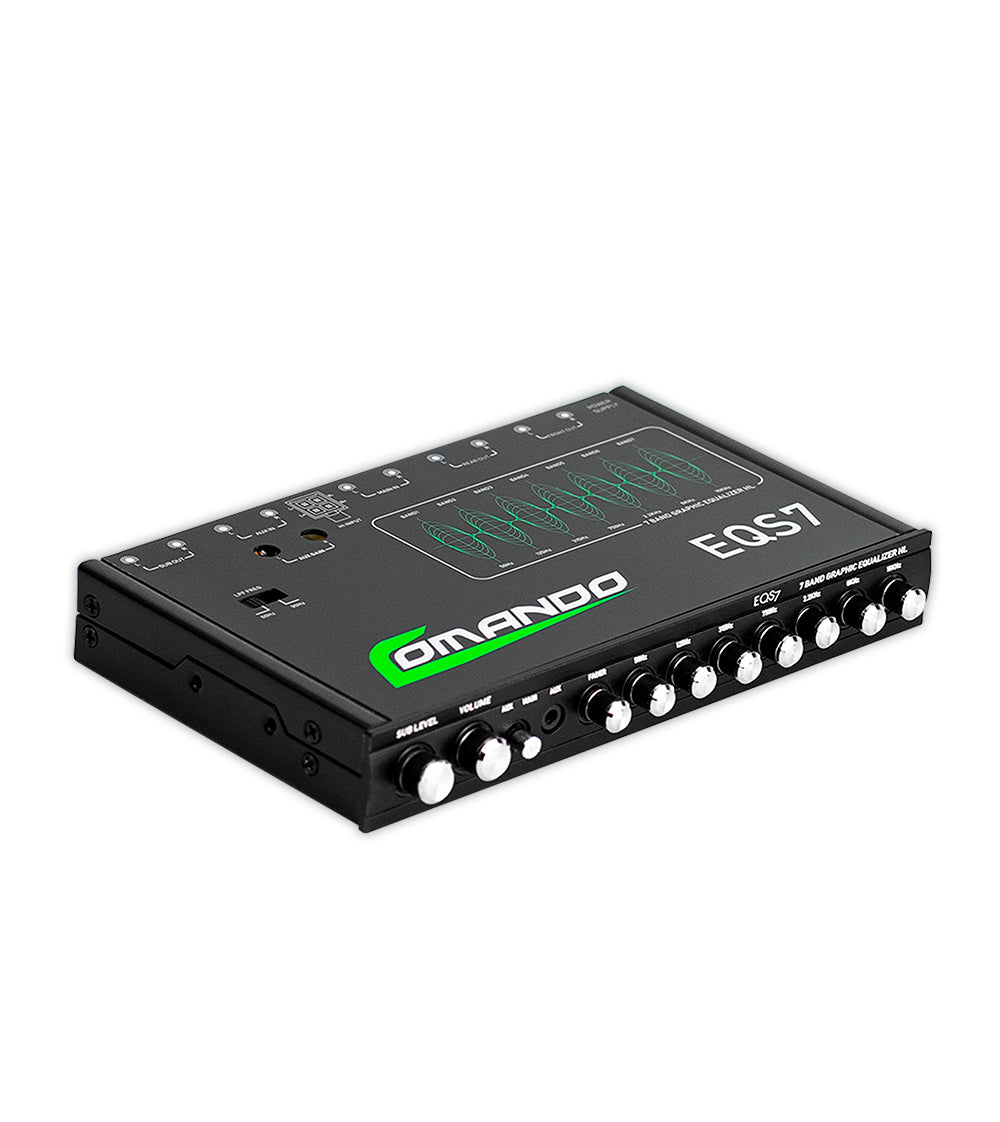

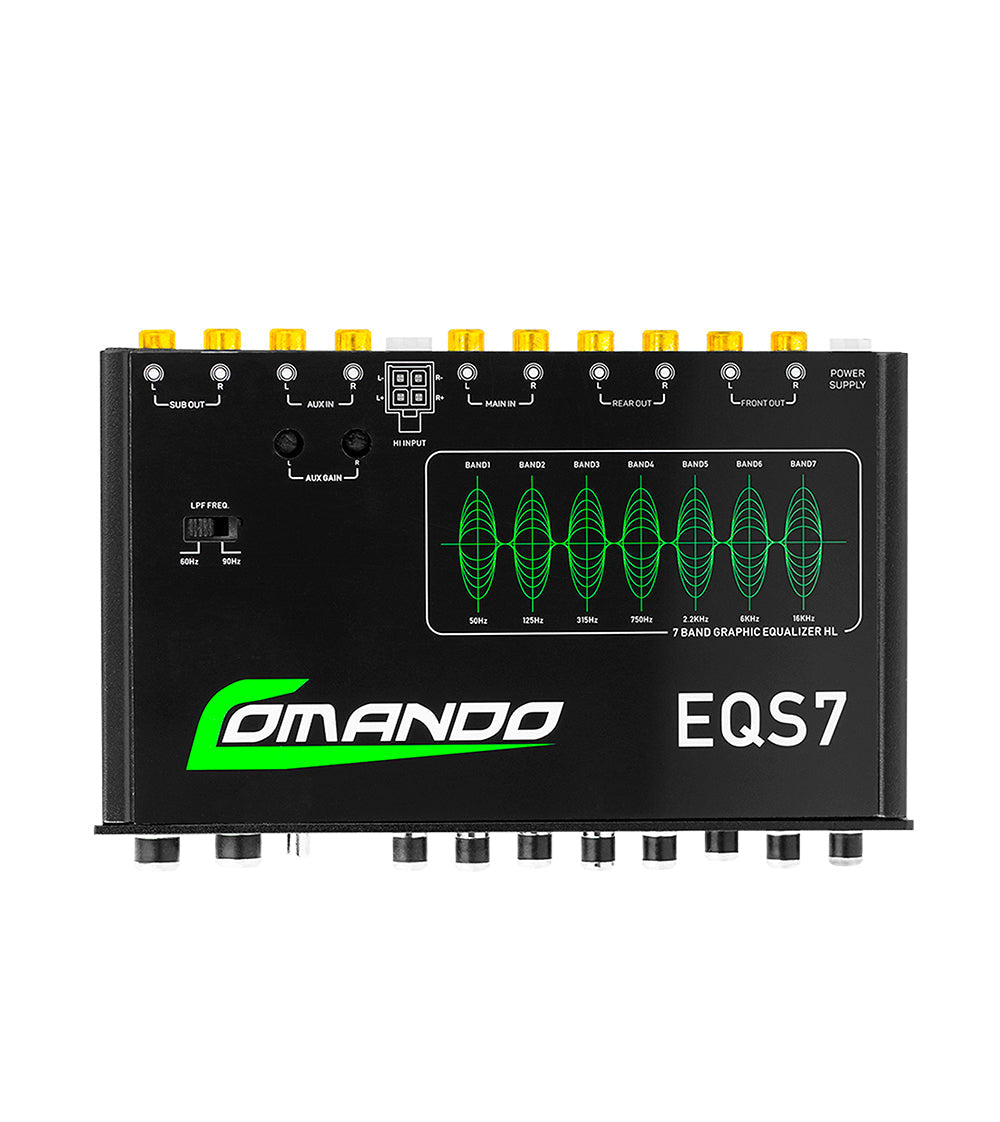

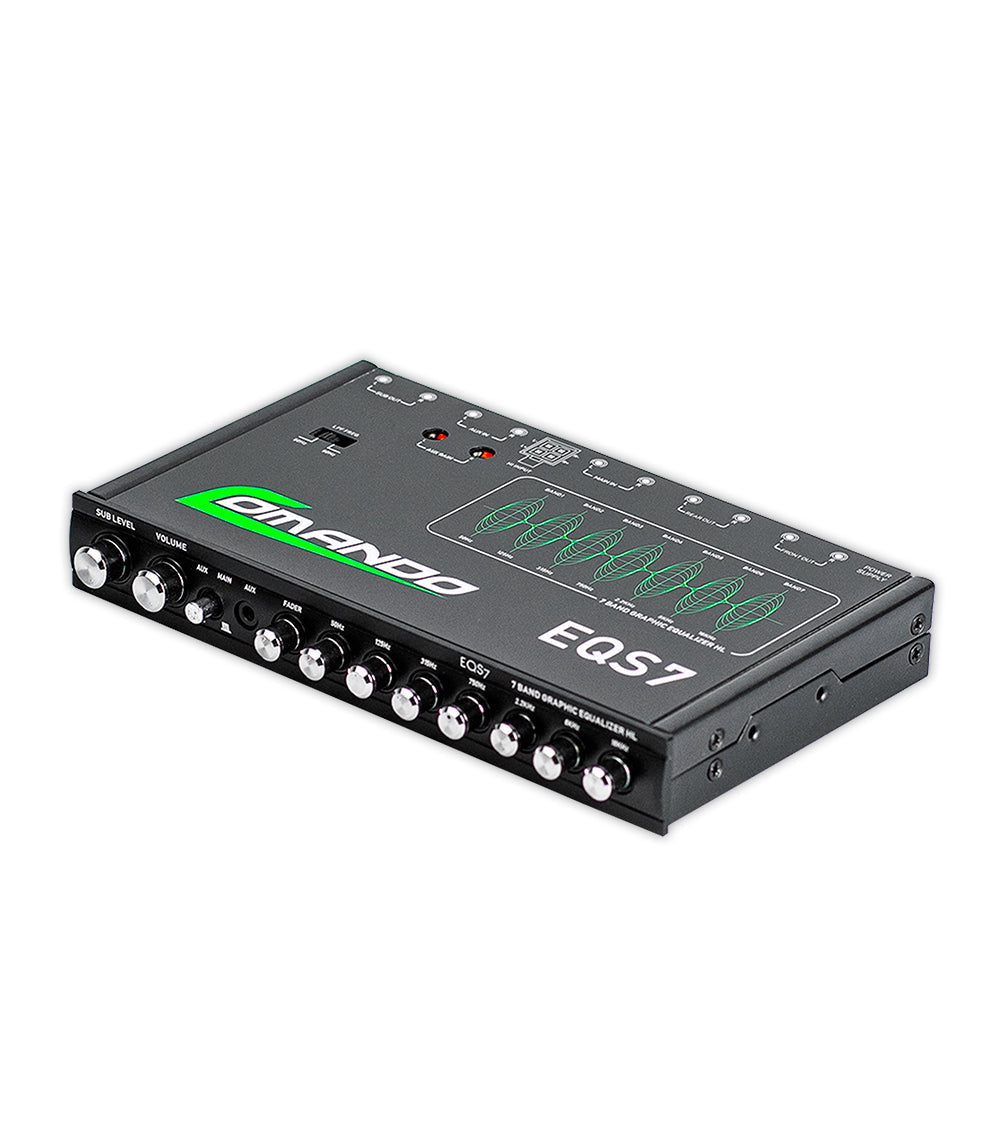

The Comando EQS7 is a 7-band stereo equalizer / crossover specifically created for the mobile environment. The EQS7 provides poweerful features in a compact size:

• Seven equalization bands (50Hz, 125Hz, 750Hz, 2.2KHz, 6KHz and 16KHz), each frequency adjustable from -12 to +12 dB (-15 to +15 dB for subwoofer frequencies).
• Subwoofer output uses a built-in 18dB per octave electronic crossover fixed at 60Hz or 90Hz.

• Three stereo RCA outputs to drive front, rear and subwoofer audio amplifiers.

• An auxiliary stereo RCA input for use with portable devices , such as an MP3 player or DVD player.
• Separate controls for master volume, subwoofer volume (sub level), front/rear fader and selection of main or auxiliary inputs.

• Extended frequency response from 20Hz to 30KHz with exceptional 100dB signal-to-noise perfomance.

• Gold-plated RCA connectors to ensure the best audio signal output.

• ISO mounting holes and removable trim ring for custom installation.

Technical Data

Graphic center frequencies	50Hz, 125Hz, 315Hz, 750Hz, 2.2KHz, 6KHz, 16KHz
Boost / cut	12dB
S / N ratio	100dB
Frequency response	10Hz-50KHz +/- 1 dB
Maximum output voltage	7V
T.H.D	0.005%
Input sensitivity	50mV - 3V
Head room	20dB
Input impedance	20K ohms
Output impedance	2K ohms
Stereo separation	82dB/1KHz
Operating voltage	11V-15V Negative Ground
Size	7'' Wide by 4 1/8'' Deep by 1'' High
