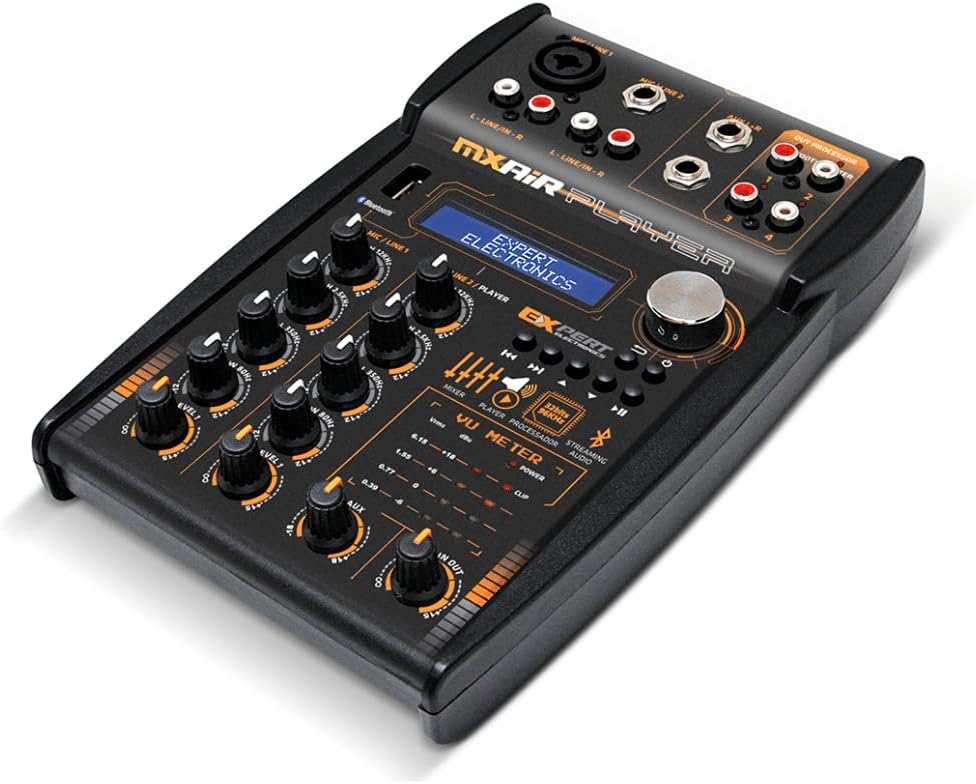

Expert Electronics MX AIR PLAYER Sound Processor with Crossover, Equalizer and Bluetooth Connectivity

Through Engineers with years of experience , critical testing procedures and a high-tech laboratory. Expert Electronics has created a range of high quality products that reproduce the musical signal with the clarity and fidelity you deserve

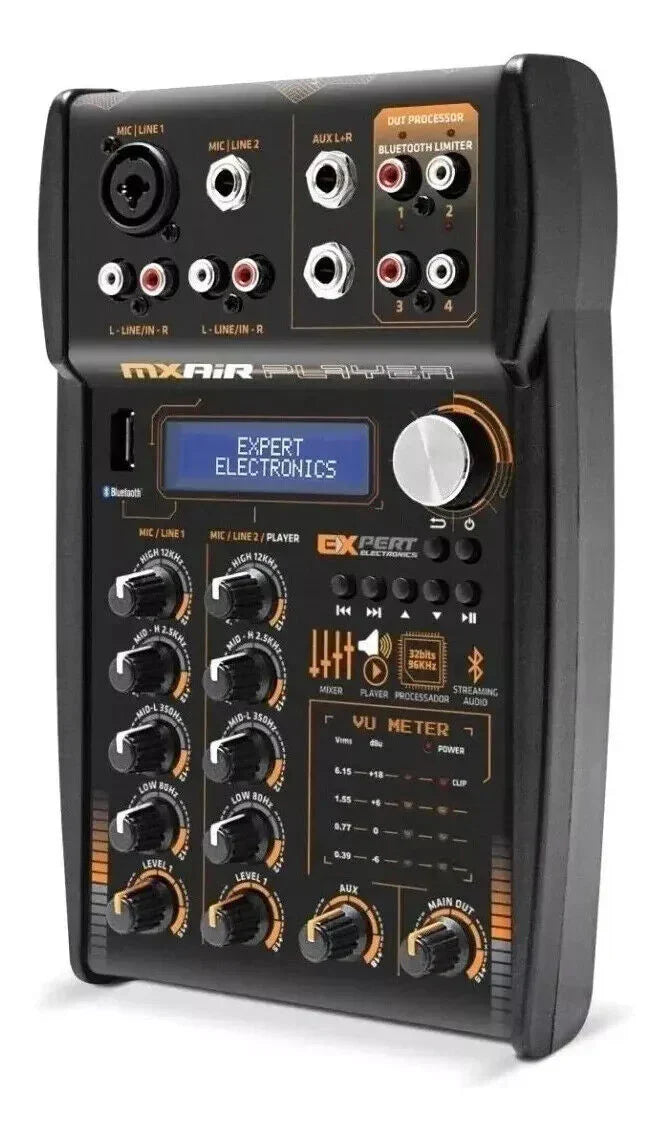

Input Connection:

• With these input connections it is possible to connect any type of equipment with P10, XLR or RCA outputs. Ex: Guitar, Microphone, Player, Notebook, Etc..

Input Settings:

• With these knobs it is possible to adjust the level and equalization of channels 1 and 2, it has 4 band equalization: Low, Mid-Low, Mid-High and High.

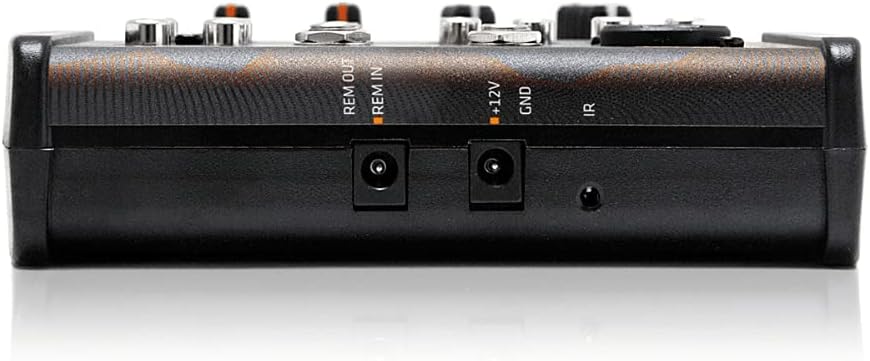

Power Connector:

• The P4 Connector is responsible for supping +12  and GND of the Mixer

AUX Channel:

• The AUX channel receives the input signal from channel 1without processing, only with a variable level adjustment.

Processor Outputs:

• These are the output channels of the audio processor, which must be connected to audio amplifiers.

Player:

• This player allows you play music through USB and BLUETOOTH connections, it has a large display with enough information and the possibility of changing folders

Vu Meter:

• With the Vu Meter it is possible to monitor the mixer's output signal

Main Out:

• With this knob it is possible to adjust the output level of the mixer.

Routing Channel:

• Routing Options: L / R / L+R

Gain:

• General Gain: -53 to 0dB
• Channel Gain: 33 to +9dB

Frequency Cuts (Crossover):

• Cutoff Frequency: 20Hz to 20kHz
• Type of Cuts: Linkwitz-Riley / Butterworth / Bessel
• Attenuation: 6dB / 12dB / 18dB / 24dB / 36dB / 48dB

Input Equalizer (Eq In):

• Equalization Band: 15 Bands
• Gain: -12to +12dB
• Q Factor: 0.6 to 9.9

Time Alignment (Delay):

• Time: 0 to 18.95ms
• Distance: 0 to 6500mm

Limiter:

• Threshold:: -54dB to +6dB
• Attack:: 1 to 220ms
• Release: 1 to 988ms

Polarity Inversion (Polarity):

• Inversion: 0 to 180 Degrees

Memory Presets:

• 3 - 100% Configurations

Input (Left / Right):

• Inputs: 2
• Number of Connections: 6
• Type: Electronic Symmetrical
• Connectors: RCA / XLR / P10
• Max Input Level: 6.15Vrms (+18dBu)
• Input Impedance: 100k Ohms

Output:

• Total Outputs: 4
• Connectors: Electronic Symmetrical
• Max Output Level: 6.15Vrms (+18dBu)
• Output Impedance: 100 Ohms

DSP:

• Frequency Response: 10Hz to 24KHz (-1dB)
• THD+N: <0,01%
• Signal Latency: <0,6ms
• Bit Rate: 32Bits
• Sampling Frequency: 96KHz

Power Supply:

• Voltage DC: 10-15VDC
• Maximum Consumption: 500mA

Measurements:

• 9.44"D x 6.10"W x 1.88"H
