DJM Suspension F150 3/5 Lowering Kit - 1983-1986 Ford F-Series

DJM Complete Lowering Kit – 3/5 Drop (1983–1986 Ford F-150 2WD)

Lower your Bullnose F-150 the correct way with the DJM Complete 3/5 Lowering Kit, designed specifically for 1983–1986 Ford F-150 2WD trucks. This kit delivers a strong, muscular stance while preserving proper suspension geometry, ride quality, and alignment.

Lowering these trucks with springs alone often leads to alignment issues that can’t be corrected. That’s why DJM’s exclusive DreamBeam technology is the proven solution. By replacing the factory I-beams with precision-built drop beams, you achieve a true 3” front drop while retaining factory coils and full suspension travel.

The rear is lowered 5 inches using a hanger and shackle combination, giving your truck a balanced, aggressive 3/5 stance without compromising drivability.

🔥 Key Features:

• 3” Front Drop – Achieved using DJM DreamBeams

• 5” Rear Drop – Rear hangers and shackles for proper stance

• DreamBeam Technology – Maintains correct geometry and alignment

• Factory Ride Quality – Retains OE coils and suspension travel

• No Special Alignment Bushings Required

• Heavy-Duty Construction – Thick-walled DOM tubing, precision welded

⚙️ Why Choose DJM DreamBeams:

• Eliminates alignment problems caused by lowering springs

• No “weld creep” or warping found in fabricated I-beams

• Full adjustability built into the beam design

• Proven performance with long-term reliability

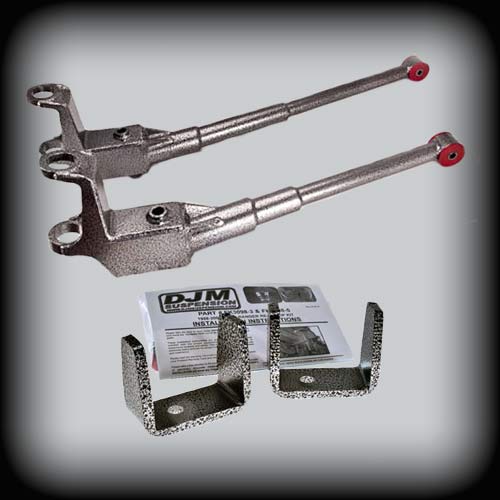

📦 Kit Includes:

• DJM Drop Beams (Front – 3”)

• Rear Drop Hangers (5”)

• Rear Drop Shackles

• Complete Bolt Kit

🛠️ Optional Add-Ons:

• Available with DJM front shocks, rear shocks, or both for a complete suspension setup

🚗 Fitment:

• 1983–1986 Ford F-150 2WD

Give your F-150 the stance it deserves — lowered right, aligned right, and built to drive. This DJM 3/5 kit delivers the look, handling, and reliability that spring-only kits simply can’t match.
