DJM Suspension F150 Rear Shock - 5 inch Drop - 1983-1996 Ford F-Series

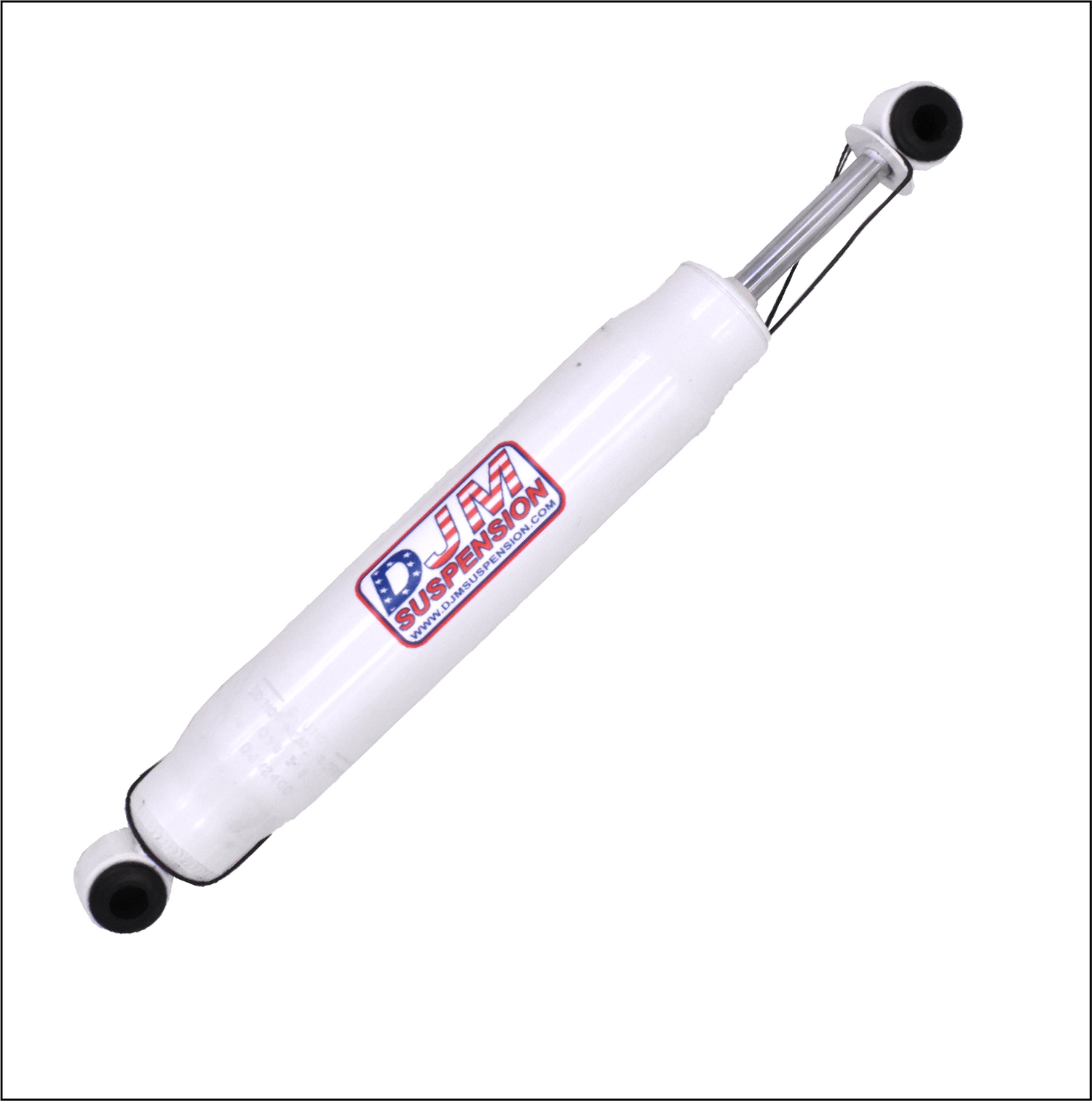

DJM Calmax SuperShock – 19.5" Loop / Loop

The DJM Calmax SuperShock is designed specifically for lowered and performance-oriented trucks, delivering the proper damping and control needed once suspension geometry has been changed. This twin-tube, nitrogen-charged shock is a proven solution for maintaining ride quality on lowered applications.

🔥 Key Features:

• Designed for Lowered Trucks – Ideal for setups with a 5" rear drop

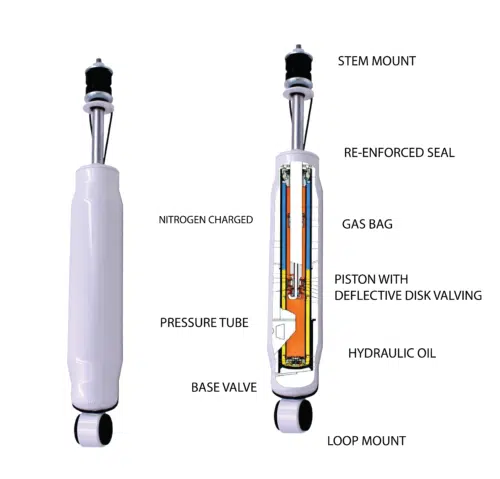

• Twin-Tube, Nitrogen-Charged Design – Reduces shock fade and maintains consistent performance

• Balanced Ride Quality – Comfort-focused without sacrificing control

• DJM Calmax Series – Built specifically for sport truck applications

📏 Shock Specifications:

• Extended Length: 19.5"

• Collapsed Length: 12.25"

• Mount Style: Loop / Loop (top and bottom)

🚗 Fitment:

• 1983–1996 Ford F-150

• 2WD only

• 5" rear drop applications

• Requires loop-style mounts on both ends

⚙️ Important Notes:

• Sold individually — order two shocks for a complete rear setup

• Proper length helps prevent bottoming out or over-extension on lowered trucks

• Due to altered suspension geometry, periodic inspection of bushings and mounts is recommended

If you’re running a lowered F-150 and want proper ride control without harshness, the DJM Calmax SuperShock is the right match for your suspension setup.
