Fire and Safety 6-Person Dual Radio Intercom Kit

Built for the most rugged conditions in fire trucks, brush trucks, ambulances, tactical and public safety vehicles, the RRP800 kit delivers powerful clear communications. Rugged design with quick and easy installation, connect both engineer, officer, and crew positions for hands free voice-activated communication while allowing engineer and officer to transmit on up to two radios with push-to-talk.

Intercom Features:

• Voice-Activated (VOX) operation
• Dual Two-Way Radio Ready & Expandable

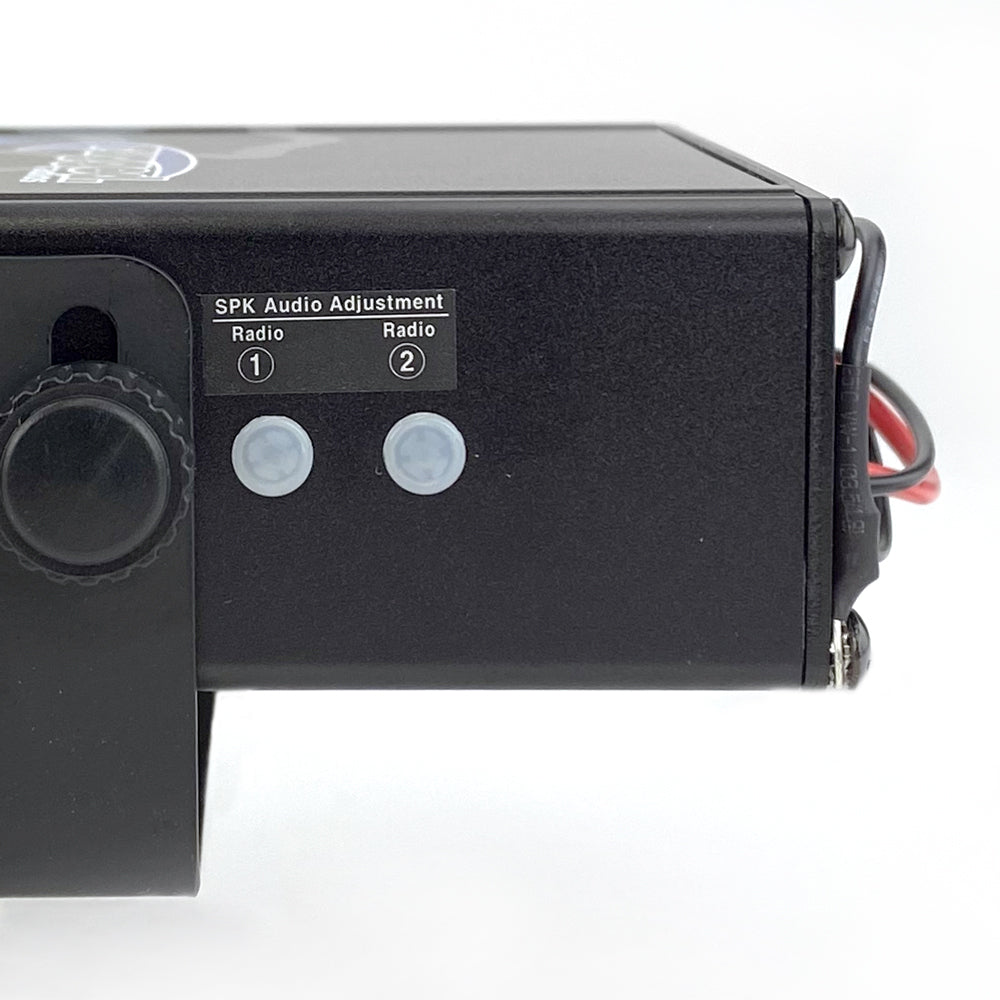

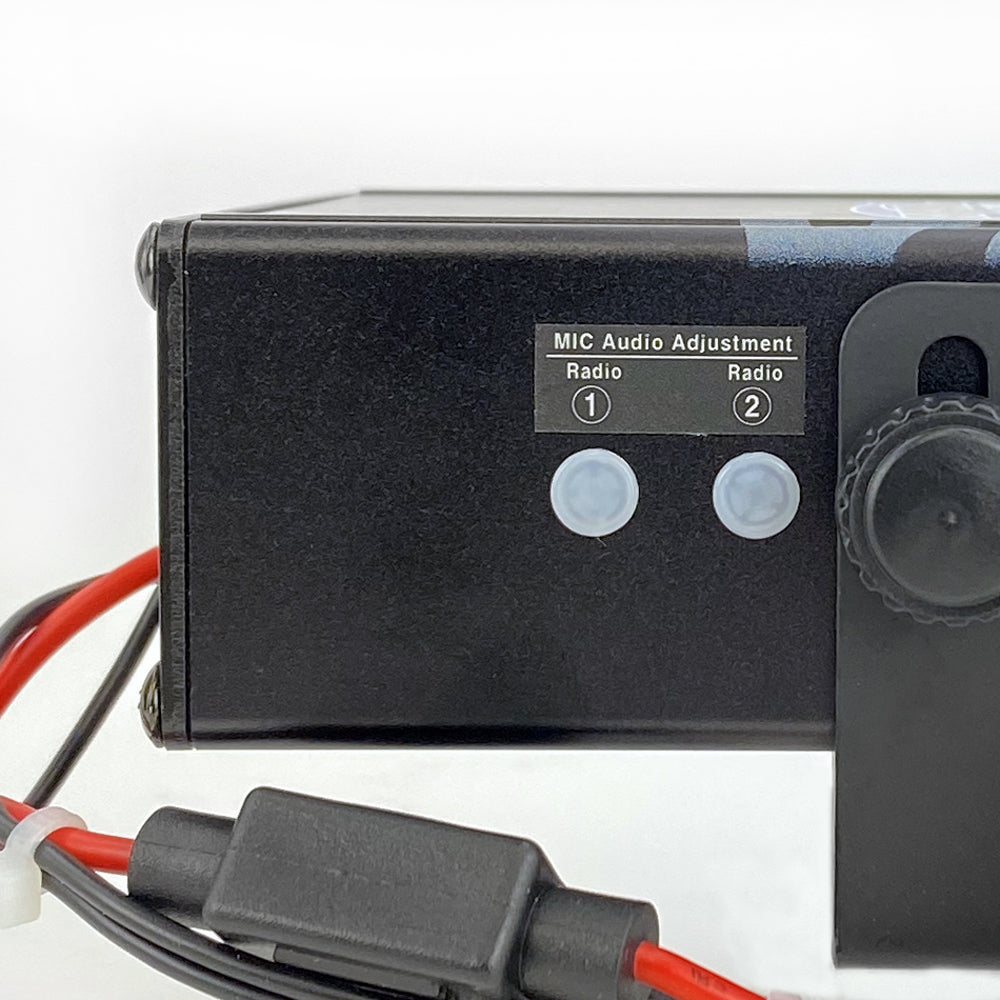

• Adjustable transmit mic gain and audio receive gain
• “Stuck Mic” indicator

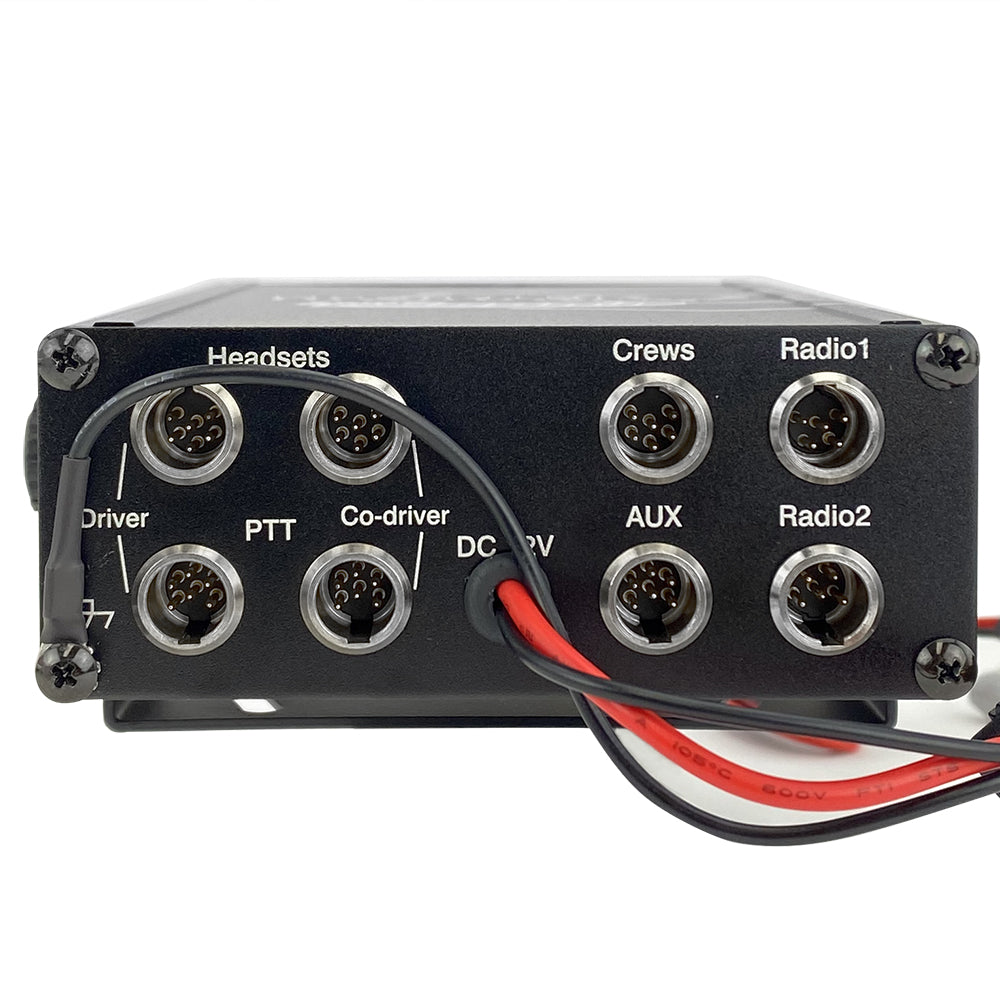

• 6-pin auxiliary port for cell phone and audio in/out
• Quick Lock™ easy install cable connections
• 100% shielded RF housing
• Dimensions: 5.9”L x 3.9”W x 1.6”H

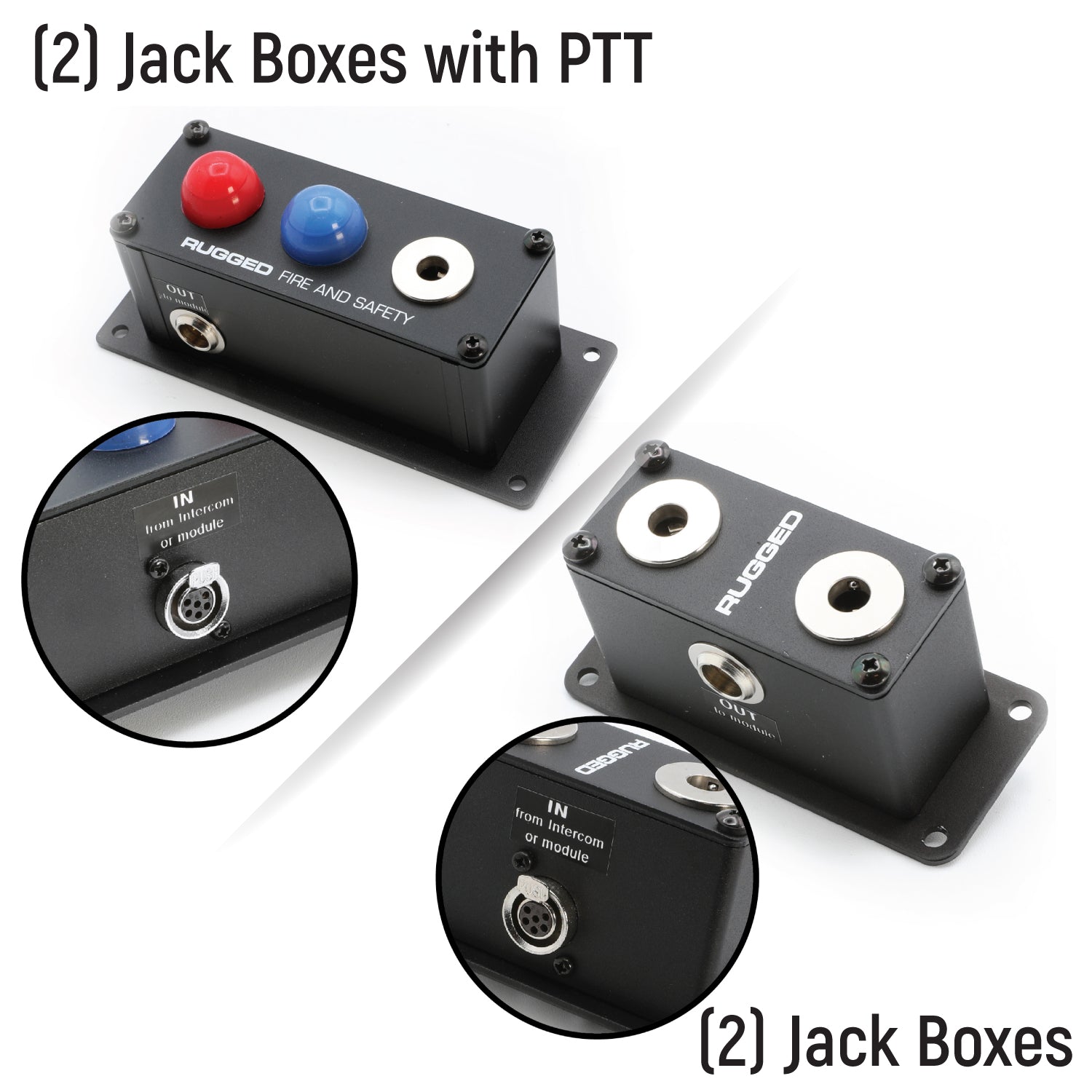

PTT Jack Box Features:

• Each Jack Box features dual PTT's - one for each radio
• Nexus 5 conductor TJ105 jack for Firecom style headset plugs
• Quick Lock™ locking connections
• Aluminum extrusion construction
• Built in panel mount design with self-tapping screws for easy installation
• Daisy chain using in/out 6-pin jacks

Dual Crew Jack Box Features:

• Extension jack box features dual plug-in for crew positions
• Allows in-vehicle communication with listen-only radio function
• Nexus 5 conductor TJ105 jack for Firecom style headset plugs
• Quick Lock™ locking connections
• Aluminum extrusion construction
• Built in panel mount design with self-tapping screws for easy installation
• Daisy chain using in/out 6-pin jacks

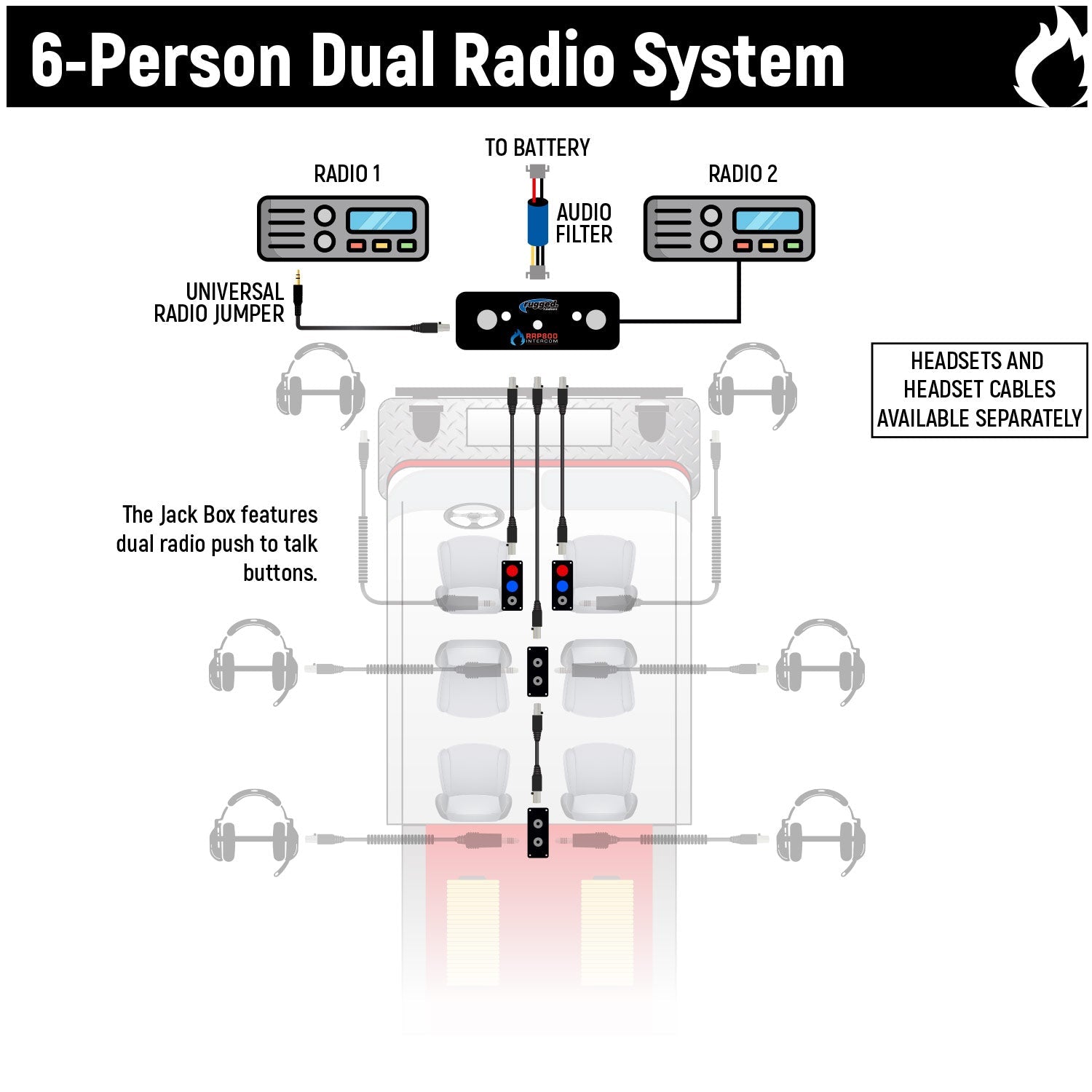

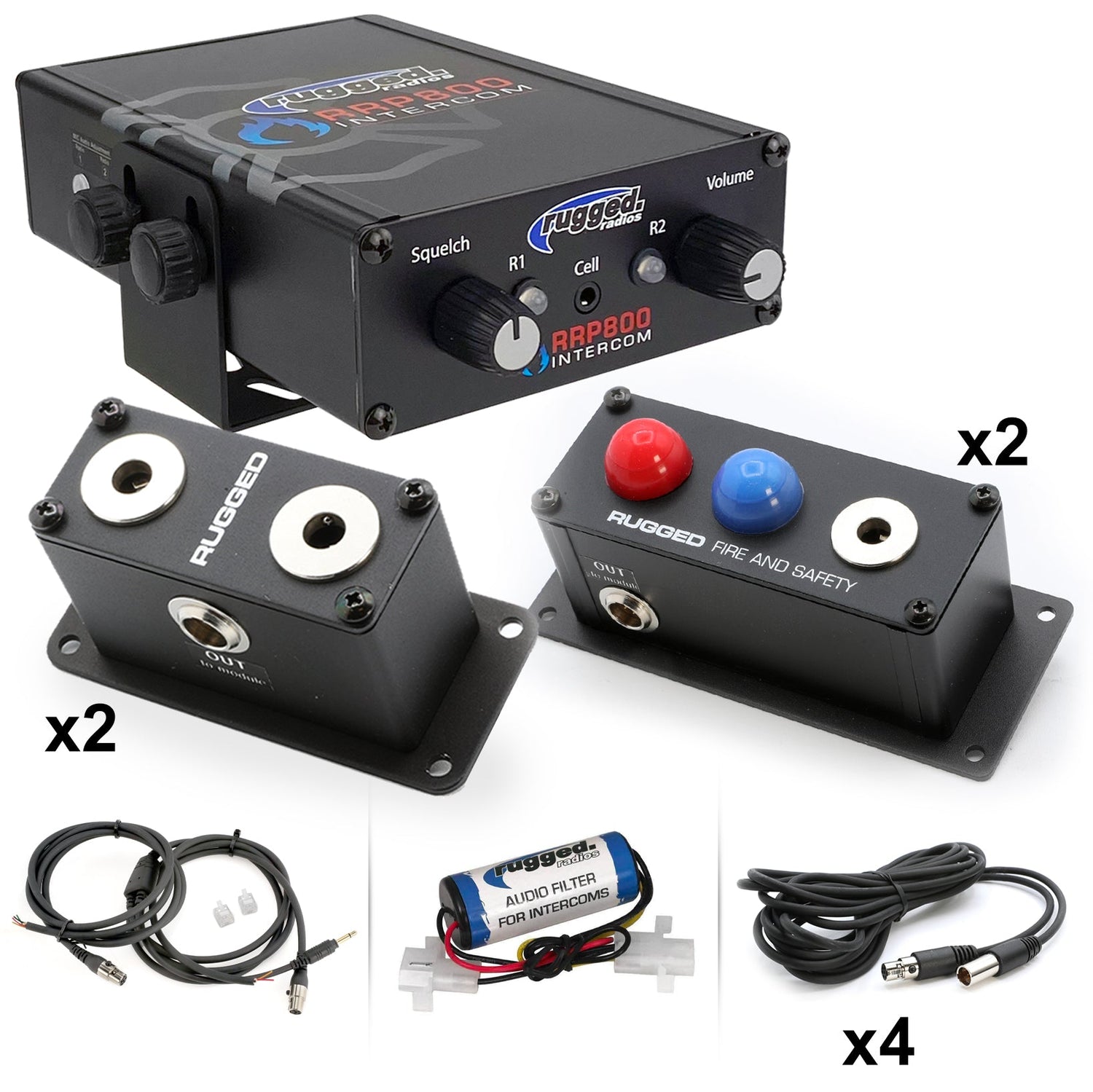

Kit Includes :

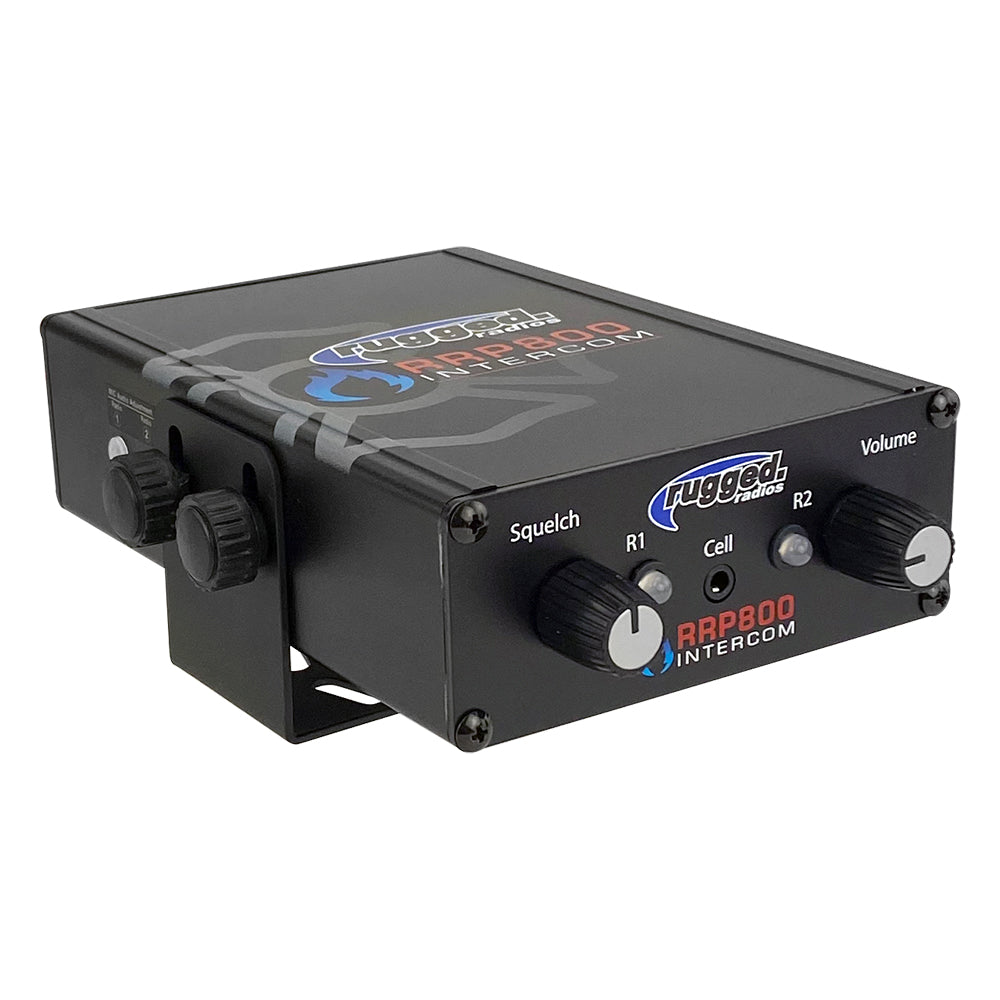

• (1) RRP800 Dual Radio Intercom

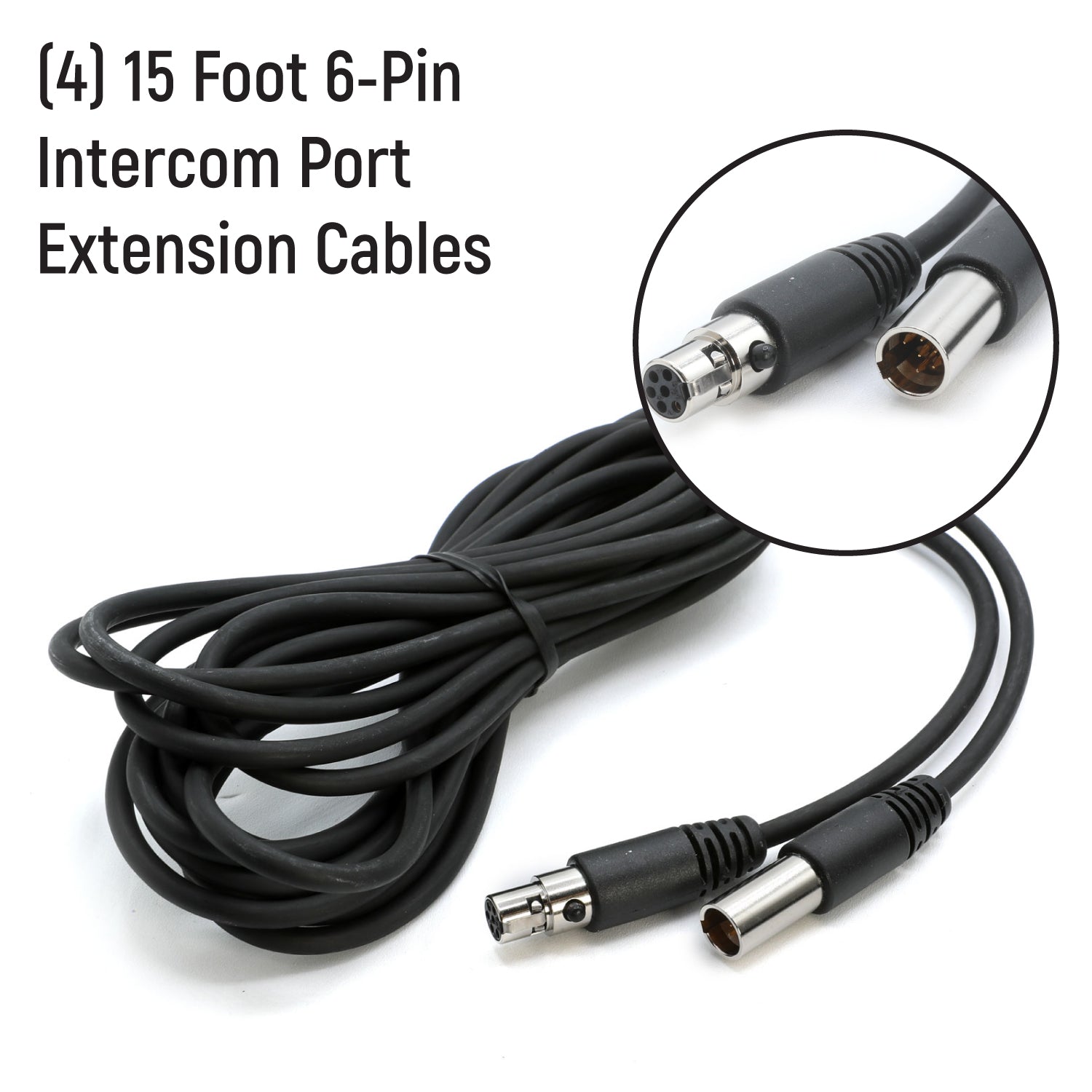

• (4) 15 ft. Quick Lock™ Easy Extension Cables

• (2) Engineer Jack Boxes with Dual Radio Push-to-Talk

• (2) Dual Crew Headset Jack Boxes

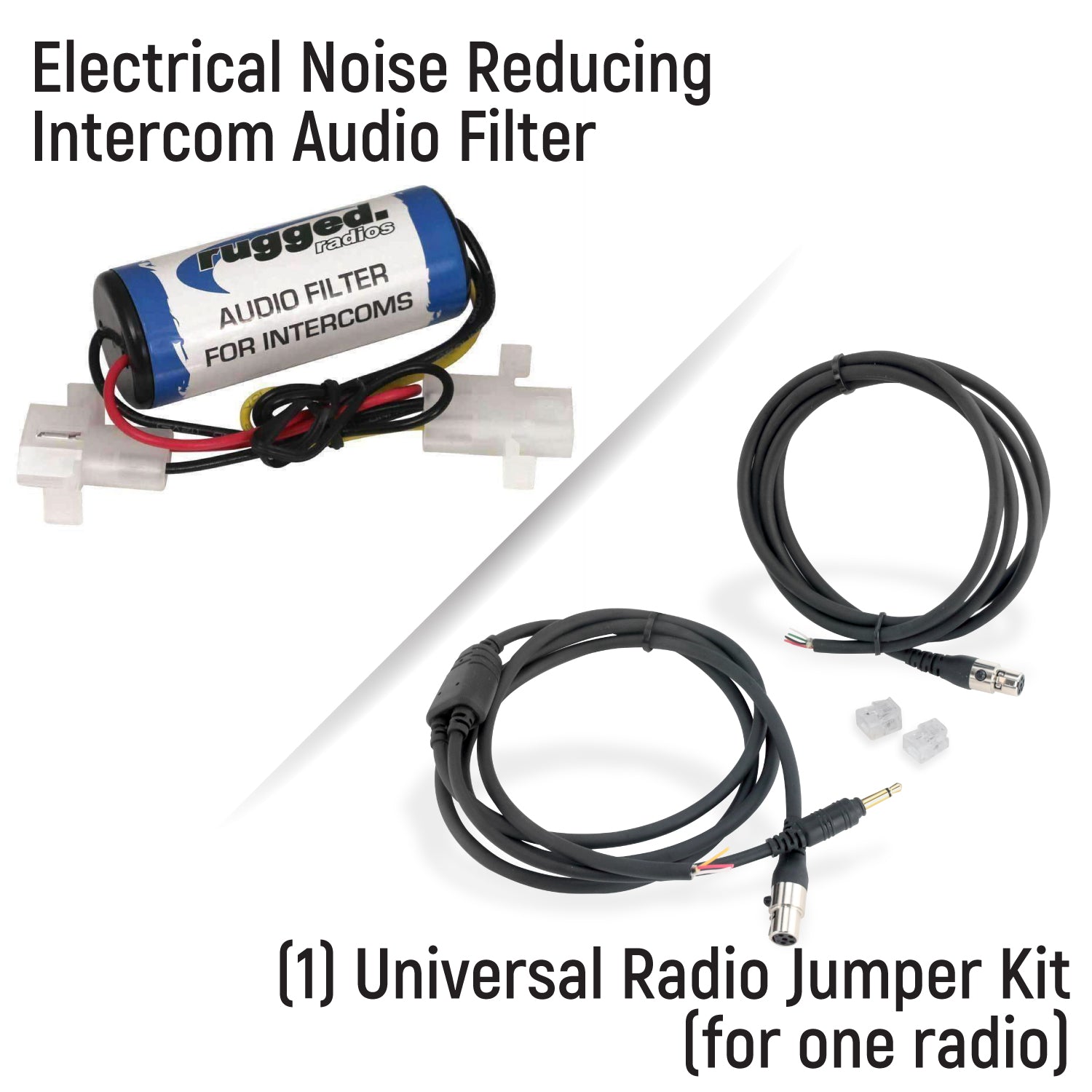

• (1) Universal Radio Jumper Kit (for one radio)
• (1) Inline Electrical Noise Reducing Intercom Audio Filter


The RRP800 is an easy installation with Quick Lock™ connections and plug-and-play design. An included Universal Radio Jumper provides easy connectivity to virtually any mobile radio. With independent mic gain and audio receive gain adjustments, the installer can dial in any radio manufacture’s mic level perfectly for the best audio performance.

Complete your kit with the addition of Rugged Fire / Safety headsets and cables. Compatible with Rugged Radios, Firecomm, David Clark, and Sigtronics headsets using the Nexus 5-conductor TP105 Plug.

The Rugged 800 Intercom Kit is easy to install and performs in the most extreme conditions. Easily expand to your vehicle with Rugged's full range of additional accessories.
