Flashark Intercooler Piping & BOV Kit for 1982-1992 Chevrolet Camaro LS1 Engine Swap — Single Turbo

Flashark Intercooler Piping & BOV Kit — 1982–1992 Chevrolet Camaro (3rd Generation) LS1 Swap, Single Turbo

There's no clean way to plumb an intercooler into a third-gen Camaro LS1 turbo build. The chassis wasn't designed for a front-mount, the radiator support limits core height, and one-size-fits-all piping kits leave you with a pile of couplers and a sawzall. You spend more time fabbing than driving.

This kit solves that. Designed specifically for the 82–92 F-body engine bay with an LS1 swap and a passenger-side turbo, it delivers a full 4" Big Core Bar & Plate intercooler (black, 3" inlet/outlet), four vehicle-specific 3" mandrel-bent 6061 aluminum pipes, 5-ply silicone couplers, and an integrated blow-off valve — no cutting, no guessing, no trips to the welding shop.

The Bar & Plate core is pressure-tested for high-boost single-turbo configurations, and the mandrel-bent 3" piping routes through the tightest chassis constraints without rubbing. All joints are TIG-welded for clean, strong connections. The BOV vents excess boost on throttle lift, protecting your turbo from compressor surge and extending its service life. If your Camaro runs a single turbo on the passenger side, this kit makes the plumbing the easiest part of the build.

Key Features

Vehicle-Specific Mandrel-Bent Piping — Not a universal kit. Four mandrel-bent 3" 6061 aluminum pipes, pre-shaped to route through the 82–92 Camaro engine bay with an LS1 swap. Clears the radiator support, frame rails, and accessory brackets without interference. All bends produced via consistent-diameter mandrel bending — no crush bends, no kinked airflow

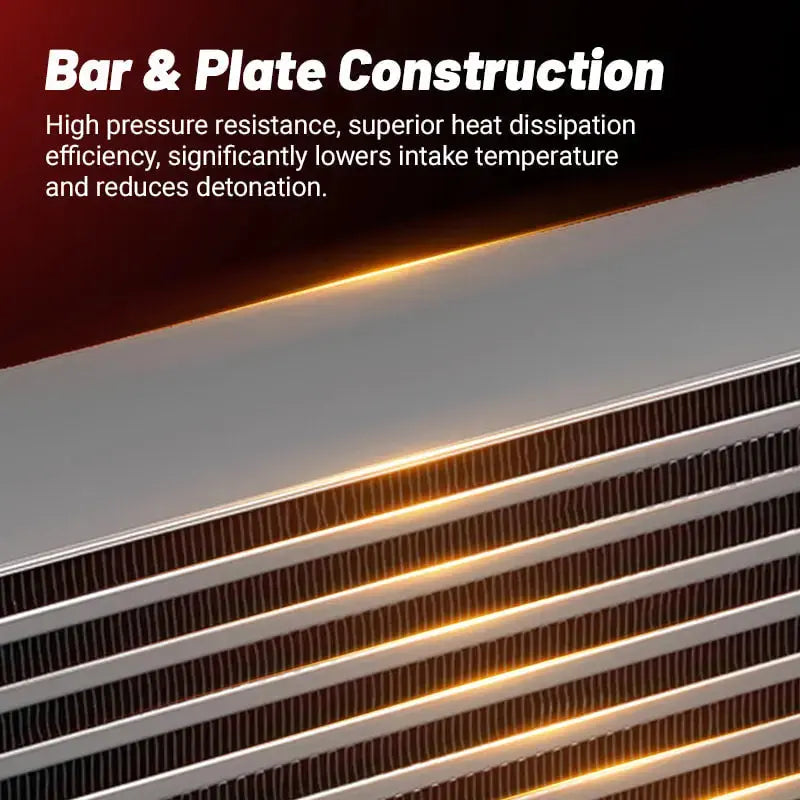

Big Core Bar & Plate Intercooler — Oversized Bar & Plate core with 3" inlet/outlet. Superior heat rejection vs tube-and-fin designs. Handles sustained boost loads and resists road debris damage. Pressure-tested for single-turbo applications up to 30 PSI

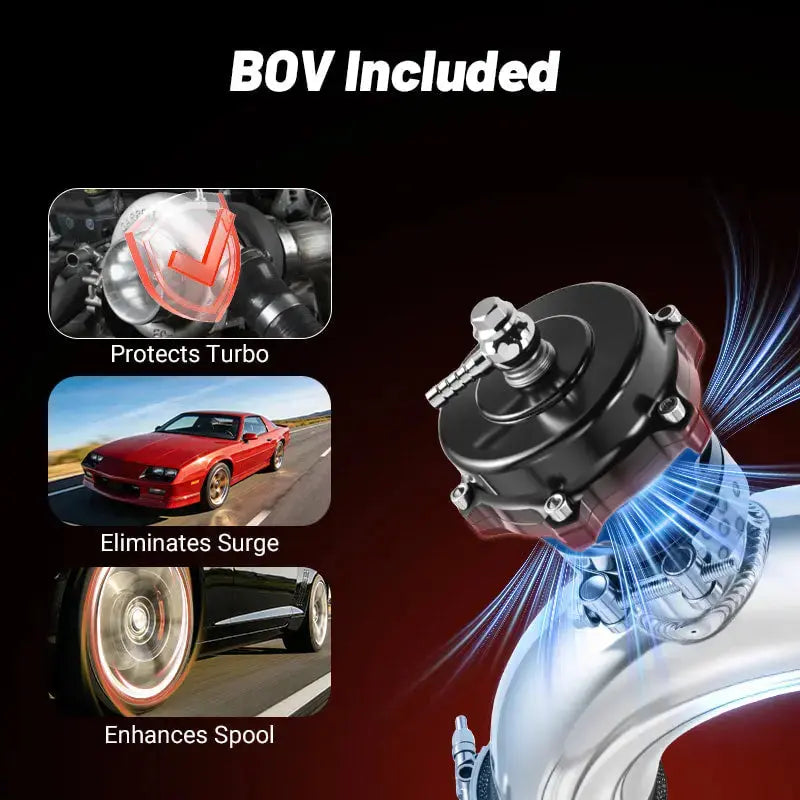

Integrated BOV (Blow-Off Valve) — Vents excess boost pressure on throttle closure to prevent compressor surge and backpressure shock. Includes vacuum line fittings for a clean signal source

TIG-Welded Construction — All pipe joints and end-tank seams are TIG-welded for maximum strength and clean internal weld penetration. No MIG splatter, no porous beads

Bolt-On Installation — Direct fit when the turbo is mounted at the passenger-side front corner. No measuring, cutting, or custom welding required for standard single-turbo layouts

5-Ply Reinforced Silicone Couplers & Stainless T-Bolt Clamps — Six 5-layer reinforced silicone connectors (black) resist ballooning under boost. Twelve stainless steel T-bolt clamps hold torque without cutting into couplers

Specifications

Application: 1982–1992 Chevrolet Camaro (3rd-Gen) with LS1 engine swap, single turbo
Intercooler Core Type: Bar & Plate, 4" Big Core
Intercooler Core Dimensions: Approximately 23.6" × 11.7" × 3" / 600mm × 298mm × 76mm
Intercooler Inlet/Outlet: 3" OD
Piping Material: 6061 aluminum, mandrel-bent
Piping Outer Diameter: 3" (76mm)
Piping Wall Thickness: 2.0mm
Piping Finish: Silver polished
Welding Method: TIG-welded
BOV Type: Spring-loaded atmospheric vent, 50mm flange
BOV Spring Preload: Adjustable (pre-set for 8-10 PSI base — tune for your setup)
Coupler Material: 5-ply reinforced silicone, black
Clamp Type: Stainless steel T-bolt clamps
Packaging: Neutral packaging (no visible logos)
Warranty: 1 Year

Shipping Information

• Delivery Time: 3–5 business days
• Shipping: Free Shipping

Warranty & Return Policy

Duration of Warranty: 1 Year
Return Policy: Items can be returned within 14 days of receipt
Satisfaction Guarantee: "No Hassle" fitment and performance guarantee

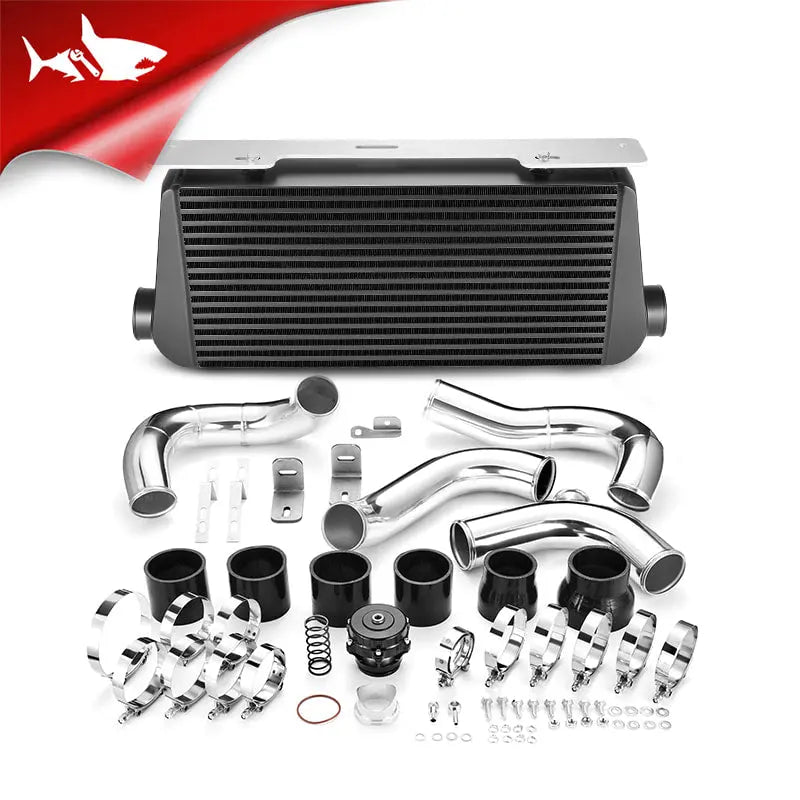

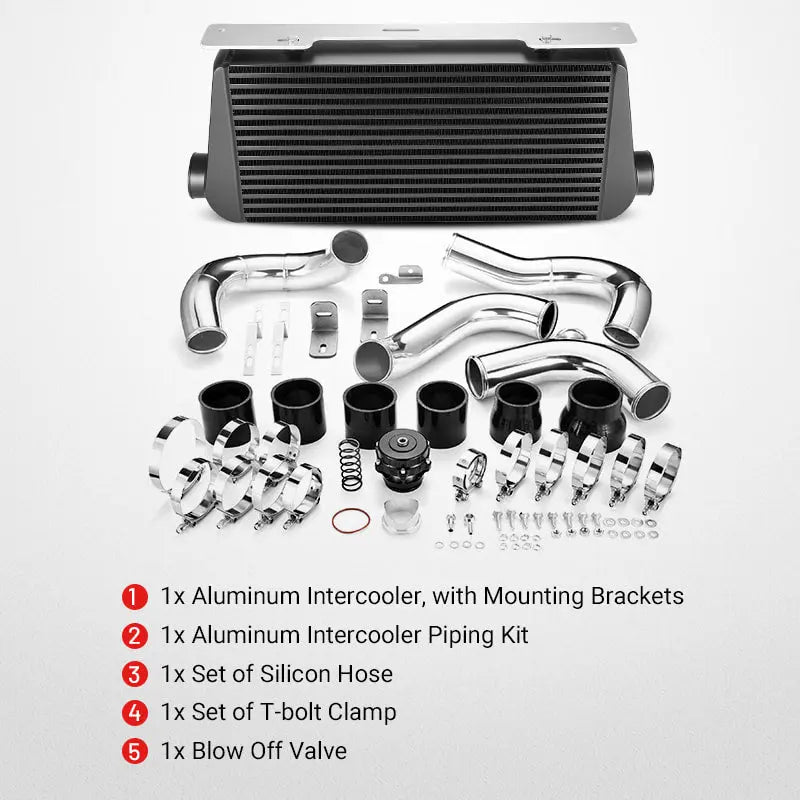

Package Includes

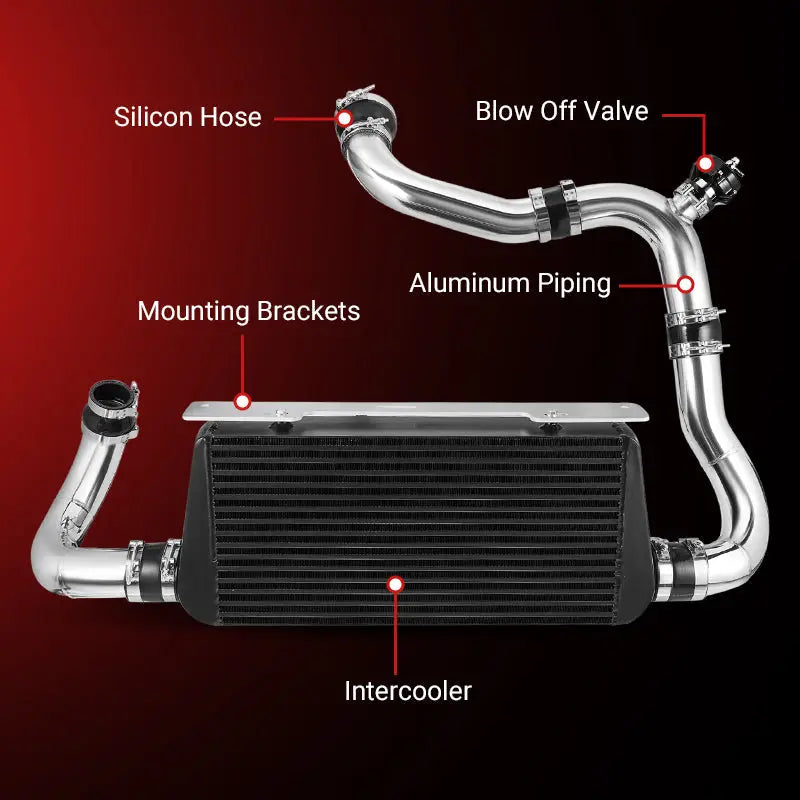

1x Bar & Plate 4" Big Core intercooler (black), with mounting brackets
4x Mandrel-bent 6061 aluminum intake pipes (3" OD, silver polished, TIG-welded)
1x Blow-off valve (BOV)
6x 5-ply reinforced silicone rubber connectors (black)
12x Stainless steel T-bolt clamps
1x Installation hardware kit (gaskets, bolts, brackets)
Not Included: Turbocharger, exhaust manifold, downpipe, wastegate, engine management/tune hardware, oil feed/return lines.

NOTE

• Critical Installation Restriction: Turbo must be mounted at the Very-Far-Corner of the Passenger Side for direct fitment. Non-specified mounting positions require additional custom fabrication or piping modifications.
• Kit Excludes: Turbocharger, Manifold, and Downpipe (not included in this package).
• Professional installation is recommended to ensure optimal fitment and performance, especially for classic car Restomod projects.
