Flashark Intercooler + Piping Kit for 2010–2015 Chevrolet Camaro LS3 V8 (Single Turbo NA-T Swap)

The fifth-gen Camaro LS3 is a monster waiting to happen — but adding a turbo to that 6.2L creates one inescapable problem: heat. Compressed intake air can hit 250°F+ before it ever reaches your cylinders, pulling timing, inviting knock, and turning your turbo build into a det-limited disappointment.

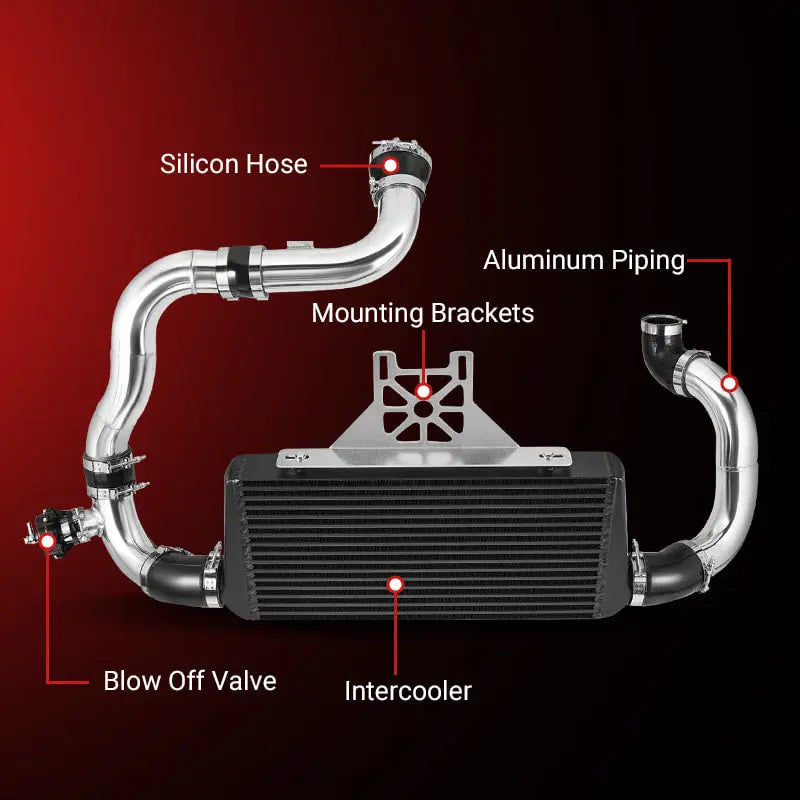

This kit solves it. Designed specifically for the 2010–2015 Camaro SS engine bay with an LS3 and a single turbo mounted at the driver's side front corner, it delivers a complete 3" Big Core Bar & Plate intercooler (black, 3" inlet/outlet), four vehicle-specific 3" mandrel-bent 6061 aluminum pipes (silver polished, TIG-welded), 5-ply black silicone couplers, 12 stainless T-bolt clamps, and an integrated blow-off valve — all while retaining your factory air conditioning.

The Bar & Plate core drops intake air temperatures by 40–60% under load, letting you run more timing and higher boost safely. Mandrel-bent 3" piping routes cleanly through the driver-side frame rail opening to the LS3 throttle body without kinked bends or DIY coupler stacks. If your 5th-gen Camaro is going NA-T with a driver-side single turbo, this kit makes the plumbing the straightforward part of the build.

Key Features

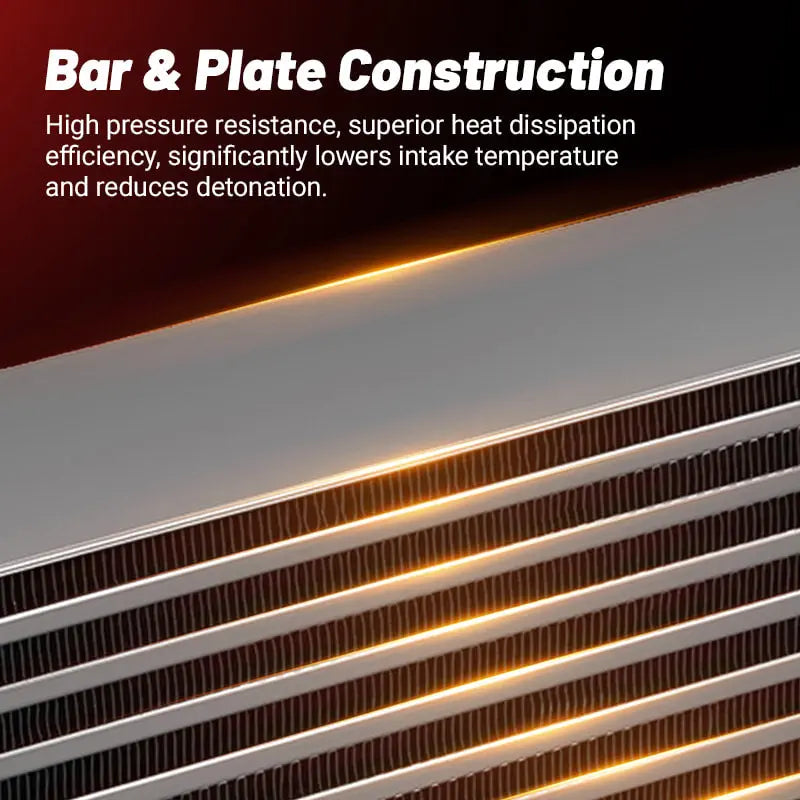

3" Big Core Bar & Plate Intercooler — Black Bar & Plate construction with 3" inlet/outlet. Handles higher boost pressure and road-debris impacts better than tube-and-fin. Pressure-tested for single-turbo configurations up to 800 WHP on the LS3 platform

Vehicle-Specific Mandrel-Bent Piping — Four 3" 6061 aluminum pipes, pre-shaped for the 2010–2015 Camaro engine bay with an LS3 swap and driver-side turbo. Mandrel-bent for consistent internal diameter — no crush bends, no turbulence. Silver polished finish

AC-Retained Design — Mounting brackets engineered around the factory AC compressor. No removal, no delete, no rerouting. Your Camaro stays a real street car

TIG-Welded Construction — All pipe joints and end-tank seams are TIG-welded. Clean penetration, strong beads. No MIG splatter, no porous joints that crack under vibration and heat cycling

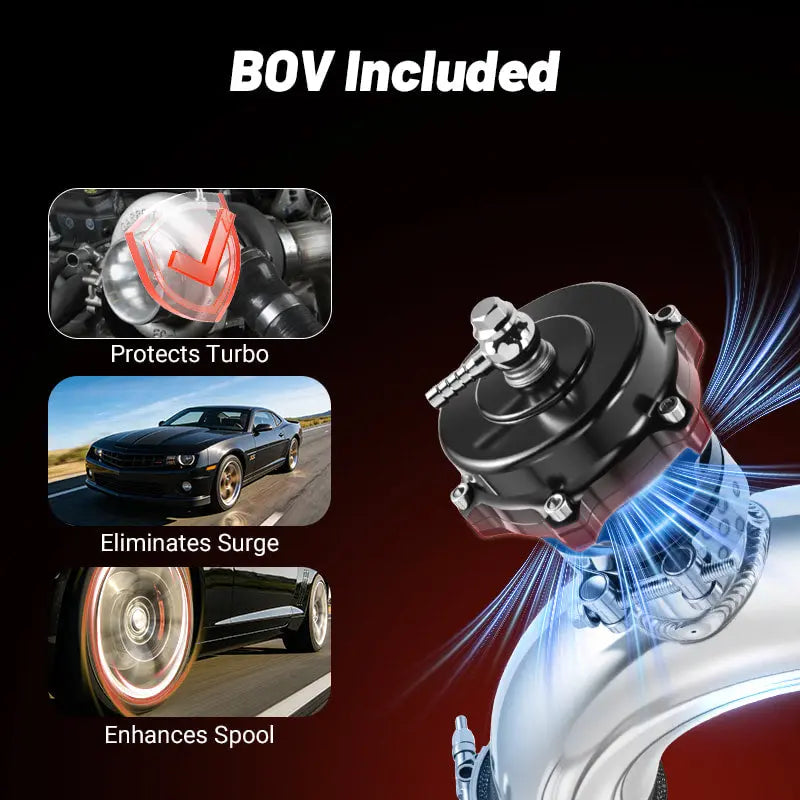

Integrated 50mm BOV — Spring-loaded blow-off valve vents excess boost on throttle closure, protecting your turbo from compressor surge. Adjustable spring preload. Vacuum line and fittings included

5-Ply Reinforced Silicone Couplers & T-Bolt Clamps — Six 5-layer black silicone connectors resist ballooning under big boost. Twelve stainless T-bolt clamps deliver a uniform clamping force that worm-drive clamps can't match

Complete Bolt-On Kit — No measuring, no cutting, no welding shop. Direct fit when the turbo is mounted at the driver's side front corner. Includes all installation hardware

Specifications

Brand: Flashark
Application: 2010–2015 Chevrolet Camaro (5th Generation) with LS3 V8 engine, single turbo NA-T swap
Intercooler Core Type: Bar & Plate, 3" Big Core
Intercooler Inlet/Outlet: 3" OD
Intercooler Finish: Black
Piping Material: 6061 aluminum, mandrel-bent
Piping Outer Diameter: 3" (76mm)
Piping Wall Thickness: 2.0mm
Piping Finish: Silver polished
Welding Method: TIG-welded
BOV Type: Spring-loaded atmospheric vent, 50mm flange
BOV Spring Preload: Adjustable
Coupler Material: 5-ply reinforced silicone, black
Clamp Type: Stainless steel T-bolt clamps
Turbo Placement Requirement: Driver's side front corner
AC Compatibility: Retains factory air conditioning
Installation: Direct bolt-on
Warranty: 1 Year

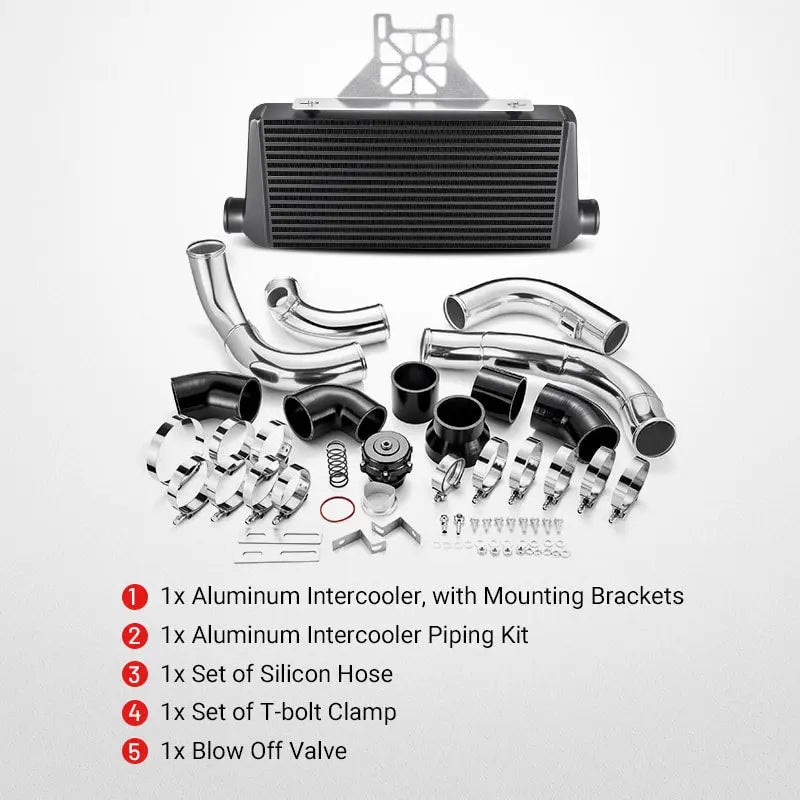

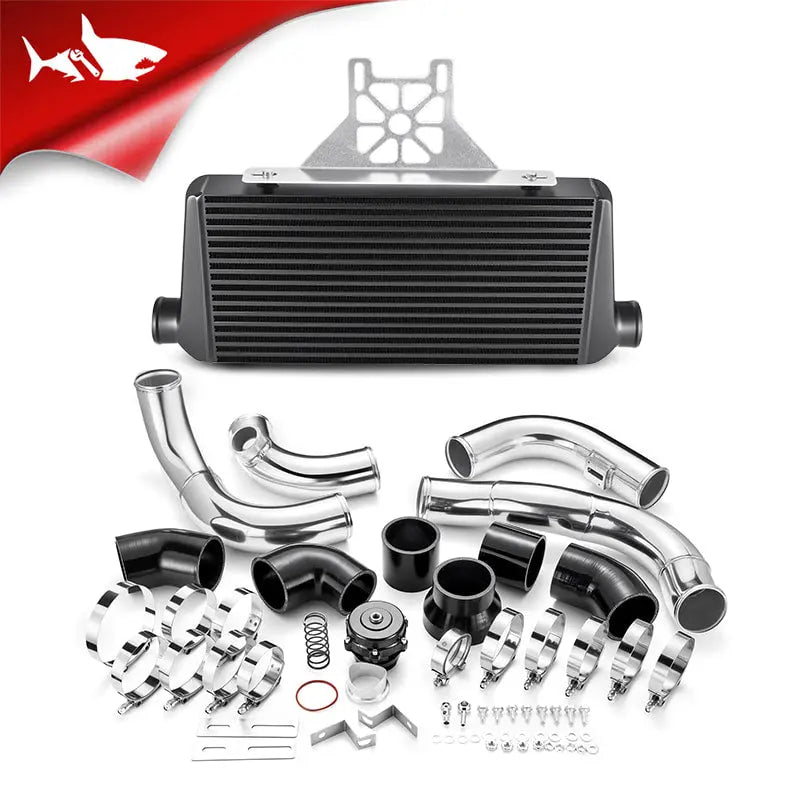

Package Includes

1x Bar & Plate 3" Big Core intercooler, with mounting brackets
4x Mandrel-bent 6061 aluminum intake pipes
1x 50mm blow-off valve
6x 5-ply reinforced silicone rubber connectors
12x Stainless steel T-bolt clamps
1x Installation hardware kit

Not Included: Turbocharger, exhaust manifold, downpipe, wastegate, fuel system upgrades (injectors, fuel pump), ECU tuning hardware. This is the intercooler and piping kit only.
