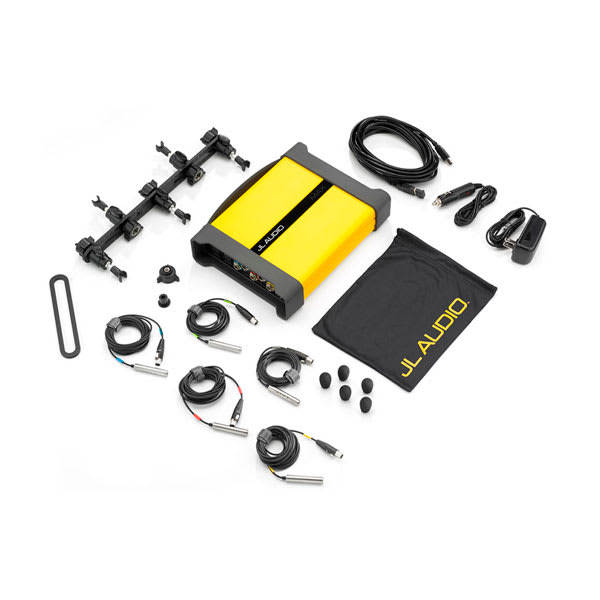

Garmin MAX Audio Measurement System Kit
Garmin MAX Audio Measurement System Kit is backordered and will ship as soon as it is back in stock.
Buy with confidence
Verify fitment, selected options, availability and included components before checkout. Secure payment options and order confirmation are provided at checkout.
Description
Description

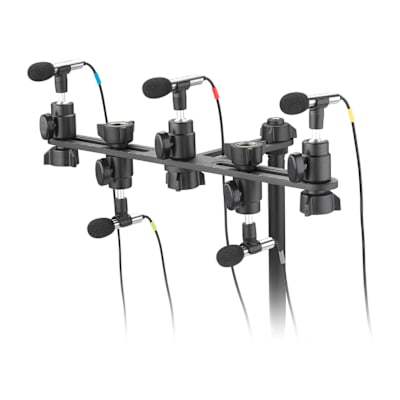

Unlock acoustic precision with the Garmin MAX audio measurement system, a dual FFT diagnostic powerhouse engineered to tune, test, and troubleshoot any sound setup. With a 5-microphone array and real-time TüN 4 software integration, dialed-in soundstage perfection is just moments away.

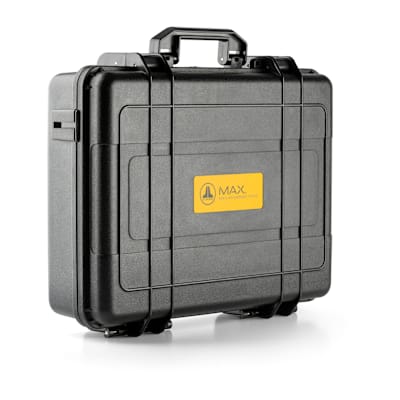

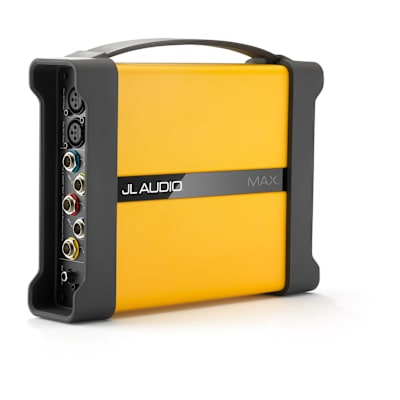

Equipped with an array of analog, digital, and high-level inputs alongside a built-in signal generator, it effortlessly conquers complex car, marine, and home audio environments. Everything packs cleanly into a rugged waterproof hard case, giving you studio-grade analysis anywhere you listen.
| Brand | Garmin |
| Product Type | Audio Measurement System |
| Model | MAX-KIT |
| MPN | 010-03028-00 |
| Product Weight | 12 lb |
| Power Supply | 12 VDC nominal (10-15 VDC range) |
| Microphone Type | 1/4", pre-polarized electret (omnidirectional) |
| Microphone Count | 5 |
| High-level Inputs | XLR (Pin 1-GND, Pin 2-Signal +, Pin 3-Signal -) |
| Mic Inputs | Mini-XLR (Pin 1-GND, Pin 2-Signal +, Pin 3-2 VDC) |
| Reference Input | RCA Female (Center Pin-Signal +, Shell-Signal –) |
| Digital Input | Optical TOSLINK (S/PDIF, 8 kHz-216 kHz, 8-24 bit PCM) |
| DAC Output | Unbalanced RCA |
| Digital Output | Optical TOSLINK (S/PDIF, 44.1 kHz-96 kHz, 24 bit PCM) |
| Microphone Maximum SPL | 130 dB SPL @ 1 kHz with ≤ 2% THD |
