DS18 G700.2D GEN-X Full-Range Class D 2-Channel Amplifier 700 Watts
Introducing DS18's G700.2D — the ultimate power solution for car audio enthusiasts who demand nothing but the best. We understand what drives competitors to create their dream audio system, that's why we designed the G700.2D to be the heart and soul of your setup, guaranteeing unwavering performance that will never let you down.
Innovation takes center stage with the G700.2D, as it employs cutting-edge Class D circuitry components that are significantly smaller than conventional amplifiers. This compact design not only saves precious space in your vehicle but also maximizes power output, providing a remarkable combination of size and performance.

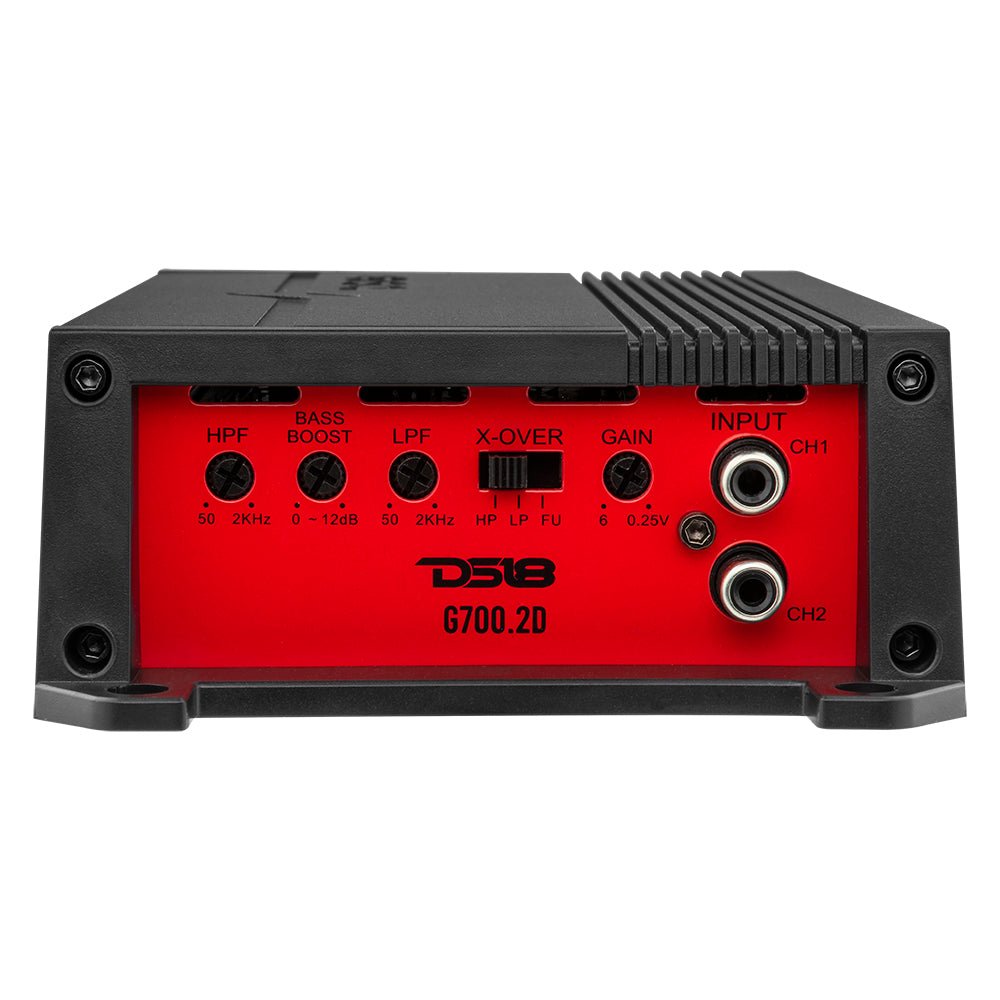

The G700.2D comes equipped with a variable full crossover filter, enabling you to achieve crystal-clear audio tailored to your exact preferences. With fully adjustable High Pass, Low Pass, and Full Filters at your fingertips, you have complete control over your sound, allowing you to sculpt a listening experience that resonates with your unique style.
We know that seamless integration is essential, which is why the G700.2D features High-Level Input Compatibility for direct signaling to your radio unit. Even more, our surface mount component technology empowers you to unleash your creativity by offering unprecedented freedom in the placement and design of your build. This makes installation a breeze, effortlessly harmonizing with your factory system without sacrificing performance.

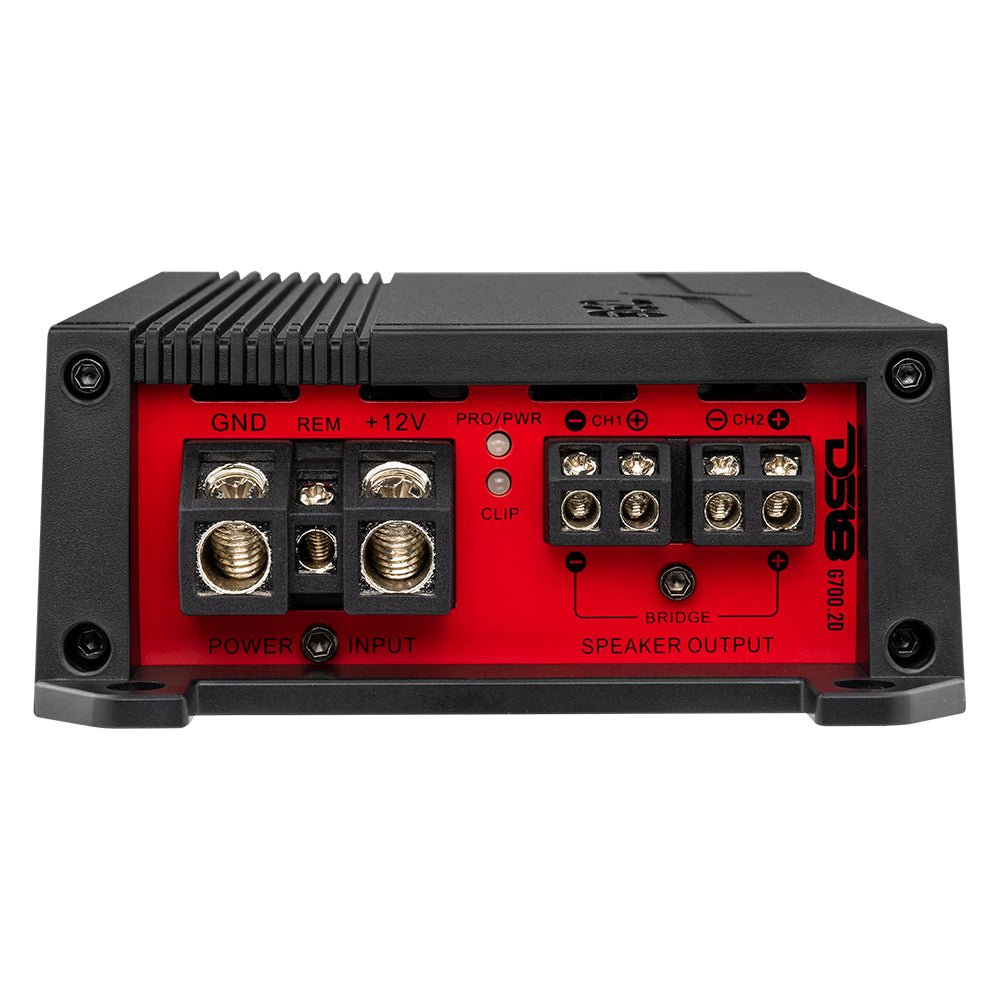

Safeguarding your investment has never been easier, equipped with Protection, Clipping, and Power Indicator LED's, the G700.2D keeps you informed, alerting you when it reaches its limits. And with a power output of 360W x 1 CH bridged at 4-ohms, 180W x 2 CH at 2-ohms, and 100W x 2 CH at 4-ohms, you’re going to need as much protection as you can get.
Highlights
- Small and Powerful Design so you can power your subs with great efficiency and power without taking up much space
- High quality 4GA Power and Ground terminals that look great and will transfer your power and signal with no loss
- High level input for easy factory integration
- LED Clip Indicator for easier adjustment
- Stable and Reliable Class D Circuit Design
- Sound Quality Verification Using AP Instruments
- Direct Insert Power and Speaker Terminals
- Short Circuit, Thermal, and Voltage Protection
Great For
- Car Audio
- Pro Audio
- Motorcycles
- Home Studio
- Hi-Fi Installation
- Off-Road
- DIY Projects
Technical Details
| POWER | |
| Total Watts (Peak) | 700W |
| RMS Power @ 4 ohm | 2 x 100W |
| RMS Power @ 2 ohm | 2 x 180W |
| RMS Power @ 1 ohm | - |
| RMS Power @ 4 ohm Bridge | 1 x 360W |
| AUDIO | |
| Frequency Response | 20Hz-20Khz |
| Signal to Noise Ratio | >90dB |
| Efficiency @ 4ohm | 0.94 |
| Damping Factor | 78 |
| Input Impedance | 22K |
| Channel Separation | 55dB |
| Total Harmonic Distortion (THD) | 0.0001 |
| Low Level Input Range | 0.25-6V |
| High Level Input | No |
| Selectable X-Over | LPF/FLAT/HPF |
| X-Over Filter Range | 50Hz-2KHz |
| Bass Boost Range | 0-12dB |
| Bass Boost Frequency | Fixed @ 45Hz |
| Infrasonic Filter | No |
| Phase Selector | No |
| FEATURES | |
| Amplifier Class | Digital (D) |
| Amplifier Type | Full Range |
| Number of Channels | 2CH |
| Minimum Impedance | 2ohm St / 4ohm Bridge |
| Led Indicator | Power / Protection / Clip |
| Power Input Terminal Size | 4ga |
| Fuse Size | 2 X 20A |
| Remote Level Control | No |
| Cooling Fan | No |
| Voltmeter | No |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes |
| Clipping Protection | Yes |
| Body Color / Finish | Matte black |
| MEASUREMENT | |
| Overall Length | 8.1" / 205mm |
| Overall Wide | 4.72" / 120mm |
| Overall Height | 1.96" / 50mm |
| Heatsink Length | 6.2" / 158mm |
| Gross Single Unit Weight | 1.2KG |
