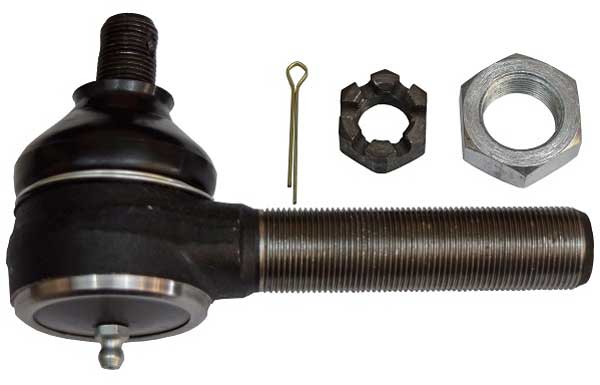

GM 1 Ton Tie Rod End ES2234R Right Hand

Our GM 1-ton tie rod ends are manufactured to be of the highest quality. Barnes 4WD tie rod ends also go above and beyond when it comes to articulation. Our new and improved tie rod ends offer a wider range of movement than your typical parts store rod end. While maintaining all the factor specs of a GM 1-ton tie rod end. The range of motion of the standard ends are now equaled to the range of motion of our high angle tie rod end (Part # ES2026RN). For the end user this means no more reaming is necessary at the pitman arm. Saving both time and money! Thread shank size is 7/8-18. The threaded stud is 5/8 -18 with a taper of 7°. Great for steering upgrades or replacing worn parts, these are sold individually and include a jam nut.
