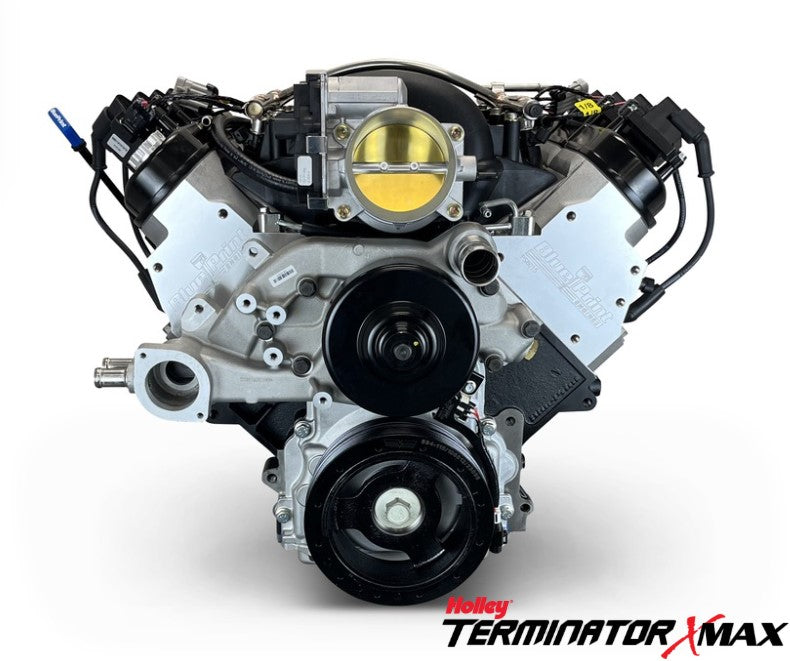

GM LS Compatible 376 c.i. Engine and TKX Manual Transmission - 530 Horsepower - Standard Edition Builder Series - Holley Terminator X EFI System
GM LS Compatible 376 c.i. Engine and TKX Manual Transmission - 530 Horsepower - Standard Edition Builder Series - Holley Terminator X EFI System is backordered and will ship as soon as it is back in stock.
Shipping & delivery
Usually ships in 2–3 business days unless a different lead time is shown on this page. Shipping cost is calculated at checkout (UPS or USPS to the contiguous U.S.).
Shipping policy · Returns · Fitment questions? (561) 207-7988
Delivery and Shipping
Delivery and Shipping
Standard order processing is 2–3 business days unless this product or your order confirmation states a different lead time. Custom-built, made-to-order, backorder, and pre-order items follow their stated lead times.
Enclosures and subwoofer boxes ship for $50 per unit. Other shipping charges are calculated at checkout. Orders outside the contiguous 48 United States may require additional shipping; we will contact you for approval before shipment.
Subwoofer boxes ship UPS Ground where available. Read our Shipping Policy and Return and Refund Policy for delivery, product-specific return windows, and warranty details.
GM LS Compatible 376 c.i. Engine and TKX Manual Transmission - 530 Horsepower - Standard Edition Builder Series - Holley Terminator X EFI System is backordered and will ship as soon as it is back in stock.
Description
Description
Description:
- Horsepower & Torque: 530 Horsepower / 495 ft. lbs. Torque
- Compression Ratio: 10.7:1
- BluePrint Engines Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Hypereutectic Pistons
- Nodular Iron Crankshaft
Block:
- BluePrint Engines High Strength Cast Iron (LSX Style) Block
- Increased Deck Thickness and Strength Webbing
- Utilizes OEM LS3 Front and Rear Covers
- Improved Water Jacket Design
- Extended Cylinder Skirt
- 1-Piece Rear Main Seal
- Priority Main Oiling
- 6-Bolt Main
Rotating Assembly:
- Nodular Iron Crankshaft
- 3.622" Stroke
- 6.098" Connecting Rods w/ 150,000 PSI Bolts
- Hypereutectic Pistons
- Internally Balanced Front and Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads - PS8015
- 72cc Chamber
- 2.165" Intake / 1.600" Exhaust Valves
- 259cc Intake / 102cc Exhaust Runners
Cam Specs:
- Hydraulic Roller Cam
- .612 Intake / .585 Exhaust Lift
- 225 Intake / 238 Exhaust Duration
- @.050-113 Degree Lobe Separation, 110 ICL
Holley Terminator X Max Specific Features and Benefits:
- Real Time Fuel Map Learning Simplifies Tuning by Dynamically Adjusting the Base Fuel Rate
- On Board Bosch LSU 4.9 Wideband Control, Enabling Accurate AFR Readings and Closed Loop Tuning
- Eight High Impedance Injector Drivers, Ideal for Stock LS Injectors and Holley EFI Injectors
- Integrated 1-Bar MAP Sensor for Naturally Aspirated or Nitrous Setups, with Harness Support for External Higher Bar Sensors if needed
- 4 Configurable Inputs (12V, Ground, 5V, Frequency) and 2 Outputs (Ground, PWM) - Ideal for Electric Fans, Boost Control Solenoids, Nitrous Control and more
- Free PC Tuning Software via USB/CAN Interface for Full Laptop Control and Advance Setup
- Integrated 3.5" Touchscreen Handheld with Setup Wizard, Internal Data Logging, and Real Time Gauge Displays
- Terminator X Max ECU will Include a Base Timing Map Pre-Configured for this engine
Also Includes:
- BluePrint Engines Fuel Injectors and Rail
- Low Profile Swap Oil Pan - BPP81073
- DBW Throttle Body - BPP12191019
- Water Pump - BPPLS126WP
- Loaded Intake Manifold
- Spark Plugs and Wires
- Harmonic Balancer
- Coil Packs
Assembled with Complete TKX Five Speed Transmission Package:
- Mcleod Super Street Pro Twin Disc Clutch
- Hydraulic Throw Out Bearing
- Bell Housing
- Billet Flywheel
- Starter
- First Gear Ratio: 2.87:1
- Second Gear Ratio: 1.89:1
- Third Gear Ratio: 1.28:1
- Fourth Gear Ratio: 1.00:1
- Fifth Gear Ratio: 0.81:1
Notes:
- This Holley EFI Equipped engine has a fully calibrated ECU by BluePrint Engines. Please DO NOT follow the Holley EFI manual for the calibration of the ECU.
- BluePrint Engines Recommends Air Intake Kit BPPLS01013 to ensure correct MAF calculations and Dyno calibration are maintained with the above ECU / tuning.
- Engine/Trans Package Ships assembled
